Alpina A 375 Petrol Chainsaw User Manual

1. Bubuka

This manual provides comprehensive instructions for the safe and efficient operation, assembly, and maintenance of your Alpina A 375 petrol chainsaw. Please read this manual thoroughly before using the chainsaw to ensure proper handling and to prevent injury or damage to the equipment. Keep this manual in a safe place for future reference.

Fitur konci:

• Equipped with a 37.2 cc (1.20 KW / 1.63 HP) 2-stroke engine.
• Features a 35 cm (14-inch) bar and 3/8-inch chain.
• Automatic and adjustable oil pump for chain lubrication.
• Front chain tensioner for easy adjustments.
• Enhanced safety with an anterior handguard.
• Reduced vibrations for operator comfort and less arm fatigue.

2. Émbaran Kasalametan

WARNING: Chainsaws can be dangerous if used improperly. Always follow safety guidelines to prevent serious injury or death.

Aturan Kasalametan Umum:

• Baca sakabéh manual: Ngartos sagala parentah jeung warnings saméméh operasi.
• Alat Pelindung Diri (APD): Always wear appropriate safety gear including a helmet, eye protection, hearing protection, heavy-duty gloves, safety trousers, and safety boots.
• Penanganan BBM: Mix and refuel in a well-ventilated area, away from ignition sources. Do not smoke.
• Pencegahan Kickback: Be aware of the risk of kickback. Hold the chainsaw firmly with both hands. Avoid cutting with the tip of the guide bar.
• Wewengkon Gawé: Ensure a clear work area. Keep bystanders, children, and pets at a safe distance (at least 10 meters).
• Stabilitas: Ngajaga footing teguh sarta kasaimbangan. Ulah overreach.
• Pamariksaan: Before each use, inspect the chainsaw for loose parts, damage, or wear. Ensure the chain brake is functional.
• Kaayaan cuaca: Do not operate in bad weather conditions, such as strong winds, rain, or snow.
• Pitulung mimiti: Have a first aid kit readily available and know how to use it.

3. komponén Leuwihview

Familiarize yourself with the main parts of your Alpina A 375 chainsaw. Refer to the images below for visual identification.

Gambar 3.1: Pinuh view of the Alpina A 375 Petrol Chainsaw, showcasing the engine housing, handle, and guide bar with chain.

angka 3.2: Tutup-up view of the chainsaw's control panel, including the throttle trigger, safety lock, and start/stop switch.

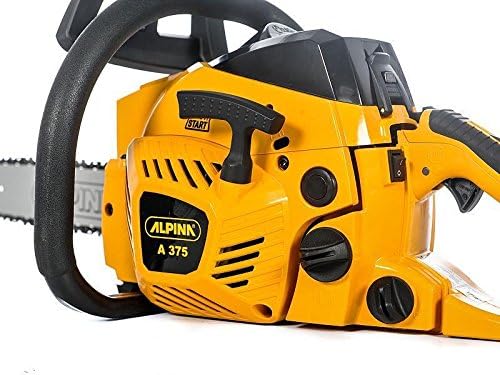

Gambar 3.3: Sisi view of the Alpina A 375 engine, showing the fuel and oil caps, and the chain tensioning mechanism.

4. Setup jeung Majelis

4.1 Ngabongkar bungkusan sareng Inspeksi Awal

Carefully remove all components from the packaging. Check for any signs of damage during transit. Ensure all parts listed in the packing list are present.

4.2 Guide Bar and Chain Assembly

1. Teundeun gergaji dina tempat anu datar sareng stabil.
2. Cabut panutup ranté ku cara ngaleupaskeun dua murna.
3. Mount the guide bar onto the studs, ensuring the chain tensioner pin fits into the hole on the guide bar.
4. Carefully place the chain around the sprocket and into the guide bar groove. Ensure the cutting edges of the chain are facing the correct direction (refer to the arrow on the guide bar).
5. Ganti panutup ranté jeung leungeun-tighten kacang. Ulah pinuh tighten acan.

4.3 Fuel and Chain Oil

IMPORTANT: This is a 2-stroke engine. It requires a mixture of unleaded petrol and 2-stroke engine oil. Never use pure petrol or automotive oil.

• Campuran bahan bakar: Mix unleaded petrol with high-quality 2-stroke engine oil at the ratio specified by the manufacturer (typically 1:50 or 2%). Use a clean fuel mixing container.
• Minyak ranté: Fill the chain oil tank with specialized chainsaw chain lubricant. Do not use waste oil or motor oil.
• Ensure both tanks are filled before starting the chainsaw.

4.4 Tegangan Rantai

Proper chain tension is crucial for safe and efficient operation. The chain should be snug against the guide bar but still able to be pulled around by hand. There should be no slack on the underside of the guide bar.

1. With the chain cover nuts slightly loose, use the front tensioner screw to adjust the chain tension.
2. Once the correct tension is achieved, fully tighten the chain cover nuts.
3. Re-check chain tension after the first few cuts, as new chains can stretch.

5. Parentah Operasi

5.1 Ngahurungkeun Mesin (Ngahurungkeun Tiis)

1. Tempatkeun gergaji mesin dina permukaan anu datar sareng teuas. Pastikeun rem ranté parantos diaktipkeun.
2. Pencét bohlam primer sababaraha kali dugi suluh katingali.
3. Setel uas cuk ka posisi cuk pinuh.
4. Pull the starter cord firmly until the engine fires (usually a few pulls). Do not pull the cord to its full extension.
5. Once the engine fires, immediately push the choke lever to the half-choke position.
6. Pull the starter cord again until the engine starts and runs.
7. Allow the engine to warm up for a few seconds, then push the choke lever to the run position.
8. Pencet gas sakeudeung pikeun ngaleupaskeun mesin tina idle gancang.

5.2 Ngahurungkeun Mesin (Ngahurungkeun Dina Waktos Haneut)

1. Pastikeun rem ranté aktip.
2. Set the choke lever to the run position.
3. Tarik ari starter nepi ka mesin dimimitian.

5.3 Téhnik motong

WARNING: Always be aware of potential kickback and falling objects. Plan your cuts carefully.

• Tebang: For felling trees, always assess the direction of fall, clear the area, and make proper felling cuts (notch and felling cut).
• Limbing: Remove branches from a fallen tree. Work from the base towards the top, supporting the log to prevent pinching.
• Bucking: Cutting a fallen log into shorter sections. Use wedges if necessary to prevent the saw from pinching.
• Always keep both hands on the chainsaw handles and maintain a firm grip.

5.4 Ngeureunkeun Mesin

Pikeun ngeureunkeun mesin, cukup pencét saklar eureun ka posisi 'OFF'.

6. Pangropéa

Pangropéa rutin ngajamin umur panjang sareng operasi anu aman tina chainsaw anjeun.

6.1 Pangropéa poean

• Ngabersihan saringan hawa.
• Pariksa sareng bersihan alur guide bar sareng liang oli.
• Pariksa tegangan sareng ketajaman ranté.
• Clean the cooling fins on the engine.
• Pariksa rem ranté pikeun fungsina anu leres.

6.2 Pangropéa périodik

• Asah ranté: Ngasah ranté rutin ngagunakeun buleud file diaméterna bener (tingali spésifikasi ranté).
• Busi: Pariksa sareng bersihan busi. Ganti upami tos aus atanapi kotor.
• Filter bahan bakar: Pariksa sareng bersihan atanapi gentos saringan bahan bakar.
• Penyesuaian karburator: If the engine runs poorly, the carburetor may need adjustment. This should ideally be done by a qualified service technician.

7. Cara ngungkulan

This section addresses common issues you might encounter with your Alpina A 375 chainsaw.

8. Spésifikasi Téknis

9. Garansi jeung Rojongan

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Alpina customer service directly. Keep your proof of purchase for any warranty claims.
