WAC Lighting DS-WD06-F27A-WT 6-Inch Double Side Tube Arch Wall Mount User Manual

1. Bubuka

This manual provides detailed instructions for the installation, operation, and maintenance of your WAC Lighting DS-WD06-F27A-WT 6-Inch Double Side Tube Arch Wall Mount. This fixture is designed for optimal performance and durability, featuring double-sided illumination with high lumen output and excellent color consistency. It is suitable for wet locations and is Energy Star rated.

Figure 1.1: WAC Lighting DS-WD06-F27A-WT Double Side Tube Arch Wall Mount in White.

2. Émbaran Kasalametan

Please read all instructions carefully before installation and use. Failure to do so may result in electric shock, fire, or other hazards that could cause injury or property damage.

• Always disconnect power at the circuit breaker before installing, servicing, or cleaning this fixture.
• Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni luyu sareng sadaya kode listrik lokal.
• Mastikeun beungeut ningkatna bisa ngarojong beurat fixture nu.
• Do not attempt to modify the fixture. Any modifications will void the warranty and may create safety hazards.
• This fixture is rated for 120 Volts. Ensure your power supply matches this requirement.

3. Eusi Paket

Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:

• 1 x WAC Lighting DS-WD06-F27A-WT Wall Mount Fixture
• Pemasangan Hardware (screws, mur kawat, dll.)
• Pituduh Instalasi (dokumén ieu)

4. Setup jeung Instalasi

This fixture is designed for wall mounting with a protruding fixture type. Professional installation is recommended due to electrical connections.

4.1 Léngkah-léngkah Pra-Pamasangan

1. Pareuman kakuatan dina pemutus sirkuit utama.
2. Carefully unpack the fixture and inspect for any damage.
3. Review the dimensional drawings to ensure proper placement and clearance.

Figure 4.1: Dimensional drawings for various WAC Lighting Tube Architectural Wall Mount models, including DS-WD06.

4.2 Masangkeun fixture

1. Gantelkeun bracket ningkatna kana kotak simpang ngagunakeun screws disadiakeun.
2. Make electrical connections: Connect the fixture's black wire to the supply's black wire (Live), the fixture's white wire to the supply's white wire (Neutral), and the fixture's ground wire to the supply's ground wire. Secure connections with wire nuts.
3. Taliti keun sadaya kawat kana kotak simpang.
4. Align fixture jeung bracket ningkatna tur aman eta di tempat ngagunakeun screws disadiakeun.

4.3 Light Direction and Beam Pattern

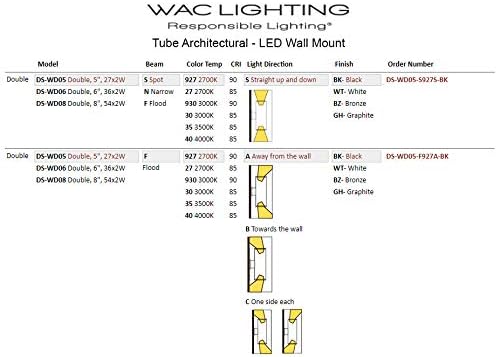

The DS-WD06-F27A-WT model provides double-sided illumination, projecting light both upwards and downwards. This specific model is designed for light projection 'Away from the Wall'.

Figure 4.2: Illustration of the double-sided light beam pattern.

5. Parentah Operasi

Once installed and power is restored, the WAC Lighting DS-WD06-F27A-WT operates via a standard wall switch or compatible dimmer. The fixture features a push-button controller type, typically integrated into the dimming system.

• Hurungkeun/Pareuman: Use the wall switch connected to the fixture's circuit.
• Dimming: This fixture is dimmable from 100% down to 10%. Use a compatible LED dimmer switch for optimal performance. Consult a qualified electrician if unsure about dimmer compatibility.

6. Pangropéa

The WAC Lighting DS-WD06-F27A-WT is designed for minimal maintenance. The integrated LED light source has a rated life of 80,000 hours, meaning no bulb replacement is typically needed for many years.

• beberesih: Pikeun ngabersihan fixture, pastikeun kakuatan pareum dina circuit breaker. Ngagunakeun lemes, damp lawon. Ulah nganggo pembersih atanapi pangleyur anu abrasif, sabab ieu tiasa ngaruksak lapisan atanapi komponén listrik.
• Pamariksaan: Periodically inspect the fixture for any signs of wear or damage. If any issues are found, disconnect power and contact a qualified electrician or WAC Lighting support.

7. Cara ngungkulan

If you experience issues with your fixture, refer to the following common troubleshooting steps:

If these steps do not resolve the issue, please contact WAC Lighting customer support.
