1. Bubuka
This manual provides essential information for the safe and effective use of your CK Worldwide CKL825H CK80 Air Cooled TIG Torch Kit. Please read this manual thoroughly before operating the equipment to ensure proper setup, operation, and maintenance. Retain this manual for future reference.
2. Émbaran Kasalametan
Welding and cutting processes can be hazardous. It is crucial to follow all safety precautions to prevent injury or damage. Always refer to your welding machine's manual for additional safety guidelines.
2.1 Pancegahan Kasalametan Umum
- Sengatan Listrik Bisa Maot: Ensure proper grounding. Do not touch live electrical parts. Wear dry insulating gloves and protective clothing.
- Haseup jeung Gas Bisa Bahaya: Jaga sirah anjeun jauh tina haseup. Anggo ventilasi atanapi knalpot pikeun miceun haseup tina zona pernapasan.
- Sinar Busur Bisa Ngaduruk Panon jeung Kulit: Wear a welding helmet with a proper shade filter. Wear appropriate eye protection with side shields. Protect other personnel in the area with non-reflective screens or barriers.
- Bahaya Seuneu jeung Ledakan: Cabut sadaya barang anu gampang kaduruk tina daérah las. Siapkeun alat pemadam kebakaran.
- Bagian anu Panas Bisa Nyababkeun Kaduruk Parah: Allow equipment to cool before handling. Wear insulated gloves.
- Noise Can Damage Hearing: Wear ear protection if noise levels are high.
- Baca jeung Paham: Always read and understand the manufacturer's instructions for all equipment and consumables.
2.2 Proposisi 65 Peringatan
Produk ieu tiasa ngalaan anjeun ka bahan kimia kalebet timah, anu dipikanyaho ku Nagara California nyababkeun kanker sareng cacad kalahiran atanapi cilaka réproduktif sanés. Kanggo inpo nu leuwih lengkep buka www.P65Warnings.ca.gov.
3. Produk Langkungview
The CK Worldwide CKL825H is an 80A air-cooled TIG torch kit designed for precision welding applications. It features an "Extra Length" series design with a 4-1/2" long neck, providing enhanced reach and maneuverability in confined spaces. This torch is part of the Master Series line, offering robust performance and durability.

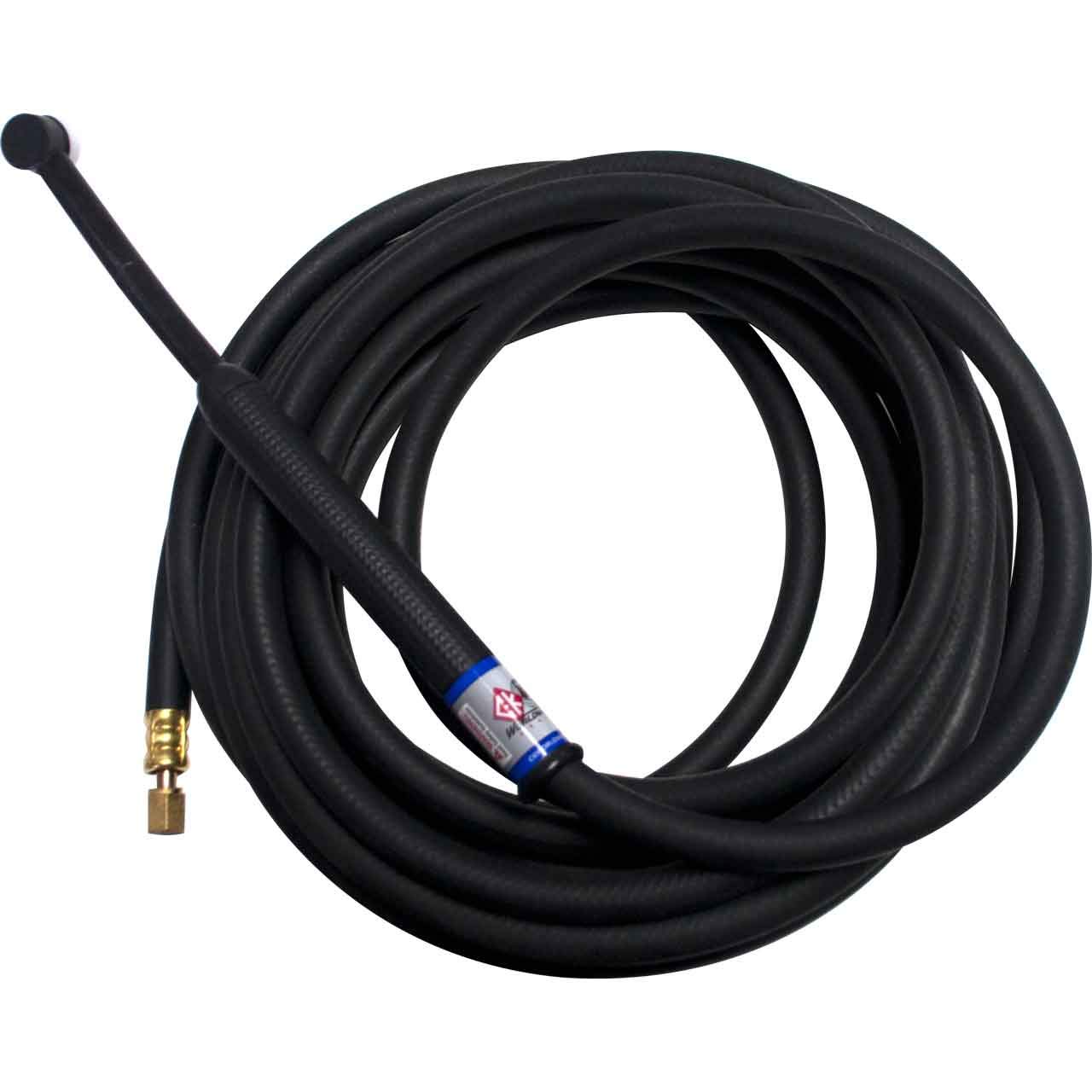

Gambar 3.1: Representative image of the CK Worldwide CKL825H CK80 Air Cooled TIG Torch Kit. This image shows the torch body with its long neck design and the ceramic nozzle, illustrating the overall form factor of the product.
3.1 Fitur konci
- CK80 Extra Length Series design.
- 4-1/2" long neck for extended reach.
- 80 Amp air-cooled capacity.
- Konstruksi awét pikeun kinerja anu tiasa dipercaya.
- Designed for TIG welding applications.
4. Parentah Setup
Proper setup is crucial for safe and effective operation. Ensure all connections are secure and correct before beginning any welding task.
- Connect to Welding Machine: Attach the power cable from the torch to the appropriate TIG output terminal on your welding machine. Ensure a secure, tight connection.
- Sambungan Gas: Connect the gas hose from the torch to the inert gas regulator on your shielding gas cylinder (typically Argon). Ensure all gas connections are leak-free.
- Taneuh Clamp: Nyambungkeun karya clamp (ground clamp) from your welding machine to the workpiece or welding table, ensuring good electrical contact.
- Install Consumables:
- Insert the collet and collet body into the torch head.
- Insert the tungsten electrode through the collet body and collet.
- Thread the back cap onto the torch body, tightening it to secure the tungsten.
- Install the ceramic nozzle (cup) onto the torch head.
- Daya Hurung: Turn on your welding machine and gas supply. Set the gas flow rate according to your welding parameters (typically 10-20 CFH for Argon).
5. Parentah Operasi
This section outlines the basic steps for operating your TIG torch. Always wear appropriate Personal Protective Equipment (PPE) before starting any welding operation.
- Nyiapkeun workpiece: Clean the workpiece thoroughly to remove any contaminants such as oil, rust, or paint.
- Set Welding Parameters: Saluyukeun amperage, gas post-flow, and other settings on your welding machine according to the material thickness and type of weld.
- Mimitian Arc:
- For High-Frequency (HF) start machines: Position the tungsten electrode close to the workpiece (2-3mm) and press the torch trigger or foot pedal to initiate the arc.
- For Lift-Arc machines: Gently touch the tungsten to the workpiece, then lift it slightly to initiate the arc.
- Maintain Arc and Puddle: Once the arc is established, maintain a consistent arc length and angle. Create a molten puddle and add filler rod as needed.
- Terminate Arc: Slowly release the torch trigger or foot pedal to gradually reduce amperage and terminate the arc. Allow the shielding gas to flow for the set post-flow time to protect the cooling weld puddle and tungsten.
- Pariksa Weld: After the weld has cooled, inspect it for quality and consistency.
6. Pangropéa
Regular maintenance ensures optimal performance and extends the lifespan of your TIG torch.
- Tungsten éléktroda: Sharpen or replace the tungsten electrode as needed. A dull or contaminated tungsten can lead to poor arc stability and weld quality.
- Nozzle (Cup): Inspect the ceramic nozzle for cracks or damage. Replace if necessary. A damaged nozzle can compromise gas shielding.
- Collet and Collet Body: Periodically inspect and clean the collet and collet body. Replace if they show signs of wear or deformation, which can lead to poor electrical contact or tungsten slippage.
- Cables and Hoses: Check all cables and hoses for cuts, abrasions, or leaks. Repair or replace damaged components immediately.
- beberesih umum: Keep the torch body clean and free from spatter. Use a soft cloth to wipe down the torch.
7. Cara ngungkulan
This section provides solutions to common issues encountered during TIG welding with your torch.
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Poor Arc Start / Unstable Arc | Dull or contaminated tungsten; incorrect gas flow; poor ground connection; incorrect machine settings. | Sharpen/replace tungsten; check gas flow and connections; ensure good ground; verify machine settings. |
| Porous Weld / Contamination | Insufficient gas shielding; gas leaks; contaminated workpiece; incorrect gas type; damaged nozzle. | Increase gas flow; check for gas leaks; clean workpiece; use correct shielding gas; replace nozzle. |
| Tungsten Contamination / Melting | Tungsten touching puddle; insufficient post-flow gas; excessive amperage; incorrect tungsten size. | Maintain arc gap; increase post-flow time; reduce amperage; use larger tungsten for higher amps. |
| Torch Overheating | Exceeding duty cycle; insufficient air cooling; prolonged high amperage use. | Allow torch to cool; reduce amperage or welding time; ensure proper ventilation around torch. |
8. Spésifikasi
Technical specifications for the CK Worldwide CKL825H CK80 Air Cooled TIG Torch Kit.
- model: CKL825H
- runtuyan: CK80 Extra Length Series
- Jenis obor: Air Cooled TIG Torch
- AmpKapasitas erage: 80 Amps
- Neck Length: 4-1 / 2 inci
- Panjang kabel: 25 peuy
- Beurat barang: 8 pon
- UPC: 720340002662
- ASIN: B00JV8OZAS
- Pabrikan: CK Worldwide
9. Garansi jeung Rojongan
For warranty information or technical support regarding your CK Worldwide TIG Torch, please contact CK Worldwide directly. Refer to their official websitus atanapi kemasan produk kanggo inpormasi kontak sareng syarat garansi anu pangénggalna.
Pabrikan: CK Worldwide
Websitus: www.ckworldwide.com
