1. Bubuka
Hatur nuhun pikeun meuliasing the Sharp PN-R703 70-inch LED-Backlit Display. This manual provides essential information for the safe and efficient use of your display. Please read it thoroughly before operating the unit and retain it for future reference. The Sharp PN-R703 is designed for commercial and digital signage applications, offering a large 70-inch class screen with Full HD resolution and reliable 24/7 operation.
2. Émbaran Kasalametan
Always observe the following safety precautions to prevent electric shock, fire, or damage to the display.
- Sumber Daya: Connect the display only to the type of power source indicated on the marking label.
- Ventilasi: Pastikeun ventilasi nyukupan. Ulah meungpeuk bukaan ventilasi.
- Paparan Cairan: Ulah ngalaan tampilan ka hujan atawa Uap. Ulah nempatkeun objék dieusian ku cairan, kayaning vases, dina layar.
- beberesih: Unplug the display from the wall outlet before cleaning. Use a soft, dry cloth. Do not use liquid cleaners or aerosol cleaners.
- Palayanan: Entong nyobian ngalayanan produk ieu nyalira. Rujuk sadayana ngalayanan ka tanaga jasa anu mumpuni.
- Pamasangan: Ensure the display is securely mounted or placed on a stable surface to prevent it from falling.
3. Eusi Paket
Punten parios yén sadaya item di handap ieu kalebet dina pakét anjeun:
- Sharp PN-R703 LED-Backlit Display
- Kabel Daya AC
- Remote Control with Batteries (2 AA batteries required)
- Setup Guide / Instruction Manual (this document)
- Kabel Clamp(s)
4. Setélan
4.1 Instalasi fisik
The Sharp PN-R703 can be mounted on a wall using a VESA-compatible mount (sold separately) or placed on a suitable stand. Ensure the mounting solution can support the display's weight (approximately 94.7 pounds).

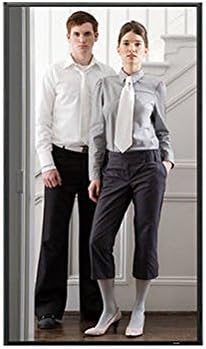

Gambar 1: Hareupeun view of the Sharp PN-R703 70-inch LED-Backlit Display. This image shows the large, flat screen surface, ideal for commercial and digital signage applications.
4.2 Nyambungkeun Kabel
- Sambungan Daya: Connect the supplied AC power cord to the display's power input and then to a grounded electrical outlet.
- Video Input: Connect your video source (e.g., PC, media player) to one of the display's input ports (HDMI, DisplayPort, DVI, etc.) using appropriate cables.
- Sambungan USB: If using USB features, connect your USB device to the display's USB port. The display has 1 total USB port.
4.3 Daya Awal Hurung
After all connections are made, press the power button on the display or the remote control to turn on the unit. The Sharp logo will appear, followed by the selected input source.
5. Nyuping
5.1 Kadali Dasar
Use the remote control or the buttons on the display to access basic functions:
- Tombol Daya: Hurungkeun tampilan atanapi pareuman.
- Tombol Input: Cycles through available input sources (HDMI, DisplayPort, DVI, etc.).
- Tombol Menu: Opens the On-Screen Display (OSD) menu.
- Tombol Napigasi: Dipaké pikeun nganapigasi ngaliwatan pilihan ménu.
- Enter/OK Button: Ngonfirmasi pilihan dina menu.
Gambar 2: Rincian view of the Sharp logo, typically located on the bezel of the display. This indicates the brand and model series.
5.2 Napigasi Menu jeung Setélan
Menu OSD ngamungkinkeun anjeun pikeun nyaluyukeun rupa-rupa setélan tampilan:
- Setélan Gambar: Adjust brightness, contrast, color temperature, sharpness, and aspect ratio (16:9).
- Setélan Audio: Control volume and audio output options (if external speakers are connected).
- Setélan Input: Configure input labels and auto-detection.
- Setélan Sistim: Access language, power management, and factory reset options.
6. Pangropéa
6.1 Ngabersihan Tampilan
To maintain the display's appearance and performance:
- Salawasna cabut colokan tampilan saméméh beberesih.
- Use a soft, lint-free cloth to gently wipe the screen and bezel.
- Pikeun tanda pengkuh, enteng dampBilas lawon ku cai atanapi pembersih layar anu hampang sareng henteu abrasif. Ulah nyemprotkeun cairan langsung kana layar.
- Hindarkeun ngagunakeun bahan kimia kasar, bantalan abrasive, atanapi pangleyur.
6.2 Panyimpenan
If storing the display for an extended period, ensure it is kept in a cool, dry place, away from direct sunlight and extreme temperatures. Use the original packaging if available for best protection.
7. Cara ngungkulan
Tingali tabel di handap ieu pikeun masalah umum sareng solusina:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Taya kakuatan | Power cord disconnected; Power outlet faulty | Pariksa sambungan kabel kakuatan; Coba outlet béda |
| Taya gambar | Incorrect input source selected; Video cable loose/faulty | Select correct input source; Check video cable connections |
| Gambar poék/caang teuing | Picture settings incorrect | Adjust brightness/contrast in the OSD menu |
| Kadali jauh teu jalan | Batteries depleted; Obstruction between remote and display | Replace batteries (2 AA); Remove obstructions; Point remote directly at display sensor |
8. Spésifikasi
Key technical specifications for the Sharp PN-R703 display:
- Jumlah modél: PN-R703
- Ukuran layar: 70 Inci (69.5" Viewsanggup)
- Resolusi: 1920 x 1080 (HD lengkep 1080p)
- Rasio Aspék: 16:9
- Jenis tampilan: LED-Backlit LCD
- Ukuran produk: 1.6 x 62.1 x 14.21 inci
- Beurat barang: 94.7 pon
- Total palabuhan USB: 1
- Pabrikan: Seukeut
- Titimangsa munggaran sadia: 16 Maret 2013
9. Garansi jeung Rojongan
This Sharp PN-R703 display comes with a full manufacturer warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official Sharp website. For technical support, service, or inquiries, please contact Sharp customer service through their official channels.
