1. Bubuka
This manual provides essential information for the safe and effective use of the Testo 0635 6045 Type K High Temperature Vane Probe. This probe is designed for precise measurement of airflow velocity and temperature in various industrial and scientific applications. Please read this manual thoroughly before operating the device to ensure proper functionality and to prevent damage.
2. Produk Langkungview

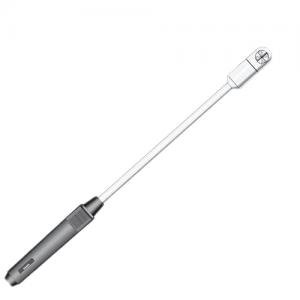

The Testo 0635 6045 is a Type K vane probe specifically engineered for high-temperature environments. It is intended for use in conjunction with a compatible measuring instrument, such as the Testo 445 VAC measuring instrument (sold separately).
- Kamampuhan pangukuran: Measures both airflow velocity and temperature.
- Kisaran aliran hawa: 120 to 4,000 FPM (feet per minute).
- Airflow Accuracy: ±3% FPM ±1% of the reading.
- Rentang Suhu: -40 to +350 °C (-40 to +660 °F).
- Dimensi fisik: Probe with handle measures 560mm (22 inches) in length, with a 25mm (1 inch) diameter tip.
- Kasaluyuan: Designed for use with the Testo 445 VAC measuring instrument.
3. Setélan
To begin using your Testo 0635 6045 Vane Probe, follow these steps:
- Unpack the Probe: Carefully remove the vane probe from its packaging. Inspect for any visible damage.
- Connect to Measuring Instrument: Connect the probe's handle connector to the appropriate input port on your Testo 445 VAC measuring instrument. Ensure the connection is secure.
- Daya Hurung: Turn on your Testo 445 VAC measuring instrument according to its specific operating instructions.
- Cék awal: Allow the instrument and probe to stabilize for a few moments. The instrument should recognize the connected probe.
4. Parentah Operasi
The Testo 0635 6045 Vane Probe allows for accurate measurement of airflow and temperature. Always refer to your Testo 445 VAC measuring instrument's manual for specific display and function settings.
4.1. Ukur Airflow
- Pilih Modeu Aliran Udara: On your Testo 445 instrument, select the airflow measurement mode.
- Posisi Probe: Hold the vane probe in the airflow stream you wish to measure. Ensure the vane head is positioned directly in the flow, perpendicular to the direction of flow, for optimal accuracy.
- Baca pangukuran: Observe the airflow velocity reading on the display of your Testo 445 instrument. Allow the reading to stabilize before recording.
- Pertimbangan: For duct measurements, ensure the probe is positioned to capture a representative average flow. Multiple measurements across a duct cross-section may be necessary.
4.2. Pangukuran Suhu
- Select Temperature Mode: On your Testo 445 instrument, select the temperature measurement mode.
- Posisi Probe: Place the tip of the vane probe in the area where you want to measure the temperature. Ensure good thermal contact with the medium.
- Baca pangukuran: Observe the temperature reading on the display. Allow sufficient time for the probe to reach thermal equilibrium with the environment before taking a final reading.
- Pertimbangan: Avoid exposing the probe handle to extreme temperatures that could affect the internal electronics or user comfort.
5. Pangropéa sarta perawatan
Proper maintenance ensures the longevity and accuracy of your Testo 0635 6045 Vane Probe.
- beberesih: Gently clean the vane head and probe shaft with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the sensor or materials.
- Panyimpenan: Store the probe in a clean, dry environment, preferably in its original packaging or a protective case, when not in use. Avoid extreme temperatures and high humidity during storage.
- Pamariksaan: Regularly inspect the probe for any signs of physical damage, such as bent vanes or damaged cables.
- Kalibrasi: For critical applications, periodic calibration of the probe and measuring instrument by an authorized service center is recommended to maintain measurement accuracy.
6. Cara ngungkulan
If you encounter issues with your Testo 0635 6045 Vane Probe, consider the following common problems and solutions:
- Teu Aya Maca atawa Maca Anu Teu Ngahaja:
- Ensure the probe is securely connected to the measuring instrument.
- Check the measuring instrument's battery level.
- Verify that the correct measurement mode is selected on the instrument.
- Inspect the vane for obstructions or damage.
- Bacaan Suhu Lepat:
- Allow sufficient time for the probe to stabilize in the measured environment.
- Ensure the probe tip has good thermal contact.
- Probe Not Recognized by Instrument:
- Pegatkeun sambungan jeung sambungkeun deui usik.
- Restart the measuring instrument.
- Consult the Testo 445 VAC measuring instrument manual for probe recognition procedures.
If problems persist, contact Testo customer support or an authorized service center.
7. Spésifikasi Téknis
| Parameter | Spésifikasi |
|---|---|
| Nomer modél | 0635 6045 |
| Jenis Probe | Type K Vane Probe |
| Airflow Measurement Range | 120 to 4,000 FPM (feet per minute) |
| Akurasi Aliran Udara | ±3% FPM ±1% of reading |
| Rentang Ukur Suhu | -40 nepi ka +350 °C (-40 nepi ka +660 °F) |
| Probe Length (with handle) | 560mm (22 inci) |
| Probe Tip Diaméterna | 25mm (1 inci) |
| Kasaluyuan | Testo 445 VAC measuring instrument (sold separately) |
| Produsén | Testo AG |
8. Garansi jeung Rojongan
Testo AG manufactures high-quality test and measurement instruments. For specific warranty information, please refer to the documentation provided with your purchase or visit the official Testo website. For technical support, service, or calibration inquiries, please contact Testo customer service or your local authorized Testo dealer.
