This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Duravit Utronic Urinal, Model 0830370093. Please read these instructions carefully before beginning installation or use, and retain them for future reference. This urinal features a rear water inlet and requires a mains electrical connection for its Utronic sensor-activated flushing system.

Setup sareng Instalasi

Installation of the Duravit Utronic Urinal requires professional plumbing and electrical expertise due to its rear water inlet and mains electrical connection. Ensure all local building codes and regulations are followed. The urinal is designed for wall-mounted installation.

Required Tools and Materials (Not Supplied):

• Bor jeung bor luyu
• Measuring tape and level
• Rengkuh sareng obeng
• Sealant (e.g., silicone)
• Mounting hardware (if not included with specific installation frame)
• Flush-mounted electrical box (UP-Dose)
• Water supply lines and fittings
• Drainage pipes and fittings

Léngkah-léngkah pamasangan:

1. Persiapan: Ensure water and electrical supplies are turned off at the main. Mark the desired mounting height on the wall, considering the overall height of 870 mm and a typical top edge height of 700 mm from the finished floor.
2. Titik Pasang: Refer to the technical drawings for precise drilling locations for the mounting bolts (diameter ø12). The water connection point is approximately 320 mm from the top edge, and the electrical connection can be positioned either to the right or left, requiring a flush-mounted box.
3. Sambungan cai: Connect the water supply to the rear inlet. Ensure all connections are watertight.
4. Sambungan listrik: Install the flush-mounted electrical box as indicated in the diagrams. Connect the urinal's electrical system to the mains supply according to local electrical codes. This connection powers the Utronic sensor.
5. Sambungan drainase: Connect the urinal's ø50 mm drain outlet to the waste pipe. The center of the drain is approximately 80 mm from the wall and 580 mm from the finished floor (or 680 mm to the top of the drain opening).
6. Mounting the Urinal: Secure the urinal to the wall using appropriate mounting hardware. Ensure it is level and firmly attached.
7. Sealing: Apply a suitable sealant around the edges where the urinal meets the wall to prevent water ingress.
8. Uji coba: Once installed, turn on the water and electrical supplies. Check for leaks and verify the Utronic sensor-activated flush system operates correctly.

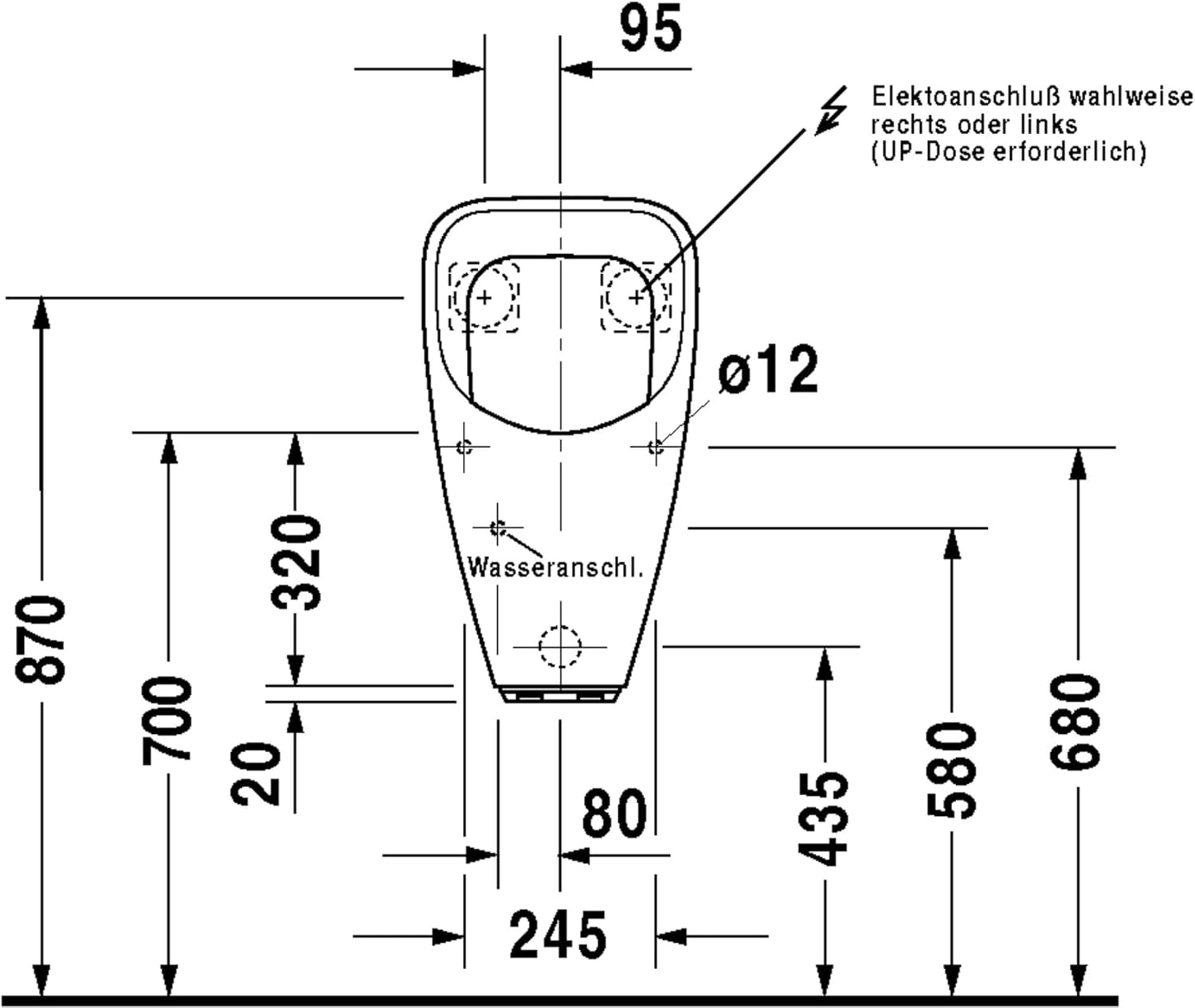

Gambar 1: Hareupeun View Technical Drawing. This diagram illustrates the front dimensions, including the total height (870 mm), mounting height (700 mm to top), water connection point (320 mm from top), and electrical connection options (left or right, requiring a flush-mounted box). Mounting holes are ø12 mm.

Gambar 2: Sisi View Technical Drawing. This diagram shows the depth dimensions, including the total depth (615 mm), depth from wall to front (480 mm), and the position of the ø50 mm drain outlet (80 mm from floor to center, 55 mm from wall to center).

Gambar 3: Top View Technical Drawing. This diagram provides the top-down dimensions, showing the width (345 mm) and depth (315 mm) of the urinal bowl.

Parentah Operasi

The Duravit Utronic Urinal is designed for automatic, hands-free operation. Once properly installed and connected to the mains power, the integrated Utronic sensor detects presence and automatically flushes after use.

• Siram Otomatis: The sensor detects when the urinal is used and initiates a flush cycle automatically.
• Sasayogian tanaga: Ensure the urinal is continuously connected to the mains electrical supply for the Utronic sensor to function.
• Sensitipitas sénsor: The sensor is factory-calibrated for optimal performance. Avoid placing objects directly in front of the sensor that could interfere with its operation.

Pangropéa jeung beberesih

Regular cleaning and maintenance will ensure the longevity and hygienic operation of your Duravit Utronic Urinal.

beberesih:

• Use mild, non-abrasive cleaning agents and a soft cloth or sponge.
• Avoid harsh chemicals, abrasive cleaners, scouring pads, or strong acids/alkalis, as these can damage the ceramic surface and the sensor components.
• Bilas sacara saksama ku cai bersih saatos beberesih.
• For the sensor area, wipe gently with a damp cloth. Do not spray cleaning agents directly onto the sensor.

Cék périodik:

• Inspect water and electrical connections periodically for any signs of leaks or damage.
• Ensure the sensor window is clean and free from obstructions to maintain optimal detection.
• If the water flow appears weak, check the water supply pressure and any inline filters that may be present in your plumbing system.

Pamérésan masalah

If you encounter issues with your Duravit Utronic Urinal, refer to the following common problems and solutions:

For issues not listed here or if solutions do not resolve the problem, please contact a qualified plumber or electrician, or Duravit customer support.

spésifikasi

Note: All dimensions are approximate and subject to manufacturing tolerances. Refer to technical drawings for precise installation measurements.

Garansi sareng Rojongan

Duravit products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product or visit the official Duravit website. Keep your proof of purchase and model number (0830370093) handy when contacting support.

For technical assistance, spare parts, or service inquiries, please contact your local Duravit dealer or customer service department. Professional installation and maintenance are recommended to ensure warranty validity.
