This manual provides essential information for the safe and effective use of your KTC Standard Hexagon Bit Socket Replacement Bit T04. Please read this manual thoroughly before installation and operation to ensure proper handling and to maximize the lifespan of your tool.
The KTC Standard Hexagon Bit Socket Replacement Bit T04 is designed for precision work, specifically for tightening and loosening hexagonal fasteners when used with a compatible socket wrench. Its robust metal construction ensures durability and reliable performance.
Produk Leuwihview

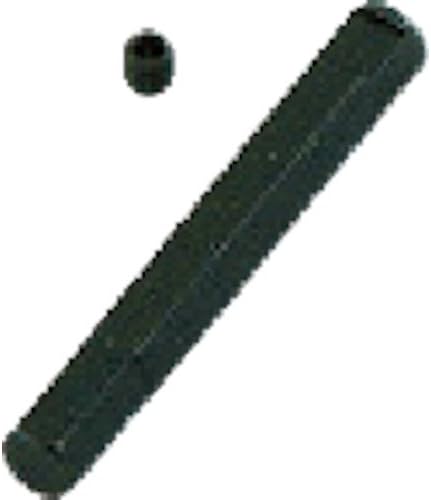

This image displays the KTC Standard Hexagon Bit Socket Replacement Bit T04, a cylindrical metal bit with a hexagonal profile, alongside a small, dark set screw. The bit is designed for use with compatible socket wrenches.
The KTC T04 is a replacement bit for hexagon bit sockets. It features a hexagonal drive system and is made from durable metal. It is specifically designed to fit into a socket with a 6.3 mm (0.25 inch) side dimension and is suitable for fasteners with a 4mm (0.2 inch) opposite side dimension.
Setup sareng Instalasi
The KTC Standard Hexagon Bit Socket Replacement Bit T04 is intended to be installed into a compatible socket wrench. Follow these steps for proper installation:
- Identify Compatible Socket: Ensure you have a socket wrench with a 6.3 mm (0.25 inch) socket side dimension that is designed to accept replacement bits.
- Selapkeun Bit: Carefully insert the hexagonal end of the T04 replacement bit into the corresponding opening of the socket.
- Secure with Set Screw: The bit comes with a hex hole set screw. To secure the bit within the socket, you will need a 0.08 inch (2 mm) hexagon wrench for Type A bits (which the T04 is). Use this wrench to tighten the set screw, ensuring the bit is firmly seated and does not wobble.
- Pariksa sambungan: Gently pull on the bit to confirm it is securely fastened within the socket before use.
Catetan: Always use the correct size hexagon wrench for the set screw to prevent stripping the screw head.
Parentah Operasi
Once the KTC T04 bit is securely installed in its socket, it is ready for operation. This bit is designed for use with 4mm hexagonal fasteners.
- Select Correct Fastener: Ensure the fastener you intend to work with has a 4mm hexagonal head.
- Pasangkeun Pangiketna: Place the hexagonal end of the bit squarely onto the head of the fastener. Ensure full engagement to prevent slipping and damage to the fastener or the bit.
- Larapkeun torsi: Using your socket wrench, apply steady and controlled torque to tighten or loosen the fastener. Avoid excessive force that could damage the bit or the fastener.
- Ngajaga Pajajaran: Keep the bit and wrench aligned with the fastener to prevent cam-out and stripping.
For optimal performance and safety, always use the appropriate size bit for the fastener and avoid using the tool for purposes other than its intended design.
Pangropéa
Proper maintenance will extend the life and performance of your KTC Standard Hexagon Bit Socket Replacement Bit T04.
- beberesih: After each use, wipe the bit clean with a dry cloth to remove any dirt, grease, or debris. For stubborn grime, a mild solvent can be used, followed by thorough drying.
- Lubrication: Periodically apply a light coat of rust-preventative oil to the metal surfaces, especially if storing in a humid environment.
- Pamariksaan: Regularly inspect the bit for signs of wear, damage, or deformation. Look for rounded edges on the hexagonal profile, cracks, or bends. Discontinue use if significant wear or damage is observed.
- Panyimpenan: Store the bit in a dry, clean environment, preferably in a tool box or organizer that protects it from impact and moisture.
Pamérésan masalah
If you encounter issues while using your KTC Standard Hexagon Bit Socket Replacement Bit T04, consider the following common problems and solutions:
- Bit slips from fastener head:
- Ensure the bit is fully seated in the fastener head.
- Verify the fastener head is not stripped or damaged.
- Confirm you are using the correct 4mm size bit for the fastener.
- Inspect the bit for wear on its hexagonal edges; a worn bit may slip.
- Bit wobbles in the socket:
- Check if the set screw is properly tightened. Refer to the "Setup and Installation" section.
- Ensure the socket is compatible with the bit and not worn out.
- Difficulty inserting bit into socket:
- Ensure the socket opening is clean and free of debris.
- Verify the bit is aligned correctly with the socket's hexagonal opening.
If problems persist, and you suspect the bit is defective, contact KTC customer support or your retailer.
spésifikasi
| Atribut | Rincian |
|---|---|
| Nomer modél | T04 |
| merek | KTC (Kyoto Tools) |
| Tipe | A (Hexagon Bit Socket Replacement Bit) |
| Total Panjang | 41 mm (1.6 inci) |
| Opposite Side Dimensions (Bit) | 4 mm (0.2 inci) |
| Socket Side Dimensions (Compatible) | 6.3 mm (0.25 inci) |
| Bahan | logam |
| Sistim drive | Hex |
| Item Beurat | 0.388 ons |
| Ukuran Paket | 2.13 x 2.09 x 0.28 inci |
| Tanggal Sadia munggaran | 10 Séptémber 2012 |
Garansi sareng Rojongan
Information regarding specific warranty terms for the KTC Standard Hexagon Bit Socket Replacement Bit T04 is not provided in this manual. For warranty claims, technical support, or further inquiries, please refer to the official KTC website or contact your original point of purchase.
Pastikeun anjeun salawasna mésérasing genuine KTC products from authorized dealers to ensure product authenticity and eligibility for any manufacturer support.
