Bubuka
The WAC Landscape Lighting LEDme 120V LED Half-Round Indoor and Outdoor Step and Wall Light is designed to provide efficient and optimized illumination for stairs, walls, and walkways. These luminaires are suitable for both indoor and outdoor applications, offering enhanced energy efficiency and minimal glare.
Gambar: Hareupeun view of the WAC LEDme Half-Round Step and Wall Light in white, showcasing desainna kompak sareng ramping.
Émbaran Kasalametan
PERHATOSAN: Produk ieu tiasa ngalaan anjeun zat kimia kalebet timah, anu dipikaterang ku Nagara California anu nyababkeun kanker sareng cacat lahir atanapi cilaka réproduktif sanés. Kanggo inpormasi salengkepna buka www.P65Warnings.ca.gov.
Always ensure power is disconnected before installation or maintenance. Installation should be performed by a qualified electrician in accordance with local electrical codes.
Setup sareng Instalasi
The WAC LEDme Step and Wall Light is designed for straightforward installation. It includes a 3-inch round by 3-inch depth electrical box with a knockout, allowing for mounting on various surfaces. The fixture fits into a 2" x 4" J-Box with minimum inside dimensions of 3"L x 2"W x 2"D.
For detailed installation instructions, please refer to the official Installation Manual (PDF) provided by the manufacturer. A link to this document is available in the product information.
Image: Diagram illustrating how the light mounts to a round housing with an electrical knockout, and that the housing and mounting bracket are included.

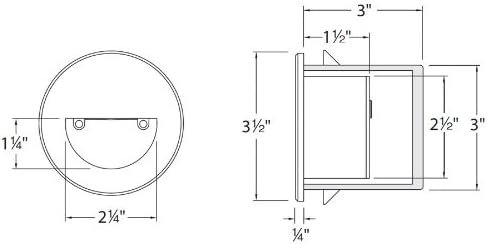

Image: Technical drawing showing the precise dimensions of the WAC LEDme Half-Round Step and Wall Light, including its length, width, and height, as well as the required cutout dimensions.
Parentah Operasi
This LED step and wall light operates on 120V AC power. It features a 3000K warm white LED, providing a comfortable and inviting light output. The fixture is designed for smooth and continuous dimming down to 10% when used with a compatible Magnetic Low Voltage (MLV) dimmer (sold separately).
The light is suitable for both indoor and outdoor use, offering versatile application options for various spaces such as gardens, lawns, entrances, pathways, driveways, backyards, steps, and walls.
Image: A staircase illuminated by multiple WAC LEDme lights, with a visual overlay demonstrating the smooth and continuous dimming capabilities of the product.
Pangropéa
The WAC LEDme light is engineered for durability and minimal maintenance. It is factory sealed, water-tight, and IP66 rated, providing robust protection against high-pressure water jets and various outdoor elements. The housing is casted from a special K-alloy aluminum, designed to withstand challenging environments over time.
For enhanced protection against corrosive elements, especially in coastal or marine environments, stainless steel (-SS) or solid brass coated in bronze (-BBR) finishes are available. The LED component is replaceable, ensuring long-term usability.
Image: A split image showing the WAC LEDme lights installed in both an indoor staircase setting and an outdoor step setting, highlighting their durable finish and suitability for interior and exterior use.
Image: Three WAC LEDme Half-Round Step and Wall Lights displayed in different finishes (white, brushed nickel, and bronze), illustrating the variety of available options and their die-cast aluminum construction.
Pamérésan masalah
If you encounter any issues with your WAC LEDme Step and Wall Light, please consider the following general troubleshooting steps:
- Teu aya Kaluaran Cahaya: Ensure the power supply is connected and active. Check the light switch and any associated dimmers for proper operation. Verify all electrical connections are secure.
- Masalah dimming: Confirm that the dimmer being used is a compatible Magnetic Low Voltage (MLV) dimmer. Incompatible dimmers may cause flickering or prevent proper dimming.
- Operasi intermittent: Check for loose wiring connections at the fixture or the junction box. Ensure the fixture is not exposed to voltage fluctuations outside its specified range.
- Physical Damage/Corrosion: While designed for durability, inspect the fixture for any signs of physical damage or unusual corrosion. If significant corrosion occurs, especially in harsh environments, consider the stainless steel or solid brass options for future installations.
For complex electrical issues or if troubleshooting steps do not resolve the problem, it is recommended to consult a qualified electrician. Do not attempt repairs beyond basic checks if you are not experienced with electrical systems.
spésifikasi
| Fitur | Rincian |
|---|---|
| merek | Pencahayaan WAC |
| Ngaran modél | WAC 120V Step Half Round |
| Nomer Bagian | WL-LED300-C-WT |
| Warna | Bodas |
| Gaya | 3000K Warm White LED |
| Bahan | Aluminum (Shade Material: Glass) |
| Dimensi produk | 3.5 "L x 3" W x 3.5" H |
| Item Beurat | 15.8 ons |
| Pamakéan jero rohangan / outdoor | Jero rohangan, Luar |
| Sumber Daya | AC |
| Voltage | 120 volt |
| Wattage | 3.8 watts (2W (3VA) operating) |
| Caang | Up to 68Lm (110 Lumen listed elsewhere) |
| CRI | 90 |
| Dipeunteun Jam | 60,000 |
| Dimming | Smooth and continuous to 10% with Magnetic Low Voltage Dimmer |
| Tingkat Résistansi Cai | Waterproof (Dipeunteun IP66) |
| Standar minuhan | UL & cUL 1598, IP66, EPA, Energy Star, FCC |
| Komponén Kaasup | 3in Round by 3in Depth Electrical Box, Hardware, Interchangeable Lens (Clear, Amber, Red, Blue), Replaceable LED, Step Light |
Émbaran jaminan
WAC Lighting provides a warranty for this product:
- Garansi Fungsional: 5 taun
- Garansi Rengse: 2 taun
Please retain your proof of purchase for warranty claims. For full details and terms, refer to the official warranty documentation provided with your product or contact WAC Lighting customer service.
Ngarojong
For further assistance, technical support, or inquiries regarding your WAC LEDme Step and Wall Light, please contact WAC Lighting directly. You can also visit their official store page for more information and resources:
Additionally, the Installation Manual is available as a PDF document for detailed guidance:
