1. Bubuka
This instruction manual provides essential information for the safe and effective installation, operation, and maintenance of the Danfoss DML-083 Liquid Line Filter Dryer. Please read this manual thoroughly before installation and keep it for future reference.
2. Produk Langkungview
The Danfoss DML-083 is a high-performance liquid line filter dryer designed for refrigeration and air conditioning systems. It is specifically engineered for use with HFC refrigerants (such as R134a, R404A, R410A) utilizing polyol ester (POE) or polyalkylene glycol (PAG) oils. It is also compatible with R22 refrigerant.
The DML series is characterized by its high water absorption capability. Unlike some other filter dryers, the DML-083 does not contain activated alumina, which helps prevent the reduction of additives present in modern refrigeration oils. This design ensures optimal system performance and longevity.
- kasaluyuan Refrigerant: HFC (R134a, R404A, R410A, etc.) with POE/PAG oils, and R22.
- Ukuran sambungan: 3/8 inch flare.
- Solid Core: Surface area 131 cm², Volume 104 cm³.
- Filter Dryer Capacity: 0.17 ltr.
3. Émbaran Kasalametan
Always adhere to local and national safety regulations when installing or servicing refrigeration equipment. Only qualified personnel should perform installation and maintenance procedures.
- Ensure the system is depressurized before attempting any installation or removal of the filter dryer.
- Anggo alat pelindung pribadi (PPE), kalebet kacamata sareng sarung tangan.
- Avoid contact with refrigerants and refrigeration oils, as they can cause frostbite or chemical burns.
- Do not exceed the maximum operating pressure specified for the system and the filter dryer.
- Properly dispose of used filter dryers and refrigerants according to environmental regulations.
4. Setup jeung Instalasi
The DML-083 filter dryer is designed for installation in the liquid line of a refrigeration system. Ensure the system is clean and free of contaminants before installation.
- Persiapan Sistim: Isolate the section of the liquid line where the filter dryer will be installed. Recover any refrigerant from this section.
- Orientasi: Install the filter dryer with the flow arrow on the body pointing in the direction of refrigerant flow (towards the expansion device).
- Sambungan: The DML-083 uses 3/8 inch flare connections. Ensure proper flaring of the copper tubing to prevent leaks. Use appropriate flare nuts and tighten them to the manufacturer's recommended torque specifications.
- Brazing (if applicable): If brazing connections, ensure the filter dryer body is protected from excessive heat to prevent damage to the desiccant material. Use a wet rag or heat-absorbing paste.
- Uji bocor: After installation, perform a thorough leak test using an inert gas (e.g., nitrogen) to ensure all connections are sealed.
- évakuasi: Evacuate the system to a deep vacuum (typically below 500 microns) to remove non-condensable gases and moisture.
- Ngecas refrigerant: Recharge the system with the appropriate refrigerant according to the system manufacturer's specifications.

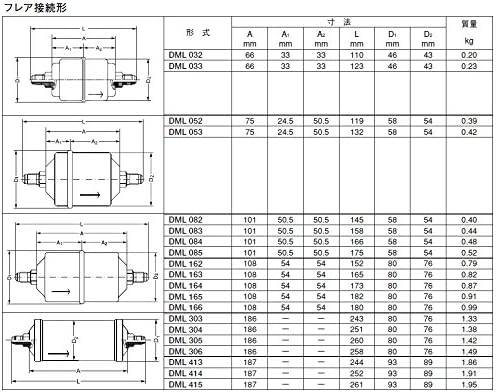

Figure 1: DML Flare Connection Dimensions. This diagram illustrates the physical dimensions and connection types for various DML models, including the DML-083. Note the flow arrow indicating the correct installation direction.
Figure 2: DML Flare Connection Types. This table provides a list of DML models, their corresponding connection sizes (in inches), and product code numbers. The DML-083 has a 3/8 inch connection.
5. Parentah Operasi
The Danfoss DML-083 filter dryer is a passive component designed to continuously remove moisture and contaminants from the refrigerant in the liquid line. Once installed correctly, it operates automatically as part of the refrigeration cycle.
- Monitor system performance regularly. A significant pressure drop across the filter dryer may indicate it is clogged and requires replacement.
- Ensure the system is operating within its design parameters to prevent premature failure of components, including the filter dryer.
6. Pangropéa
Filter dryers are sealed components and are not designed for internal cleaning or repair. Maintenance primarily involves periodic inspection and replacement.
- Pamariksaan: Visually inspect the filter dryer for signs of external damage, corrosion, or leaks during routine system checks.
- ngagantian: The lifespan of a filter dryer depends on system cleanliness and operating conditions. It is recommended to replace the filter dryer whenever a system is opened for major repairs, after a compressor burnout, or if signs of moisture or contamination are detected (e.g., acid test, sight glass indicator).
- pembuangan: Dispose of used filter dryers in accordance with local environmental regulations for hazardous waste, as they may contain residual refrigerant and oil.
7. Cara ngungkulan
While the DML-083 is a reliable component, issues in the refrigeration system can sometimes be attributed to or exacerbated by a failing filter dryer.
| Gejala | Mungkin Cukang lantaranana | Aksi |
|---|---|---|
| High pressure drop across filter dryer | Clogged filter dryer due to solid contaminants or excessive moisture absorption. | Replace the filter dryer. Investigate and address the source of contamination. |
| Moisture indicator (if present in system) shows moisture | Filter dryer is saturated with moisture or system has a leak allowing moisture ingress. | Replace the filter dryer. Perform a thorough leak check and repair any leaks. Re-evacuate and recharge the system. |
| System performance degradation (e.g., reduced cooling capacity) | Partially clogged filter dryer restricting refrigerant flow. | Check pressure drop across the filter dryer. If significant, replace the unit. |
8. Spésifikasi
Detailed specifications for the Danfoss DML-083 filter dryer are provided below:
- merek: Danfoss
- model: DML-083
- Ukuran produk: 15.8 x 5.8 x 5.8 cm (kira-kira)
- Beurat produk: 440 g
- Jenis sambungan: Flare
- Ukuran sambungan: 3/8 inci
- Solid Core Surface Area: 131 cm²
- Solid Core Volume: 104 cm³
- Filter Dryer Internal Volume: 0.17 L
- Kisaran Suhu Operasi: -40°C nepi ka 70°C

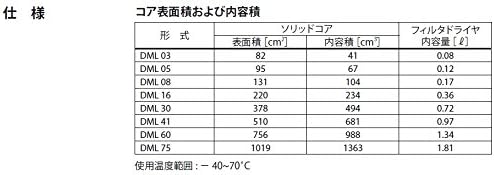

Figure 3: DML Core Surface Area and Volume. This table details the solid core surface area and internal volume for different DML filter dryer models, including the DML-083.
Figure 4: DML Water Absorption Capacity and Liquid Line Capacity. This table provides data on the water absorption capability and liquid line capacity for various DML models across different refrigerants (R134a, R404A, R507, R22, R407C, R410A) at specified temperatures.
9. Garansi jeung Rojongan
For warranty information and technical support, please refer to the official Danfoss website or contact your local Danfoss distributor. Keep your purchase receipt as proof of purchase.
Danfoss Resmi Websitus: www.danfoss.com
