Bubuka
This manual provides essential instructions for the safe and efficient operation of your Koolatron WC29 Elite Series 29-Bottle Dual Zone Wine Cooler. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Koolatron WC29 is a freestanding compressor-based wine cooler designed to store up to 29 standard wine bottles across two independently controlled temperature zones. It features UV-protective glass doors, touch screen controls, and adjustable shelving to preserve your wine collection under optimal conditions.
Image: The Koolatron WC29 wine cooler with both doors open, displaying the interior layout and bottle storage capacity.
Émbaran Kasalametan
Salawasna turutan pancegahan kaamanan dasar nalika nganggo alat-alat listrik pikeun ngirangan résiko kahuruan, kejutan listrik, sareng tatu pikeun jalma.
- Pastikeun unit leres dibumikeun.
- Ulah ngajalankeun alat ku kabel atawa colokan ruksak.
- Tetep bukaan ventilasi bersih tina halangan.
- Ulah nyimpen bahan ngabeledug sapertos kaléng aerosol kalayan propelan anu gampang kaduruk dina alat ieu.
- Perkakas ieu dimaksudkeun pikeun pamakéan rumah tangga wungkul.
- Proposisi 65 Peringatan: Produk ieu tiasa ngandung bahan anu diimbau ku California Proposition 65.
Setup sareng Instalasi
Ngabongkar bungkusan
- Cabut sadaya bahan kemasan, kalebet busa sareng pita perekat.
- Inspect the cooler for any damage during transit. Report any damage immediately to the retailer.
- Bersihkeun permukaan jero sareng luar nganggo lawon lemes sareng deterjen hampang sateuacan dianggo.
panempatan
The Koolatron WC29 is a freestanding unit. Choose a location with sufficient space around the cooler for proper ventilation. Avoid direct sunlight or heat sources.
- Pastikeun sirkulasi hawa nyukupan sabudeureun unit.
- Teundeun cooler dina datar, permukaan stabil.
- Dimensions: Approximately 19.3"D x 17.3"W x 33.15"H. Allow extra space for door opening.
Image: The Koolatron WC29 wine cooler positioned as a freestanding unit in a home environment, demonstrating its compact design and placement flexibility.

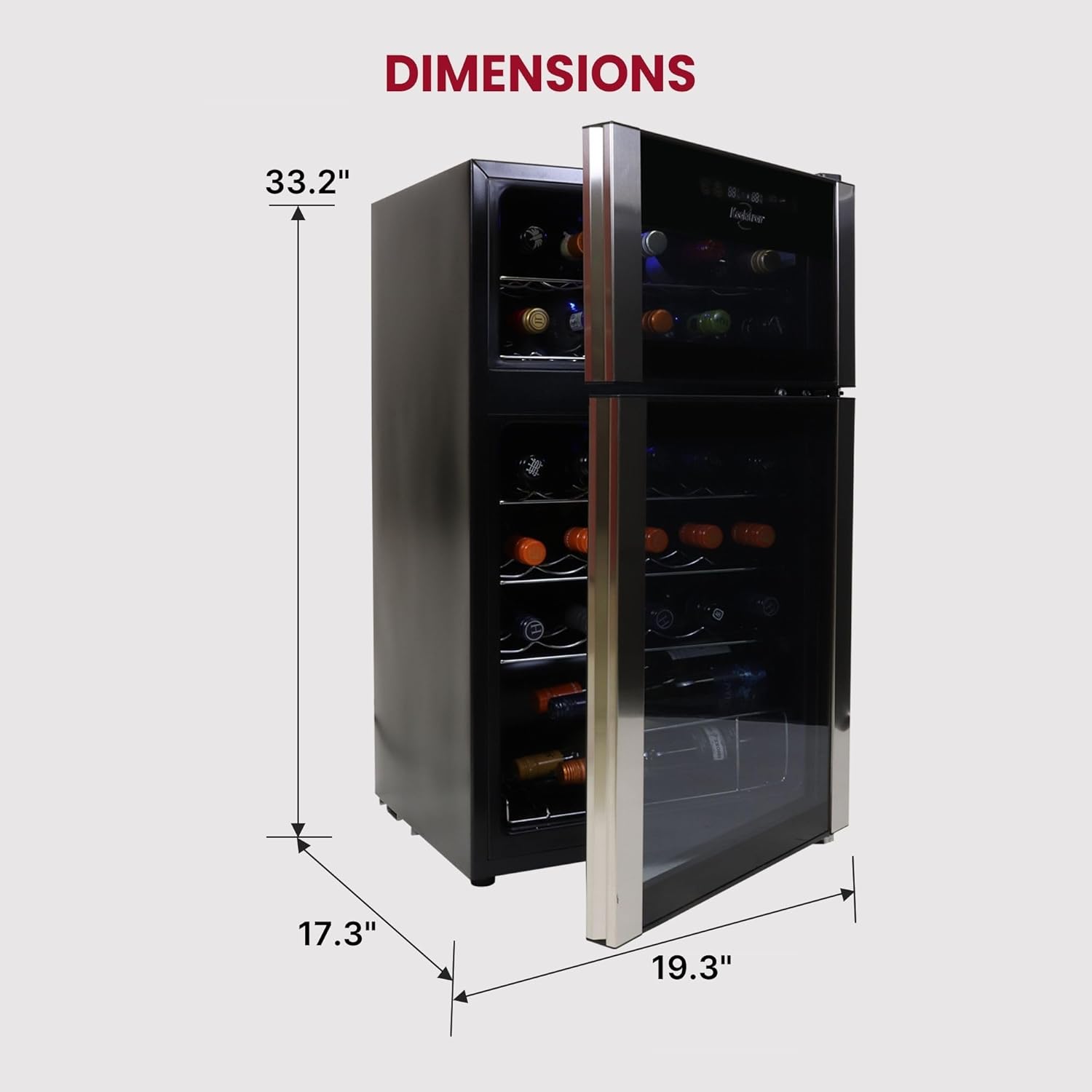

Image: A diagram illustrating the external dimensions of the Koolatron WC29 wine cooler, providing measurements for height, width, and depth.
Leveling Perkakas
The cooler is equipped with adjustable leveling feet. Adjust them to ensure the unit is stable and level. Proper leveling is crucial for efficient operation and door sealing.
Gambar: A lengkep view highlighting the adjustable feet feature of the wine cooler, essential for proper leveling.
Sambungan Daya
Plug the cooler into a dedicated, grounded 120 Volt AC outlet. Do not use extension cords or adapter plugs.
Allow the unit to stand upright for at least 2-4 hours before plugging it in to allow compressor fluids to settle.
Parentah Operasi
Panél kontrol
The Koolatron WC29 features a touch screen control panel located on the upper door. This panel allows you to monitor and adjust settings for both temperature zones and control the interior lighting.
Gambar: A lengkep view of the digital touch control panel, displaying icons for various functions including temperature adjustment, light control, and zone selection.
- Controls Lock/Unlock: Press to lock or unlock the control panel to prevent accidental changes.
- Lampu Hurung/Pareum: Activates or deactivates the interior LED lighting.
- Tampilan LED Digital: Shows the current temperature settings for each zone.
- Temperature Setting (+/-): Use these buttons to increase or decrease the desired temperature for the selected zone.
- Switch Zone: Toggles between the upper and lower zones for temperature adjustment.
Kontrol Suhu Zona Ganda
The cooler is designed with two independent temperature zones to accommodate different types of wine:
- Zona luhur: Holds up to 10 bottles. Temperature range: 46-64°F (8-18°C).
- Zona Handap: Accommodates up to 19 bottles. Temperature range: 46-64°F (8-18°C).
To set the temperature for a zone, press the "Switch Zone" button to select the desired zone, then use the "+" or "-" buttons to adjust the temperature. The display will show the set temperature, then revert to the actual internal temperature.
Image: An illustration detailing the dual-zone cooling system, indicating separate temperature controls for the upper and lower compartments.
Ngamuat Botol
The cooler includes six removable and adjustable stainless steel racks. These racks can be configured to accommodate various bottle sizes and shapes. One horizontal rack is designed for displaying bottles with labels facing outward.
- Ensure bottles are placed securely on the racks.
- Avoid overcrowding to allow for proper air circulation.
- The total capacity is 29 standard bottles. Larger bottles may reduce overall capacity.
Image: The interior of the wine cooler, showcasing the removable racks and the arrangement of wine bottles within the upper and lower zones.
UV Blocking Doors
The cooler features double-paned tinted glass doors that effectively block harmful UV rays and minimize temperature fluctuations. Each door opens independently to help maintain stable internal temperatures.
Image: A graphic demonstrating the UV protective properties of the double-paned glass doors, which shield wine from harmful light.
Pangropéa
beberesih
- Cabut colokan alat sateuacan beberesih.
- Ngabersihan interior ku detergent hampang jeung cai haneut. Ngahindarkeun cleaners abrasive.
- Ngusap handap surfaces exterior ku lemes, damp lawon.
- Clean the door gaskets regularly to ensure a proper seal.
Defrosting
The Koolatron WC29 features a frost-free defrost system, minimizing the need for manual defrosting.
Kakuatan Outage
Dina acara kakuatan outage, the unit is designed to return to its previously set temperature once power is restored, helping to maintain consistent storage conditions for your wine.
Pamérésan masalah
Sateuacan ngahubungan layanan palanggan, punten ulangview masalah umum sareng solusi ieu:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Cooler teu beroperasi. | No power, circuit breaker tripped, plug not fully inserted. | Pariksa catu daya, reset breaker, pastikeun colokan aman. |
| Suhu teu cukup tiis. | Door not closed properly, excessive door opening, warm ambient temperature, ventilation blocked. | Ensure door is sealed, reduce door openings, ensure proper ventilation, adjust temperature setting. |
| Sora kaleuleuwihi. | Unit not level, vibrating against wall, normal compressor operation. | Adjust leveling feet, ensure clearance from walls, note that some compressor noise is normal. |
| Panto henteu sealing leres. | Unit not level, gasket dirty or damaged. | Adjust leveling feet, clean or inspect door gasket. |
For more detailed troubleshooting, please refer to the official user manual PDF or contact Koolatron customer support.
spésifikasi
| merek | Koolatron |
| Modél | WC29 |
| Kapasitas | 29 Bottles / 3 Cubic Feet (86 Liters) |
| Diménsi (D x W x H) | 19.3" x 17.3" x 33.15" (49cm x 44cm x 84cm) |
| Item Beurat | 70.6 Pon (32 kg) |
| Tipe Pamasangan | Jalanan |
| Voltage | 120 volt |
| Wattage | 90 Watt |
| Sistem Defrost | Ibun Free |
| Tipe Bahan Panto | Stainless Steel, Double-paned tinted glass |
| Tipe Rak | 6 Removable Wire Racks |
| Fitur husus | Adjustable Leveling, Adjustable Shelves, Double pane insulated glass, Frost Free |
Garansi
The Koolatron WC29 wine cooler comes with a garansi 1 taun. This warranty covers manufacturing defects and ensures reliable performance. Please retain your proof of purchase for warranty claims.
Dukungan sareng Inpormasi Salajengna
For additional assistance, detailed troubleshooting, or to view the complete user manual, please refer to the official PDF document or visit the Koolatron websitus.
