Philips SDV6122T/27 Digital TV Antenna User Manual

1. Bubuka

The Philips SDV6122T/27 Digital TV Antenna is designed to receive free over-the-air digital and HDTV broadcasts. This amplified indoor antenna provides stable, high-quality signal reception for UHF and VHF channels. It is an ideal solution for accessing local channels without a monthly subscription.

This manual provides instructions for the proper installation, operation, and maintenance of your Philips Digital TV Antenna. Please read it thoroughly before use and retain it for future reference.

2. Émbaran Kasalametan

• Pamakéan jero rohangan wungkul: This antenna is designed for indoor use. Do not install it outdoors.
• Sumber Daya: Connect the antenna's power adapter only to a standard wall outlet. Ensure the voltage cocog sareng sarat anu ditangtukeun dina adaptor.
• Hindarkeun Uap: Do not expose the antenna to rain, moisture, or extreme humidity.
• Ventilasi: Ensure proper ventilation around the antenna. Do not cover it or place it in an enclosed space that restricts airflow.
• beberesih: Pegatkeun sambungan listrik saméméh beberesih. Paké lawon lemes, garing. Entong nganggo pembersih cair atanapi aerosol.
• Palayanan: Entong nyobian ngalayanan produk ieu nyalira. Rujuk sadayana ngalayanan ka tanaga jasa anu mumpuni.
• panempatan: Place the antenna away from heat sources such as radiators, heat registers, stoves, or other heat-producing appliances. Avoid placing it near strong electromagnetic fields.

3. Eusi Paket

Pastikeun yén sadaya item aya dina bungkusan:

• Philips SDV6122T/27 Digital TV Antenna
• Adaptor kakuatan
• Kabel Coaxial
• Manual pangguna (dokumén ieu)

Image: The retail packaging for the Philips SDV6122T/27 Digital TV Antenna, showing the antenna itself and key features.

4. Produk Langkungview

Familiarize yourself with the components of your Philips Digital TV Antenna:

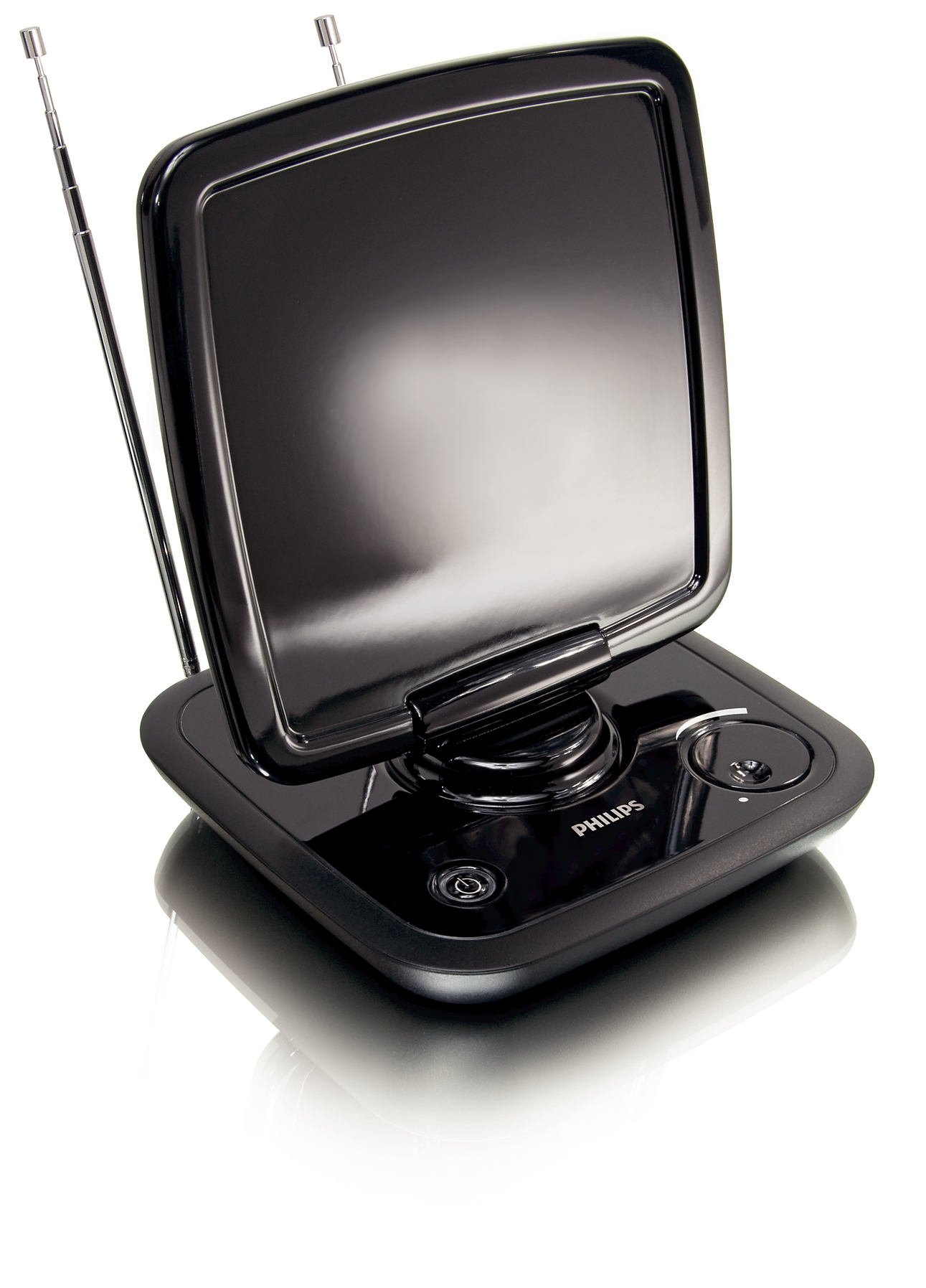

Gambar: Hareupeun view of the Philips SDV6122T/27 Digital TV Antenna, showing the main panel, telescopic dipoles, and base controls.

• Panel Utama: The flat, rectangular surface designed for optimal signal reception.
• Telescopic Dipoles: Extendable rods for enhanced VHF signal reception.
• Unit Dasar: Contains controls and connection ports.
• Gain Control Knob: Adjusts signal amplification (if applicable).
• Indikator Daya LED: Illuminates when the antenna is powered on.
• Kaluaran Coaxial: Connects to your TV or digital converter box.
• Input kakuatan: Nyambung ka adaptor kakuatan nu disadiakeun.

Gambar: Angled view of the Philips SDV6122T/27 Digital TV Antenna, highlighting its sleek design and adjustable panel.

5. Setélan

Follow these steps to set up your Philips Digital TV Antenna:

1. Pilih Lokasi: Place the antenna in a location that provides the best possible reception. Generally, higher locations and positions near a window facing the broadcast towers are ideal. Avoid placing it near large metal objects or other electronic devices that may cause interference.
2. Sambungkeun kabel Coaxial: Connect one end of the supplied coaxial cable to the "ANT IN" or "RF IN" port on your television or digital converter box. Connect the other end of the coaxial cable to the coaxial output port on the Philips antenna.
3. Sambungkeun Adaptor Daya: Plug the small end of the power adapter into the power input port on the antenna. Plug the other end of the power adapter into a standard electrical wall outlet. The Power LED indicator on the antenna should illuminate.
4. Extend Dipoles: Fully extend the telescopic dipoles for optimal VHF signal reception. Adjust their angle for best results.
5. Antena Posisi: Adjust the main panel of the antenna by tilting and swiveling it to find the best orientation for signal reception.

6. Nyuping

After setup, perform a channel scan on your television:

1. Access TV Menu: Turn on your television and press the "Menu" or "Settings" button on your TV remote control.
2. Select Input/Source: Navigate to the input or source selection and ensure it is set to "Antenna" or "Air".
3. Laksanakeun Scan Saluran: Look for an option like "Channel Scan," "Auto Program," "Auto Tune," or "Milarian pikeun Channels" in your TV's menu. Select this option to begin scanning for available channels. This process may take several minutes.
4. Adjust Antenna for Best Reception: After the scan, if you are not receiving all desired channels or if the picture quality is poor, try repositioning the antenna (tilting, swiveling, adjusting dipoles) and then perform another channel scan. Repeat this process until you achieve the best possible reception.
5. Adjust Gain Control (if applicable): If your antenna has a gain control knob, experiment with different settings. A higher gain may boost weak signals, but too high a gain can sometimes overload strong signals, leading to distortion.

Catetan: The number and quality of channels received depend on various factors, including distance from broadcast towers, terrain, building materials, and electromagnetic interference.

7. Pangropéa

To ensure the longevity and optimal performance of your antenna:

• beberesih: Disconnect the antenna from the power outlet before cleaning. Use a soft, dry, lint-free cloth to wipe the exterior surfaces. Do not use abrasive cleaners, waxes, or solvents.
• Panyimpenan: Upami nyimpen anteneu kanggo waktos anu panjang, pegatkeun sambungan listrik sareng TV anjeun, teras simpen di tempat anu tiis sareng garing.
• Pamariksaan kabel: Periodically check the coaxial cable and power adapter for any signs of damage. Replace damaged components immediately.

8. Cara ngungkulan

9. Spésifikasi

10. Garansi jeung Rojongan

Kanggo inpormasi garansi sareng dukungan téknis, mangga tingal dokuméntasi anu disayogikeun sareng pameseran anjeun atanapi kunjungi dukungan resmi Philips. websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

Dukungan Online: For the most up-to-date information, FAQs, and troubleshooting guides, please visit the Philips support websitus.

Inpormasi kontak: Specific contact details for customer service may vary by region. Please check the Philips website for local support numbers or email addresses.
