WAC Lighting SK36-WT Suspension Kit User Manual

Produk Leuwihview

The WAC Lighting SK36-WT is a 36-inch suspension kit designed for 120V single circuit H-L-J-J2 track systems. This kit facilitates the suspension of track lighting systems from a ceiling or other mounting surface, offering flexibility in lighting design and placement. It is constructed from durable die-cast aluminum and engineered for compatibility with various track lighting components.

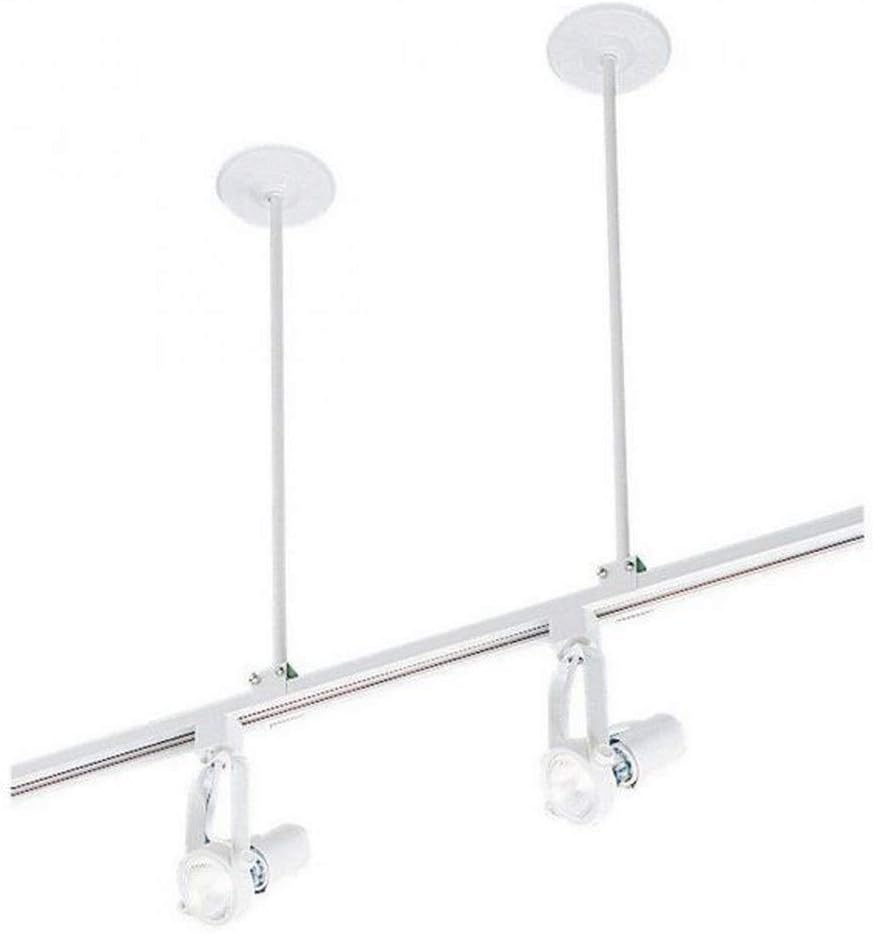

Image: Components of the WAC Lighting SK36-WT Suspension Kit, including the canopy, suspension rod, and track clip.

Émbaran Kasalametan

• Always disconnect power at the circuit breaker before installation, maintenance, or any adjustments.
• Pamasangan kedah dilakukeun ku tukang listrik anu mumpuni saluyu sareng sadaya kode listrik nasional sareng lokal anu berlaku.
• This product is intended for indoor use only and is UL & cUL Listed for Dry Locations.
• Ensure all electrical connections are secure and properly insulated to prevent electrical hazards.
• Do not exceed the maximum power rating of 1920 Watts per circuit for 120V systems.
• Track lighting systems are open conductors; exercise caution during handling and installation.
• Proposisi 65 Peringatan: Produk ieu tiasa ngandung bahan kimia anu dipikanyaho di Propinsi California anu nyababkeun kanker sareng cacat lahir atanapi cilaka réproduktif sanés.

Eusi pakét

• Power Feedable Canopy Cover
• Hollow Suspension Rod (36 inches)
• Track Mounting Clip
• Pamasangan Hardware
• Parentah Instalasi (manual ieu)

Setup sareng Instalasi

The SK36-WT suspension kit is designed to suspend track systems beneath a surface. Follow these steps for proper installation:

1. Nyiapkeun Area Instalasi: Before beginning, ensure the power is turned off at the circuit breaker controlling the installation area. Identify the precise location for the track system and ensure adequate structural support for mounting.
2. Pasang Kanopi: Securely attach the power feedable canopy cover to the ceiling or mounting surface using the provided mounting hardware. This must be firmly fastened to a junction box or a robust structural element.
3. Jalur Wiring: Carefully feed the electrical wires through the hollow interior of the suspension rod. The rod is specifically designed to conceal these power cables, contributing to a clean and finished appearance.
4. Attach Suspension Rod: Connect one end of the suspension rod to the mounted canopy. Ensure a secure and stable connection.
5. Sambungkeun ka Lagu: Attach the track mounting clip to the opposite end of the suspension rod. Then, securely fasten this clip to the track system itself. Verify that the track is level and properly aligned with the intended design.
6. Sambungan listrik: Within the canopy, make all necessary electrical connections according to standard wiring practices and local codes. Connect the track system's wiring to the main power supply.
7. Sistem tés: Once all connections are verified as secure and the track system is fully assembled and mounted, restore power to the circuit and test the track lighting system to ensure proper functionality.

Gambar: Mantanample of a WAC Lighting track system installed in a living room, demonstrating how suspension kits are used to position the track away from the ceiling.

Parentah Operasi

The WAC Lighting SK36-WT suspension kit is a structural and electrical component and does not have independent operational controls. Its primary function is to support and provide power to the track lighting system. The operation of the overall lighting system will depend on the specific track fixtures and control methods (e.g., wall switches, dimmers) used in conjunction with this kit.

• Hurungkeun/Pareuman: Control the lighting system via a standard wall switch connected to the circuit.
• Dimmability: WAC track systems are fully dimmable. If dimmable track fixtures are used, ensure that a compatible dimmer switch is installed in the circuit.
• adjustment fixture: Individual track fixtures can typically be repositioned along the track and adjusted for direction to achieve desired lighting effects. Refer to your fixture's manual for specific adjustment instructions.
• Kasaluyuan: This suspension kit is compatible with H-L-J-J2 track systems manufactured by WAC Lighting and other leading lighting manufacturers. Always ensure that any additional components (e.g., track sections, fixtures, connectors) are compatible with your specific track system.

Pangropéa

The SK36-WT suspension kit requires minimal maintenance to ensure its longevity and proper function.

• beberesih: Periodically wipe the suspension rod and canopy with a soft, dry, lint-free cloth to remove dust and light debris. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.
• Pamariksaan: Annually inspect the suspension kit and the entire track lighting system for any signs of wear, such as loose connections, frayed wires, or physical damage. Address any identified issues promptly by consulting a qualified electrician if necessary.
• Ngagantian bohlam: For bulb replacement procedures, refer to the specific instructions provided with your track fixtures. Always ensure the power to the track system is turned off at the circuit breaker before attempting to replace any bulbs or fixtures.

Pamérésan masalah

spésifikasi

Émbaran jaminan

The WAC Lighting SK36-WT Suspension Kit is backed by a Five (5) year manufacturer limited warranty. This warranty covers defects in materials and workmanship under normal use and service. For detailed terms and conditions, or to initiate a warranty claim, please refer to the official WAC Lighting websitus atanapi ngahubungan rojongan customer maranéhanana langsung.

Rojongan Palanggan

For technical assistance, troubleshooting guidance, or inquiries regarding your product's warranty, please contact WAC Lighting directly using the information below:

• Pabrikan: Pencahayaan WAC
• Resmi Websitus: www.waclighting.com
