Produk Leuwihview
The Savio Water Master Solids Submersible Pump (Model WMS1450) is engineered for efficient water circulation in aquatic environments, including ponds and water gardens. Its oilless direct drive motor ensures safety for plant life and fish. This pump is capable of handling solid particles up to 1 inch in diameter, making it ideal for applications where debris management is necessary.
Image: The Savio Water Master Solids Submersible Pump packaging, highlighting its features for filtration and waterfalls.
Fitur konci
- Ceramic coated drive shaft. Precision manufactured motor with thermal overload protection and hardened wear resistance.
- Triple silicon carbide mechanical seals. Handles up to 1" solid.
- Oil-Less design - Safe for environments with fish and plants.
Setup sareng Instalasi
The Savio Water Master pump is designed for straightforward installation. Follow these steps for proper setup:
Léngkah-léngkah Instalasi
- Sambungkeun Outlet: Attach the provided elbow adapter to the lower pump outlet. This adapter converts the 1.25-inch male thread to a 1.5-inch female thread. Alternatively, you may use your own 1.25-inch PVC fitting.
- panempatan: Carefully place the pump in the desired location within your water feature. Ensure the water intake at the very base of the pump is unobstructed. The pump's design allows it to continue pumping even if water levels drop, reducing the risk of motor burnout.
- Flow Regulation (Optional): If using a ball valve or similar flow regulator, ensure it is properly installed. It is important not to restrict the flow by more than 10-15% to avoid stressing the pump.
- Perlindungan lebu: To further protect the pump from miscellaneous debris, consider placing it inside a mesh bag. This helps prevent larger particles from entering the pump.
- Sambungan Daya: Connect the 16-foot electrical cord to a standard 110V outlet.
Visual Guide: Pump Components and Installation
Image: The Savio Water Master Solids Submersible Pump, showcasing its compact design and integrated electrical cord.
Image: The pump with approximate dimensions indicated, showing its height and width for placement considerations.

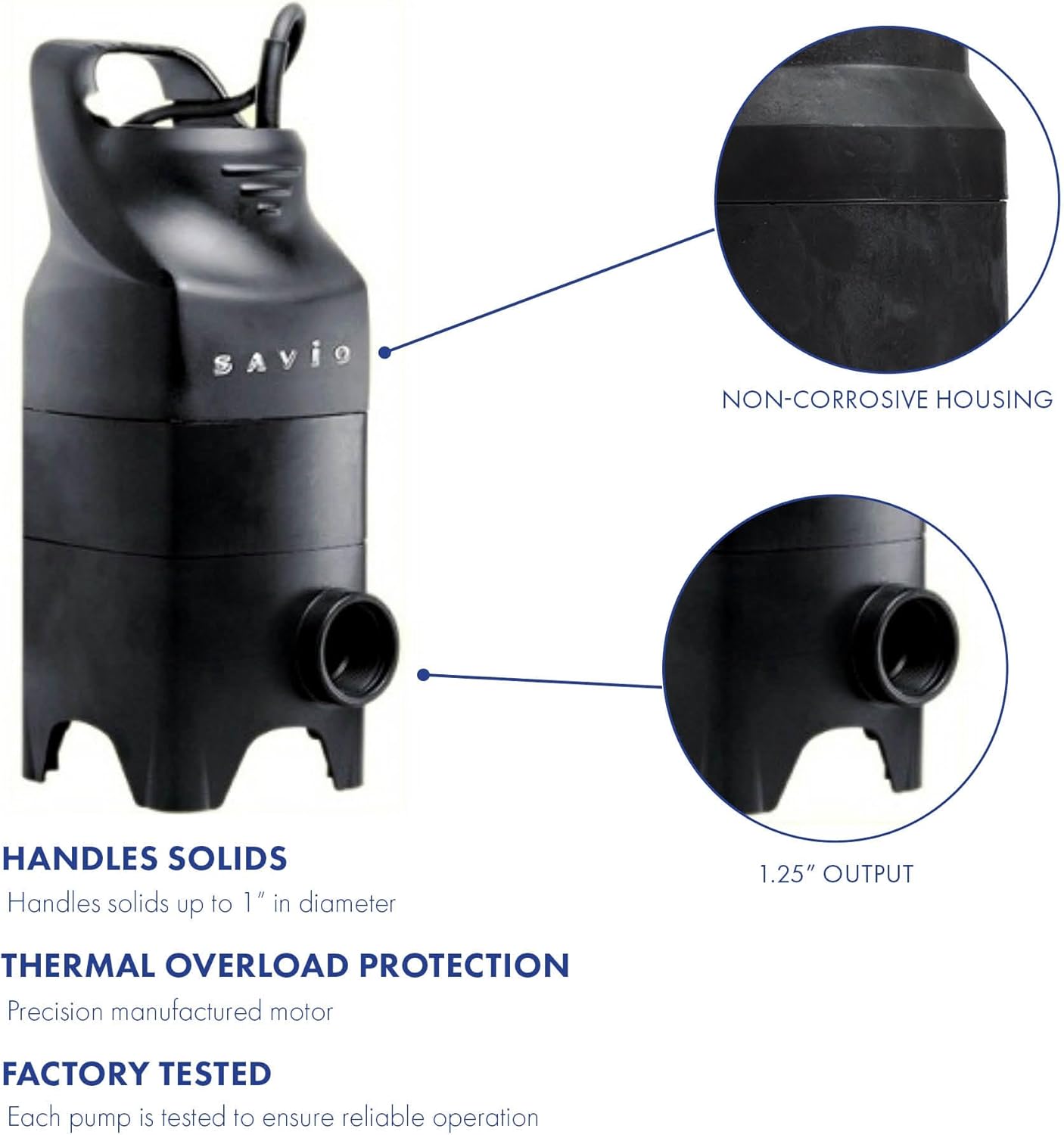

Gambar: A close-up view highlighting the non-corrosive housing and the 1.25-inch output port of the pump, designed for durability.
Parentah Operasi
The Savio Water Master pump is designed for continuous and reliable operation in appropriate aquatic environments.
Operasi Umum
- Ensure the pump is fully submerged in water before connecting it to a power source.
- The unique bottom intake design allows the pump to operate efficiently even with lower water levels, minimizing the risk of motor damage from dry running. However, it is crucial to regularly monitor water levels to prevent prolonged dry operation.
- The pump's solids handling capability allows it to pass debris up to 1 inch, making it suitable for natural pond environments with sediment.
Visual Guide: Pump in Operation
Image: The Savio Water Master pump submerged and actively circulating water in a pond, demonstrating its operational use.
Pangropéa
Consistent maintenance is vital for ensuring the longevity and optimal performance of your Savio Water Master pump.
beberesih
- Periodically inspect the pump for any accumulation of debris, particularly around the water intake area.
- If you are using a protective mesh bag, clean it regularly to prevent clogging and maintain efficient water flow.
Mangrupikeun usum salju
- In regions experiencing freezing temperatures, it is essential to remove the pump from the water before winter to prevent ice damage.
- Thoroughly clean the pump and store it in a dry, frost-free environment until spring.
Pamérésan masalah
If your Savio Water Master pump is not performing as expected, consult the following table for common issues and their solutions:
| Masalah | Mungkin Cukang lantaranana | Solusi |
|---|---|---|
| Pompa teu jalan | No power; clogged intake; motor overheating | Check power connection and outlet; clean pump intake; allow motor to cool down before restarting. |
| Ngurangan aliran | Clogged intake/output; restricted flow valve; low water level | Clean all pump passages and connected pipes; adjust flow valve to increase flow; add water to the feature until the pump is fully submerged. |
| Pompa nyieun sora anu teu biasa | Debris in impeller; dry running | Disconnect power and carefully clear any debris from the impeller; ensure the pump is fully submerged in water. |
spésifikasi
Detailed technical specifications for the Savio Water Master Solids Submersible Pump (Model WMS1450):
| Fitur | Rincian |
|---|---|
| merek | Savio |
| Modél | WMS1450 |
| Dimensi produk | 13 "L x 6" W x 6" H |
| Item Beurat | 10 pon |
| Sumber Daya | Kabel Listrik |
| Voltage | 120 volt |
| Wattage | 250 watt |
| Laju aliran maksimum | 1,450 GPH |
| Kepala maksimum | 14 suku |
| Panjang Tali | 16 suku |
| Penanganan padet | Up to 1 inch |
| Desain Minyak-Kurang | Yes, safe for fish and plants |
Bagan kinerja
Image: A detailed chart comparing specifications for various Savio Water Master pump models, including GPH, Watts, Volts, and Max Head.
Image: A graph illustrating the maximum head pressure versus flow rates for different Water Master Solids pump models.
Garansi sareng Rojongan
The Savio Water Master Solids Submersible Pump (Model WMS1450) is backed by a 2-Year Manufacturer Warranty, ensuring peace of mind regarding its quality and performance.
For any support inquiries, technical assistance, or to initiate a warranty claim, please contact Savio customer service directly or visit the official Savio websitus pikeun inpo kontak lengkep.
Produsén: Savio
Tanggal Mimiti Sadia: 23 Januari 2008
