Emerald P401TSW 6-Inch Recessed Ceiling Light Fixture Kit

1. Bubuka

This manual provides detailed instructions for the safe installation, operation, and maintenance of your Emerald P401TSW 6-inch Recessed Ceiling Light Fixture Kit. Please read all instructions carefully before beginning installation and retain this manual for future reference. Proper installation is crucial for safety and optimal performance.

2. Émbaran Kasalametan

WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the circuit breaker or fuse box before installation or servicing. Failure to do so may result in serious injury or death.

• All electrical connections must be in accordance with local codes, ordinances, and the National Electric Code (NEC).
• Taroskeun ka tukang listrik anu mumpuni upami anjeun henteu yakin ngeunaan prosedur kabel.
• Anggo kacamata sareng sarung tangan kaamanan nalika dipasang.
• Pastikeun fixture bener grounded.
• Do not install insulation within 3 inches of the fixture housing.
• This fixture is designed for indoor use in dry or damp lokasi wungkul.

3. Eusi Paket

Pariksa yén sadaya komponén aya sateuacan ngamimitian pamasangan:

• Recessed Housing (1)
• White Trim Ring (1)
• Frosted Glass Diffuser (1)
• Pemasangan Hardware (sekrup, mur kawat)
• Manual Pitunjuk (dokumén ieu)

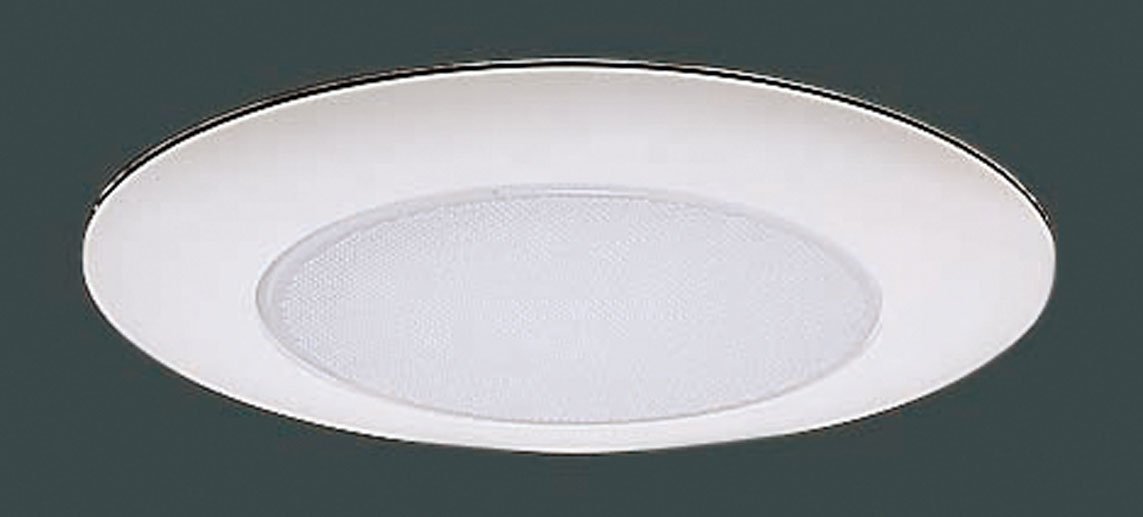

Image: Components of the Emerald P401TSW recessed light kit, showing the housing, white trim, and frosted glass diffuser.

4. Pakakas Diperlukeun

Alat-alat di handap ieu biasana diperyogikeun pikeun instalasi:

• Phillips Kepala Obeng
• Obeng Kepala Datar
• Kawat Strippers
• Pita Ukur
• Pensil
• Drill with Hole Saw (6-1/4 inch recommended for a snug fit)
• Utility Knife (optional, for drywall)
• Kacamata Kasalametan

5. Parentah instalasi

Follow these steps carefully to install your recessed light fixture. This kit is designed for both new construction and remodel applications.

Lengkah 1: Nyiapkeun pikeun Instalasi

1. Pareuman kakuatan: Locate the circuit breaker or fuse box controlling the area where you will install the fixture and turn off the power. Verify power is off using a voltage panguji.
2. Nangtukeun lokasi: Choose a suitable location on the ceiling, ensuring there are no obstructions (joists, pipes, wires) behind the drywall.
3. Mark and cut hole: Using a measuring tape and pencil, mark the center of your desired fixture location. Use a 6-1/4 inch hole saw to cut a circular opening in the drywall. Note: A slightly larger hole (e.g., 6-3/8 inch) may be necessary for easier installation and to prevent drywall damage, as reported by some users. Test fit before final wiring.

Hambalan 2: Wiring fixture nu

4. Open junction box: Open the access plate on the fixture's junction box.
5. Sambungkeun kabel: Feed the electrical supply wires through the knockout hole into the junction box. Using wire nuts, connect the wires as follows:
   • Nyambungkeun hideung (hot) wire from the supply to the hideung wire of the fixture.
   • Nyambungkeun bodas (neutral) wire from the supply to the bodas wire of the fixture.
   • Nyambungkeun tambaga bulistir or hejo (ground) wire from the supply to the hejo ground screw or wire in the junction box.
6. Secure wiring: Ensure all connections are secure. Carefully tuck all wires and wire nuts into the junction box and close the access plate.

Step 3: Installing the Housing

7. Insert housing: Carefully push the recessed housing up into the ceiling opening.
8. Secure housing: The housing features spring clips or tension clips. Push these clips outwards and upwards to secure the housing firmly against the ceiling drywall. Ensure the housing is flush and level with the ceiling surface. If the housing does not sit level, it may require minor adjustment or shimming before proceeding.

Step 4: Installing the Trim and Glass

9. Install bulb: Screw in the appropriate bulb (not included) into the socket. Refer to the specifications section for bulb type and wattage.
10. Attach glass diffuser: Place the frosted glass diffuser into the trim ring.
11. Pasang trim: Align the trim ring with the housing. The trim typically has torsion springs or clips that attach to brackets inside the housing. Gently push the trim upwards until it snaps securely into place, flush with the ceiling.

Lengkah 5: Lengkah Final

12. Balikkeun kakuatan: Hurungkeun kakuatan deui dina circuit breaker atawa kotak sekering.
13. Perlengkapan uji: Turn on the light switch to ensure the fixture is operating correctly.

6. Parentah Operasi

Once installed, the Emerald P401TSW recessed light fixture operates like any standard ceiling light. Control it using a wall switch connected to the circuit. To replace the bulb, ensure power is off, allow the bulb to cool, then unscrew the old bulb and screw in a new one of the correct type and wattage.

7. Pangropéa

• beberesih: Disconnect power before cleaning. Wipe the trim and glass diffuser with a soft, damp lawon. Ulah make cleaners abrasive atawa pangleyur, sabab bisa ngaruksak finish.
• Ngagantian bohlam: Always turn off power before replacing a bulb. Allow the bulb to cool completely. Use only bulbs that meet the specifications listed in this manual.
• Pamariksaan: périodik mariksa fixture pikeun sagala tanda karuksakan atawa sambungan leupas. Upami aya masalah, pegatkeun sambungan listrik sareng konsultasi ka tukang listrik anu mumpuni.

8. Cara ngungkulan

9. Spésifikasi

• model: P401TSW
• Jenis fixture: Recessed Ceiling Light Kit
• ukuran: 6-inch (nominal opening)
• Trim rengse: Bodas
• Kaca: Frosted Diffuser
• Voltage: 120V AC, 60Hz
• Jenis bohlam: Incandescent, LED, or CFL compatible (bulb not included)
• Max Wattage: 60W (or equivalent LED/CFL)
• Peunteun lokasi: Garing atawa Damp

10. Émbaran jaminan

This Emerald product is covered by a limited warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or visit the manufacturer's websitus pikeun istilah jeung kaayaan husus. Simpen bukti pameseran anjeun pikeun klaim garansi.

11. Rojongan Palanggan

For technical assistance, missing parts, or warranty inquiries, please contact Emerald customer support. Refer to the packaging or the manufacturer's official website for current contact information (phone number, email, or support portal).
