Pentax Optio W10 6MP Digital Camera Instruction Manual

1. Bubuka

Hatur nuhun pikeun meuliasing the Pentax Optio W10 Digital Camera. This manual provides essential information for the safe and effective use of your camera. The Optio W10 is a compact 6.0-megapixel digital camera featuring a 3x optical zoom lens, designed for capturing high-quality still images and video. Its robust design makes it suitable for various environments.

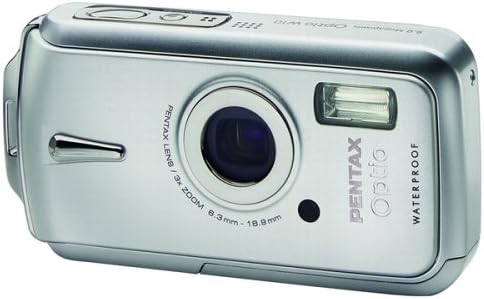

Gambar 1.1: Hareupeun view of the Pentax Optio W10 Digital Camera, showcasing the lens, flash, and branding.

2. Émbaran Kasalametan

Please read and understand all safety precautions before using the camera. Failure to do so may result in injury or damage to the product.

• Ulah nyobian ngabongkar atanapi ngarobih kaméra.
• Keep the camera away from extreme temperatures, direct sunlight, and high humidity.
• Ensure all compartment covers (battery, memory card) are securely closed and locked before exposing the camera to water or dust.
• Use only the specified battery type (Lithium-ion DL-I8) and charger.
• Jauhkeun tina jangkauan barudak.

3. Eusi Paket

Pastikeun yén sadaya item aya dina pakét kaméra anjeun:

• Pentax Optio W10 Digital Camera
• Lithium-ion Battery DL-I8
• Carjer batré
• Kabel Daya AC
• Kabel USB (pikeun nyambungkeun komputer)
• Tali
• Parangkat lunak CD-ROM
• Manual Pitunjuk (dokumén ieu)

4. Setélan

4.1. Pamasangan batré

1. Locate the battery/memory card compartment cover on the bottom of the camera.
2. Slide the lock switch to the 'OPEN' position and open the cover.
3. Insert the Lithium-ion battery DL-I8 into the compartment, ensuring the correct orientation as indicated inside the compartment.
4. Close the cover and slide the lock switch to the 'LOCK' position until it clicks securely.

Gambar 4.1: Handap view of the camera, illustrating the battery and SD card compartment with the lock switch.

4.2. Pamasangan Kartu Mémori

The Pentax Optio W10 uses SD memory cards.

1. Open the battery/memory card compartment cover as described in Section 4.1.
2. Insert the SD memory card into the designated slot with the label facing the correct direction, pushing gently until it clicks into place.
3. Close the cover and slide the lock switch to the 'LOCK' position.

4.3. Daya Awal Hurung sareng Setélan Tanggal/Waktu

1. Pencét éta ON/OFF tombol anu aya di luhur kaméra.
2. Upon first power-on, the camera will prompt you to set the date and time. Use the directional buttons on the back of the camera to navigate and the OK tombol pikeun mastikeun.
3. Turutan parentah dina-layar pikeun ngarengsekeun setelan awal.

Gambar 4.2: Top view of the camera, highlighting the ON/OFF button and 6.0 Megapixels branding.

5. Ngoperasikeun kaméra

5.1. Dasar Fotografi

To take a still picture:

1. Hurungkeun kaméra ku mencét tombol ON/OFF kancing.
2. Pigura shot anjeun ngagunakeun monitor LCD 2.5 inci.
3. Pencét tombol jepret satengahna ka handap pikeun fokus. Pigura pokus bakal héjo nalika pokus kahontal.
4. Pencét tombol jepret ka handap pikeun moto gambar.

Gambar 5.1: Tukangeun view of the camera, displaying the LCD screen and various control buttons for navigation and settings.

5.2. Modeu shooting

The Optio W10 offers various shooting modes accessible via the MODÉ button. Refer to the on-screen menu for specific options such as Program Auto, Scene Modes, and Movie Mode.

5.3. Ngarekam Pidéo

Pikeun ngarékam pidéo:

1. Switch to Movie Mode using the MODÉ kancing.
2. Press the shutter button to start recording. The camera can capture QuickTime motion JPEG videos at 640 x 480 resolution at 30 frames per second.
3. Pencét deui tombol jepret pikeun ngeureunkeun ngarékam.

5.4. Puterkeun deui

Ka view gambar sareng pidéo anu dicandak:

1. Pencét éta Playback button (usually indicated by a triangle icon).
2. Anggo tombol arah pikeun ngagulung poto sareng pidéo anjeun.
3. Pencét éta OK tombol pikeun view video atawa ngazum kana poto.

5.5. Nyambungkeun ka Komputer

Pikeun mindahkeun gambar sareng pidéo ka komputer:

1. Pastikeun kaméra dipareuman.
2. Sambungkeun kaméra ka komputer Anjeun nganggo kabel USB nu disadiakeun.
3. Turn on the camera. It should be recognized as a removable disk or a PTP device.
4. Follow your computer's operating system instructions to access and transfer files.

6. Pangropéa

6.1. beberesih

• Awak kaméra: Lap ku lawon anu lemes sareng garing. Pikeun kokotor anu bandel, anggo sakedikamp lawon lajeng garing tuntas.
• Lensa: Use a lens brush or a soft, clean lens cloth. Avoid touching the lens surface with your fingers.
• Monitor LCD: Gently ngusap ku lawon lemes, garing. Ulah pencét teuas dina layar.
• Segel waterproof: Regularly inspect the rubber seals around the battery/memory card compartment for dirt, sand, or damage. Clean gently with a soft cloth. Do not use sharp objects.

6.2. Panyimpenan

When not in use for extended periods, store the camera in a cool, dry, and well-ventilated place. Remove the battery to prevent leakage. Avoid storing in areas with high humidity or extreme temperature fluctuations.

7. Cara ngungkulan

If you encounter issues with your Pentax Optio W10, refer to the following common solutions:

For further assistance, please refer to the official Pentax support websitus atanapi ngahubungan layanan palanggan.

8. Spésifikasi

Key technical specifications for the Pentax Optio W10 Digital Camera:

• Resolusi Tetep Éféktif: 6.0 megapiksel
• Téknologi Sénsor Poto: CCD (1/2.5 inci)
• Zoom optik: 3x
• Ngazum Digital: 4x
• Panjang Fokus Maksimum: 114 mm
• Panjang Fokus Minimum: 38 mm
• Ukuran layar LCD: 2.5 inci
• Stabilisasi Gambar: Digital, Optik
• Resolusi Video: 640 x 480, 30/15 fps (QuickTime Motion JPEG)
• Dirojong File formatna: JPEG (Still Images), MJPEG (Video)
• Média Panyimpenan: SD/MMC card, Internal Memory
• Jenis Batré: Lithium-ion (DL-I8)
• Fitur husus: Waterproof (Note: Ensure all seals are properly closed before water exposure)
• Laju Rana Minimum: 4 detik
• Laju Rana Maksimum: 1/2000 detik
• Rentang ISO: Otomatis, 64, 100, 200, 400, 800
• Beurat barang: 5.6 ons
• Jumlah modél: 19033

9. Garansi jeung Rojongan

For information regarding warranty coverage, service, or technical support for your Pentax Optio W10 camera, please refer to the warranty card included with your product or visit the official Pentax websitus. Simpen bukti pameseran anjeun pikeun klaim garansi.

Dukungan Online: Ricoh Imaging Global Support (Pentax is a brand of Ricoh Imaging)
