Canon EOS Elan 7 35mm SLR Camera Instruction Manual

Bubuka

The Canon EOS Elan 7 is a sophisticated 35mm Single-Lens Reflex (SLR) camera designed for both advanced enthusiasts and professionals. It features a highly advanced autofocus system, precise metering capabilities, and robust construction, making it suitable for a wide range of photographic situations. This manual provides detailed instructions for the proper setup, operation, and maintenance of your camera.

Komponén Kaméra

Familiarize yourself with the main components of your Canon EOS Elan 7 camera.

Gambar 1: Hareupeun view of the Canon EOS Elan 7 camera with the lens cap attached. This view shows the camera body, grip, and strap attachment points.

Gambar 2: Top view of the Canon EOS Elan 7 camera. This perspective highlights the mode dial, shutter button, and top LCD panel for settings display.

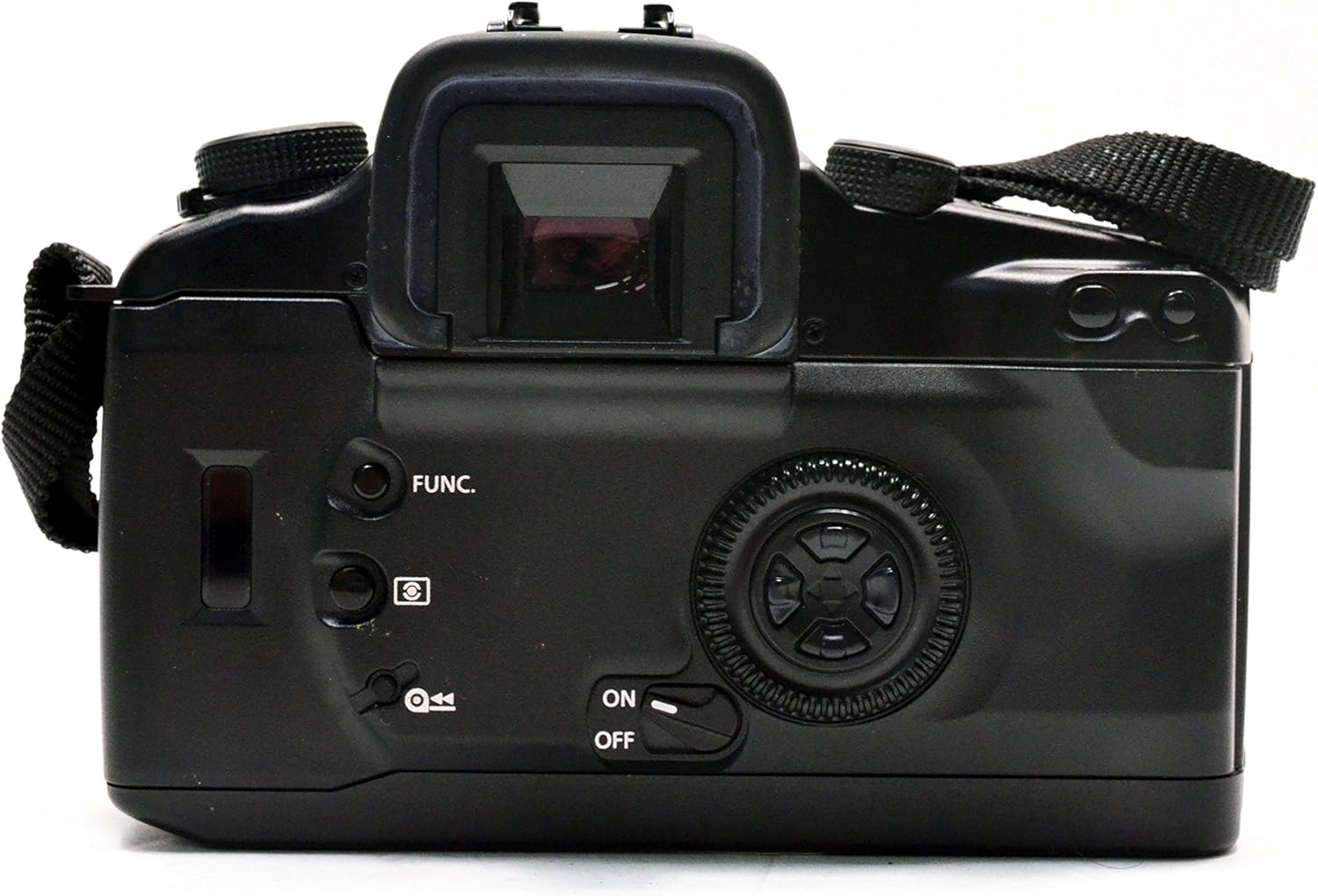

Gambar 3: Tukangeun view of the Canon EOS Elan 7 camera. Visible elements include the viewfinder, various control buttons, and the main command dial.

Disetél

Pamasangan batré

The Canon EOS Elan 7 requires Lithium batteries for operation. Ensure the camera is powered off before installing or replacing batteries.

1. Panggihan panutup kompartemen batréna, biasana di handapeun awak kaméra.
2. Open the cover by sliding or rotating the latch.
3. Insert the new Lithium batteries, ensuring correct polarity (+/-) as indicated inside the compartment.
4. Close the battery compartment cover securely until it latches.

Kantétan lénsa

The EOS Elan 7 uses Canon EF mount lenses. Always handle lenses by their barrel and avoid touching the glass elements or electrical contacts.

Gambar 4: Hareupeun view of the Canon EOS Elan 7 camera with the lens cap removed, revealing the EF lens mount and mirror box.

1. Cabut tutup awak tina kaméra sareng tutup pungkur tina lensa.
2. Align the red index mark on the lens with the red index mark on the camera's lens mount.
3. Rotate the lens clockwise (when viewed ti hareup) nepi ka ngaklik kana tempatna. Ulah maksakeun lénsa.

To detach a lens, press the lens release button on the camera body and rotate the lens counter-clockwise until it stops, then remove it.

Film Dijual

The EOS Elan 7 uses standard 35mm film cartridges.

Gambar 5: Tukangeun view of the Canon EOS Elan 7 camera with the film compartment door open, showing the film chamber and take-up spool.

angka 6: Tutup-up view of the film compartment, detailing the film take-up spool, film pressure plate, and film guides.

1. Open the camera back by sliding the film door release latch (usually on the side).
2. Teundeun kartrij pilem kana kamar pilem di sisi kénca.
3. Pull the film leader across to the right, aligning it with the red mark on the take-up spool.
4. Pastikeun perforasi pilem napel kana sprocket.
5. Close the camera back firmly until it latches. The camera will automatically advance the film to the first frame.

Ngoperasikeun kaméra

Ngahurungkeun/Pareuman

Use the ON/OFF switch, typically located near the main control dial, to power the camera on or off.

Sistem fokus

The EOS Elan 7 features a 7-point wide-area autofocus system with a central cross-type sensor. This system provides fast and accurate focusing even with off-center subjects or in low-light conditions.

• Automatic Focus Point Selection: The camera automatically selects the optimal focus point.
• Manual Focus Point Selection: Use the focusing-point selection keys (often a multi-controller on the back) to manually choose one of the seven focus points.
• Focus Modes: The camera supports Continuous-Servo AF (AI Servo AF) for moving subjects and One-Shot AF for stationary subjects.

Modeu Pangukuran

The camera's 35-zone evaluative metering system is linked to the focusing points, ensuring accurate exposure. Available metering modes include:

• Pangukuran Evaluative: Measures light across the entire scene, giving priority to the active focus point.
• Partial Metering: Measures approximately 10% of the viewfinder area around the center, useful for backlit subjects.
• Center-Weighted Average Metering: Measures the entire scene with a greater emphasis on the central area.

Kontrol paparan

The command dial allows for various exposure control options:

• Program AE (P): Camera automatically sets both shutter speed and aperture for optimal exposure.
• Shutter-Priority AE (Tv): Anjeun milih kecepatan rana, teras kaméra sacara otomatis nyetel aperture. Ideal pikeun ngontrol motion blur.
• Aperture-Priority AE (Av): You select the aperture, and the camera automatically sets the shutter speed. Useful for controlling depth of field.
• Paparan Manual (M): You set both shutter speed and aperture independently.

Shutter Speed and Aperture Adjustment

Adjust these settings using the main dial and sub-dial, typically located near the shutter button and on the back of the camera, respectively. The maximum shutter speed is 1/4000 second.

Film Advance and Rewind

The camera automatically advances film after each shot. Once a roll is complete, the camera will automatically rewind the film. You can also manually initiate rewind, with options for high-speed or silent rewind modes.

Timer otomatis

Activate the self-timer function for a delayed shutter release, typically 10 seconds, allowing the photographer to be included in the shot.

Fitur canggih

Modeu shooting

Beyond the basic exposure modes, the Elan 7 may offer specialized shooting modes such as 'Sports' mode, optimized for capturing fast-moving subjects with appropriate shutter speeds.

Setélan Kasaimbangan Bodas

While film cameras primarily rely on film type for color balance, the Elan 7 may offer settings to optimize exposure for different light sources, such as Auto, Cloudy, Daylight, and Flash torch, influencing the metering system.

Pamakéan Flash

The camera includes a built-in flash with various modes:

• otomatis: Flash fires automatically in low light.
• Eusian Flash: Flash fires regardless of ambient light, useful for brightening shadows.
• Flash Override: Pareuman lampu kilat.

Perawatan sareng Pangropéa

Perawatan anu leres mastikeun umur panjang sareng kinerja kaméra anjeun.

• beberesih: Use a soft, lint-free cloth to clean the camera body. For lenses, use a specialized lens cleaning solution and cloth. Avoid touching the mirror or shutter curtain.
• Panyimpenan: Store the camera in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, remove the batteries.
• Ngagantian batré: Replace batteries promptly when the low battery indicator appears to avoid interruption during shooting.
• Penanganan Film: Store film in a cool, dry place. Load and unload film in subdued light to prevent accidental exposure.

Pamérésan masalah

If you encounter issues with your Canon EOS Elan 7, refer to the following common problems and solutions:

spésifikasi

Key technical specifications for the Canon EOS Elan 7 35mm SLR Camera.

• Ngaran modél: Canon EOS Elan 7
• Jumlah modél: 4587A005
• Pamasangan anu cocog: Canon ef
• Téknologi Sénsor Poto: N/A (35mm FILM SLR camera)
• Rasio Aspék: 3:2
• Dilegakeun ISO Minimum: 100
• Katerangan pangukuran: Average, Center Weighted, Multi-Zone, Partial, Spot
• Laju Rana Maksimum: 1/4000 detik
• Laju Rana Minimum: 30 detik
• Titik pokus otomatis: 7
• Jenis fokus: Manual-and-Auto
• Shooting kontinyu: 4 FPS
• Timer Timer: 10 Detik
• Setélan Kasaimbangan Bodas: Auto, Cloudy, Daylight, Flash torch
• Flash kaméra: Built-In (Automatic, Fill Flash, Flash Override)
• Viewpapanggihan: Optik
• Jenis Batré: Litium
• Beurat barang: Approximately 0.01 Pounds (body only)
• warna: Hideung

Garansi sareng Rojongan

For information regarding warranty coverage, service, or technical support for your Canon EOS Elan 7 camera, please refer to the warranty card included with your purchase or visit the official Canon support website. Contacting Canon customer service directly will provide the most accurate and up-to-date assistance.
