STUDER xcom LAN/4G Multi Protocol Communication Module
Important Information
Studer disclaims all responsibility and liability for damage, costs or losses resulting from an installation that does not comply with the instructions, a faulty operation or inadequate maintenance. The use of studer equipment is in any case under the responsibility of the customer.
Read carefully the safety and operation instructions / Installation must be entrusted to qualified personnel / Check the user manual online / Need help ?
Compatible with:
- xtender
Battery Inverter/Charger
- Vario
Solar charge controller
- bsp
Advanced battery processor(Lead-acid)
- xcom 232i/CAN/485i
Communication bridges (Openstuder)
Content

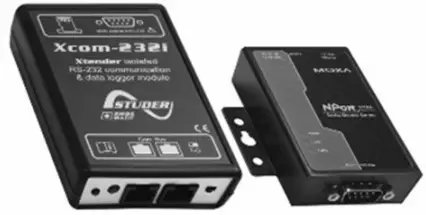

xcom LAN
|
xcom LAN |

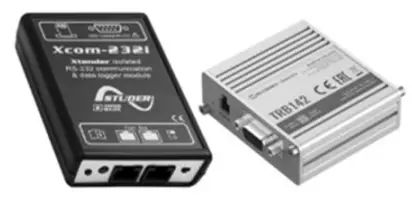

xcom 4G |
||
 |
 |
 |
 |
|
xcom LAN kit |
SD card | xcom 4G kit |
SD card |
 |
 |
 |
 |
|
Ethernet cable (a) |

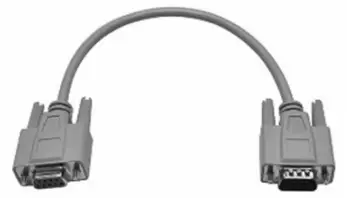

Serial cable MF (b) | Antenna (a) |

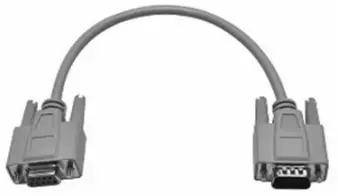

Serial cable FF (b) |
 |
 |
 |
 |
|
Power supply cable (c) |

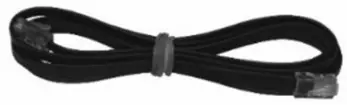

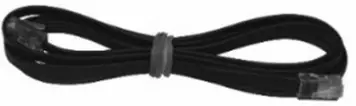

Communication cable (d) |
Power supply cable (c) |
Communication cable (d) |
 |
 |
 |
 |

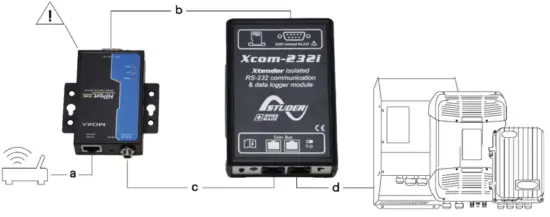

Wiring xcom LAN
a) Ethernet cable: Moxa Ethernet gateway <> Router
b) Serial cable: Moxa Ethernet gateway <> xcom232i
c) Power supply cable: Moxa Ethernet gateway <> xcom232i
d) Communication cable: xcom232i <> xtender/vario
All cables you need are provided in the set.
The metallic casing of t he Ethernet gateway is connected to the negative battery pole.
Therefore, it is necessary to isolate its casing from any metallic surface.

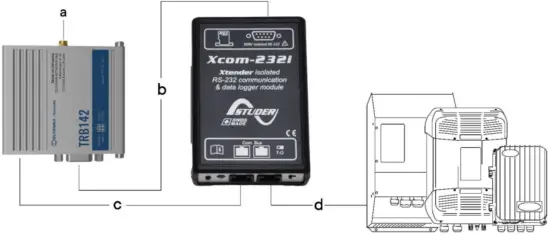

Wiring xcom 4G

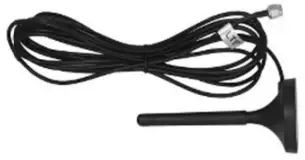

a) Antenna
b) Serial cable: TRB142 <> xcom232i
c) Power supply cable: TRB142 <> xcom232i
d) Communication cable: xcom232i <> xtender/vario
!xcom LAN/4G must be configured as xcom LAN!

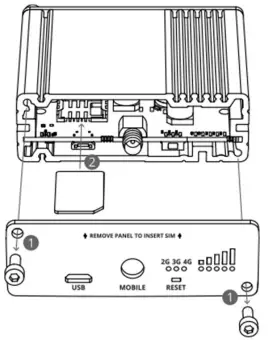

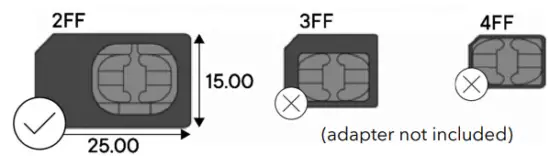

SIM card
- Unscrew two back panel hex bolts and remove the back panel.
- Insert your SIM card into the SIM socket and attach the panel and tighten the hex bolts.

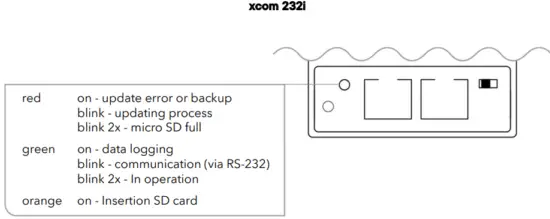

LED states

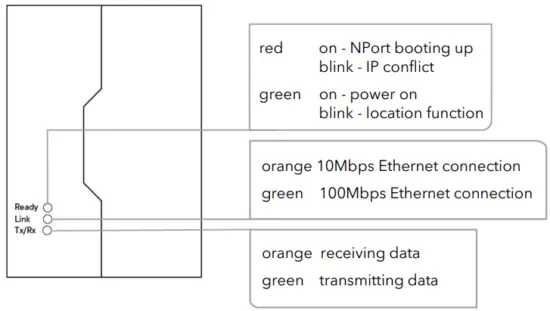

Moxa LAN gateway

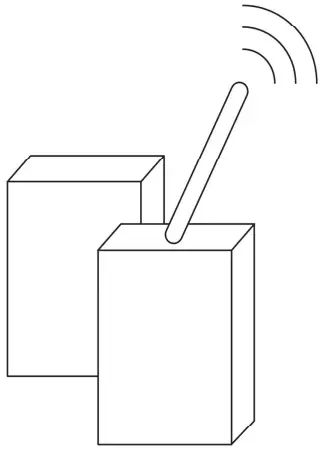

4G modem
Configuration – xcom LAN/4G

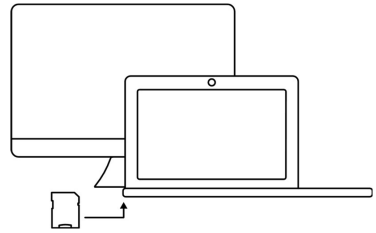

- SD card – computer

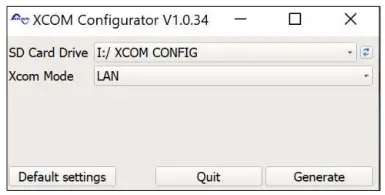

- xcom configurator

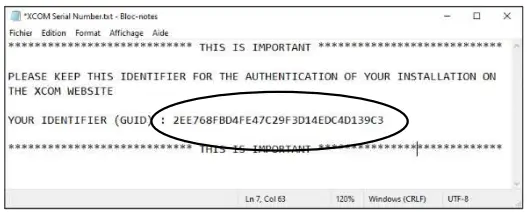

- GUID

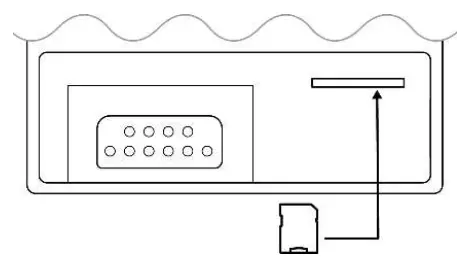

- SD card – xcom 232i

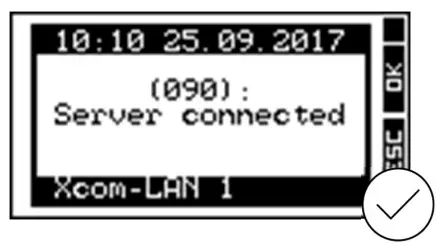

- rcc – server connection

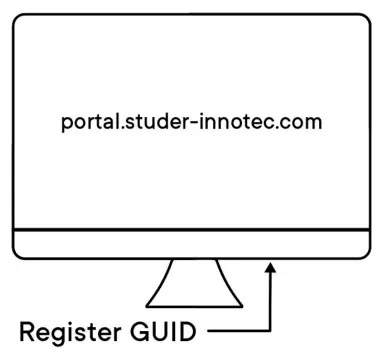

- portal – register installation
Terminations
Customer Support
Call our specialists +41 27 205 60 80 or visit studer-innotec.com/support
Studer Innotec SA
rue des Casernes 57
1950 Sion, Switzerland
info@studer-innotec.com
© All rights reserved Studer Innotec SA – V1.0.5
