Smart710 Tech Note
Introduction
- Full IP protection; ideal for mounting-arm installation
- Includes environment and motion sensors
- 10.1” TFT color display, resolution 1280×800 pixel, 16M colors, dimmable backlight
- PCAP Touchscreen Multitouch
- 10/100 Ethernet port PoE
- Wi-Fi Connection
Highlights
JSmart 710 is the ideal product for field installation in critical areas. High-resolution 10.1” display with multitouch
PCAP touchscreen with a robust glass front; touchscreen/display bonding for fidget optical performance.
Power-over-Ethernet (PoE) for maximum simplicity of connection using standard CAT5 wiring.
The availability of a Wi-Fi interface enhances the device integration.

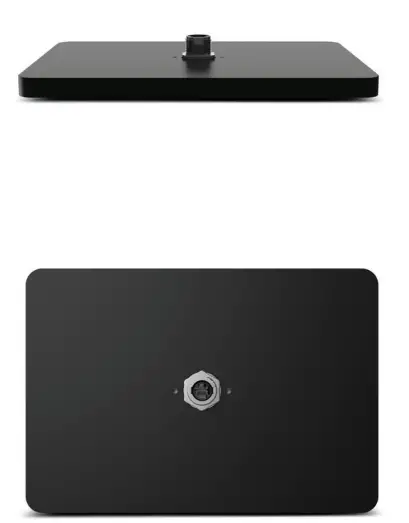

Full IP protection with the use of dedicated connectors for the maximum flexibility of installation, from mounting arm to a simple M22 hole. The product includes a full set of environment and motion sensors to make this device a true IIoT edge device for Industry 4.0 applications.
The JSmart product family has been optimized for use as an embedded browser or as a JMobile HMI device.
- Performing HTML5-compatible browser with graphic accelerator
- JMobile runtime with OPC UA Server and Client
- Optional CODESYS V3 PLC for integrated HMI and control applications
- Open platform for Linux applications
- Built-in sensors (temperature and acceleration)
JSmart710 – Technical Data
| System Resources | |
| Display – Colors | 10.1” TFT – 16M |
| Resolution | 1280×800 |
| Brightness | 400 cd/m2 typ. |
| Dimming | to 0% |
| Touchscreen | Projected Capacitive – Multitouch |
| CPU | 32-bit RISC dual core – 800 MHz |
| Operating system | Linux RT |
| Flash | 4 GB |
| RAM | 1 GB |
| FRAM | 64 KB |
| RTClock, RTC Back-up | Yes |
| Interface | |
| Ethernet port | 10/100 PoE |
| USB port | 1 (Host V2.0, max. 50 mA, available with special cable) |
| LED | 1 RGB |
| Sensors | Temperature, 3-Axis Accelerometer |
| Wi-Fi | IEEE 802.11a/b/g |
| Buzzer | Yes |
| Ratings | |
| Power supply | IEEE 802.3af PoE |
| Power Consumption | 12 W |
| Battery | Yes (rechargeable) |
| Environment Conditions | |
| Operating Temp | -20° to +55° C (vertical installation) |
| Storage Temp | -30°C to +80°C |
| Operating / Storage Humidity | 5-85% RH, non-condensing |
| Protection Class | IP67 (requires appropriate accessories and cables) – Type: 1, 12, 4x |
| Dimensions and Weights | |
| Faceplate LxH | 264.5×183.1 mm (10.41×7.20”) |
| Depth D+T+T | 16.5 mm (0.06”) |
| Weight | 1.2 Kg |
| Approvals | |
| CE | Radio Equipment Directive 2014/53/EU (RED) |
| UL | cULus: UL61010-1 / UL61010-2-201 |
| UL | cULus: Class 1 Div 2 |
| DNV-GL | Yes |
| RCM | Yes |
Dimension
Ordering Information
| Model | Part Number | Description |
| JSmart710 | +JS710BC1U5P1 | HMI 10” TFT, 1280×800, PCAP Touch, 4GB Flash memory, PoE Ethernet + Wi-Fi , JMobile runtime |
Customers Support
ptn0611 – Ver. 1.6
© 2019 EXOR International S.p.A. All rights reserved
