SKYDANCE DSA DMX512-SPI Decoder and RF Controller
Features
- DMX512 to SPI decoder and RF controller with digital display.
- Compatible with 42 kinds digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW), WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825. - DMX decode mode, stand-alone mode and RF mode selectable.
- Standard DMX512 compliant interface, set DMX decode start address by buttons.
- Under stand-alone mode, change mode, speed or brightness by bottons.
- Under RF mode, match with RF 2.4G RGB/RGBW remote control.
- 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.
Technical Parameters
| Input and Output | |
| Input voltage | 5-24VDC |
| Power consumption | 1W |
| Input signal | DMX512 + RF 2.4GHz |
| Output signal | SPI(TTL) x 3 |
| Dynamic mode | 32 |
| Control dots | 170 pixels (RGB 510 CH) Max 900pixels |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse Polarity |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certification | CE,EMC,LVD,RED |
| Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
| Case temperature (Max.) | T c:+65OC |
| IP rating | IP20 |
Mechanical Structures and Installations
DIMENSIONS
Wiring diagram
Note:
- If the SPI LED pixel strip is single-wire control, the DATA and CLK output is same, we can connect up to 6 LED strips.
- If the SPI LED pixel strip is two-wire control, we can connect up to 3 LED strips.
Operation
IC type, RGB order and pixel length length setting
- You must first assure IC type, RGB order and pixel length of the LED strip is correct.
- Long press M and ◀ key, prepare for setup IC type, RGB order, pixel length, automatic blank screen, Short press M key to switch four item. Press ◀ or ▶ key to setup value of each item. Long press M key for 2s, or timeout 10s, quit setting.
IC type table:
| No. | IC type | Output signal |
| C11 | TM1803 | DATA |
| C12 | TM1809,TM1804,TM1812,UCS1903,UCS1909,UCS1912,SK6813 UCS2903,UCS2909,UCS2912,WS2811,WS2812,WS2813,WS2815 | DATA |
| C13 | TM1829 | DATA |
| C14 | TLS3001,TLS3002 | DATA |
| C15 | GW6205 | DATA |
| C16 | MBI6120 | DATA |
| C17 | TM1814B(RGBW) | DATA |
| C18 | SK6812(RGBW),WS2813(RGBW),WS2814(RGBW) | DATA |
| C19 | UCS8904B(RGBW) | DATA |
| C21 | LPD6803,LPD1101,D705,UCS6909,UCS6912 | DATA,CLK |
| C22 | LPD8803,LPD8806 | DATA,CLK |
| C23 | WS2801,WS2803 | DATA,CLK |
| C24 | P9813 | DATA,CLK |
| C25 | SK9822 | DATA,CLK |
| C31 | TM1914A | DATA |
| C32 | GS8206,GS8208 | DATA |
| C33 | UCS2904 | DATA |
| C34 | SM16804 | DATA |
| C35 | SM16825 | DATA |
- RGB order: O-1 – O-6 indicate six order (RGB, RBG, GRB, GBR, BRG, BGR).
- Pixel length: Range is 008-900.
- Automatic blank screen: enable (“bon”) or disable(“boF”) automatic blank screen.
DMX decode mode
- Short press M key, when display 001-999, enter DMX decode mode.
- Press ◀ or ▶ key to change DMX decode start address(001-999), long press for fast adjustment.
- Long press M key for 2s, prepare for setup decode number and multiple of pixels. Short press M key to switch two item.
DMX decode mode
Press ◀ or ▶ key to setup value of each item. Decode number(display “dno”) : DMX decode channel number, range is 003-600(for RGB). Multiple of pixels(display “Pno”) Each 3 DMX channel control length(for RGB), range is 001- pixel length. Long press M key for 2s, or timeout 10s, quit setting. - If there is a DMX signal input, will enter DMX decode mode automatically.
For example, the DMX-SPI decoder connect with RGB strip: DMX data from DMX512 console:
DMX-SPI decoder output (start address: 001, decode channel number: 18, each 3 channel control length: 1):
DMX-SPI decoder output (start address: 001, decode channel number: 18, each 3 channel control length: 3):
Stand-alone mode
- Short press M key, when display P01-P32, enter stand-alone mode.
- Press ◀ or ▶ key to change dynamic mode number(P01-P32).

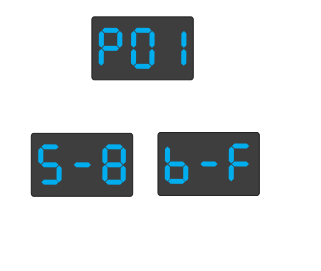

- Each mode can adjust speed and brightness. Long press M key for 2s, prepare for setup mode speed and brightness. Short press M key to switch two item. Press ◀ or ▶ key to setup value of each item. Mode speed: 1-10 level speed(S-1, S-9, S-F). Mode brightness: 1-10 level brightness(b-1, b-9, b-F). Long press M key for 2s, or timeout 10s, quit setting.
- Enter stand-alone mode only when DMX signal is disconnected or lost.
- Stand-alone mode
- Speed (8 level)
- Brightness (10 level,100％)
| No. | Name | No. | Name | No. | Name |
| P01 | Red horse race white ground | P12 | Blue White chase | P23 | Purple float |
| P02 | Green horse race white ground | P13 | Green Cyan chase | P24 | RGBW float |
| P03 | Blue horse race white ground | P14 | RGB chase | P25 | Red Yellow float |
| P04 | Yellow horse race blue ground | P15 | 7 color chase | P26 | Green Cyan float |
| P05 | Cyan horse race blue ground | P16 | Blue meteor | P27 | Blue Purple float |
| P06 | Purple horse race blue ground | P17 | Purple meteor | P28 | Blue White float |
| P07 | 7 color multi horse race | P18 | White meteor | P29 | 6 color float |
| P08 | 7 color horse race close + open | P19 | 7 color meteor | P30 | 6 color smooth sectionally |
| P09 | 7 color multi horse race close + open | P20 | Red float | P31 | 7 color jump sectionally |
| P10 | 7 color scan close + open | P21 | Green float | P32 | 7 color strobe sectionally |
| P11 | 7 color multi-scan close + open | P22 | Blue float |
RF mode
Match: Long press M and ▶ key for 2s, display “RLS”, within 5s, press on/off key of the RGB remote, display “RLO”, match is successful, then use the RF remote to change mode number, adjust speed or brightness. Delete: Long press M and ▶ key for 5s, until display “RLE”, delete all matched RF remote.
Restore factory default parameter
- Long press ◀ and ▶ key, restore factory default parameter, display”RES”.
- Factory default parameter: DMX decode mode, DMX decode start address is 1, decode number is 510, multiple of pixels 1, dynamic mode number is 1, chip type is TM1809, RGB order,pixel length is 170, disable automatic blank screen, without matched RF remote
