Abstract
Introduced as a highly versatile humidity (RH) and temperature (T) sensor platform, the SHT3x family already enables outstanding sensing performance for several years. Sensirion now proudly features its all-new flagship sensors from the SHT4x family, which profit from about two decades of RH/T sensor development. Dedicated to best-in-class performance, smallest footprint, and attractive pricing, our new SHT4x sensors are the products of choice for many SHT3x applications. In particular, the SHT4x outperforms the SHT3x in every aspect and offers versatile add-ons, such as a powerful heater for self-decontamination, conformal coating protection, or filter membranes. Moreover, the latest analog output circuitry enables reduced the PSRR (Power Supply Rejection Ratio) and further increase of the driving strength of the load.

Important changes

Parameter	SHT30	SHT40
Dimensions (mm3) Pin assignment	2.5 x 2.5 x 0.9 8 pins	1.5 x 1.5 x 0.5 4 pins
Interface	5 Analog output characteristics	5 Analog output characteristics
Supply voltage (V)	2.4 — 5.5	4.5 — 5.5
Av. current (AA)	220	520
Typ. RH accuracy (%RH)	±3.0	±2.5
Typ. T accuracy (°C)	±0.3	±0.3
Response time r63% (s) Additional features	8 Heater for plausibility checks only.	6 Powerful heater with A T60°C Full condensation robustness

General

This document first highlights the new features and differences from the previous generation. It then aims to provide a high-level guideline to replace SHT3x with sensors from the SHT4x family and outlines important differences to be considered in design-in processes.

Performance Comparison

2.1 Relative Humidity and Temperature

Parameter	Conditions	SHT3x	SHT4x	Units
Relative humidity
RH accuracy1	Typ.	±3	±2.5	%RH
Repeatability2		0.1	0.5	%RH
Resolution3	–	0.01	0.01	%RH
Hysteresis	–	±0.8	±0.8	%RH
Specified range4	extended5	0 to 100	0 to 100	%RH
Response time,	r 63%	8	6	s
Long-term drift,	Typ.	<0.25	<0.25	%RH/y
Sensitivity	VDD = 5.0 V	40	40	mV/%RH
Condensation behavior	Droplet formation	Slight signal drop	No signal drop	–
Temperature
T Accuracy1	Typ.	±0.3	±0.3
Repeatability2	–	0.06	0.1	°C
Resolution3	–	0.01	0.01	°C
Specified range4	–	-40 to +125	-40 to +125	°C
Response time,	T 63%	>2	2	s
Long-term drift,	Typ.	< 0.03	< 0.03	°C/y
Sensitivity	VDD = 5.0 V	23.	23	mV/°C

Table 1. Humidity and temperature specifications of the SHT3x and SHT4x, where bold values highlight important differences. For further details, kindly refer to the SHT3x and SHT4x datasheets.

For definition of typ. accuracy, please refer to the document “Sensirion Humidity Sensor Specification Statement”.

The stated repeatability is 3 times the standard deviation (3σ) of multiple consecutive measurement values at constant conditions and is a measure for the noise on the physical sensor output.
Resolution of A/D converter.

Specified range refers to the range for which the humidity or temperature sensor specification is guaranteed.
For details about recommended humidity and temperature operating range, please refer to the SHT4x Datasheet.

Time for achieving 63% of a humidity step function, valid at 25°C and 1 m/s airflow. Humidity response time in the application depends on the design-in of thesensor.
Typical value for operation in normal RH/T operating range. Max. value is < 0.5 %RH/y. Value may be higher in environments with vaporized solvents, out-gassingtapes, adhesives, packaging materials, etc. For more details, please refer to Handling Instructions.

Temperature response time depends on heat conductivity of sensor substrate and design-in of sensor in application.
Max. value is < 0.04°C/y.

2.2 Electrical Characteristics

Parameter	Symbol	Conditions	SHT3x			SHT4x			Units
Parameter	Symbol	Conditions	Min	Typ.	Max	Min	Typ.	Max	Units
Supply voltage	VDD		2.	3.	6.	5.	5	6.	V
Power-up/down level	VPOR	Static power supply	2.	2.	2.	0.75	0.9	1.0	V
Slew rate change of the supply voltage	, VDD.slew		–	–	20		–	20	V/ms
Supply current	/DD	Measurement	–	220	300	–	520	tbd	pA
Resistive load to VSS	RL		50	>1000	–	1	–	–	ko
Capacitive load	CL		1	4.	5	–	–	100	nF
Application circuit design	–	–	Largely advantageous for SHT4x, see Section 6						–

Table 2. Key electrical specifications of the SHT3x and SHT4x, where bold values highlight important differences. For further details, kindly refer to the SHT3x and SHT4x datasheets.

2.3 Timing Specifications

Parameter	Symbol	Conditions	Min	SHT3x Typ.	Max	Min	SHT4x Typ.	Max	Units
Power-up time	fpu	After hard reset, VDD VPOR		–	17	–	tbd	200	ms
Analog out settling time		For a step of VDD 12	–	0.3			tbd		ms
Measurement interval	tMeasint	Heater disabled					0.5		s
Heater-on duration	tHeat		–	–	–	0		2	s

Table 3. Key timing specifications of the SHT3x and SHT4x, where bold values highlight important differences. For further details, kindly refer to the SHT3x and SHT4x datasheets.

Flagship SHT4x Feature: Built-In Heater

The SHT4x analog sensor incorporates an optional powerful on-chip heater on request, which can be used for selfdecontamination, e.g., in environments with solvents present, and periodical creep compensation in prolonged application in highest humidity. It provides an over-temperature up to about 60 °C and different heater powers (up to 200 mW) and durations (up to 2 s) can be selected. There is no dedicated command to turn off the heater since it has an internal timer after which it is switched off automatically. However, it is important to note that in case the active heater option is chosen by the user, the sensor will be continuously running periodic heating pulses in specific measurement intervals defined at factory level.

Package Differences

The SHT4x comes in a new open-cavity dual flat no lead (DFN) package design in order to enable additional features, such as conformal coating, protection cover, and filter membrane compatibility. In comparison to the SHT3x, the package is considerably smaller, enabling power efficient, accurate, and robust RH/T sensing with fast reaction times. Instead of featuring eight pins, the bottom side of the SHT4x DFN package exposes four metallic contacts, which are Ni/Pd/Au coated.

Parameter	Units	SHT3x	SHT4x	Comment
Size	mm	2.5 x 2.5 x 0.9	1.5 x 1.5 x 0.5	For details, see Figure 1, Figure 2.
Sensor opening	–	Top	Top
Protection compatibility	–	Compatible with conformal coating, Compatible with filter membranes	Compatible with conformal coating, Compatible with filter membranes
Pin Layout	–	2 x 4 pins	2 x 2 pins
Necessity for fine-print PCB	–	no	no

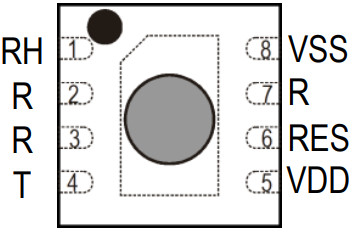

Pin Assignment	–			Drawings not to scale VDD: Supply voltage SCL: Serial clock SDA: Serial data bidirectional VSS: Ground R: no electrical function
Pin Size	mm	0.25 x 0.35	0.3 x 0.3
Pin Pitch	mm	0.5	0.8
Pin Material	–	Ni/Pd/Au coated Cu	Ni/Pd/Au coated Cu
Housing Material	–	Epoxy housing	Epoxy housing

Table 4. Key package differences between the SHT3x and SHT4x. For further details, kindly refer to the SHT3x and SHT4x datasheets

Figure 1. Dimensional drawing of the SHT3x including (units mm).

Figure 2. Dimensional drawing of SHT4x including package tolerances (units mm).

Communication and Signal Output

The start-up of the sensor and the conversion of the signal output have not undergone major changes, apart from the power-up/down levels reported in Table 2. In addition, all the voltage output characteristics have been maintained, only the names have been changed following the scheme reported in Table 5.

SHT3x	SHT4x
SHT3x-ARP	SHT4xI-HD1B
SHT3x-T1RP	SHT4xI-ID1B
SHT3x-RARP	SHT4xI-JD1B
SHT3x-R1RP	SHT4xI-KD1B
SHT3x-T2RP	SHT4xI-LD1B

Table 5. New nomenclature of the SHT4x version and corresponding SHT3x version.

New Features and Design-in Advantages

The new SHT4x generation shows two main improvements in the analog output circuitry with respect to the previous SHT3x version. First, the new design introduces several enhancements (reference filtering, output buffer optimized bandwidth…) to improve the Power Supply Rejection Ratio (PSRR), which yields less noise on the output signals.
Second, the new design of the output buffers strongly increases the driving capability of resistive and capacitive loads (down to 1 kΩ and up to 100 nF respectively). Moreover, it is worth comparing the SHT4x sensor to the existing solutions available in the analog market. Table 6 reports some examples of Sensirion solutions and other SMD sensors.

	Haechitech MXH1100	TE-ConnectivityHTU31V	Sensirion SHT3x	Sensirion SHT4x
Capacitive load up to	400 pF	5 nF	5 nF	100 nF

Table 6. Capacitive load comparison considering chip size analog sensors
In terms of design-in advantages, the new SHT4x improved PSRR and the higher output current allow major overall cost savings. In fact, any active filtering circuitry at the sensor’s output is no longer needed to improve PSRR or to drive long cables.
The following figures highlight the improvements just mentioned compared to the previous sensor generation. The first schematic (Figure 3) shows a standard application of the SHT3x in which loads are directly connected to the output pins. This configuration has two main limitations: the output signals are subject to significant noise and it cannot drive significant loads.

Figure 3. Standard schematic for the SHT3x. Load is directly connected to the sensor, but there is large noise at the output.

To improve these limitations, some additional components may be introduced between the SHT3x sensor and the load, as shown in Figure 4. In this example, the first external stage is a passive RC filter to reduce the noise while the second external stage is an OpAmp (Operational Amplifier) to increase the driving capability. If this solution improves the overall performance, it also significantly increases the total production costs.

Figure 4. Possible improved schematic for the SHT3x. This solution allows greater drive capability and reduces output noise.
However, it considerably increases the overall costs of the final product.
On the other hand, the implementation of the new SHT4xI sensor brings evident design-in advantages and improves performances as well. Thanks to the new chip design, significant loads can now be connected directly to the output pins while no additional noise-filtering stage is needed. This dramatically simplifies the final product, as reported in Figure 5, and results in significant cost saving.

Figure 5. Standard schematic for the new SHT4xI analog sensor. Significant loads can be directly connected to the sensor and the output signals have negligible noise.

Quality and Material Contents

Qualification of the SHT3x and SHT4x is performed based on the JEDEC JESD47 qualification test method. W devices are fully RoHS and REACH compliant, the SHT4x is also WEEE compliant.

Further Information

This transition guide aims at providing an overview of the key differences between the SHT3x and the SHT4x, yet it might not be fully inclusive. For further reading on the SHT4x specifications, communication, operation, and application, please consult the dedicated SHT3x and SHT4x documents provided on the Sensirion webpage www.sensirion.com. In case you are in need of specific details, or would like to request assistance in transitioning from the SHT3x to the SHT4x or any other Sensirion product, please consult us directly at www.sensirion.com/en/about-us/contact/.
