sauermann CA 310 Multifunction Sensor with Large Electroluminescent Display User Guide
CA 310

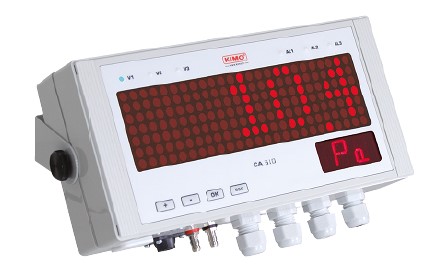

Large display multifunction transmitter
General features
Features of the housing
All dimensions are in millimeters.
Used symbols
For your safety and in order to avoid any damage of the device, please follow the procedure described in this document and read carefully the notes preceded by the following symbol:
The following symbol will also be used in this document, please read carefully the information notes indicated after this symbol: CA 310
Connections
- LCC-S software connection
- Autozero
- Solenoid valve
- RS 485 connection (d) (optional)
- SPI-2 board (optional)
- Ethernet connection (optional)

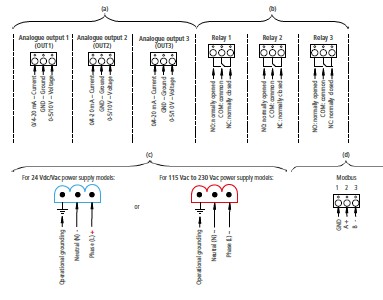

- Analogue output (a)
- Relays (b)

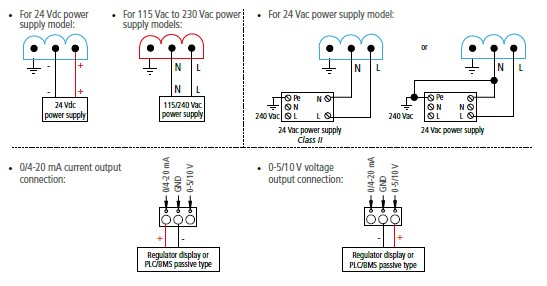

- Power supply terminal block (c)
- Type of power supply of the transmitter
- Probe connection
- Pressure connections (optional)
- Cable glands
Electrical connections as per NFC15-100 standard
This connection must be made by a formed and qualified technician. Whilst making the connection, the transmitter must not be energized. The presence of a switch or a circuit breaker upstream the device is
compulsory.
Transmitters configuration Français Guide rapide
Class 310 transmitters allows you to set all the parameters managed by the transmitter: units, measuring ranges, alarms, outputs, channels… via the different methods shown below:
- Via keypad, only on models with display. A code-locking system for keypad guarantees the security of the installation.
- See configuration manual. • Via software (optional): simple and user-friendly. See LCC-S user manual
Mounting
Install the mounting bracket in horizontal position along a plane wall (see below dimensions / drilling drawing). Put the display inside the mounting bracket, with the 2 screws. Remove the screw covers located on the right and left side of housing, in order to have access to the 4 shutting screws. Make the electrical connection with the connection glands, with soft cable Ø7 mm
maximum. Close the housing before powering on.
Accessories
Please refer to the data sheet to get more information about available accessories.
Maintenance: please avoid any aggressive solvents. Please protect the transmitter and its probes from any cleaning product containing formalin, that may be used for cleaning rooms or ducts.
Precautions for use: please always use the device in accordance with its intended use and within parameters described in the technical features in order not to compromise the protection ensured by the device.
Download the full manual
