RVS-127 Blind Spot Sensor System
ASSEMBLY INSTRUCTIONS
- AUX2: 500 mA gnu output will be activated when system gives buzzer alert during ignition on. It can be used to trigger camera
system monitor. - Brake wire is for models without gaps
- AUX1: 500 mend output will be activated when Secure Sleep system detect movement around the vehicle. it should be connected to the vehicle parking lights with relay’.

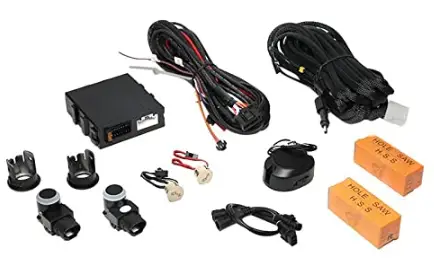

Standard set includes
- 4/6 pcs sensor with rubber
- 1 pc ECU
- 2/3 sets wiring harness
- 1 pc LED display + GPS
- 1 pc 24V relay
- 1 pc Drill Bit 028,5
