RENOGY logoRover Li Series
MPPT Solar Charge Controller
12V/24V 20A/30A/40A
VERSION A6
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge ControllerUSER MANUAL

RNG-CTRL-RVR20 Rover Li MPPT Solar Charge Controller

Applicability

The user manual applies to the following products:

  • Rover Li 12V/24V 20A MPPT Solar Charge Controller (RNG-CTRL-RVR20)
  • Rover Li 12V/24V 30A MPPT Solar Charge Controller (RNG-CTRL-RVR30)
  • Rover Li 12V/24V 40A MPPT Solar Charge Controller (RNG-CTRL-RVR40)

Disclaimer

  • Renogy ensures the accuracy, sufficiency, and applicability of information in the user manual at the time of printing due to continual product improvements that may occur.
  • Renogy assumes no responsibility or liability for personal and property losses, whether directly or indirectly, caused by the user’s failure to install and use the product in compliance with the user manual.
  • Renogy is not responsible or liable for failures, damages, or injuries resulting from repairs attempted by unqualified personnel, improper installation, or operation.
  • The illustrations in the user manual are for demonstration purposes only. Details may appear slightly different depending on product revision and market region.
  • Renogy reserves the right to change the information in the user manual without notice. For the latest user manual, visit renogy.com.

Copyright
Rover Li Series MPPT Solar Charge Controller User Manual © 2022 Renogy. All rights reserved.
All information in the user manual is subject to copyright and other intellectual property rights of Renogy and its licensors. The user manual may not be modified, reproduced, or copied, in whole or in part, without the prior written permission of Renogy and its licensors.

Trademark
The following are registered trademarks of Renogy:

RENOGY RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - logo 2

The registered trademarks in the user manual are the property of Renogy. The unauthorized use of the trademarks is strictly prohibited.

Date and Revision
January 2023, Revision A6

Important Safety Information

The user manual provides important installation, operation, and maintenance instructions for the Rover Li Series Solar Charge Controller (hereinafter referred to as the charge controller). Read the user manual carefully before installation and operation, and save it for future reference. Failure to observe the instructions or precautions in the user manual can result in electrical shock, serious injury, or death, or can damage the charge controller, potentially rendering it inoperable. The installation and service of the charge controller might require knowledge of electricity and is recommended to be carried out by qualified personnel.

Symbols Used
The following symbols are used throughout the user manual to highlight important information:

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING Indicates a potentially dangerous condition that could result in injury or death
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 2 CAUTION Indicates a critical procedure for safe and proper installation and operation
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE Indicates an important step or tip for optimal performance
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 4 INFO Indicates that more information is available in other documents relating to the subject

General Safety Information

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Do not puncture, drop, crush, penetrate, shake, strike, or step on the charge controller.
  • Do not open, dismantle, repair, tamper with, or modify the components of the charge controller.
  • Install the charge controller on a vertical surface indoors, protected from direct sunlight, high temperatures, and water. Make sure there is good ventilation.
  • Do not immerse the charge controller or its components in water or other fluids.
  • Keep the charge controller away from heating equipment.
  • Do not insert foreign objects into the charge controller.
  • Risk of explosion! Never install the charge controller in a sealed enclosure with flooded batteries! Do not install in a confined area where battery gases can accumulate.
  • Confirm the polarities of the devices before connection. A reverse polarity contact will result in abnormalities.
  • Refer to Recommended Cable and Fuse Sizing in this user manual, and select the appropriate cables and fuses according to the usage.
  • Keep the charge controller out of the reach of children.
  • Wear proper protective equipment and use insulated tools during installation and operation.
  • Do not touch the connector contacts when the charge controller is in operation.
  • Disconnect all connectors from the charge controller before maintenance or cleaning.
  • Do not dispose of the charge controller as household waste. Comply with local, state, and federal laws and regulations and use recycling channels as required.
  • In the event of fire, use fire extinguishers suitable for electrical equipment.
  • If the charge controller is installed improperly on a boat, it may cause damage to the corrosion agents of the boat. Please have the charge controller installed by a qualified electrician.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 2 CAUTION

  • Do not expose the charge controller to flammable or harsh chemicals or vapors.
  • Ensure that there is no water source, including downspouts, sprinklers, or faucets above or near the charge controller.
  • Ensure that the battery pack is properly connected before installation.

Introduction

General Information
Rover Li Series MPPT Solar Charge Controller can serve various off-grid solar systems. With the adoption of an intelligent MPPT (Maximum Power Point Tracking) algorithm, the charge controller can maximize the energy from the solar panel to charge the battery in a more efficient way. At the same time, it monitors the status of the battery in real time and prevents the battery from overcharging and overdischarge, thus extending the battery life and improving the performance of the system.
Rover Li Series MPPT Solar Charge Controller provides intelligent self-diagnosis and multiple input protection mechanisms, which can prevent damage caused by installation errors or system failures.

Key Features

  • Auto Battery Voltage Detection
    The charge controller detects 12V or 24V DC system voltages for non-lithium batteries and programmability for lithium batteries.
  • MPPT Technology
    The charge controller supports advanced MPPT technology with tracking efficiency up to 99% and peak conversion efficiency of 98%.
  • High Battery Compatibility
    The charge controller is compatible with AGM, SLD, flooded, gel, lithium, and user-defined batteries.
  • Full System Protection
    The full system protection is meant to safeguard your system, and the self-diagnostic capability can assess and protect against reverse polarity, battery overcharging, battery overdischarging, overload, short-circuiting, and reverse current.
  • Multiple Input Protection Features
    The charge controller offers reverse polarity protection, overvoltage protection, short circuit protection, and reverse charging protection at night for solar panels.
  • Diverse Load Control
    You can connect DC appliances directly to the optional Load Terminals and monitor consumption or set up timer controls directly from the charge controller.

Charging and Activation Logic

MPPT Technology
Based on MPPT technology, the charge controller can extract maximum power from the solar panel. With an automatic tracking algorithm, the MPPT technology can track the voltage of the maximum power point that changes with weather conditions, ensuring the harvest of the maximum power throughout the day.

Current Boost
Generally, the charge controller will “boost” the current in the solar system. The power generated in the solar panel is the same as the power delivered to the battery pack. Power is the product of voltage (V) x amperage (A).
Therefore, assuming 100% efficiency:

Power In = Power Out
Volts In * Amps In = Volts Out * Amps Out

The efficiency of the charge controller is about 95%. As the maximum power point voltage of the solar system is greater than the battery pack voltage, the potential difference is proportional to the current boost. The voltage of the solar panel needs to be stepped down to a rate at which the battery can be charged in a stable manner. Compared with traditional charge controllers, the charge controller does not waste the stepped-down voltage. It is entirely possible to have the solar module input 8 amps of current into the charge controller, and have the charge controller output 10 amps of current to the battery pack. The following shows a graphic point about the output of MPPT technology.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Current Boost

Limiting Effectiveness
High temperature is the natural enemy of solar panels. With the increase in ambient temperature, the operating voltage (Vmp) of the solar panel decreases, which limits the power generation of the solar panel. The charge controller encounters an inevitable decrease in charging performance even with the MPPT technology. In this case, it is better to use solar panels with a higher nominal voltage, so that the battery can still get a current boost even if the voltage drops proportionally.

Four Charging Stages
Rover Li Series MPPT Solar Charge Controller has a four-stage battery charging algorithm for a rapid, efficient, and safe battery charging. The stages include: Bulk Charging, Boost Charging, Float Charging, and Equalization.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Four Charging Stages

■ Bulk Charging:
This algorithm is used for day-to-day charging. It uses 100% of available solar power to recharge the battery and is equivalent to a constant current. In this stage, the battery voltage has not yet reached constant voltage (equalization or boost), and the charge controller operates in constant current mode, delivering its maximum current to the batteries (MPPT Charging).

■ Constant Charging:
When the battery reaches the constant voltage set point, the charge controller will start to operate in constant charging mode, where it is no longer MPPT charging. The current will drop gradually. The charge stages (equalization and boost) are not carried out constantly in a full charge process to avoid too much gas precipitation or overheating of the battery.
Boost Charging: Boost stage maintains a charge for 2 hours by default. The user can adjust the constant time and preset value of the boost according to their demand.

■ Float Charging:
After the constant voltage stage, the charge controller will reduce the battery voltage to a float voltage set point. Once the battery is fully charged, there will be no more chemical reactions, and all the charge current will turn into heat or gas. Because of this, the charge controller will reduce the voltage charge to a smaller quantity while lightly charging the battery. The purpose of this is to offset the power consumption while maintaining a full battery storage capacity. In the event that a load drawn from the battery exceeds the charge current, the charge controller will no longer be able to maintain the battery to a Float set point, and the charge controller will end the float charging stage and refer back to bulk charging.

■ Equalization:
Equalization is carried out every 30 days of the month. It is intentional overcharging of the battery for a controlled period of time. The charge controller charges the battery at a level higher than the voltage that it is typically charged to remove sulfate crystals that build up on the plates over time and balance the voltage of each cell. Periodic equalization charging is beneficial to certain types of batteries because it helps ensure the battery capacity and maintains its runtime.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 2 CAUTION

  • It is recommended to use only non-sealed, vented, flooded, and wet cell lead acid batteries in the equalization stage.
  • Do not equalize VRLA-type AGM, gel, and lithium cell batteries unless permitted by the battery manufacturer.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Once equalization is active in the battery charging, the charge controller will not exit this stage unless there is an insufficient source of charging current from the solar panel. There should be NO load on the batteries when in equalization charging.
  • Overcharging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high an equalization charge or too long of one may cause damage. Review the specific requirements of the battery used in the system carefully.
  • Equalization may increase battery voltage to a level that damages sensitive DC loads. Ensure that the allowable input voltages of all loads are greater than the set voltage during equalization charging.

Lithium Battery Activation
The charge controller can activate sleeping lithium batteries in most cases. Lithium batteries need to be activated when the built-in battery protection is breached, which is usually when lithium batteries are overdischarged. To awaken lithium batteries, the controller will provide a constant voltage, and after successful activation, it can continue charging like normal.
During activation, the LCD will display RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 5. If  RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 5 it displays for more than 2 days, it means the charge controller needs to undergo further troubleshooting. Read Troubleshooting in the user manual.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Lithium Battery Activation

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • After connecting the charge controller with the lithium battery, set the battery type and the system voltage. For more instructions, read Setting the Battery Type and System Voltage in the user manual.

Operation Conditions

  1. Set the battery type of the charge controller to Li. Set the correct nominal voltage of the lithium battery manually.
  2. For 12V lithium batteries, the incoming solar voltage should be greater than or equal to 16V DC, and for 24V lithium batteries, the incoming solar voltage should be greater than or equal to 30V DC.

Working Logic

  1. In lithium battery mode, the charge controller automatically enables the activation function and provides a constant voltage of over 13.2V to activate the lithium battery.
  2. After the charge controller activates the lithium battery with a constant voltage of 13.2V for 10s, the charge controller will pause for 5s and detect the battery voltage.
    If the battery voltage is greater than or equal to 11V, the charge controller will exit the lithium battery activation mode.
    If the battery voltage is less than 11V, the charge controller will continue to activate the lithium battery.

Package Contents

Rover Li Series MPPT Solar Charge Controller × 1 User Manual × 1
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Charge Controller RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - User Manual
Renogy Temperature Sensor × 1
(Model: RTSCC)
Mounting Bracket × 4
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Renogy Temperature Sensor RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Mounting Bracket
Mounting Bracket Screws × 4
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Mounting Bracket Screws

Optional Accessories

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • You can buy the following optional accessories from renogy.com.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Fuse Battery Fuse
RNG-CTRL-RVR20: 25A to 30A
RNG-CTRL-RVR30: 30A to 40A
RNG-CTRL-RVR40: 40A to 50A
The battery fuse protects the charge controller, cables, and batteries from overcurrent.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Solar Panel Fuse Solar Panel Fuse
Solar panel fuse provides single circuit protection for solar panels, preventing damage caused by high currents.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Fuse Cable Fuse Cable
The cable is integrated with copper rings at both ends, enabling the charge controller to be connected with an external fuse.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Renogy BT-1 Bluetooth Module Renogy BT-1 Bluetooth Module (sold separately)
Pair the Bluetooth Module with the Renogy DC Home app to monitor and change parameters through a smartphone or tablet. Download the app by scanning the QR Code on the last page of the user manual.

Product Overview

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Product Overview

No. Part & Description No. Part & Description
1 Return to the Previous Menu 10 Temperature Sensor Port
2 Page Down / Decrease Parameter Value 11 Positive Solar Terminal (PV+)
3 Page Up / Increase Parameter Value 12 Negative Solar Terminal (PV-)
4 Enter Sub Menu / Save Parameter Value / Turn Load On or Off in Manual Mode 13 Positive Battery Terminal (BAT+)
5 LCD 14 Negative Battery Terminal (BAT-)
6 System Error LED Indicator 15 Positive DC Load Terminal (LOAD+)
7 Load LED Indicator 16 Negative DC Load Terminal (LOAD-)
8 Battery LED Indicator 17 RS232 Port (optional)
9 Solar LED Indicator 18 Mounting Holes

Wiring Diagram

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Wiring Diagram

Recommended Cable and Fuse Sizing

Recommended Cable Sizing

Model Rated Current Cable Cable Length (ft) / (m) Recommended Cable Size
Rover Li 12V/24V 20A MPPT Solar Charge Controller (RNG-CTRL-RVR 20) 20A Solar (input) 0‒10 ft (0‒3 m) 12 AWG
11‒20 ft (3‒6 m) 10 AWG
21‒30 ft (6‒9 m) 8 AWG
Battery (output) 0‒10 ft (0‒3 m) 12 AWG
11‒20 ft (3‒6 m) 10 AWG
21‒30 ft (6‒9 m) 8 AWG
Rover Li 12V/24V 30A MPPT Solar Charge Controller (RNG-CTRL-RVR 30) 30A Solar (input) 0‒10 ft (0‒3 m) 10 AWG
11‒20 ft (3‒6 m) 8 AWG to 10 AWG
21‒30 ft (6‒9 m) 8 AWG
Battery (output) 0‒10 ft (0‒3 m) 10 AWG
11‒20 ft (3‒6 m) 8 AWG to 10 AWG
21‒30 ft (6‒9 m) 8 AWG
Rover Li 12V/24V 40A MPPT Solar Charge Controller (RNG-CTRL-RVR 40) 40A Solar (input) 0‒10 ft (0‒3 m) 8 AWG
11‒20 ft (3‒6 m) 6 AWG to 8 AWG
21‒30 ft (6‒9 m) 6 AWG
Battery (output) 0‒10 ft (0‒3 m) 8 AWG
11‒20 ft (3‒6 m) 6 AWG to 8 AWG
21‒30 ft (6‒9 m) 6 AWG

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • The cable specifications listed above account for a critical, less than 3% voltage drop and may not account for all configurations.
  • The size of the fuse cable is consistent with that of the corresponding cable connecting to the output terminal of the charge controller.

Recommended Fuse Sizing
For your safety, it is recommended to install fuses at both the input and output ends of the charge controller to ensure safe operations.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • Choose appropriate fuses according to the specifications of the solar panel and the charge controller.
Fuse from Solar Panel to Charge Controller
Max. Current of Solar Panel to Solar Controller Fuse = Total Amps of Solar Panel (Array) * 1.56
Solar Panels in Series Solar Panels in Parallel
Total Amps I: I1=I2=I3 Fuse = I1 * 1.56 Total Amps I: I1+I2+I3 Fuse = (I1+I2+I3) * 1.56

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • In the formula, I represents the maximum output current of the solar panel, and 1, 2, or 3 represents the solar panel number, respectively.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 4 INFO

  • Read the user manual of the solar panel to obtain working voltage parameters, and calculate the corresponding fuse current according to the formula.

Components & Tools

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • The adapter cable used in this manual can be made by yourself or purchased from renogy.com according to the names in Recommended Components.

Recommended Components

Battery Battery Adapter Cable (Ring Terminal Adapter Cable)
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Adapter
Solar Panel Solar Panel Extension Cables
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Solar Panel 2 RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Cables

Required Tools

Phillips screwdriver (#2) Wrench (10 mm) Wrench (14 mm)
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Phillips Screwdriver RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Wrench RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Wrench 2
Measuring Tape Insulation Tape Self-tapping Bolts
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Measuring Tape RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Insulation Tape RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Self-tapping Bolts

Preparation

Inspection

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Inspect the charge controller

  1. Inspect the charge controller for any visible damage, including cracks, dents, deformation, and other visible abnormalities. All connector contacts shall be clean, dry, and free of dirt and corrosion.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Do not use the charge controller if it has any visible damage.

Environment
Install the charge controller indoors and prevent its components from being exposed to direct sunlight. Prevent water from entering the charge controller. Make sure there is good ventilation.
Make sure that the charge controller is installed with an ambient temperature range from -4°F to 140°F or -20°C to 60°C. To ensure optimal working efficiency, it is recommended to keep the ambient temperature range from -4°F to 113°F or -20°C to 45°C. Make sure that the charge controller is installed in an environment with relative humidity between 0% and 95% and no condensation.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • Install the charge controller as close to the battery as possible to avoid voltage drops due to long cables.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Risk of explosion! Never install the charge controller in a sealed enclosure with flooded batteries!

Placement
The charge controller can be fixed vertically (terminals facing down) to a wall or horizontally to the floor.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Placement

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Ensure that there is enough space 1. Ensure that there is enough space to install the cable. The charge controller requires at least 6 inches (150 mm) of clearance above and below for proper air flow. Ventilation is highly recommended if it is mounted in an enclosure.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Measure the length of the cables 2. Measure the length of the cables connecting to the battery and the solar panel to make sure that they can be connected to the charge controller.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • If the Battery Adapter Cable or Solar Panel Extension Cable is not long enough, you can use more extension cables or reselect the installation site.
  • Read the Recommended Cable and Fuse Sizing in this manual, and select appropriate cables according to the usage.

Checking Battery

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Checking Battery

  1. Inspect the battery for any visible damage, including cracks, dents, deformation, and other visible abnormalities. All connector contacts shall be clean, dry, and free of dirt and corrosion.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 4 INFO
    ● Read the user manual of the battery carefully before installation.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Make sure the battery is working normally.
    ● The charge controller can only be applied to deep-cycle gel, flooded, SLD, AGM, and Li batteries.
    ● Be sure to wear protective goggles. If getting electrolytes in your eyes, flush your eyes with clean water immediately.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 2 CAUTION
    ● Do not dispose of batteries as household waste. Comply with local, state, and federal laws and regulations and use recycling channels as required.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
    ● Do not use the battery if it has any visible damage.
    ● Do not touch the exposed electrolyte or powder if the battery housing is damaged.
    ● The battery may produce explosive gases when being charged. Make sure there is good ventilation.
    System Voltage
    Battery or Battery Pack System Voltage = System Voltage U
    Batteries in Series Batteries in Parallel
    System Voltage U: U1+U2+U3 System Voltage U: U1=U2=U3
  2. Combine the batteries in parallel or series as needed. This charge controller supports a maximum system voltage of 32V. Read the user manual for battery voltage parameters, and calculate the voltage of the battery or battery pack system according to the formula to ensure that it does not exceed 32V.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● In the formula, U represents the battery voltage, and 1, 2, or 3 represents the battery number, respectively.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
    ● Do not use the charge controller if the battery or battery pack system voltage exceeds 32V. Doing so will cause damage to the charge controller.

Checking Solar Panel

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Checking Solar Panel

  1. Inspect the solar panel for any visible damage, including cracks, dents, deformation, and other visible abnormalities. All connector contacts shall be clean, dry, and free of dirt and corrosion.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 4 INFO
    ● Read the user manual of the solar panel carefully before installation.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● The solar panels can be combined in parallel or in series as needed.
    ● Identify the polarities (positive and negative) on the cables used for solar panels. A reverse polarity contact may damage the charge controller.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
    ● Do not use the solar panel if it has any visible damage.
    Maximum Output Power
    Maximum Output Power of Solar Panel or Solar Panel Array = Maximum Solar Input Power W
    Solar Panels in Series Solar Panels in Parallel
    Maximum Output Power W: W1+W2+W3 Maximum Output Power W: W1+W2+W3
  2. Read the user manual of the solar panel, and calculate the maximum output power of the solar panel or the solar panel array according to the formula.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● In the formula, W represents the maximum output power of the solar panel, and 1, 2, or 3 represents the solar panel number, respectively.
    Model RNG-CTRL-RVR 20 RNG-CTRL-RVR 30 RNG-CTRL-RVR 40
    Rated Solar Input Power 12V @ ≤ 260W 12V @ ≤ 400W 12V @ ≤ 520W
    24V @ ≤ 520W 24V @ ≤ 800W 24V @ ≤ 1040W
    Working Voltage
    Working Voltage of Solar Panel or Solar Panel Array = Working voltage U
    Solar Panels in Series Solar Panels in Parallel
    Working Voltage U: U1+U2+U3 Working Voltage U: U1=U2=U3
  3. Read the user manual of the solar panel, and calculate the working voltage of the solar panel or the solar panel array according to the formula.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● In the formula, U represents the working voltage of the solar panel, and 1, 2, or 3 represents the solar panel number, respectively.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
    ● Ensure that the working voltage of the solar panel or the solar panel array does not exceed 100V.

Mounting

The charge controller can be mounted on a vertical surface with mounting holes or provided with brackets.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • Make sure that the charge controller is installed firmly to prevent it from falling off.

Wall-mounted
Required Tools

Installation Template (Letter Size) Marker Pen
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Installation Template RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Marker Pen
  1. Mark the four mounting holes on a piece of paper.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Mark the four mounting holes
  2. Tape the paper to the desired location for installation.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Tape the paper to the desired location
  3. Install the screws according to the mounting holes marked on the paper. Do not overtighten the bolt.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - screws according to the mountingRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Choose appropriate screws according to the mounting holes of the charge controller, and leave some gap between the screw and the surface.
  4. Tear off the paper.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Tear off the paper
  5. Hang the charge controller on the wall and verify all screw heads are in the mounting holes.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Hang the charge controller
  6. Release the charge controller and slide it down into place. Tighten the screws.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Release the charge controller
  7. If the screws are not secure, tighten them clockwise with a suitable wrenchRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - If the screws are not secure

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • If the gap between the charge controller and the mounting surface is too large and the screws cannot be tightened with a wrench, remove the charge controller and adjust the screws. Ensure that there is no gap between the charge controller and the surface.

Mounting with Brackets

  1. Secure the Mounting Brackets on the mounting holes of the charge controller with the Mounting Bracket Screws.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Secure the Mounting Brackets
  2. Place the charge controller against a flat surface and secure it with screws.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - charge controller againstRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Choose appropriate screws according to the mounting holes of the charge controller.

Installation

Battery Wiring

  1. Rotate the cable retainer of the BAT – and BAT + terminals counterclockwise with a screwdriver.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Rotate the cable retainer
  2. Make sure the cable retainer is completely open.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Make sure the cable
  3. Insert the bare ends of the Battery Adapter Cables into the corresponding BAT+ and BAT-.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - bare ends of the Battery AdapterRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Strip off some of the protective sheath of cables and insert the bare ends of the cables into the screw terminals.
  4. Rotate the screws clockwise to clamp the wire down and close the cable retainer.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● The torque of the cable retainer is 1.2 N·m (10.53 lb-inch). Do not overtighten the cable retainer screws. Otherwise, it will lead to stripped screws or screw bending.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - clockwise to clamp
  5. Make sure all connections are tight and secure.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - connections are tight and secure
  6. Attach the Battery Adapter Cable connecting to the BAT – of the charge controller to the negative terminal of the battery, and tighten the bolt with a wrench.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Select a suitable wrench according to the specifications of the positive and negative wire fixing bolts of the battery.
    ● Make sure all connections are tight and secure.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
    ● Identify the polarities (positive and negative) on the cables used for the batteries. A reverse polarity contact may damage the charge controller.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Adapter Cable connecting
  7. For your safety, it is recommended to use a battery fuse. Connect the Battery Adapter Cable connecting to the BAT+ to one end of the battery fuse, and then connect the other end to the fuse cable.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Adapter Cable 2
  8. Attach the Battery Adapter Cable connecting to the BAT+ of the charge controller to the positive terminal of the battery, and tighten the bolt with a wrench.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Attach the Battery Adapter
  9. Once the tray cables are connected to the battery, the LCD and the Battery LED Indicator will light up, and the charge controller enters nighttime modeRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - cables are connected to the battery

Solar Wiring

  1. Rotate the cable retainer of the PV – and PV + terminals counterclockwise with a screwdriver.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Solar Wiring

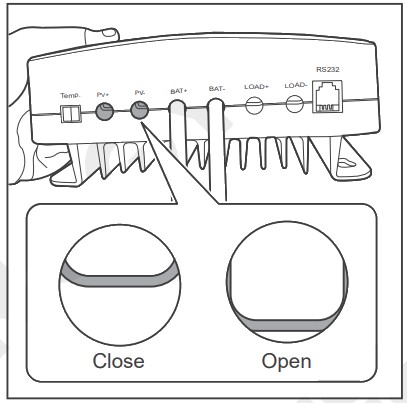

  2. Make sure the terminal hatch is completely open.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Make sure the terminal hatch is completely open
  3. Insert the bare ends of the Solar Panel Extension Cables into the corresponding PV+ and PV-.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Insert the bare ends of the Solar PanelRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Strip off some of the protective sheath of cables and insert the bare ends of the cables into the screw terminals.
    ● Connect the male connector of the Solar Panel Extension Cable to the PV- and the female connector to the PV+.
  4. Rotate the screws clockwise to clamp the wire down and close the cable retainer.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - clockwise to clamp 2RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● The torque of the cable retainer is 1.2 N·m (10.53 lb-inch). Do not overtighten the cable retainer screws. Otherwise, it will lead to stripped screws or screw bending.
  5. Make sure all connections are tight and secure.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Make sure all connections are tight and secure
  6. Connect the Solar Panel Extension Cable, connecting to the PV of the charge controller to the negative terminal of the solar panel.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Solar Panel Extension CableRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Make sure all connections are tight and secure.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Solar Panel Extension 2
  7. For your safety, it is recommended to use a battery fuse and a solar panel fuse. Connect the Solar Panel Extension Cable connecting to the PV+ to one end of the solar panel fuse, and then connect the other end of the fuse to the positive terminal of the solar panel.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Read the Recommended Cable and Fuse Sizing in this manual, and select appropriate solar panel fuses according to the usage.
    ● Remove the cover of the solar panels or place them face up after connection.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - charge controller enters daytime mode
  8. Once the Solar Panel Extension Cables are connected to the solar panels, the Solar LED Indicator will light up, and the charge controller enters daytime mode.
    The charge controller needs troubleshooting if any of the following errors occur:
    ● The LCD does not light up.
    ● The battery voltage is not displayed on the LCD.
    ● The Battery LED Indicator or the Solar LED Indicator does not light up.
    Read Troubleshooting in the user manual. For more instructions, contact our customer service through renogy.com/contact-us/.

Load Wiring (Optional)
You can choose to connect the charge controller to a DC load (≤20A) on demand.

Recommended AccessoriesRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Recommended Accessories

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • DC load operating current needs to be less than or equal to 20A.
  • Select appropriate cables based on the DC load operating current.
  • The DC load is powered by batteries, so ensure that the DC load is compatible with the battery voltage. If a 12V DC load is installed in a 24V battery system, the incorrect connection will damage the charge controller and void the warranty.
  1. Rotate the cable retainer of the LOAD – and LOAD + terminals counterclockwise with a screwdriver.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Rotate the cable retainer 2
  2. Make sure the cable retainer is completely open.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Make sure the cable retainer
  3. Insert the bare ends of the cables into both LOAD- and LOAD+ terminals.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - LOAD+ terminalsRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● Strip some insulation off bare wires according to the depth of the installation hole.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Rotate the screws clockwise
  4. Rotate the screws clockwise to clamp the wire down and close the cable retainer.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
    ● The torque of the cable retainer is 1.2 N·m (10.53 lb-inch). Do not overtighten the cable retainer screws. Otherwise, it will lead to stripped screws or screw bending.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Make sure all connections
  5. Make sure all connections are tight and secure.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - positive terminal of the load
  6. Connect the cable at the LOAD- terminal to the negative terminal of the load, and connect the cable at the LOAD+ terminal to the positive terminal of the load.

Temperature Sensor

The temperature sensor can detect the temperature of the battery and send the temperature to the charge controller for charging voltage calibration, ensuring that the charge controller (with operating temperature ranging from -35°C to 45°C or -31°F to 113°F) can charge the battery normally.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 2 CAUTION

  • Do not use the temperature sensor on a LiFePO4 (LFP) battery that comes with a battery management system (BMS).
  1. Insert the green connector of the Temperature Sensor into the Temperature Sensor Port of the charge controller.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Temperature Sensor Port
  2. Adhere the sensor to the top or side of the battery with the insulation tape.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Adhere the sensor

Bluetooth Module (Optional)

With a Renogy BT-1 Bluetooth Module, the charge controller can be connected to the DC Home app for remote device monitoring. You can monitor and modify parameters of the charge controller through the DC Home app.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 4 INFO

  • Read the user manual of the Renogy BT-1 Bluetooth Module carefully before connection.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
  • Make sure that the charge controller is turned on before the connection.
  • Scan the QR code on the last page of the user manual to download the DC Home app.
  1. Connect the Bluetooth Module to the RS232 port on the charge controller.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Connect the Bluetooth Module
  2. Place the Bluetooth module in a suitable site.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Place the Bluetooth module in a suitable site
  3. Open the DC Home app. Tap + to search for new devices.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Tap + to search
  4. Tap Confirm to add the newly found charge controller to the device list.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Tap Confirm to add
  5. Tap the charge controller to check parameters of the charge controller. To modify parameters, see User Mode in the user manual.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Tap the charge controller

Battery Type

Setting the Battery Type
Set the battery type immediately after installing the charge controller. If the charge controller has been connected to a Renogy BT-1 Bluetooth Module, you can also set the battery type from the DC Home app. For more details, see User Mode in this manual.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Refer to the technical specifications of the battery provided by the manufacturer when choosing a preset battery. Incorrect battery type selection resulting in damage will not be covered by warranty.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
  • To cancel the setting and exit, press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 7.
  1. Press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 the charge controller for about 3 seconds until RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 9 it is lit up and the battery type icon starts flashing.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting the Battery Type
  2. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to select the desired battery type.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting the Battery Type 2
  3. After the battery type has been selected, press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 for about 3 seconds to save the settings.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting the Battery Type 3

Battery Charging Parameters
If your battery is not compatible with the preset charging configuration of the charge controller, enter the user mode to program battery parameters. If the charge controller has been connected to a Renogy BT-1 Bluetooth Module, you can also program battery parameters through the DC Home app. For more instructions, read the User Mode in this manual.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Before modifying battery parameters, check the table below first. Incorrect parameter setting will damage the charge controller and void the warranty.
    Battery Type Parameters AGM / SLD Gel Flooded Li (LFP) User Mode User Recommended
    Overvoltage Shutdown 16.0V 16.0V 16.0V 16.0V* [16.0V]
    Equalization Volatge 14.6V 14.8V 14.4V 9.0-17.0V
    Boost Voltage 14.2V 14.4V 14.6V 14.4V* 14.4V 9.0-17.0V
    Float Voltage 13.8V 13.8V 13.8V 14.4V 9.0-17.0V
    Boost Return Voltage 13.2V 13.2V 13.2V 13.2V [13.2V]
    Undervoltage Warning 12.0V 12.0V 12.0V 12.0V [12.0V]
    Undervoltage Return 12.2V 12.2V 12.2V 12.2V [12.2V] 9.0-17.0V
    Low Voltage Disconnect 11.0V 11.0V 11.0V 11.0V [11.1V] 9.0-17.0V
    Low Voltage Reconnect 12.6V 12.6V 12.6V 12.6V [12.6V] 9.0-17.0V
    Equalization Duration 2 hours 2 hours [0-300 min]
    Boost Duration 2 hours 2 hours 2 hours 0-300 min 10-300 min

    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • The parameters listed in the table above apply to 12V batteries. For the 24V batteries, double the number of parameters.
  • Parameters in square brackets ([ ]) are automatically adjusted according to the relevant settings and cannot be set directly.
  • * By default, Boost Voltage and Overvoltage Shutdown values are set to 14.4V and 16.0V, respectively, for lithium batteries. Manual modification of Boost Voltage for lithium batteries may trigger Overvoltage Shutdown alarms. Therefore, the Rover Li charge controller automatically sets the Overvoltage Shutdown parameter to a value of Boost Voltage plus 2 to ensure normal battery charging.
  • For the default values of User Mode, refer to the DC Home App.

User Mode

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING

  • Before modifying battery parameters in user mode, check the table below and consult the battery manufacturer to check whether modification is allowed. Incorrect parameter setting will damage the charge controller and void the warranty.
Parameters Description
Model Rover Li 12V/24V 20A MPPT Solar Charge Controller (RNG-CTRL-RVR20)
Rover Li 12V/24V 30A MPPT Solar Charge Controller (RNG-CTRL-RVR30)
Rover Li 12V/24V 40A MPPT Solar Charge Controller (RNG-CTRL-RVR40)
Overvoltage Shutdown The default protection voltage is 16V. Improper settings may affect the safe use of the battery. Please consult the battery manufacturer and check if this voltage value needs to be modified.
Boost Voltage This value affects whether the battery can be fully charged. Please consult the battery manufacturer and set the value properly.
Float Voltage This value affects whether the battery can be fully charged. Please consult the battery manufacturer and set the value properly.
Equalization Voltage 1. For lead-acid batteries, please consult your battery manufacturer to obtain the voltage value and then complete the settings according to the feedback.
2. If no equalization is required, set it to the same voltage as Boost.
Undervoltage Warning This voltage value affects the life of the battery. Consult the battery manufacturer and check if this voltage value needs to be set.
Low Voltage Shutdown
Low Voltage Reconnect
Parameters Description
Boost Duration Please consult the battery manufacturer if it is necessary to set these values.
Equalization Duration
Equalization Interval

Setting via the Charge Controller

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • To cancel the setting and exit, press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 7.
  1. Press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 the charge controller for about 3 seconds until RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 9 it is lit up and the battery type icon starts flashing.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 1
  2. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to select RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 12.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 2
  3. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the system voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 3
  4. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to select 12V or 24V system voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 4
  5. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the equalization voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 5
  6. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to adjust the equalization voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 6RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 2 CAUTION
    ● Overcharging and excessive gas precipitation may damage the battery plates and activate material shedding on them. Too high an equalization charging voltage or too long of equalization charging may damage the battery. Review the specific requirements of the battery used in the system carefully.
    ● It is recommended to use only non-sealed, vented, flooded, and wet cell lead acid batteries in the equalization stage.
    ● Do not equalize VRLA-type AGM, gel, and lithium cell batteries unless permitted by battery manufacturers.
    ● If no equalization is required, set it to the same voltage as Boost.
  7. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the boost voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 7
  8. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to adjust the boost voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 8
  9. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the float voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 9
  10. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 adjust the float voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 10
  11. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the overdischarge return voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 11
  12. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 adjust the overdischarge return voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 12
  13. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the overdischarge voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 13
  14. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to adjust the overdischarge voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 14
  15. After the settings are completed, press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 for about 3 seconds to save the settings.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the Charge Controller 15

Setting via the DC Home app
If the charge controller has been connected to a Renogy BT-1 Bluetooth Module, add the charge controller to the DC Home app first. For more instructions, see the Bluetooth Module (Optional) in the user manual.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • Make sure the Bluetooth on your phone is turned on.
  • Make sure the Renogy BT-1 Bluetooth Module is powered on.
  • Illustrations of the DC Home app in this user manual are for reference only. Follow the instructions based on the current app version.
  1. Tap the charge controller to enter the device details interface.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the DC Home app 1
  2. Tap RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 13 in the upper-right corner.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the DC Home app 2
  3. Tap Settings to enter the mode selection interface.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the DC Home app 3
  4. In this interface, you can customize multiple parameters of the battery. When the parameters are modified, Setting Success appears on the interface, indicating that the parameter setting is completed.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Setting via the DC Home app 4

System Voltage

The charge controller is simple and easy to use. For common AGM, SLD, gel, and flooded batteries, the charge controller can automatically identify the 12V/24V system voltage.
For the lithium battery, set the system voltage manually.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • To cancel the setting and exit, press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 7.
  1. Press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 in the main interface for about 3 seconds until RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 9 it is lit up and the battery type icon starts flashing.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - System Voltage
  2. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to select RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 14.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - System Voltage 2
  3. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to set the system voltage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - System Voltage 3
  4. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 select 12V or 24V system voltage according to the usage.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - System Voltage 4
  5. After the settings are completed, press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 for about 3 seconds to save the settings.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - System Voltage 5

Monitoring

The charge controller is equipped with an LCD and 4 buttons. You can check the status of the charge controller and set parameters with the buttons.

Monitoring Menu

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Monitoring Menu

Icon Parameter Description
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Daytime Mode Daytime Mode The voltage of the solar panel is greater than or equal to 10V.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Nighttime Mode Nighttime Mode The voltage of the solar panel is less than 10V.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Charging Charging (The arrow between the solar panel and the battery) • Dynamic: The charge controller is charging the battery.
• Static: The charge controller is not charging the battery.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Charging Discharging (The arrow between  the battery and the load) • Dynamic: The charge controller is powering the load.
• Static: The charge controller is not powering the load.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery 2 Battery Indicates four levels of the battery power (based on the battery voltage):RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - battery power
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 15 Load The load is powered off, or the charge controller is not charging the load.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 16 The load is powered on.
MPPT
BOOST
FLOAT
EQUATIZE
Charging Status • MPPT: The charge controller charges the battery with all the energy from the solar panel.
• BOOST: When the battery is charged to the set point of the constant voltage, the charge controller will operate in the constant charging mode. The charging current gradually decreases.
• FLOAT: The charge controller charges the battery with a small current to prevent the
battery from self-discharging.
• EQUATIZE: The charge controller charges the battery at a level higher than the voltage that it is typically charged to remove sulfate crystals that build up on the plates over time and balance the voltage of each cell. Periodic equalization charging is beneficial to certain types of batteries because it helps ensure the battery capacity and
maintain its runtime.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon Value / Unit
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 2 Indicates the parameters of the solar panel or the battery
V Indicates the voltage of the solar panel or the battery
ºC Indicates the temperature of the charge controller or the temperature sensor (if connected)
Kw Used by the manufacturer for testing
It lights up for a short time when the charge controller is powered on.
A Indicates the charging/discharging current of the battery
Ah Indicates the charging/discharging current of the battery in an hour
12V 24V System Voltage For non-lithium batteries, the charge controller automatically identifies the voltage (12V or 24V). For lithium batteries, you need to set the voltage in the charge controller manually. For details, see System Voltage.
12V The system voltage is 12V.
24V The system voltage is 24V.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 9 Setting Lights up when setting parameters
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Serial Port Serial Port Used by the manufacturer for testing
It lights up for a short time when the charge controller is powered on.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Bluetooth Bluetooth Used by the manufacturer for testing
It lights up for a short time when the charge controller is powered on.
warning 2 Abnormality Fault
Check the error code on the LCD.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Type Battery Type
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Type 1 User-defined battery
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Type 2 Flooded battery
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Type 3 Gel battery
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Type 4 Sealed lead-acid battery
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Battery Type 5 Lithium battery

Checking Parameters

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Checking Parameters

Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to check parameters.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Checking Parameters 2

Load Control

Turning Load On / Off

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Turning Load On Of

If the charge controller is connected to the DC load, press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to turn the load on or off.

Switching Load Mode

You can set the way to turn on / off the DC load.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • To cancel the setting and exit, press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 7.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Switching Load Mode

  1. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to select the load mode.
    NOTE
    ● This interface displays the current load mode.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - displays the current load mode
  2. Press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 for about 3 seconds until RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 9 it is lit up.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - indicate the corresponding
  3. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to adjust the value. Different values indicate the corresponding load modes. You can select the mode according to the table below.
    Value Mode Description
    0 Automatic mode When the voltage of the solar panel is less than 10V for 5 minutes, the charge controller will automatically supply power to the load.
    The charge controller will automatically stop supplying power to the load until the solar panel voltage is greater than or equal to 10V or the battery triggers the undervoltage warning.
    1–14 Timing mode This parameter indicates the supply duration in hours. For example,1 indicates that the charge controller supplies power to the load for an hour.
    When the solar panel voltage is less than 10V, the charge controller automatically supplies power to the load for 1-14 hours (the time depends on the voltage).
    If the solar panel voltage is greater than or equal to 10V or the battery triggers the undervoltage warning, the charge controller automatically stops supplying power to the load.
    15 Manual mode Factory default mode
    Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 to turn the load on/off the load.
    16 No delay mode When the solar panel voltage is less than 10V, the charge controller immediately supplies power to the load.
    The charge controller will automatically stop supplying power to the load until the solar panel voltage is greater than or equal to 10V or the battery triggers the undervoltage warning.
    17 24-hour mode The charge controller keeps supplying power to the load until the battery triggers the undervoltage warning.

    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - After the settings are completed

  4. After the settings are completed, press and hold RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 8 for about 3 seconds to save the settings.

LED Indicators

Indicator Description Function
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 1 Solar Panel LED Indicator Indicates the charging status of the charge controller
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 2 Battery LED Indicator Indicates the working status of the battery
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 3 Load LED Indicator Indicates the working status of the load
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 4 System Error LED Indicator Indicates whether the charge controller is operating normally
When the charge controller is faulty, the indicator lights up.

Solar Panel LED Indicator

Indicator Color Status Description
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 1 White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color
ON The solar panel is charging the battery.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Slow flash for 1s The charge controller is in the boost charging stage.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Single flash The charge controller is in the float charging stage.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Flash for 0.1s The charge controller is in the equalization charging stage.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Double flash The solar panel is charging the battery slowly. The current is too low. Make sure that the solar panel is not covered.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 3 OFF The voltage of the solar panel is too low, or the solar panel is not detected.

Battery LED Indicator

Indicator Color Status Description
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 4 White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color
ON The battery is operating normally.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Slow flash for 1s The battery is overdischarging. Charge the battery as soon as possible.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Flash for 0.1s The battery voltage is too high. Disconnect the battery from the charge controller and check whether the battery is damaged.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 3 OFF No battery is detected.

Load LED Indicator

Indicator Color Status Description
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 5 White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color
ON The load is powered on.
White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 2
Flash for 0.1s Overload or short circuit. At the same time, the System Error LED Indicator lights up.
Check the error code for troubleshooting. For more details, see Troubleshooting in the user manual.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 3 OFF The load is powered off.

System Error LED Indicator

Indicator Color Status Description
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Indicator 4 White
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color
ON Fault
For more details, see Troubleshooting in the user manual.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Color 3 OFF The charge controller is operating normally.

Common Faults

Fault Troubleshooting
The solar panel is connected, but the LED indicator of the solar panel does not light up. This indicates the solar panel voltage may be too low or the panel cannot be detected by the charge controller. Follow the troubleshooting steps below:
1. Inspect the solar panel for any visible damage and make sure it works normally. If the voltage of the solar panel is too low at night, check it again during the day.
2. Inspect the solar panel and keep it away from the shelter.
3. Make sure the voltage of the solar panel is higher than the battery voltage. Otherwise, the solar panel cannot charge the battery.
4. Identify the polarities (positive and negative) on the cables used for the solar panel. A reverse polarity contact will cause the charge controller to work abnormally.
5. Make sure the cables of the solar panel are properly connected to the PV+ and PV- of the charge controller.
6. Inspect the cable of the solar panel for any visible damage.
7. Inspect the fuse of the solar panel for any visible damage.
For technical support, please contact our customer service through renogy.com/contact-us/.
The battery is connected.
However, the indicators of the charge controller LCD and battery LED can not light up.
The battery needs troubleshooting if it can not be detected. Follow the troubleshooting steps below:
1. Inspect the battery and replace it with a new one if it has any visible damage.
2. Measure the battery voltage with a multimeter and make sure the system voltage of the battery is 12V or 24V. Otherwise, the battery can not be detected by the charge controller.
3. Identify the polarities (positive and negative) on the cables used for the battery. A reverse polarity contact will cause the charge controller to work abnormally.
4. Make sure the cable of the battery is properly connected to the BAT+ and BAT- of the charge controller.
5. Inspect the cable of the battery for any visible damage.
6. Inspect the fuse of the battery for any visible damage.
For technical support, please contact our customer service through renogy.com/contact-us/.
The charging current of the charge controller or the solar panel current is lower than expected 1. The charge controller is in the float charging stage, and the charging current will gradually drop until the battery is fully charged.
2. Inspect the solar panel and keep it away from the shelter.
3. Check whether the sunlight intensity is high enough.
4. If the temperature of the charge controller is too high, the error code will not be displayed. Shut down the charge controller until the temperature drops to a standard value.
5. Select the appropriate cables and fuses according to the Recommended Cable and Fuse Sizing in this manual.
6. The voltage drops because the Solar Panel Extension Cable is too long.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 17 displays over 1 to 2 days 1. Identify the polarities (positive and negative) on the cables used for the battery. A reverse polarity contact will cause the charge controller to work abnormally. Connect the battery first and then the solar panel. Otherwise, the charge controller may be damaged.
2. Measure the voltages of the battery, BAT+, and BAT- of the charge controller with a multimeter. If the voltages are inconsistent, the circuit is interrupted. Inspect the circuit and the battery fuse for any visible damage or incorrect connections.
3. The preset battery voltage is incorrect. Measure the battery voltage with a multimeter, and then reset the system voltage according to the actual use. For details, refer to System Voltage in this user manual. Disconnect the battery from the charge controller and reconnect it to activate the battery.
4. The discharging speed of the battery is faster than the charging speed. Turn off or disconnect the load of the battery and charge the battery immediately to prevent the lithium battery from triggering BMS protection due to low voltage.
After the voltage of the lithium battery is restored, the battery will automatically exit the activation mode and work normally.
The load cannot be powered on after connection. 1. Identify the polarities (positive and negative) on the cables used for the battery. A reverse polarity contact will cause the load to work abnormally.
2. Make sure the load cables are properly connected.
3. Ensure that the load works normally. If the load is damaged, replace it with a new one.
4. Check the load mode. For details, refer to Switching Load  Mode in this manual.
5. Check the battery voltage. If the battery voltage is too low, charge the battery immediately.

Error Codes

  1. Under normal conditions, the System Error LED Indicator of the charge controller will not light up.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Error Codes 1
  2. Press RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 enter the fault codes interface.
    Perform troubleshooting according to the steps listed in the table below.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Error Codes 2
Icon Description  Troubleshooting
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 3 No fault is detected The charge controller works normally.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 4 Battery overdischarge Measure the battery voltage with a multimeter. If the battery voltage is too low, disconnect the load from the battery and charge the battery.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 5 Battery overcharge Measure the battery voltage with a multimeter. If the battery voltage is too high, disconnect the battery from the charge controller and replace the battery with a new one.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 6 Load short circuit Follow the troubleshooting steps below:
1. Disconnect the load. Measure the load voltage with a multimeter and ensure that the load voltage matches the battery voltage.
2. Make sure the load is properly connected.
3. Inspect the load for any visible damage.
4. Disconnect the battery from the charge controller and restart the charge controller.
5. If the fault code remains, replace the load with a new one.
For technical support, please contact our customer service through renogy.com/contact-us/.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 7 Load overload 1. Check the load voltage. If the system voltage of the charge controller is 12V, the load port can only be connected to the 12V DC load. Otherwise, connect the load port with the 24V DC load.
2. The maximum current of the load port on the charge controller is 20A. Ensure that the rated load charge current does not exceed 20A.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 8 Charge controller overtemperature Follow the troubleshooting steps below:
1. Shortpress RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 10 or  RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 11 to check the temperature.
If the temperature is too high, disconnect all devices from the charge controller immediately.
2. Ensure that the charge controller is installed on a flat surface indoors, protected from direct sunlight, high temperature, and water.
3. Make sure there is good ventilation.
4. Select the appropriate cables and fuses according to the Recommended Cable and Fuse Sizing in this manual.
5. Reconnect the charge controller after the temperature drops to a standard value.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 9 Solar panel overcurrent 1. Make sure the solar panel is not short-circuited.
2. Ensure that the power of the solar panel does not exceed the rated power of the charge controller.
RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Icon 10 Solar panel overvoltage The maximum DC input voltage of the charge controller is 100V. Make sure the voltage of the solar panel array is less than or equal to 100V. Otherwise, reduce the number of solar panels.

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • For technical support, please contact our customer service through renogy.com/contact-us/.

Technical Specifications

Parameter Value
Model RNG-CTRL-RVR20 RNG-CTRL-RVR30 RNG-CTRL-RVR40
Rated Battery Input Voltage Non-lithium:12V/24V (automatic recognition) Lithium:12V/24V (manual setting)
Battery Input Voltage Range 10V to 32V DC
Rated Charge Current 20A 30A 40A
Rated Load Charge Current 20A
Rated Solar Input Power 12V @ 260W 12V @ 400W 12V @ 520W
24V @ 520W 24V @ 800W 24V @ 1040W
Maximum Solar Input Power 520W 800W 1040W
Maximum Solar Input Voltage (Voc) 100V DC
Solar Input Voltage Range (Voc) 15V to 100V DC
Power Consumption ≤100mA @12V
≤58mA @24V
MPPT Tracking Efficiency >99%
Conversion Efficiency ≤98%
Charger Efficiency >95%
MPPT Operating Voltage Range 17V to 100V DC
Temperature Compensation Non-lithium: -3mV / °C / 2V Lithium: 0mV / °C / 2V; no compensation
Charger Algorithm Lead-acid battery: 3-stage charging (Bulk, Boost, and Float) with Equalization
Lithium batteries: 2-stage charging (Bulk and Boost)
Charger Preset AGM, Gel, Flooded, Li, User-defined
Cable Size 8 AWG to 12 AWG 8 AWG to 10 AWG 6 AWG to 8 AWG
Grounding Common Negative
Communication RS232 Modbus
Operating Temperature -31°F to 113°F / -35℃ to 45℃
Storage Temperature -31°F to 167°F or -35℃ to 75℃
Humidity 0% to 95% RH
Maximum Operating Altitude ≤3000m
Cooling Heat Sink
Enclosure Rating IP32
Dimensions (L x W x H) 8.27 x 5.95 x 2.69 in 210 x 151 x 68 mm 9.38 x 6.78 x 3.05 in 238 x 172 x 77 mm
Weight 3.1 lbs / 1.4 kg 4.4 lbs / 2.0 kg
Regulatory and Safety Specifications FCC Part 15 Class B, CE, RoHS, RCM

MPPT Conversion Efficiency

Light Intensity: 1000W/m²
Temperature: 25°C

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - conversion efficiencyRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - conversion efficiency 2

Dimensions

RNG-CTRL-RVR20

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Dimensions

RNG-CTRL-RVR30 or RNG-CTRL-RVR40

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Dimensions 2

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE

  • Dimension tolerance: ±0.2 in (0.5 mm)

Maintenance

Inspection

For optimum performance, it is recommended to perform these tasks regularly.

  • Check the appearance of the charge controller to make sure it is clean and dry.
  • Ensure the charge controller is mounted in a clean, dry, and ventilated area.
  • Ensure there is no damage or wear on the cables. Ensure the firmness of the Anderson connectors and check if there are any loose, damaged, or burnt connections.
  • Make sure that the indicators are in the normal state.
  • Ensure there is no corrosion, insulation damage, or discoloration marks of overheating or burning.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 3 NOTE
  • In some applications, corrosion may exist around the contacts inside the Anderson connector.
    Corrosion can loosen springs and increase resistance, leading to premature connection failure. Apply dielectric grease to each connector contact periodically. Dielectric grease repels moisture and protects the connector contacts from corrosion.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
  • Risk of electric shock! Make sure that all power is turned off before touching the terminals on the charge controller.

Cleaning
Follow the steps below to clean the charge controller regularly.

  • Disconnect all Anderson connectors that are connected to the charge controller.
  • Wipe the housing and connector contacts with a dry cloth or non-metallic brush. If it is still dirty, you can use household cleaners.
  • Dry the charge controller with a clean cloth and keep the area around the charge controller clean and dry.
  • Make sure the charge controller is completely dry before reconnecting it to the solar panel and the battery.
  • When reconnecting, the battery must be connected first, then the solar panel.

Storage

Follow the tips below to ensure that the charge controller is stored properly.

  • Disconnect all Anderson connectors that are connected to the charge controller.
  • By applying dielectric grease to each connector contact, the dielectric grease repels moisture and protects the connector contacts from corrosion.
  • Store the charge controller in a well-ventilated, dry, and clean environment with a temperature between -13°F and 149°F.

Emergency Responses

In the event of any threat to health or safety, always begin with the steps below before addressing other suggestions.

  • Immediately contact the fire department or other relevant emergency response team.
  • Notify all people who might be affected and ensure that they can evacuate the area.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
  • ONLY perform the suggested actions below if it is safe to do so.

Fire

  1. Disconnect all cables connected to the charge controller.
  2. Put out the fire with a fire extinguisher. Acceptable fire extinguishers include water, CO₂, and ABC.
    RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 1 WARNING
    ● Do not use type D (flammable metal) fire extinguishers.

Flooding

  1. If the charge controller is submerged in water, stay away from the water.
  2. Disconnect all cables connected to the charge controller.

Smell

  1. Disconnect all the cables from the charge controller.
  2. Ensure that nothing is in contact with the charge controller.
  3. Ventilate the room.

Noise

  1. Disconnect all cables connected to the charge controller.
  2. Make sure no foreign objects are stuck in the Anderson connector.

Technical Support

For additional support, contact the Renogy technical support team through renogy.com/contactus.
Have the following information available when contacting Renogy.

  • Owner name
  • Contact information
  • Order number
  • Purchase channel
  • Serial number
  • Brief description of the issue

RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 18 Renogy offers premium services worldwide:

North America  US www.renogy.com CN www.renogy.cn
Asia / Pacific UK uk.renogy.com CA ca.renogy.com
AU au.renogy.com JP renogy.jp
Europe FR fr.renogy.com DE de.renogy.com
ES es.renogy.com KR kr.renogy.com

FCC Statement
This device complies with Part 15 of the FCC Rules. FCC ID: 2ANPBRSMLP4-G2. Operation is subject to the following two conditions:

  1. This device may not cause harmful interference.
  2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  1. Orient or relocate the receiving antenna.
  2. Increase the separation between the equipment and receiver.
  3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  4. Consult the dealer or an experienced radio / TV technician for help.

FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator & your body.

RENOGY logoRENOGY.COM

Visit renogy.com to find relevant documentation or get more support via “Contact Us“.
Renogy reserves the right to change the contents of this manual without notice.

Manufacturer: RENOGY New Energy Co., Ltd
Address: No.66, East Ningbo Road, Room 624-625
Taicang German Overseas Students Pioneer Park, Jiangsu 215000 CNRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 19eVatmaster Consulting GmbH
Battinastr.30
60325 Frankfurt am Main, Germany
contact@evatmaster.com
Manufacturer: RENOGY New Energy Co., Ltd
Address: No.66, East Ningbo Road, Room 624-625
Taicang German Overseas Students Pioneer Park, Jiangsu 215000 CNRENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - Symbol 20EVATOST CONSULTING LTD
Suite 11, First Floor, Moy Road Business
Centre, Taffs Well, Cardiff, Wales, CF15 7QR
contact@evatmaster.com
Join the Renogy Power Plus Community by downloading the DC Home App.
Find your e-warranty here, and more.RENOGY RNG CTRL RVR20 Rover Li MPPT Solar Charge Controller - QR CODEhttps://www.renogy-dchome.com/activity/#/?id=22&type=3

Documents / Resources

RENOGY RNG-CTRL-RVR20 Rover Li MPPT Solar Charge Controller [pdf] User Manual
RNG-CTRL-RVR20, RNG-CTRL-RVR30, RNG-CTRL-RVR40, RNG-CTRL-RVR20 Rover Li MPPT Solar Charge Controller, RNG-CTRL-RVR20, Rover Li MPPT Solar Charge Controller, MPPT Solar Charge Controller, Solar Charge Controller, Charge Controller

References

Leave a comment

Your email address will not be published. Required fields are marked *
