REDLINE FORD F150 All Models with BLIS/Backup Camera/Assist Sensor User Guide
Installation
Open up your tailgate first.

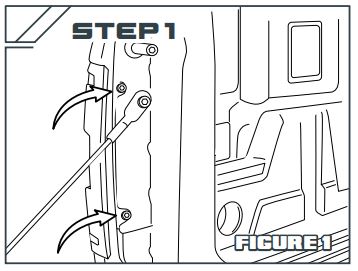

Next, locate the two bolts that lock the tail light (See Figure 1) and loosen them.
Slowly move the loose tail light until it is completely removed(See Figure 2).
Important
There are two plastic clips on the inside of the tail light for fixing, please be careful not to break it when removing it.
Locate the OEM wiring harness (See Figure 3) and unplug it from the tail light assembly by lightly pressing the Release-Latch on the connector.
HOW TO CONNECT
PnP EXPANSION ADAPTER TO YOUR TAILLIGHTS
Step 4
To make it easier for you to identify the signal location represented by the Connector/Wiring. Please read the relevant wiring instructions carefully before commencing any work.(See Figure 4)
Step 6 Use some zip ties to secure the flat 4PIN trailer connector and reverse wire in place along the inner bumper.
Step 7 Finally, connect the available tailgate light bar to the 4PIN trailer connector and reverse wire for full functionality testing
DISCLAIMER
OPT7 Lighting is not liable for damages or personal injuries while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation. If you are unfamiliar with your vehicle or inexperienced with aftermarket upgrades, please seek professional assistance.
OPT7 recommends installation for safety and guidance. Modified installations or installation recommendations not specified by OPT7 Lighting will void product warranty.
