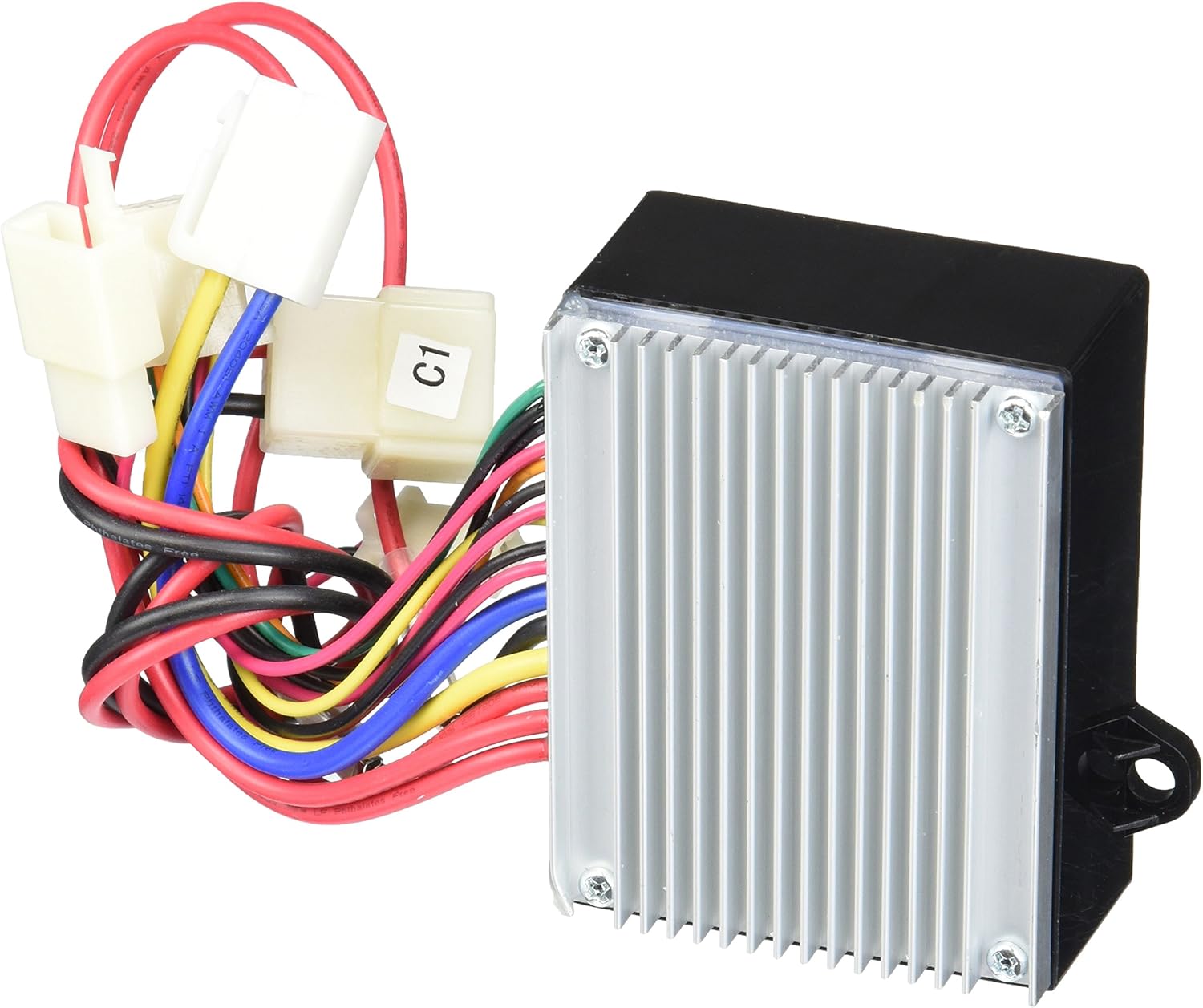

Razor W25143400015 Crazy Cart Control Module
Specifications
- Model Number: W25143400015 W25143499164
- Tools Required (Not included):
- 5 mm Allen wrench
- 10 mm wrench
- Phillips screwdriver
Installation And Usage Steps
WARNING
CAUTION: To avoid potential shock or other injury, turn power switch OFF and disconnect charger before removing or installing the control module. Failure to follow these steps in the correct order may cause irreparable damage.
- Step 1 Using a 5 mm Allen wrench, loosen the four (4) hex bolts that attach the seat to the frame (Figure 1a) and remove seat. Remove the two (2) hex bolts on the Drift Bar cover (Figure 1b) and remove.
- Step 2 Using a 5 mm Allen wrench and a 10 mm wrench, loosen the two (2) hex bolts on the side of the battery cover (Figure 2a) and the two (2) locknuts, located underneath the unit (Figure 2b).
- Step 3 Remove the battery cover by lifting up the right side first then slide off. Be careful not to pull any of the wires that are attached to the cover.
- Step 4 Using a Phillips screwdriver, loosen the two (2) screws that are holding the control module to the battery strap.
- Step 5 Disconnect the five (5) plastic wire connectors onthe control module by depressing the tab on each connector.
- Step 6 Carefully disconnect the two (2) remaining connectors on the control module from the on/off switch and remove the control module. Note: When installing the new control module, make sure to connect the two (2) wires, that go to the on/off switch, on the two (2) silver color prongs (no particular order).
- Step 7
- Reverse steps 1 through 6 to install a replacement control module.
- ATTENTION: Charge the battery 12 hours before initial use.
CONTACT INFORMATION
- Need Help? Visit our website at www.razor.com or call toll-free at 866-467-2967 Monday – Friday 8:00 AM – 5:00 PM PST.
FAQs
- Q: What should I do if I encounter issues during the installation process?
- A: If you encounter any difficulties or have questions during the installation, visit our website at www.razor.com or call toll-free at 866-467-2967 Monday – Friday between 8:00 AM – 5:00 PM PST for assistance.
