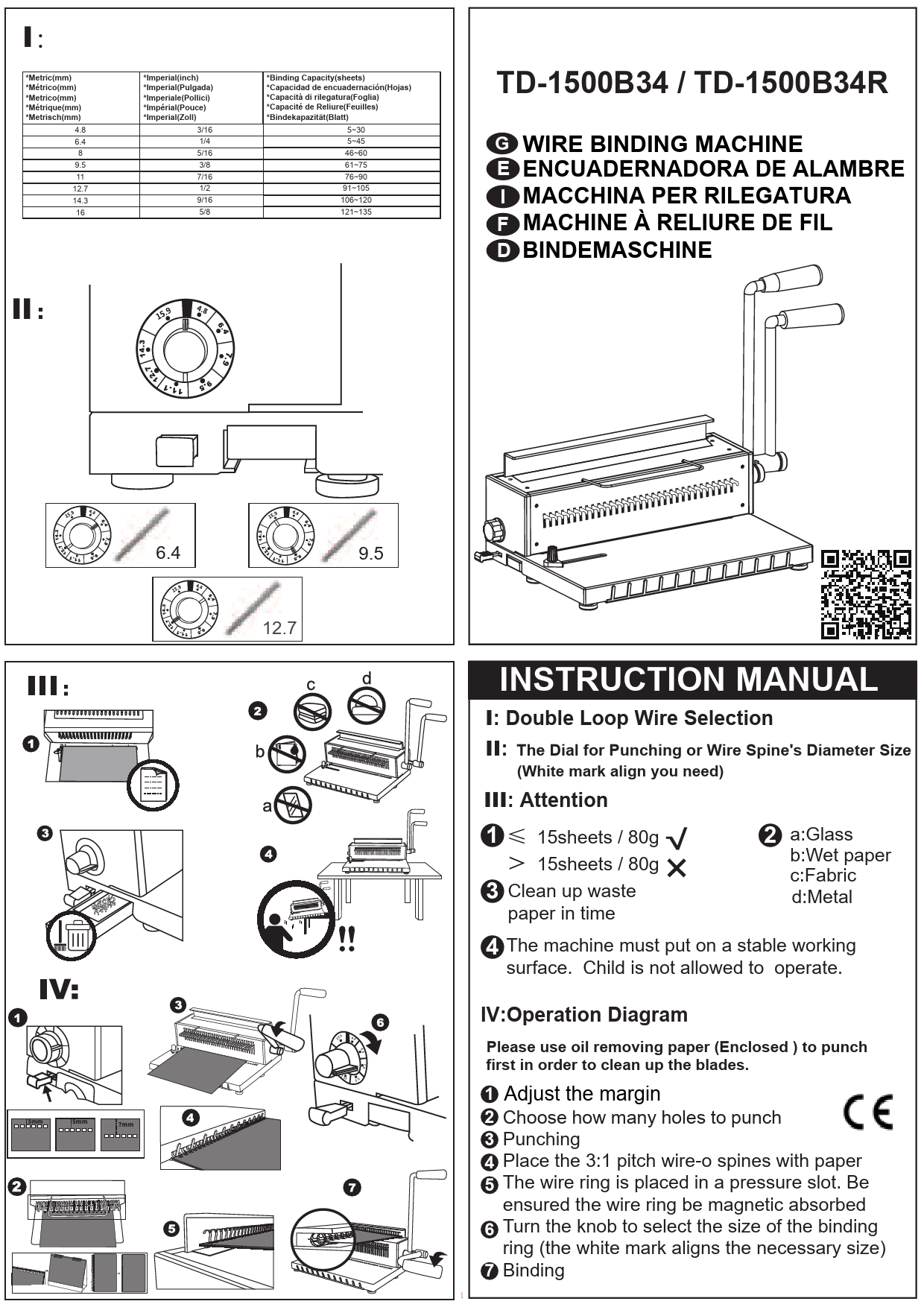

TD-1500B34/TD-1500B34R
WIRE BINDING MACHINE

INSTRUCTION MANUAL

TD-1500B34, TD-1500B34R Wire Binding Machine

1. Double Loop Wire Selection
2. The Dial for Punching or Wire Spine’s Diameter Size (White mark align you need)
3. Attention
   1. ≤ 15sheets/80g
   > 15sheets/80g
   2. a:Glass
   b:Wet paper
   c:Fabric
   d:Metal
   3. Clean up waste paper in time
   4. The machine must put on a stable working surface. Child is not allowed to operate.
4. Operation Diagram

Please use oil removing paper (Enclosed) to punch first in order to clean up the blades.

1. Adjust the margin
2. Choose how many holes to punch
3. Punching
4. Place the 3:1 pitch wire-o spines with paper
5. The wire ring is placed in a pressure slot. Be ensured the wire ring be magnetic absorbed
6. Turn the knob to select the size of the binding ring (the white mark aligns the necessary size)
7. Binding

I

*Metric(mm)	*Imperial(inch)	*Binding Capacity(sheets)
4.8	3/16	530
6.4	1/4	545
8	5/16	4660
9.5	3/8	6175
11	7/16	7690
12.7	1/2	91105
14.3	9/16	106120
16	5/8	12135

https://www.youtube.com/watch?v=UJohUTp_0UA
