PPI ScaneX Programmable Multi Channel Temperature Scanner
CONFIGURATION PARAMETERS
|
Parameters |
Settings (Default Value) |

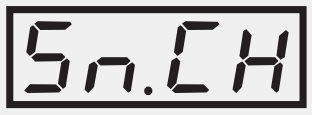

Actual Numbers of Channels to Scan |
1 to Max. Available (Default : 4/8/12/16) |
|
Sensor-break PV Status |

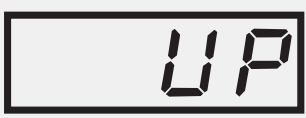

Up Scale |
|

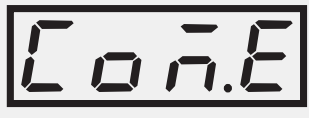

Common Input |

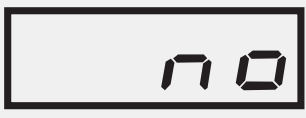

No |
|
Select Channel for |
1 to Actual no. of |
|
Input Type |
Refer Table 1 |
|

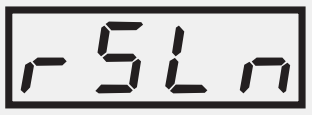

Resolution |
1 or 0.1 |
|
Temperature Units |
ºC |
|
Offset |
1999 / 3000 or |

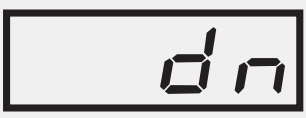

Down Scale
(Default : Up Scale)
Yes
(Default : Yes)
ºF
(Default : ºC)
ALARM CONFIGURATION PARAMETERS
| Parameters |
Settings (Default Value) |
|
Number of Alarms Per Channel |
For COMMON Relay O/P 1 to No. of Alarms/channel (Max. 4) |
|
Select Output Relay Number |
Normal |
|
Relay Latch |
No |
Yes
(Default : No)ALARM SETTING PARAMETERS
| Parameters | Settings (Default Value) |

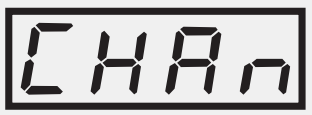

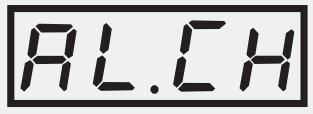

Channel Number |
1 to Max. Channels (Default : NA) |
Alarm Number |
1 to User Selected Alarm (Default : NA) |
Alarm Type |

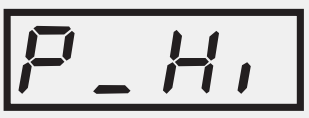

None Process Low  Process High(Default : None)  |
Alarm Setpoint |
Min. to Max. of selected input type range (Default : 0) |
|
Alarm Hysteresis |
1 to 3000 or 0.1 to 3000.0 (Default : 2 or 2.0) |
Alarm Inhibit |
No Yes (Default : No) |
UTILITY PARAMETERS
| Parameters | Settings (Default Value) |
Enable Min/max Monitoring |
No Yes (Default : No) |
Password For Resetting Min/max Values |
0 to 250 (Default : 0) |
Baud Rate |

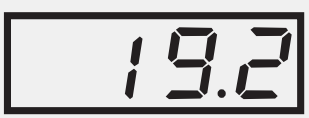

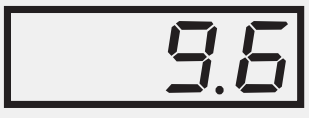

4800 9600  19200  38400  57600 (Default : 9600)  |
Parity |
None Even Odd  Default : Even  |
Serial Id |
1 to 127 |
Serial Write Permission |
No Yes (Default : No)  |
OPERATOR PARAMETERS
| Parameters | Settings (Default Value) |

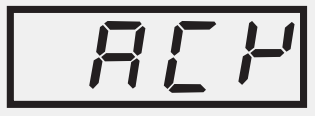

Alarm Acknowledge |
No
Yes |
Scan Rate |
1 Sec. to 99 Sec. (Default : 3 Sec.) |
Maximum PV |
View Only (Default : NA) |
Minimum PV |
View Only (Default : NA) |
Reset Command |
No Yes (Default : NA)  |
Reset Command |
0 to 250 (Default : 0) |
TABLE- 1
|
Option |
What it means |
Range (Min. to Max.) |
 |
Type J Thermocouple |
0.0 to + 960.0ºC / |
 |
Type K Thermocouple |
-200.0 to + 1376.0ºC / |
 |
Type T Thermocouple |
-200.0 to + 387.0ºC / |
 |
Type R Thermocouple |
0.0 to + 1771.0ºC / |
 |
Type S Thermocouple |
0.0 to + 1768.0ºC / |
 |
Type B Thermocouple |
0.0 to + 1826.0ºC / |
 |
Type N Thermocouple |
0.0 to + 1314.0ºC / |
 |
Reserved for custom use (Default Type J) | Reserved for custom use |
 |
3-wire, RTD Pt100 |
-200.0 to + 600.0ºC / |
FRONT PANEL LAYOUT
Front Panel
Keys Operation
|
Symbol |
Key |
Function |
 |
PAGE |
Press to enter / exit Set-up Mode |
 |
DOWN |
Press to decrease the parameter value. Pressing once decreases the value by one count; holding the key pressed speeds up the change. |
|
|
UP | Press to increase the parameter value. Pressing once increases the value by one count; holding the key pressed speeds up the change. |
 |
ENTER |
Press to store the set parameter value and to scroll to the next parameter. |
 |
ALARM ACK |
Press to Acknowledge any pending Alarm(s) |
 |
AUTO / MANUAL |
Press to toggle between Auto and Manual Scan Mode. In Manual Scan Mode, Use UP / DOWN keys to the desired channel. |
PV Error Indications
|
Message |
PV Error Type |
 |
Over-range |
 |
Under-range |
 |
Open |
ELECTRICAL CONNECTIONS
Old Connections Version
New Connections Version
