PowerUrus 12V S Series Portable Power Unit User Guide
Welcome to PowerUrus Products
At PowerUrus, we provide portable power that is safe, silent and renewable.
Our products are used in emergencies and for work and play. Please read the user manual carefully before using the product and always take care when using this product. This product is not intended for use by young or infirm persons without supervision.
Attentions and Warnings:
- Standard Version and Preheat Version cannot be mixed;
- Do not disassemble, resemble, or repair the battery. Incorrect reassembly may cause combustion or electric shock;
- If the battery is damaged, contact the place you purchased it;
- Do not short-circuit the battery, use it near heat or water sources, or al low it to become wet;
- Do not insert nails or other objects into the battery, strike it, or weld directly on the battery;
- Do not use a badly damaged battery or operate it with damaged cables or charging adapters;
- Do not operate this product in explosive atmospheres (i.e. flammable liquids , gases, or dust) or set the unit on flammable materials (i.e. carpeting, upholstery, paper, cardboard);
- In case of skin or eye contact, rinse immediately with clean water and seek medical attention;
- Do not keep using the is product if it is damaged, waterlogged, distorted, or broke;
- his product contains lithium ion batteries. When it is worn out dispose it properly using local laws and regulations.
Battery Specifications

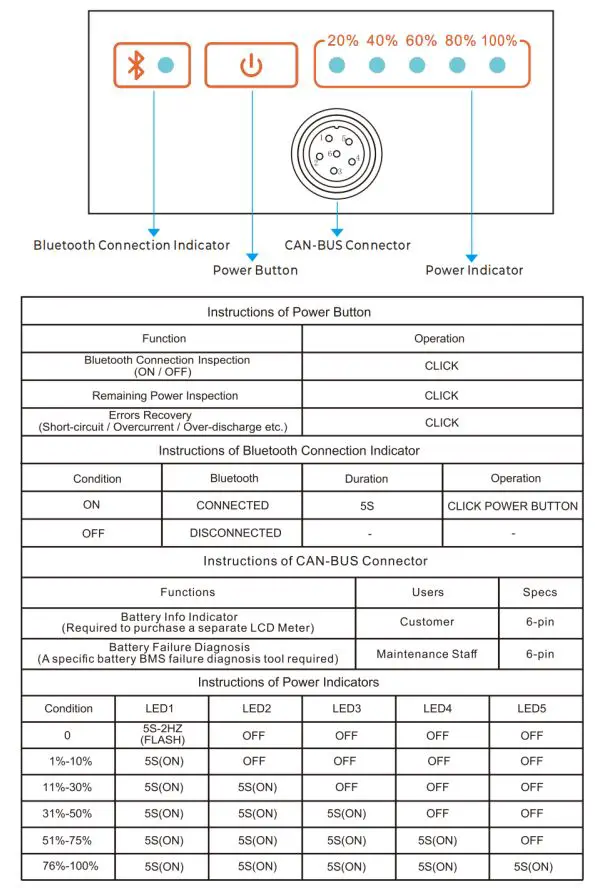

Additional Functions Description (Only for Battery with Control Panel)
Gets Charged
Tips: After receiving the PowerUrus battery, please fully charge it first before using or testing, or the battery SOC in the APP will be inaccurate.
NOTE: Only for reference on the brand new PowerUrus 12.8V l00Ah / 200Ah batteries.
Gets Multi-connected
I. To connect PowerUrus batteries in series or/and parallel, these battery conditions below should be met:
a. From the same brand
b. Within the same model number
c. Purchased at the near time (Within 1 month)
Note: The PowerUrus batteries with low-temperature protection cannot be connected to the PowerUrus batteries with low-temperature preheat
function in series or parallel, even if they have the same power capacity.
II. Preparation before connecting PowerUrus batteries in series or/and parallel:
Step 7. Fully charge each battery individually;
Step 2. Connect all the batteries in parallel one byonefor72~24 hours;
Step 3. Disconnect these batteries, and reconnect them in series or/and parallel as required.
Note: Maximum up to 48V (4 identical PowerUrus batteries in series) power system and 400Ah/800Ah power capacity (4 identical l00Ah/ 200Ah PowerUrus batteries in parallel). If the battery connections contain both the series and parallel connections, please make the parallel connections first, and then make the series connections.
Ill. Cable Sizing
Note: The cable length is total length of the positive and negative wires.
( i.e. the distance from battery to appliance multiplied by 2)
Note:
Three main factors to consider selecting the cables:
a. With an identical load power, a higher circuit current requires a bigger cable;
b. With an identical load power, a higher circuit voltage requires a smaller cable;
c. With an identical load power, a longer distance to the battery requires a bigger cable.
IV. Wiring Diagram
a. Series Connection (Max.4S, 48V100Ah/200Ah)
APP Installation & Usage
Step 1: Search “RoyPow Fish” in the APP store (An droid & IOS). and install it;
Step 2: Release the required permissions for the RoyPow Fish APP when installing.
II. Usage Steps
Step 1: Turn on the Bluetooth function;
Applications
Maintenance Suggestions ⚠
- Limited maintenance during use: to reach the expected life span and get the full power out of them with each use, if batteries are in series and not being charged by a multi-bank charger, PowerUrus recommends you to fully charge the batteries individually once a month if the system is used frequently.
Batteries are in parallel this is not necessary to be charged individually ,just make sure the batteries are charged to 14.2V – l4.6Vfrequentlyfor internal balance; - Charge and discharge the battery once every three months if not in use;
- In order to avoid over-discharge, charge the battery periodically at the suggested battery storage voltage (12.9V – 13.2V, 30% – 70% SOC) to avoid over-discharge;
- For storage over one month, p lace the battery in a dry, cool, well-ventilated room;
- Do not store near corrosive material, f ire, and heat sources.
WARRANTY
PowerUrus is always dedicated to supplying the most reliable batteries and the best aftersales service possible. We supply the Limited Warranty for the PowerUrus S-series batteries as below:
- S-series Battery Capacity< S00Wh, 2-Year Limited Warranty;
- S-series Battery Capacity~ S00Wh, 5-Year Limited Warranty;
NON-TRANSFERABLE
This Limited Warranty is to the original purchaser of the Product and is not transferable to any other person or entity. Please contact the place of purchase regarding any warranty claim.
WARRANTY EXCLUSIONS
The Manufacturer has no obligation under this Limited Warranty for the Product subject to the following conditions(including but not limited to):
- Punctures and normal wear and tear;
- Damage due to improper installation; loose terminal connections, under-sized cabling, incorrect connections (series and parallel) for desired Voltage and AH requirements, or reverse polarity connections;
- Damage caused by collision;
- Damage due to improper maintenance, under or over-charging the Product, dirty terminal connections;
- Product that has been opened, modified, or tampered with;
- Product that was used for applications other than which it was designed and intended for, including repeated engine starting;
- Product that was used on an over-sized inverter/charger (any inverter/ charger that is rated to 3500 Watts or greater) without the use of a Manufacturer-approved current surge limiting device;
- Product not stored in adherence to the Manufacturer’s storage guidelines, including storage of the Product at a low state-of-charge.
This Limited Warranty does not cover a Product that has reached its normal end of life due to usage, which may occur prior to the Warranty Period. A battery can deliver only a fixed amount of energy over its life, which will occur over different periods of time depending on the application. The Manufacturer reserves the right to deny a warranty claim if the Product is determined, upon inspection, to be at its normal end of life even if within the Warranty Period.
RETURN POLICY
- We accept a limited return period of30calendardaysfromtheoriginal ship date;
- A receipt or proof of the purchase must be required for the return;
- To be eligible for a return, the item must be in the same condition that you received it in;
- The return of new/unused items with original packaging has no restocking fee in the return period of30 calendar days;
- Restocking fee will be paid by the buyer when returning the item that has been installed, used, or no longer has the original packaging. The restocking fee will be assessed and shared with the buyer when the return merchandise authorization (RMA) is issued;
- Returns will not be accepted without an RMA number;
- We accept 30 calendar days of money-back from the date the item shipped, in other words, you have 30 calendar days to return an item from the date the item shipped;
- Once we receive your item, we will inspect it and notify you that we have received the item. We will also notify you of the status of your refund after inspecting the item. If the return is approved, we will initiate a refund to you; You will receive the credit within a few days, depending on the bank/card issuer’s policies;
- No refund is guaranteed after 30 calendar days or if the item has been used.
SHIPPING POLICY
- You will be responsible for paying the shipping costs to return the item if the 30 calendar days of the return period from the original ship date has passed, or you purchase the wrong item and require returning it;
- Shipping costs of the return are non-refundable and will be deducted from your refund.
FAQ
Question: Why can’t my cellphone find the battery’s Bluetooth?
Answer: The battery Bluetooth version is Bluetooth 5.0, p lease check the compatibility with your cellphone. If possible, please change to another cellphone for a try.
Question: Why can’t my phone be connected to the battery’s Bluetooth?
Answer: Firstly, we recommend the connection distance between the battery and the cellphone should be within 5 meters upon the initial connection test.
If the Bluetooth cannot be found or connected, we suggest uninstalling the current “RoyPow Fish” APP and downloading it again from the APP store.
Next, reinstall it and release all the required permissions for the “RoyPow Fish “APP. Lastly, make sure to t urn on the cellphone’s Bluetooth, and start the APP to reconnect it.
Question: How can I get the device binding code set up?
Answer: The device binding code is only used for maintenance by the manufacturer, so the user can ignore this device binding code, if it appears when connecting the battery, please click “Skip” it to the next.
Question: Why can’t I turn on the Wi-Fi in the APP?
Answer: If the connected PowerUrus battery is not a Wi-Fi version, the Wi-Fi in the APP will be disabled.
Question: Why is the battery’s voltage too low at the first use?
Answer: Due to the logistics restriction, the battery only has 25~30% SOC before leaving the factory, we suggest recharging the battery completely before use, and the battery’s voltage will become normal.
Question: Why does the battery SOC in the APP seem inaccurate?
Answer: If you just received the new battery or the battery hasn’t been recharged for a long time, the battery SOC in the APP might be inaccurate, the SOC will be accurate after a circle of full charge and discharge.
Question: How many PowerUrus batteries can be connected in series or parallel?
Answer: The Maximum PowerUrus batteries can be up to 4 in series (48V Battery System) or 4 in parallel (72V Battery System). Please contact us first if you require PowerUrus batteries to be connected both in series and parallel.
Question: What gauge of cable shouIdI need for my battery system>
Answer: As the cable size is affected by the cable length, cable current, the inverter power rating, and something else, so you have to check the total power consumption of the total electricity system and the operating voltage of the battery system (e.g. 72V /24V /36V / 48V battery system) first, and then you can roughly calculate the current in the battery system. Lastly, refer to the “Cable Sizing” chart in the “Welcome Guide” to select the corresponding cable gauge. You also can consult us for more advice on cable sizing.
Question: What’s the PowerUrus batteries difference between the Standard Version and the Preheat Version?
Answer: The Standard Version has low-temperature charge protection and doesn’t allow to be charged below 0°C, while the Preheat Version has a battery preheating function and allows to be charged below 0°C without damaging the battery. They apply to different use scenarios.
Question: Can standard batteries be connected in series or parallel with preheated batteries?
Answer: Not recommended, because when these two types of batteries are connected in series or parallel to be used in cold weather below 0°C /32°F, there will be a problem that the preheated battery can be charged while the standard battery cannot be charged. In this case, the battery system will work abnormally.
Question: How does battery preheating work?
Answer: The battery preheating function will be activated by the BMS w hen the battery is connected to a hanger to be charged at -20°C to 3°C (-4°F to 38°F).
The preheating w ill stop w hen the battery temperature reaches l 6°C (6l °F), and start to charge the battery.
