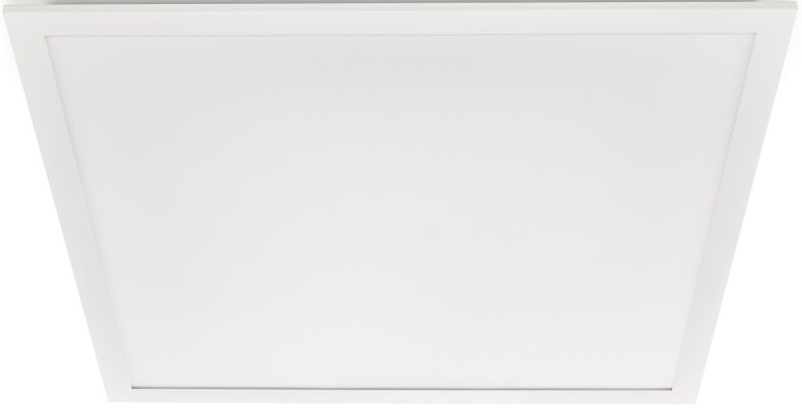

PHILIPS RC065B, RC066B Ledinaire Panel User Manual

Installation:
1. Ensure the luminaire is not covered with thermal insulation or similar material.
2. Use the provided safety cable for secure installation.
3. Mount the panel using the Lay-In mounting method.
Color Temperature Adjustment:
Use the multi-color switch to set your preferred color temperature between 3000K, 3500K, or 4000K.

Maintenance:
Regularly clean the panel with a soft, dry cloth to maintain optimal performance.

FAQ:

Q: Can I purchase additional accessories for the product?
A: Yes, you can purchase accessories like suspension sets and safety cables separately using the provided codes.
Q: What is the default color temperature setting?
A: The default color temperature setting is 4000K.

This product contains a light source of energy efficiency class: D

The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similarly qualified person.

What’s In The Box

Specifications

		Lumen (lm)	CCT (K)	P (W) IK Energy efficiency class of light source L×W×H (mm) Safety cable (SC) in the box
	RC065B G5 34S/840 PSU W60L60 OC SC	3400	4000	28.0	02	D	595x595x35	1.65	Yes
	RC065B G5 34S/840 PSU W60L60 NOC SC	3400	4000	28.0	02	D	595x595x34	1.35	Yes
	RC065B G5 34S/840 PSD W60L60 OC SC	3400	4000	28.0	02	D	595x595x35	1.65	Yes
	RC066B 34S/840 PSU W62L62 OC	3400	4000	28.0	02	D	620x620x35	1.75	No
	RC066B 34S/840 PSD W62L62 OC	3400	4000	28.0	02	D	620x620x35	1.75	No
	RC065B G5 34S/840 PSU W60L60 OC 6PK SC	3400	4000	28.0	02	D	595x595x35	1.65	Yes
	RC066B 34_36S/830_40 PSU W62L62 OC	3400/3600	3000/3500/4000	30.0	02	D	620x620x35	1.75	No
	RC065B G5 34_36S/830_40 PSU W60L60 OC SC	3400/3600	3000/3500/4000	30.0	02	D	595x595x35	1.65	Yes
	RC065B G5 34_36S/830_40 PSU 60×60 NOC SC	3400/3600	3000/3500/4000	30.0	02	D	595x595x34	1.35	Yes
	RC065B G5 34_36S/830_40 PSD W60L60 OC SC	3400/3600	3000/3500/4000	28.0	02	D	595x595x35	1.65	Yes
	RC065B G5 34_36S/830_40 PSU 30×120 OC SC	3400/3600	3000/3500/4000	30.0	02	D	295x1195x35	1.75	Yes
	RC065B G5 34_36S/830_40 PSD 60×60 NOC SC	3400/3600	3000/3500/4000	28.0	02	D	595x595x35	1.35	Yes
* Default setting: 3000/3500K/4000K * Product power included driver

Dimension

Available as accessory

Available as accessory (Need to purchase separately)

Suspension set:

911401809487: RC159Z Suspension set SME-3 WH

911401809387: RC159Z Suspension set SME-4 WH

Plaster set:

911401809287:
RC159Z Plaster Ceiling SMB-PLC

Safety cable:
911401809187: RC159Z Safety Cable

Surface mounted set:

911401808087:RC059Z SMB W60L60
911401808187:RC059Z SMB W62L62
911401808287:RC059Z SMB W30L120

Surface mounted set:

911401807787:RC159Z SMB W60L60
911401807887:RC159Z SMB W62L62
911401807987:RC159Z SMB W30L120

The luminaire shall not be covered with thermal insulation or similar material under any circumstance.

If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similarly qualified person to avoid a hazard. The light source contained in this luminaire shall only be replaced by the manufacturer his service agent or a similar qualified person. Luminaire must not be used or stored in a corrosive environment where hazardous materials such as sulfur, chlorine, phthalates, etc, are present.

INSTALLATION

All-in: Multi Color switch set your color temperature to 3000K, 3500K, or 4000K (=default)

Color Temperature selectable
Drive	3000K	3500K/4000K	Wattage
PSU	3400lm	3600lm	30W
PSD	3400lm	3600lm	28W

Visible Profile Ceiling mounting(VPC) – Lay-In mounting

Suspension mounting (SME-3 WH/SME-4WH)

Plaster Ceiling Version mounting (SMB-PLC)

Safety cable (SC)

Surface mounted

911401807787:RC159Z SMB W60L60
911401807887:RC159Z SMB W62L62

911401807987:RC159Z SMB W30L120

Surface mounted

911401808087: RC059Z SMB W60L60
911401808187: RC059Z SMB W62L62
911401808287: RC059Z SMB W30L120

Philips and the Philips shield emblem are registered trademarks of Koninklijke Philips N.V.

Disconnect before servicing

Luminaire has basic insulation between Low Voltage supply and control conductors.

The light source contained in this luminaire and the external flexible cable shall only be replaced by the manufacturer his service agent or a similar qualified person.
Storage, installation, use, operation, and maintenance of the products need to be performed exactly according to the instructions in this manual and/or other instructions as may be provided by us to guarantee the safe use of the product over its entire lifetime. Failure to adhere to these instructions will invalidate your entitlement to warranty. Bolts with an indication of torque strength on the drawing need to be tightened using a calibrated torque wrench. Pre-assembled bolts need to be retightened again to the required torque specification to ensure maximum strength over a lifetime.

SR compatibility

For SR-based luminaires only SR-certified components/sensors are to be used (see also: http://www.lighting.philips.co.uk/oem-emea/products/driving-connected-lighting). The functional compatibility of two (SR-certified) components/sensors to be used in combination, as well as the override possibility of any line-switch function used in an SR-based luminaire, is to be released by the master component/sensor supplier. If using a NEMA 7-pin socket on an SR-based luminaire, a full system verification is required. Not following this advice can/will cause risk of damage and non-compliance for which Signify cannot take any responsibility.

WEEE Statement

Please inform yourself about the local waste disposal, separation, and collection system for electrical and electronic products and packaging. Please act according to your local rules and do not dispose of your old product and packaging with your normal household waste. The correct disposal of the packaging, your product, and/or batteries will help prevent potential negative consequences for the environment and human health. Batteries should be disposed of separately from the municipal waste stream via designated collection facilities. When disposing of a product that contains non-user-replaceable batteries, the non-user-replaceable batteries shall be removed by a professional.
