PANDUIT NK5E88M Series NetKey Keystone Style Jack Modules

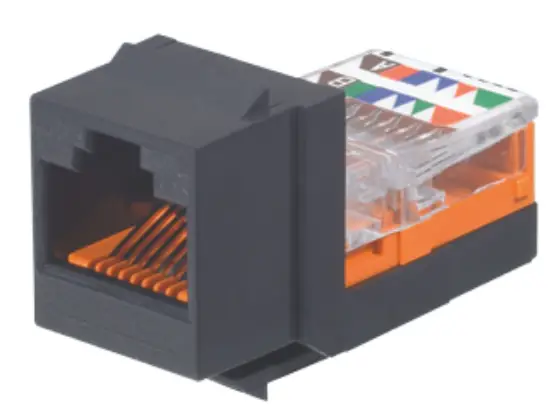

Specifications
- Product Name: NetKey Network Components Keystone Cabling System
- Part Numbers: NK5E88M**Y
- Category: Network Components
- Compatibility: Keystone Style Outlets and Patch Panels
- Wire Positions: Color-coded according to T568A, T568B, AT&T 258A, WECO standards
- Cable Compatibility: Terminates PVC or Plenum rated 22-24 AWG solid or stranded IWC cable
FAQ
- Q: What type of cables can be terminated using NetKey Keystone Style Jack Modules?
- A: NetKey Keystone Style Jack Modules can terminate PVC or Plenum rated 22-24 AWG solid or stranded IWC cable.
- Q: What are the color-coded wire positions for the Category 5E Keystone Style Jack Modules?
- A: The wire positions are color-coded according to T568A, T568B, AT&T 258A, WECO standards. Refer to the wiring diagram for detailed information.
- Q: How can I remove the Termination Cap from the housing?
- A: Push forward and down against the latch at the end of the guide ramp to slide a screwdriver under the cap and separate it from the housing.
INSTALLATION INSTRUCTIONS

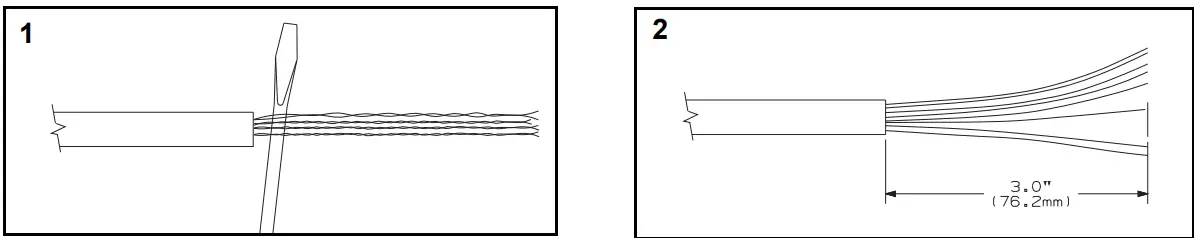

- Remove 3″ (76.2mm) of cable jacket and untwist pairs.
- Straighten conductors and arrange in proper color sequence.

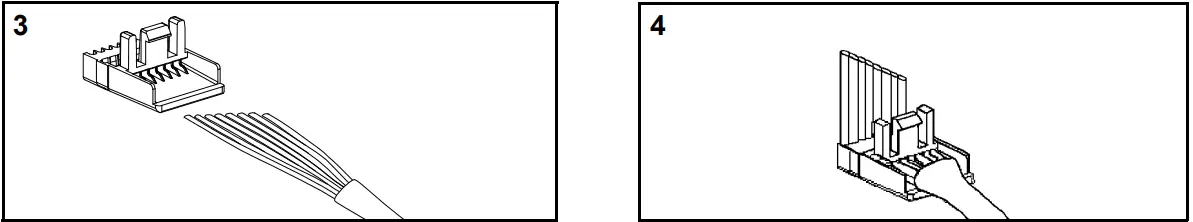

- Cut conductors on an angle and insert into cap.
- Pull conductors until outer jacket is inside cap. Bend up 90°.

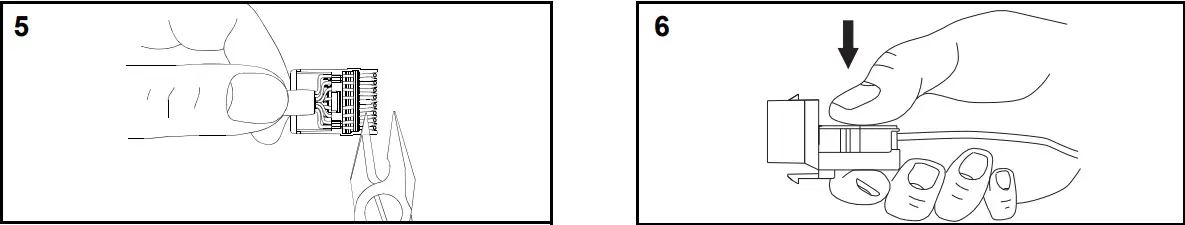

- Trim conductors flush with cap using wire snipping tool (CWST).
- NOTE: Cable jacket is inside the cover.
- Snap cap squarely on housing until it clicks.
- Apply pressure to cap until it clicks again. Cap must be flush on housing.

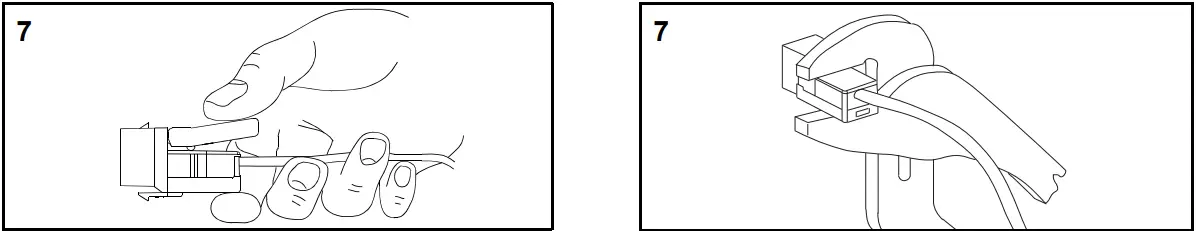

- Use Snap Tool (7A) or standard Slip Lock Pliers (7B).
Removal Instructions
Termination Cap Removal Instructions
- Push forward and down against latch at end of guide ramp until
- Slide screwdriver under cap to separate from housing.
FOR USE IN KEYSTONE STYLE OUTLETS AND PATCH PANELS ONLY
OVER FOR KEYSTONE STYLE PANEL OPENING REQUIREMENTS
** Denotes jack module color code.
WIRING SEQUENCES
CATEGORY 5E NK5E88 SERIES WIRING SEQUENCES

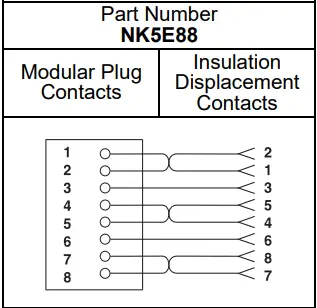

WIRING DIAGRAM
“Category 5E” Keystone Style Jack Modules Color-Coded Wire Positions
| T568A, ISDN | T568B, AT&T 258A, WECO | ||||
| 2 | GREEN | R3 | 2 | ORANGE | R2 |
| 1 | WHITE/GREEN | T3 | 1 | WHITE/ORANGE | T2 |
| 3 | WHITE/ORANGE | T2 | 3 | WHITE/GREEN | T3 |
| 5 | WHITE/BLUE | T1 | 5 | WHITE/BLUE | T1 |
| 4 | BLUE | R1 | 4 | BLUE | R1 |
| 6 | ORANGE | R2 | 6 | GREEN | R3 |
| 8 | BROWN | R4 | 8 | BROWN | R4 |
| 7 | WHITE/BROWN | T4 | 7 | WHITE/BROWN | T4 |
Refer to catalog for a listing of color-coded NetKey Keystone Style Jack Modules.

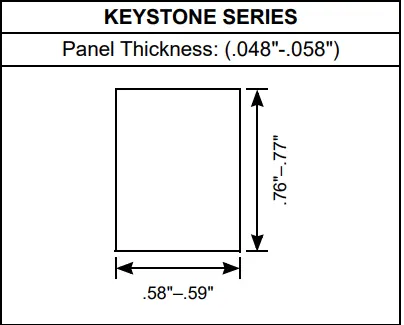

KEYSTONE STYLE PANEL OPENING REQUIREMENTS
PANEL OPENING REQUIREMENTS
Notes:
- For specified performance, follow TIA/EIA 568A installation guidelines and use equivalent or higher category twisted pair cable.
- Keystone Style Jack Modules can terminate PVC or Plenum rated 22-24 AWG solid or stranded IWC cable with 0.048 inch (1.2mm) maximum insulated conductor outside diameter.
- Keystone Style Jack Modules may be reterminated a minimum of 10 times.
- For technical and performance data, refer to catalog or consult Panduit Technical Support.
As with all Wiring Accessories, the following statements apply:
- Never install communications wiring during a lightning storm.
- Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
- Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
- Use caution when installing or modifying communication wiring.
Contact
- For Instructions in Local Languages and Technical Support: www.panduit.com/resources/install_maintain.asp
- E-mail: techsupport@panduit.com
- Phone: 866-405-6654
- www.panduit.com
