NXP OM-SE051ARD-H EdgeLock SE051H Arduino Compatible Development Kit

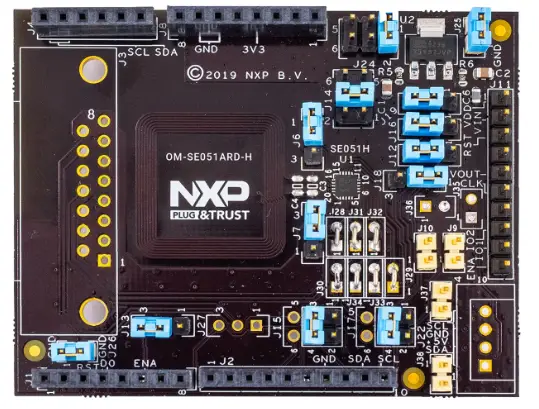

Get to know the OM-SE051ARD-H board
Please visit www.nxp.com/SE051H for more information.
| Jumper | Description | Configuration | Default |
|
J6, J7 |
Antenna |
1-2: via DB15 connector 2-3: Internal antenna | J6 1-2, J7 2-3
(no antenna) |
|
J9, J10 |
I2C Master pull up connection |
Open: not connected 1-2: 3k3 Ohm | Open |
|
J12 |
Reset |
1-2 RST on J11:3
2-3 RST on Arduino |
2-3 |
|
J13 |
SE051_ENA pin routing |
1-2: ENA low, VOUT not connected to VIN 2-3: ENA controlled by Arduino pin J1:6 |
2-3 |
|
J14 |
SE051_VCC pin routing |
1-2: Routed to VDD supply voltage (see J19)
3-4: Routed to SE_Vout pin 5-6: Routed to J11:4 pin |
1-2 |
|
J15 |
I2C Slave SDA connection |
1-2: Arduino R3 J4:5 3-4: Arduino R3 J2:9 |
3-4 |
|
J16 |
SE051_Vin supply |
1-2: Supplied by J11:2 pin
2-3: Supplied by the VDD (see J19) |
2-3 |
|
J17 |
I2C Slave SCL connection |
1-2: Arduino R3 J4:6 3-4: Arduino R3 J2:10 |
3-4 |
|
J18 |
SE051_IO2 routing |
1-2: Routed to J11:9 2-3: Routed to J2:3 | 1-2 |
|
J19 |
VDD supply voltage |
1-2: From LDO
2-3: From 3V3_ARD pin |
2-3 |
| 1-2: From 5V_PC (USBI2C flat connector) 3-4: From 5V_DB15 pin
5-6: From 5V_ARD pin |
1-2 | ||
| J24 | VDD supply selection for LDO (if LDO is used – see J19) | ||
|
J37, J38 |
I2C Slave bus pull up configuration | Open: 3k3 Ohm (I2C fast mode)
1-2: 660 Ohm (I2C high speed mode) |
Open |
Connect OM-SE051ARD-H to i.MX 8M board MCIMX8M-EVK
Connect OM-SE051ARD-H to i.MX 8M Mini 8MMINID4-EVK
Connect OM-SE051ARD-H to i.MX 8M Nano 8MNANOLPD4-EVK
EdgeLock SE051H
Visit www.nxp.com/SE051H for more information about the SE051H product range.
SUPPORT
Visit www.nxp.com/support for a list of phone numbers within your region.
WARRANTY
Visit www.nxp.com/warranty for complete warranty information
Get Started
Download installation software and documentation at www.nxp.com/SE051H
Reference documents: nxp.com: AN13539, OMSE05xARD Hardware Overview
www.nxp.com/SE051H
NXP, the NXP logo and EdgeLock are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
© 2023 NXP B.V.
Part Number: OM-SE051ARD-H
PLUG & TRUST DEVELOPMENT PLATFORM
