NXP MCXE247 FRDM MCX E247 Development Platform

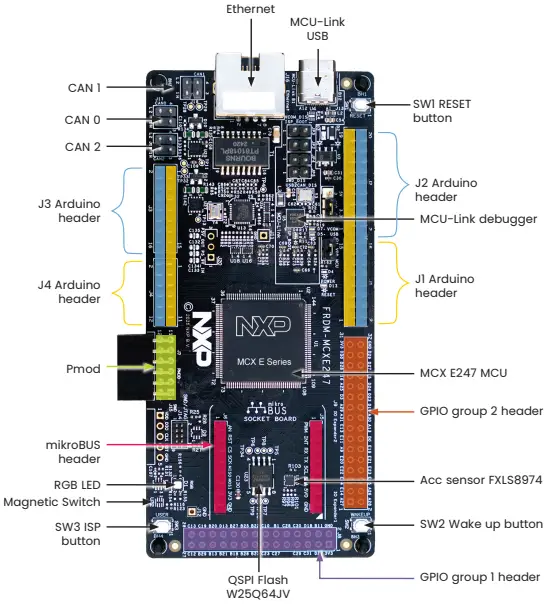

Get To Know The Frdm-mcxe247 Development Board

NXP’s FRDM Development Platform provides you with cost-effective MCU development boards.
Easy I/O access supports expansion board use for fast prototyping and rapid evaluation.
Enjoy your FRDM-MCXE247.

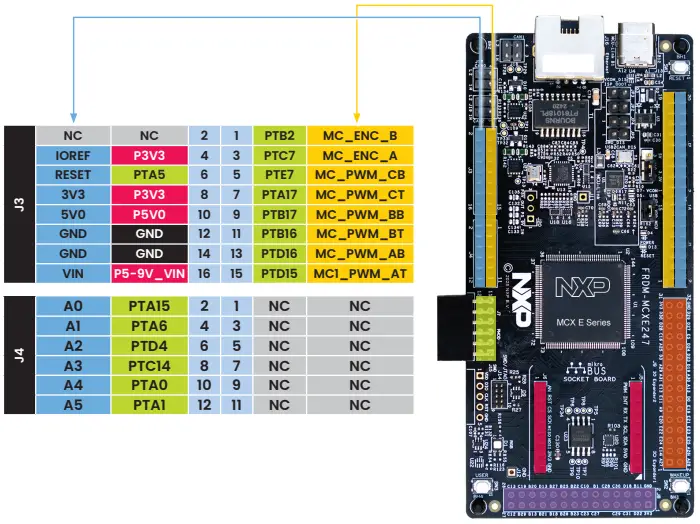

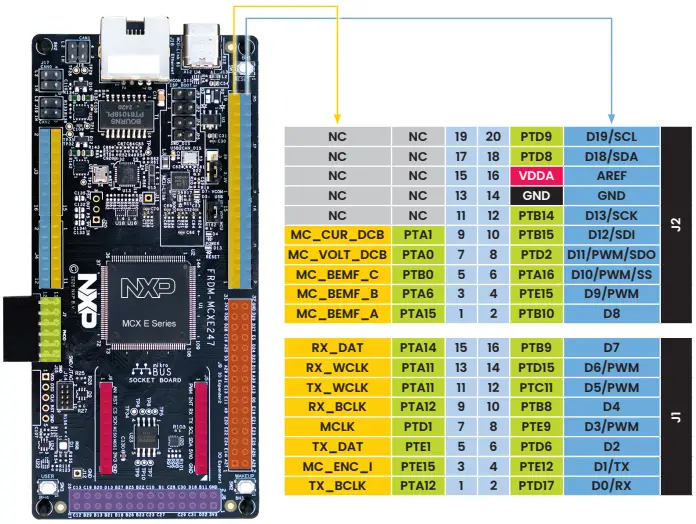

Arduino® header
FRDM header
mikro BUS™
Pmod™
GPIO group 1 header
GPIO group 2 header

How To Get Started

Setup

1. Connect the FRDM-MCXE247 board to a PC using the USB Type-C® cable
2. The board comes preprogrammed with a blinky LED demo
3. Optional: prepare two dupon wires for SEC tool usage
4.  Get started at nxp.com/FRDM-MCXE247/start
   Software and expansion boards
5. Access software and tools through nxp.com/MCUX press
   • Expansion Board Hub mcuxpresso.nxp.com/eb-hub to find add-on boards from NXP and our partners with related MCUX press SDK-compatible drivers and examples
   • Application Code Hub mcuxpresso.nxp.com/app code hub to browse application code examples from our experts to help kick start your project.
6. Explore our entire FRDM platform of MCUs and MPUs at nxp.com/FRDM

Customer Support

Visit nxp.com/support

nxp.com/FRDM-MCXE247
NXP and the NXP logo are trademarks of NXP B.V. All other product or service names are the property of their respective owners. © 2025 NXP B.V.
Document Number: MCXE247QSG REV 0 APN: 926-10067
