MONTOLIT 300-70SL-MOB Modular Handling System For Slabs Installation Guide
MODULAR HANDLING SYSTEM FOR SLABS
NOT FOR MOVEMENT WITH LIFTING EQUIPMENT
Clean the tile surface with water for better suction cup adhesion.

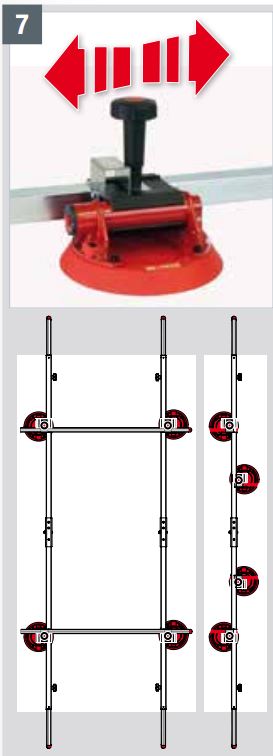

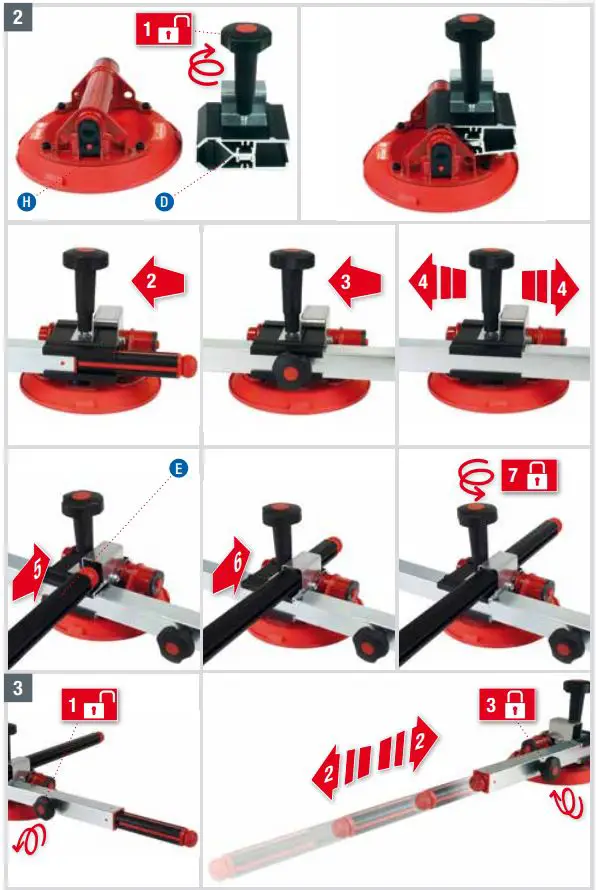

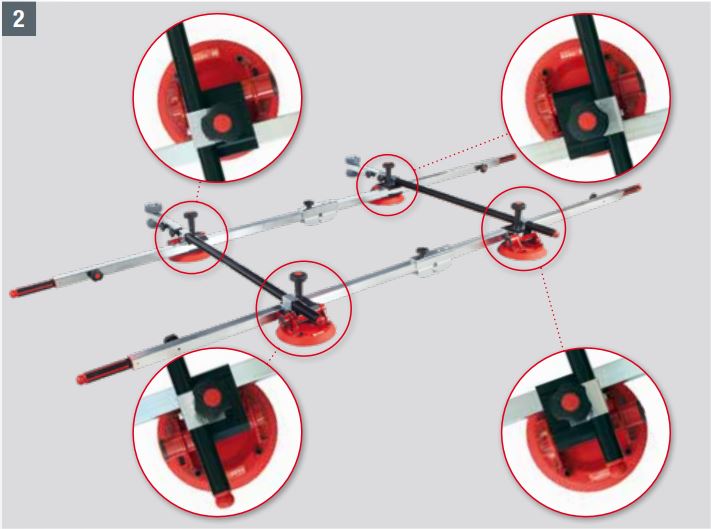

Adjust the guides and suction cups according to the size and shape of the tile to be handled and according to the different machining operations.

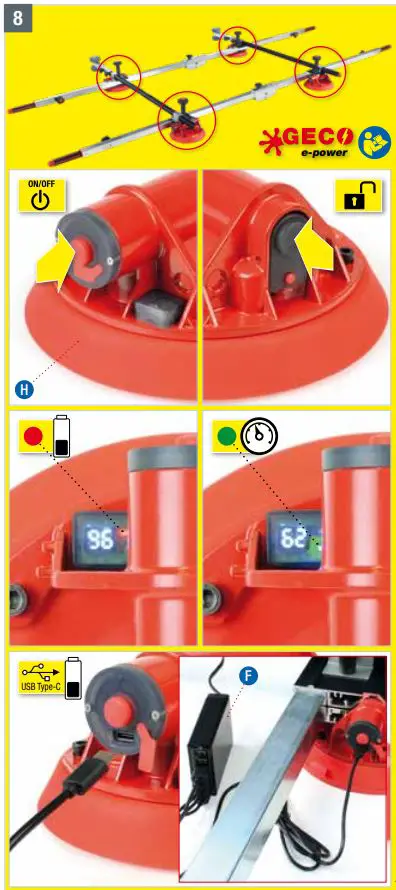

WARNING: always check the condition of the suction cups. Fully charge battery before use.
⚠
Optional · Art. SUPERLIFT E-POWER-01 · (2 pcs)

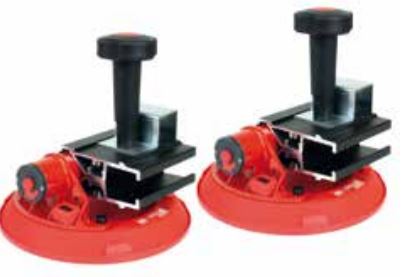

We recommended the use of 2 or more additional suction cups for machined or shaped slabs.
Optional · Art. SUPERLIFT E-POWER-02 · (4 pcs)

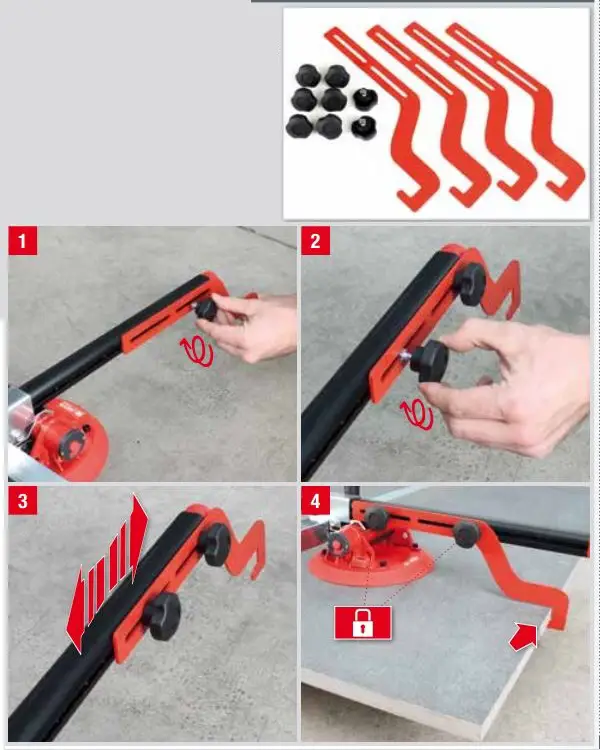

Extra safety hooks for rough slabs.
WARRANTY – 2 (TWO) years from date of sale (delivery note/receipt or invoice). Any malfunctions caused by inappropriate or incorrect use of the machine will not be covered under the warranty.
