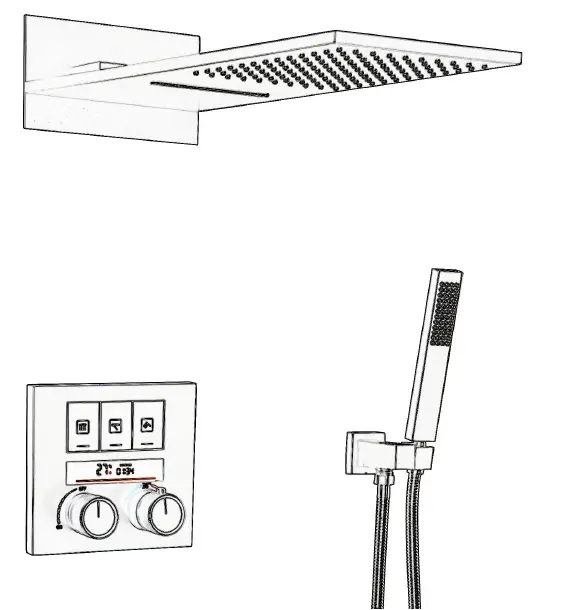

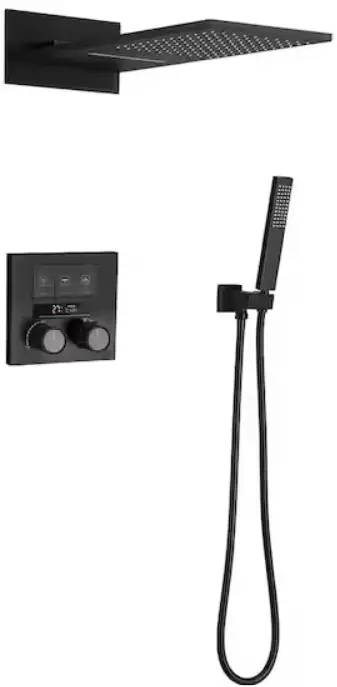

Modland Three Function Constant Temperature Shower
Installation Manual
BEFORE INSTALLATION
This product has been inspected and debugged by the factory to the best condition. Please do not disassemble and assemble it yourself.
Before installing the product, please be sure to remove sundries and sludge from the water pipe to prevent sundries from blocking the product.
- Please read the manual firstly before installation;
- Please check the condition of all the parts, and the installation tools are not included, please prepare it by yourself;
- User manual includes matters needing attention during installation, please keep it properly;
- The size chart in the manual is for reference only, please refer to the actual product that • you receive.

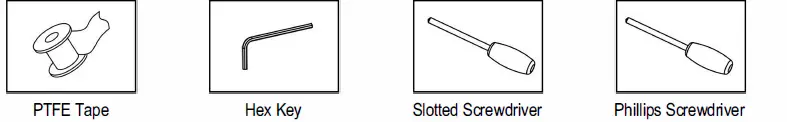

Recommend Tools:
- The sundries at the connection area must be cleared before installation to avoid blockage or leakage;
- Connect the inlet pipe correctly as shown in the figure;
- The maximum temperature of hot water is not higher than 80°C (176° F);
- Please contact seller for consultation if you need to install in other method.
Note: Please do not disassemble this product under non professional guidance. The sketch is for reference only. The right of interpretation belongs to our company.
If relevant content changes, please refer to the latest “Installation Manual” issued by our company, thank you!
INSTALLATION STEPS

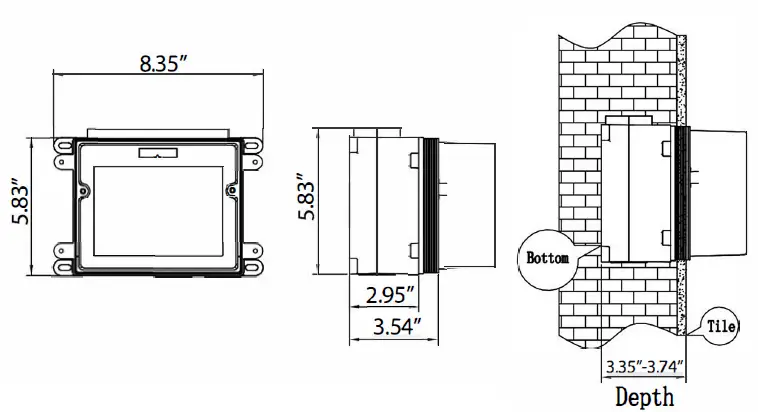

- According to the basic size of conceal box, dig a hole on solid wall.Depth of hole should be between 85 to 95 mm from tile surface to bottom of hole.

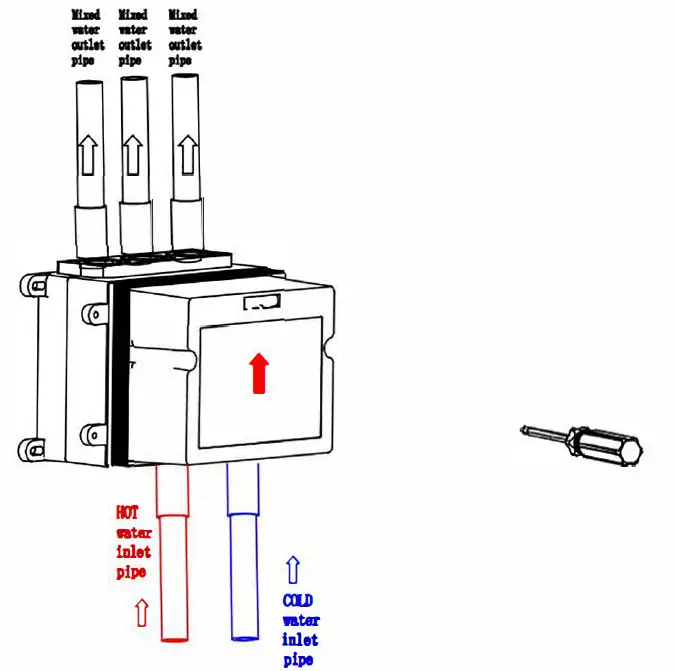

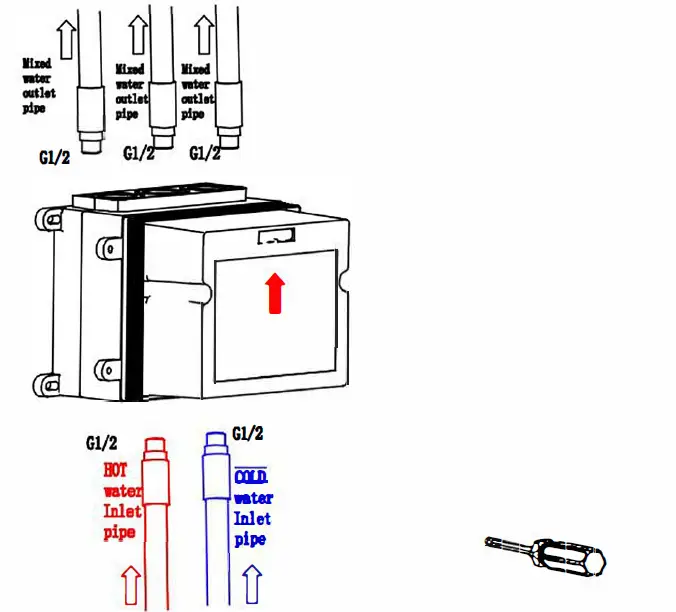

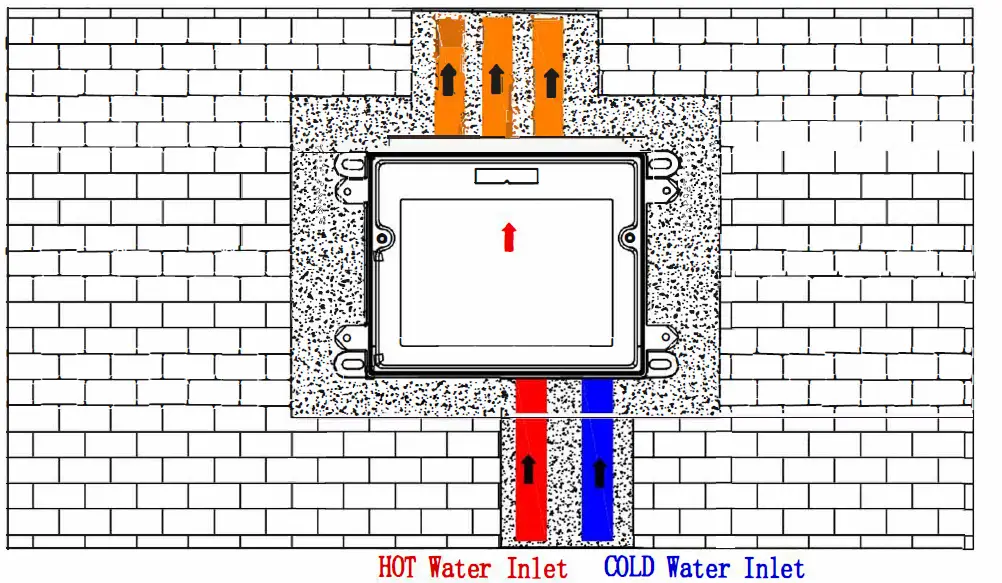

Embedded water pipe as sketch. Pay attention to the correct direction of conceal box. fi sign should be up.
Warning: make sure connect hot water and cold water inlet strictly as instruction.

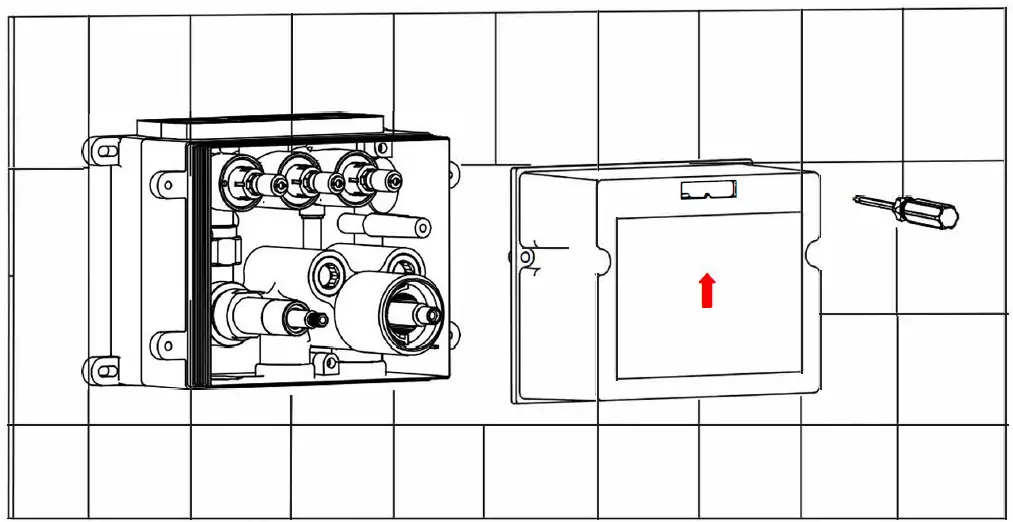

- Turn on water and check the tightness of cold and hot water connection, make sure no leaking. Keep water on, check the tightness of mixed water connection. Fixed conceal box inside wall with screw.

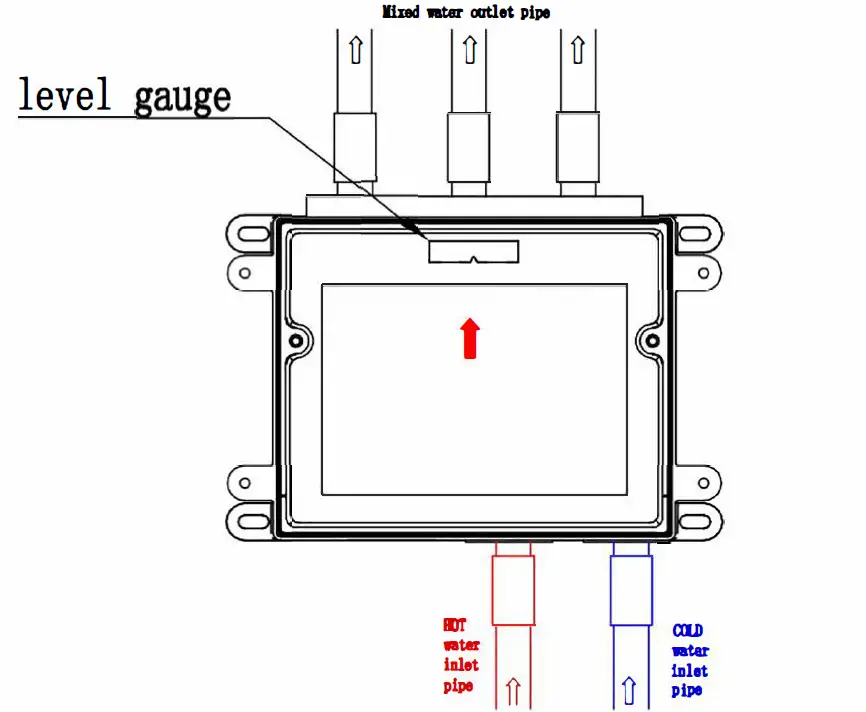

- Keep the conceal box in horizontal level by the help of level gauge. Failure to install will impact the cover plate effect.

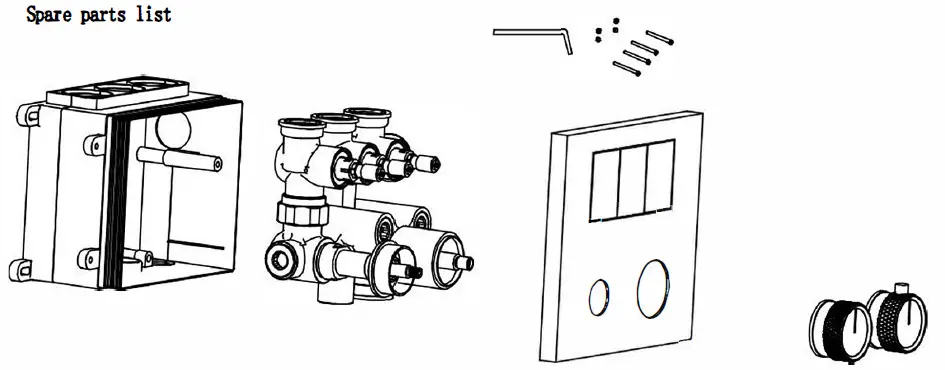

- Once again confirm the pipe connection,make sure no leaking.Install all the conceal spare parts to shower system. Fix and seal the hole with filler. The installation of conceal box is finished.
- Remove the protective cover

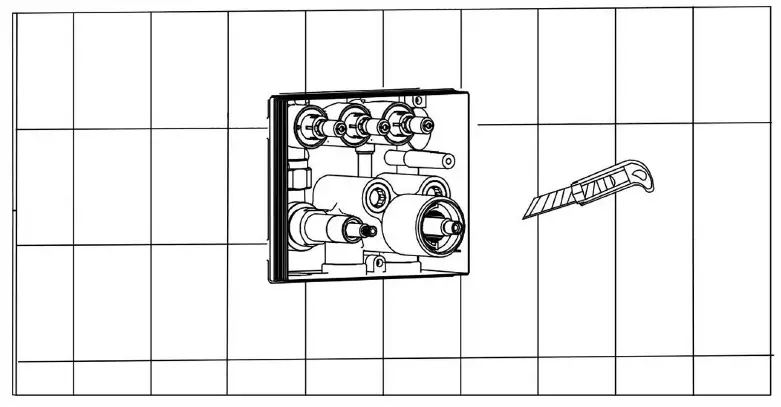

- After placing the tiles around the conceal box, cut the protruding part of conceal box.

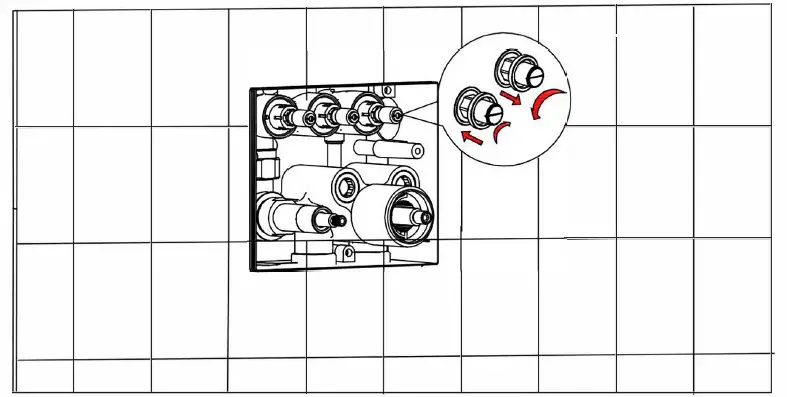

- Adjust the height of the button as showing in the diagram

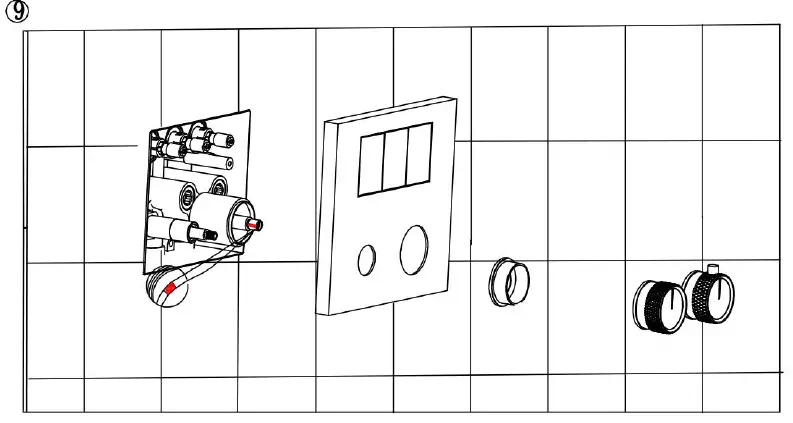

- As showing in the gram, Install the before cover plate and handles. Pay attention to red mark on cartridge to align with 38 °C. Use the Allen key to fix the handle onto the cartridge by clockwise direction.
- Finished

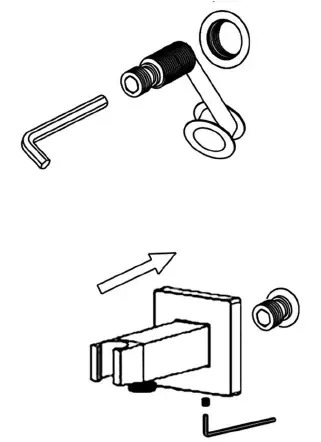

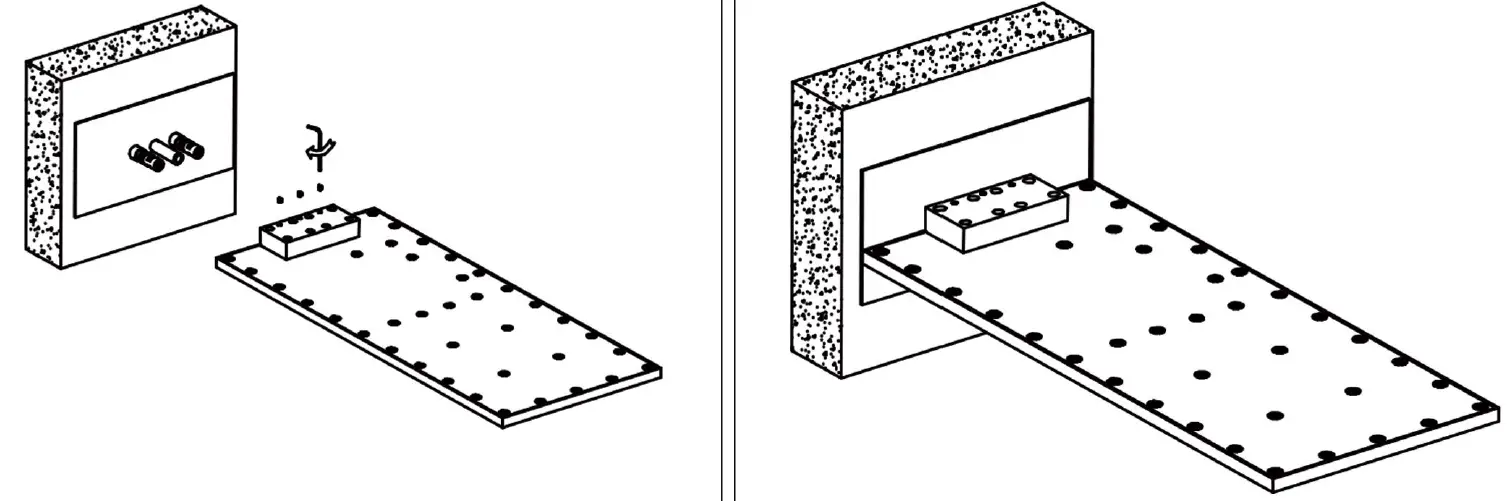

Install the square showerhead on the joint pin, lock with M4 pointed screws After installation, open the switch to check the showerehad water condition and whether there is leakage Install the hand shower seat.

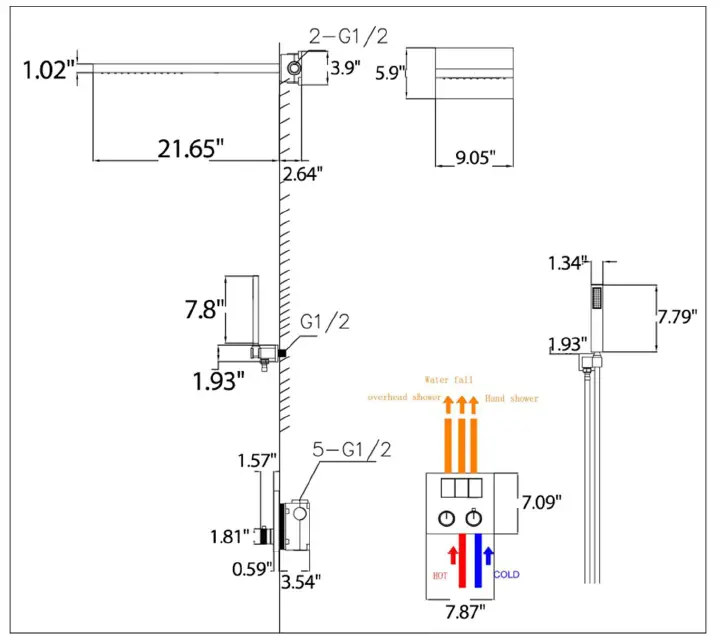

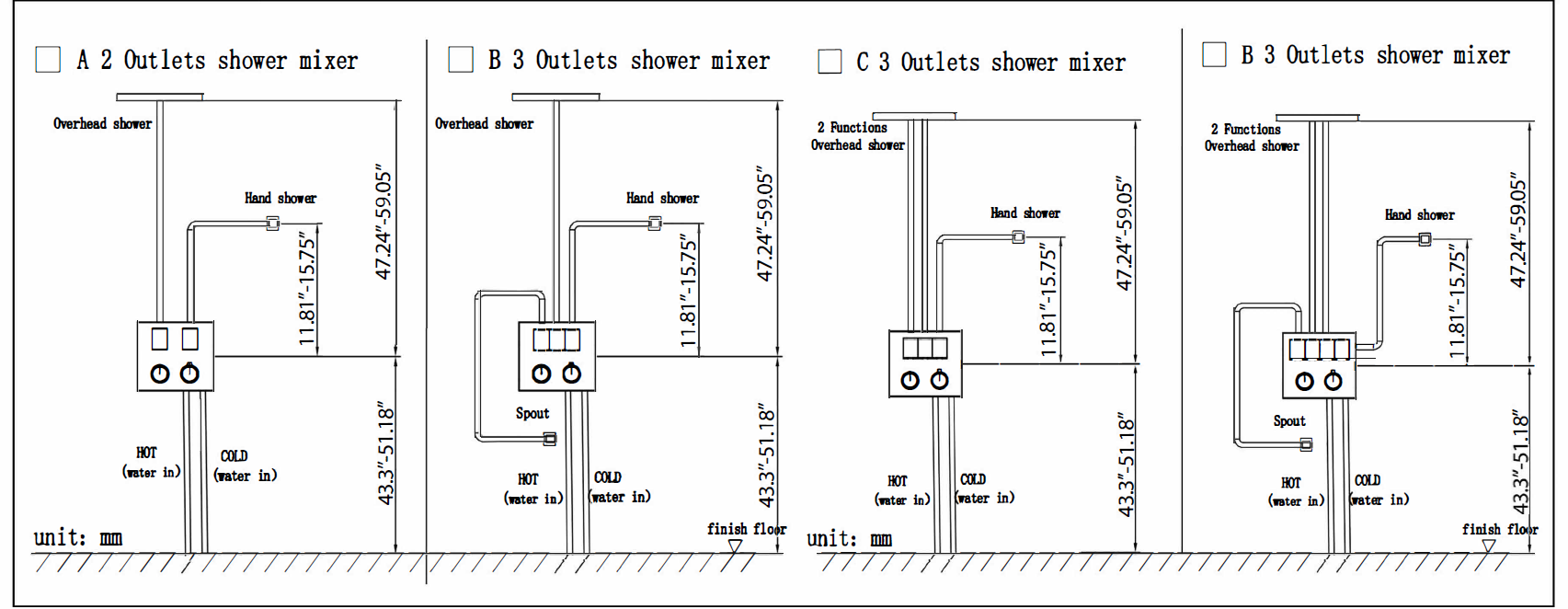

DIMENSIONS

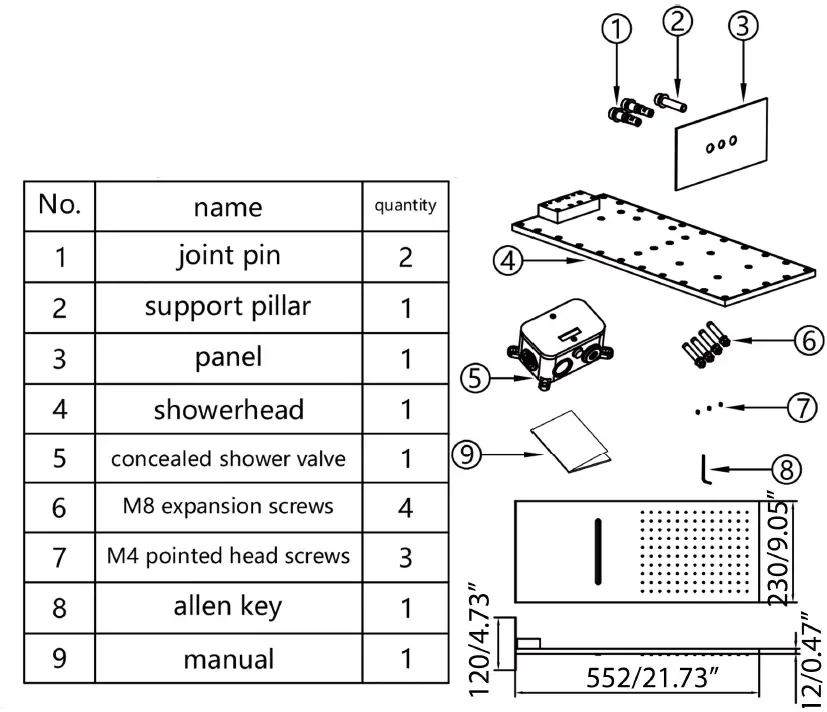

Thank you very much for choosing our products! Please read this installation carefully before installation Manual, please after opening the product, Match against the list of Standard Accessories Check if the fittings are complete Please contact your local dealer immediately
CLEANING CARE
In order to keep the appearance of faucet clean, bright and good performance, please take care of the faucet as follows;
- Rinse with water only and dry with soff cotton cloth;
- Use mild liquid and colorless glass cleaner to remove surface dirt and scale film, or use polish without abrasive effect;

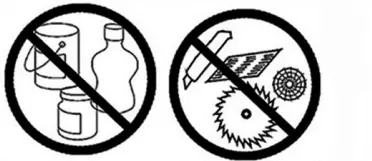

- Do not use abrasive detergent, polish, emery cloth, paper towel or scraper, etc.;
- Do not use acid cleaner, or cleaner and soap with insoluble gran etc.;
- In the process of use, mud my accumulate in the bubbler and make the water flow show, The bubbler can be unscrewed, rinsed with water, and then installed back in place.
Please feel free to contact us if you have any questions. We will help to solve the issue together with you.
