1. ആമുഖം
This manual provides instructions for the safe and effective use of your DURATECH 22-Piece Drive Tool Accessory Set and 12-in-1 Multi-bit Ratcheting Screwdriver. Please read this manual thoroughly before operation and retain it for future reference. This set is designed for various repair and maintenance tasks, offering versatility and durability.
2. ഉൽപ്പന്ന ഘടകങ്ങൾ
The DURATECH set includes a comprehensive collection of drive tool accessories and a multi-bit ratcheting screwdriver. The components are organized in an EVA foam tray for easy identification and storage.
2.1. 22-Piece Drive Tool Accessory Set
This set is crafted from high-strength chrome vanadium steel with a corrosion-resistant chrome plated finish.
- Extension Bars:
- 1/4" Drive: 1-1/2", 3", 6"
- 3/8" Drive: 1-1/2", 3", 6", 10"
- 1/2" Drive: 1-1/2", 3", 6", 10"
- യൂണിവേഴ്സൽ സന്ധികൾ: 1/4", 3/8", 1/2" drive sizes. These joints feature an advanced screw-connected design for durability.
- അഡാപ്റ്ററുകൾ:
- 1/4" Female x 3/8" Male
- 3/8" Female x 1/4" Male
- 3/8" Female x 1/2" Male
- 1/2" Female x 3/8" Male
- 1/2" Female x 3/4" Male
- Spark Plug Sockets (3/8" Drive): 13/16" and 5/8"
- 1/4" Hex Bit Adapter
ചിത്രം 1: കഴിഞ്ഞുview of the DURATECH 22-Piece Drive Tool Accessory Set and 12-in-1 Multi-bit Ratcheting Screwdriver.

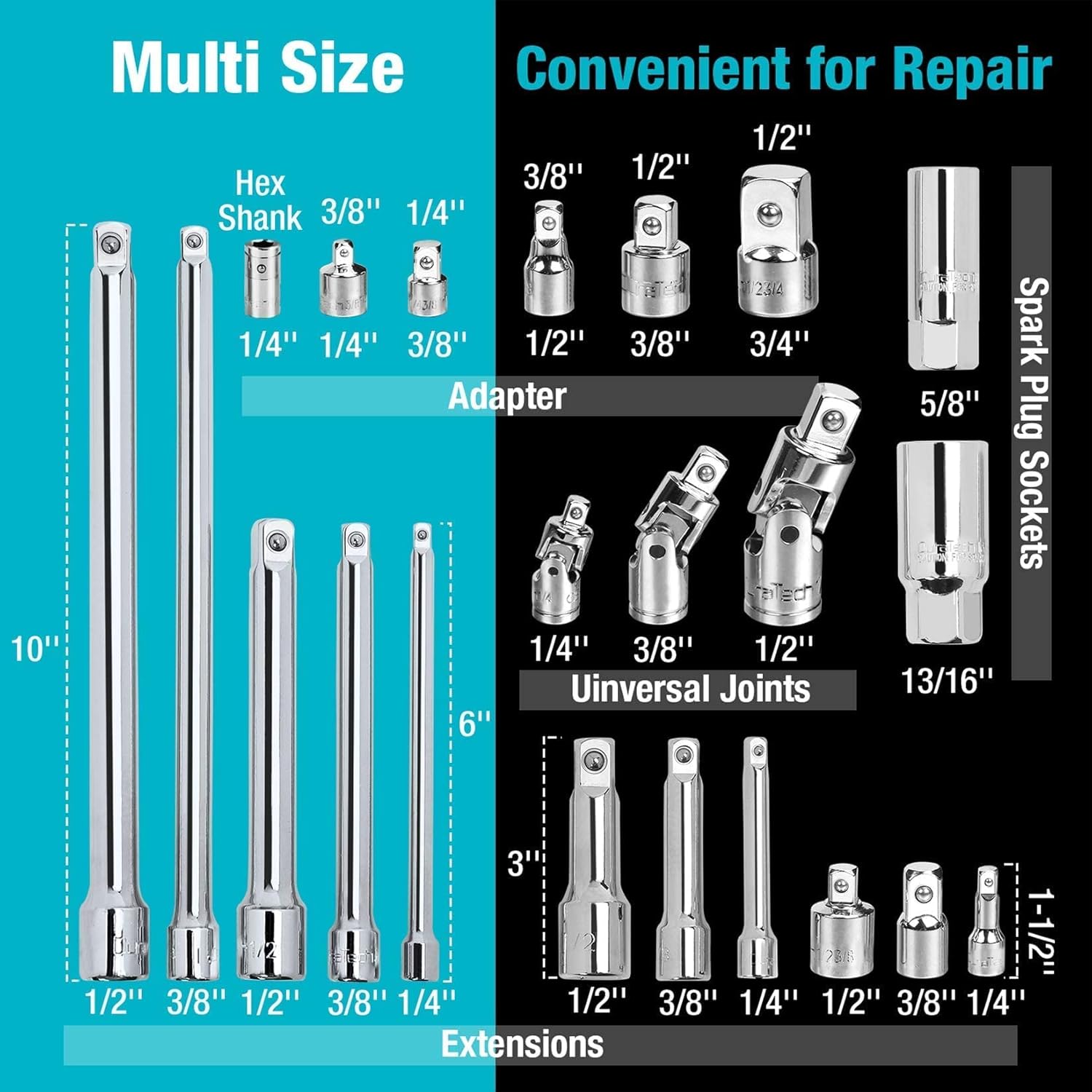

ചിത്രം 2: വിശദമായത് view of the various extension bars, adapters, universal joints, and spark plug sockets included in the set, highlighting their different sizes and types.
2.2. 12-in-1 Multi-bit Ratcheting Screwdriver
This screwdriver features a ratcheting mechanism and comes with 6 double-headed bits made from S2 alloy steel with a nickel plating surface for high hardness and corrosion resistance.
- Ratcheting Mechanism: Offers left, right, and locked positions for efficient operation.
- ബിറ്റ് സ്റ്റോറേജ്: Bits are stored within the handle for convenience.
- Double-headed Bits: Includes common Phillips, Slotted, and Torx sizes (PH2/S2, PH1/PH3, S1/S3, T10/T15, T20/T25, 4/5).
- Ball Bearing Lock Mechanism: Features a 3-ball bearing system for secure bit clamping and to prevent slippage.
- Quick Load/Release Design: Allows for fast insertion and removal of bits.
Image 3: Diagram illustrating the 3-ball bearing lock mechanism within the screwdriver, designed to securely hold bits and prevent slippage during use.
Image 4: Visual guide demonstrating the three operational modes of the ratcheting screwdriver: Left (for loosening), Right (for tightening), and Lock (for fixed use).
Image 5: Step-by-step illustration of the advanced quick load/release design for inserting and removing screwdriver bits efficiently.
3. സജ്ജീകരണം
The DURATECH Drive Tool Accessory Set and Multi-bit Ratcheting Screwdriver are ready for use upon unpacking. No assembly is required for the individual components.
3.1. Identifying Components
Each accessory in the drive tool set has stamped markings for easy size identification. The EVA foam organizer also features printed sizes to help locate the correct tool quickly.
ചിത്രം 6: ക്ലോസ്-അപ്പ് view of the drive tools, highlighting their fully polished finish and clearly stamped markings for size identification.
3.2. Screwdriver Bit Installation
- Select the desired double-headed bit from the screwdriver handle's internal storage.
- Pull down the chuck collar on the screwdriver.
- സ്ഥലത്ത് ക്ലിക്കുചെയ്യുന്നത് വരെ ചക്കിലേക്ക് ബിറ്റ് ചേർക്കുക.
- Release the chuck collar to secure the bit.
4. പ്രവർത്തന നിർദ്ദേശങ്ങൾ
4.1. Using Drive Tool Accessories
These accessories are designed for use with appropriate drive tools (e.g., ratchets, breaker bars). They are അല്ല intended for use with impact drills.
- Select the Correct Size: Choose the extension bar, adapter, universal joint, or spark plug socket that matches the fastener and your drive tool.
- ഡ്രൈവ് ടൂളിലേക്ക് അറ്റാച്ചുചെയ്യുക: Connect the accessory to your ratchet or other drive tool. The spring-loaded detent ball ensures a secure fit.
- Attach Socket/Bit: If using an extension bar or universal joint, attach the appropriate socket or bit to the accessory.
- ബലം പ്രയോഗിക്കുക: Apply steady and controlled force to loosen or tighten fasteners. Ensure the tool is properly seated on the fastener to prevent stripping.

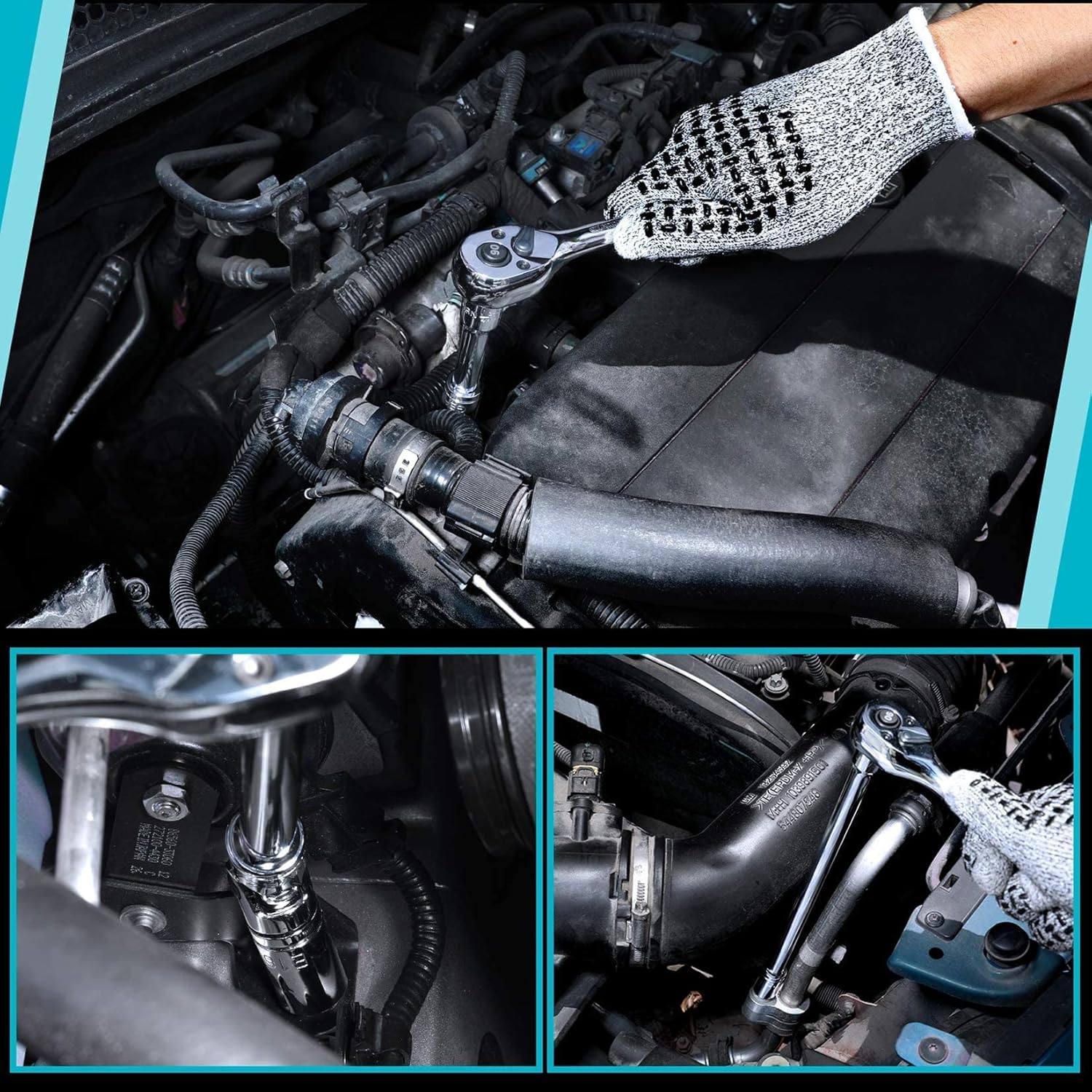

ചിത്രം 7: ഉദാamples demonstrating the application of drive tools in various repair scenarios, such as automotive maintenance.
4.2. Using the 12-in-1 Multi-bit Ratcheting Screwdriver
- ബിറ്റ് ചേർക്കുക: Follow the steps in Section 3.2 to install the desired bit.
- Select Ratchet Direction: Rotate the collar near the chuck to select the desired mode:
- ഇടത്: For loosening fasteners (screwdriver turns left).
- വലത്: For tightening fasteners (screwdriver turns right).
- ലോക്ക്: For fixed operation, acting as a standard screwdriver.
- പ്രവർത്തിപ്പിക്കുക: Place the bit onto the fastener and turn the handle. The ratcheting mechanism will allow you to turn the handle back without rotating the bit in the selected direction.
Image 8: Various application examples of the 12-in-1 Multi-bit Ratcheting Screwdriver, including furniture assembly, tool repair, and door hardware installation.
5. പരിപാലനം
Proper maintenance ensures the longevity and performance of your DURATECH tools.
- വൃത്തിയാക്കൽ: After each use, wipe down all tools with a clean, dry cloth to remove dirt, grease, and debris. For stubborn grime, a mild degreaser can be used, followed by thorough drying.
- ലൂബ്രിക്കേഷൻ: Periodically apply a light coat of machine oil to the moving parts of the universal joints and the ratcheting mechanism of the screwdriver to ensure smooth operation and prevent corrosion.
- സംഭരണം: Store the tools in their original EVA foam organizer in a dry environment to prevent rust and damage. Keep them away from excessive moisture and extreme temperatures.
- പരിശോധന: Regularly inspect tools for any signs of wear, damage, or corrosion. Replace any damaged components immediately to ensure safety and optimal performance.
6. പ്രശ്നപരിഹാരം
| പ്രശ്നം | സാധ്യമായ കാരണം | പരിഹാരം |
|---|---|---|
| Drive tool accessory slips or does not engage securely. | Worn detent ball, incorrect size, or dirty connection point. | Ensure correct size is used. Clean connection points. Inspect detent ball for wear; replace if necessary. |
| Ratcheting screwdriver bit slips during use. | Bit not fully seated, worn bit, or debris in chuck. | Ensure bit is fully inserted and chuck collar is released. Clean chuck mechanism. Replace worn bits. |
| Ratcheting mechanism on screwdriver feels stiff or inconsistent. | Lack of lubrication or internal debris. | Apply a small amount of light machine oil to the ratcheting mechanism. Clean any visible debris. |
| Universal joint feels loose or stiff. | Screws on universal joint are loose or lack lubrication. | Tighten the screws on the universal joint using a hexagonal tool if accessible. Apply light machine oil. |
7 സ്പെസിഫിക്കേഷനുകൾ
- ഉൽപ്പന്നത്തിൻ്റെ പേര്: DURATECH 22-Piece Drive Tool Accessory Set and 12-in-1 Multi-bit Ratcheting Screwdriver
- മോഡൽ: B09NBBKHC7
- കഷണങ്ങളുടെ എണ്ണം: 22 (Accessory Set) + 1 (Screwdriver with 6 double-headed bits)
- Material (Accessory Set): Chrome Vanadium Steel (Cr-V)
- Finish (Accessory Set): Chrome Plated, Corrosion-resistant
- Material (Screwdriver Bits): S2 Alloy Steel with Nickel Plating
- തല ശൈലി: Hex (for bits and drive ends)
- ശുപാർശ ചെയ്യുന്ന ഉപയോഗങ്ങൾ: Construction, Home Improvement, Auto Repair, DIY, Tool Repair
ചിത്രം 9: വിശദമായത് view highlighting the sturdy structure of the drive tools, including the spring-loaded detent ball for secure attachment and the through-hole lock and radius corner design.
8. വാറൻ്റിയും പിന്തുണയും
For information regarding warranty coverage, product support, or to purchase replacement parts, please refer to the official DURATECH webസൈറ്റിൽ ബന്ധപ്പെടുക അല്ലെങ്കിൽ അവരുടെ ഉപഭോക്തൃ സേവനവുമായി നേരിട്ട് ബന്ധപ്പെടുക. വാങ്ങിയതിന്റെ തെളിവായി നിങ്ങളുടെ വാങ്ങൽ രസീത് സൂക്ഷിക്കുക.
DURATECH Customer Service: ദയവായി സന്ദർശിക്കുക DURATECH Store on Amazon അല്ലെങ്കിൽ അവരുടെ ഉദ്യോഗസ്ഥൻ webബന്ധപ്പെടാനുള്ള വിശദാംശങ്ങൾക്കുള്ള സൈറ്റ്.
