ഗെയിംസർ GK300 വയർലെസ് മെക്കാനിക്കൽ ഗെയിമിംഗ് കീബോർഡ് ഉപയോക്തൃ മാനുവൽ

ആമുഖം

This manual provides comprehensive instructions for the GameSir GK300 Wireless Mechanical Gaming Keyboard. It covers setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device. Please read this manual thoroughly before using the keyboard.

Image: The GameSir GK300 Wireless Mechanical Gaming Keyboard, shown with its detachable wrist rest, highlighting its full-sized layout and sleek design.

പാക്കേജ് ഉള്ളടക്കം

പാക്കേജിൽ എല്ലാ ഇനങ്ങളും ഉണ്ടെന്ന് ഉറപ്പാക്കുക:

• GameSir GK300 Wireless Mechanical Gaming Keyboard
• USB Adapter (for 2.4GHz wireless connection)
• ഉപയോക്തൃ മാനുവൽ
• റിസ്റ്റ് റെസ്റ്റ്
• Charging Cable (not explicitly listed but implied for rechargeable battery)

സജ്ജമാക്കുക

1. കീബോർഡ് ചാർജ് ചെയ്യുന്നു

The keyboard features a built-in 3600mAh rechargeable Lithium battery. Before initial use, fully charge the keyboard. Connect the provided charging cable to the keyboard's charging port and to a USB power source. Charging typically takes 2.5 to 3 hours.

2. 2.4GHz വയർലെസ് വഴി ബന്ധിപ്പിക്കുന്നു

1. Locate the USB adapter included in the package.
2. Plug the USB adapter into an available USB port on your Windows PC, Laptop, or compatible Android device.
3. Turn on the keyboard. The keyboard should automatically connect to the adapter.
4. The 2.4GHz connection offers a 1ms report rate for high precision and responsiveness.

3. ബ്ലൂടൂത്ത് വഴി ബന്ധിപ്പിക്കുന്നു

The GameSir GK300 supports Bluetooth 4.1 and below for connection to various devices, including Windows PCs, macOS, Android (4.4 or later), and iOS (7.0 or later).

1. നിങ്ങളുടെ ഉപകരണത്തിൽ ബ്ലൂടൂത്ത് പ്രവർത്തനക്ഷമമാക്കിയിട്ടുണ്ടെന്ന് ഉറപ്പാക്കുക.
2. Put the keyboard into Bluetooth pairing mode (refer to the keyboard's function key combinations for specific instructions, usually Fn + a specific key).
3. On your device, search for available Bluetooth devices and select "GameSir GK300" to pair.

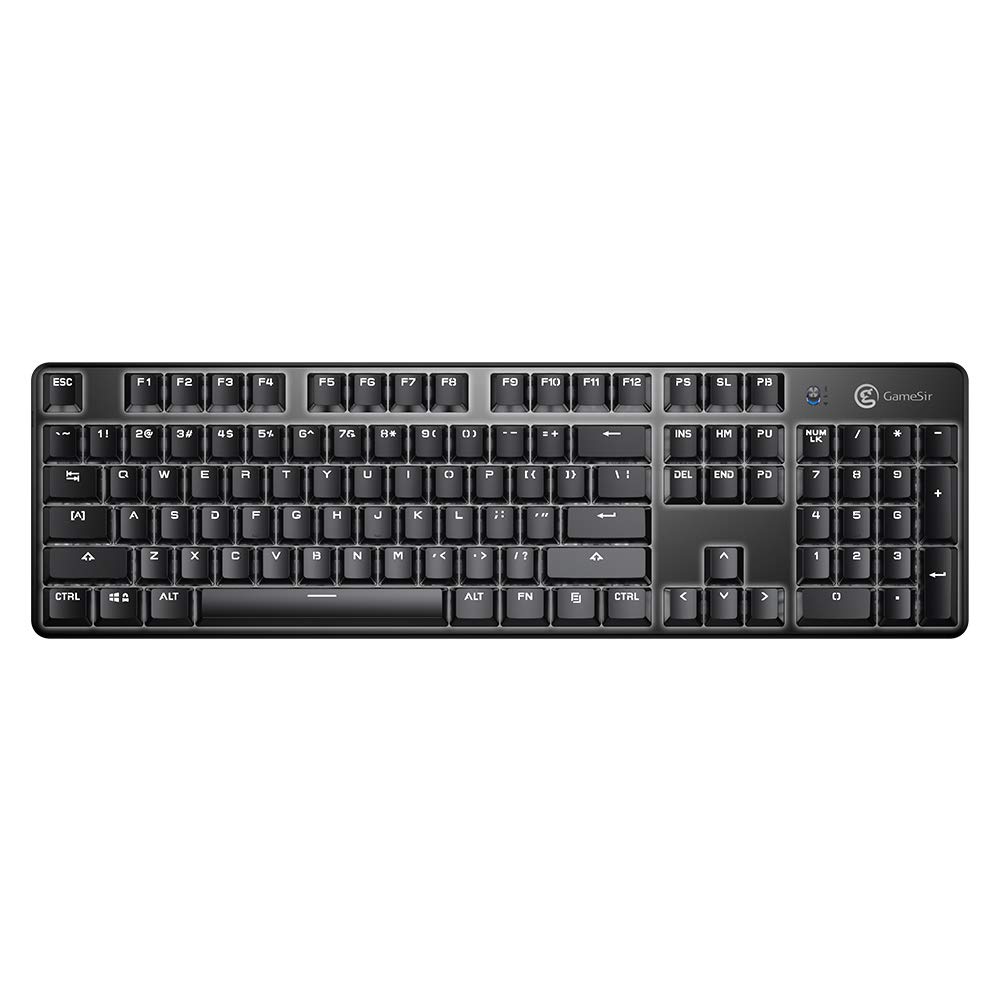

ചിത്രം: മുകളിൽ നിന്ന് താഴേക്ക് view of the GameSir GK300 keyboard, showing the full 104-key layout and keycap spacing.

പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. Dual Mode Connection Switching

The keyboard supports both 2.4GHz wireless and Bluetooth connections. Use the appropriate function key combination (e.g., Fn + 1/2/3 for Bluetooth profiles, or Fn + 4 for 2.4GHz) to switch between connected devices or modes.

2. ബാക്ക്ലൈറ്റ് നിയന്ത്രണം

The GameSir GK300 features white LED backlighting with 5 adjustable brightness levels and various lighting effects. Use the dedicated function keys (e.g., Fn + arrow keys or other designated keys) to cycle through effects and adjust brightness.

3. പ്രേതബാധയ്ക്കെതിരായ പോരാട്ടം

The keyboard is equipped with 10-key anti-ghosting, ensuring that up to 10 simultaneous key presses are registered accurately without conflict, which is crucial for gaming performance.

4. Mechanical Switches

The keyboard utilizes TTC Blue Mechanical Switches, known for their tactile feedback and audible click. These switches have a lifespan of 50 million keystrokes, providing durability and a distinct typing experience.

Image: The GameSir GK300 keyboard illuminated with its LED backlight, positioned within a gaming setup, demonstrating its visual appeal during use.

മെയിൻ്റനൻസ്

1. വൃത്തിയാക്കൽ

To clean your keyboard, power it off and disconnect it from any power source. Use a soft, dry cloth to wipe the surface. For dust and debris between keys, use compressed air. Avoid using harsh chemicals or abrasive materials.

2. ബാറ്ററി പരിചരണം

To prolong battery life, avoid fully discharging the keyboard frequently. Charge the keyboard when the battery indicator is low. If storing the keyboard for an extended period, charge it to approximately 50% and store it in a cool, dry place.

ട്രബിൾഷൂട്ടിംഗ്

• കീബോർഡ് കണക്റ്റ് ചെയ്യുന്നില്ല:

  Ensure the keyboard is powered on and fully charged. For 2.4GHz, verify the USB adapter is securely plugged in. For Bluetooth, ensure the keyboard is in pairing mode and your device's Bluetooth is active. Try re-pairing the device.

• Interference with Wi-Fi:

  The 2.4GHz wireless connection may experience interference from Wi-Fi routers operating on the same frequency band. If you experience missed keystrokes or erratic behavior, try changing the Wi-Fi channel on your router if possible, or move the keyboard closer to the USB adapter.
• കീകൾ പ്രതികരിക്കുന്നില്ല അല്ലെങ്കിൽ തെറ്റായി ടൈപ്പ് ചെയ്യുന്നു:

  Ensure the keyboard is clean and free of debris. If individual keys are consistently failing, this may indicate a switch issue. For persistent problems, contact customer support.

• ബാക്ക്‌ലൈറ്റ് പ്രവർത്തിക്കുന്നില്ല അല്ലെങ്കിൽ മങ്ങിയിരിക്കുന്നു:

  Check the battery level; low battery can affect backlight performance. Use the function keys to adjust brightness and cycle through lighting modes. If the issue persists, a factory reset (if available) or contacting support may be necessary.

• ഓട്ടോമാറ്റിക് സ്ലീപ്പ് മോഡ്:

  The keyboard is designed to enter sleep mode after a period of inactivity to conserve battery. Press any key to wake it up. Note that the first key press after waking may not register as input.

സ്പെസിഫിക്കേഷനുകൾ

ഉൽപ്പന്ന വീഡിയോകൾ

വാറൻ്റിയും പിന്തുണയും

The GameSir GK300 Wireless Mechanical Gaming Keyboard comes with a 3-month warranty. For warranty claims, technical support, or further assistance, please contact GameSir customer service or visit the official GameSir webസൈറ്റ്.

Manufacturer: Gamesir, Room 6, 5/F EasternHarbour Centre, 28 Hoi Chak Street, Quarry Bay, Hong Kong

Importer: Bellstar Trading Pvt Ltd - A24, Naraina INDL Area Ph-1, Delhi-110028 - 01145629914
