HiLetgo XL4016 DC-DC സ്റ്റെപ്പ് ഡൗൺ ബക്ക് കൺവെർട്ടർ പവർ സപ്ലൈ മൊഡ്യൂൾ യൂസർ മാനുവൽ

1. ആമുഖം

This manual provides essential information for the safe and effective use of the HiLetgo XL4016 DC-DC Step Down Buck Converter Power Supply Module. This module is designed to convert a higher DC input voltage to a lower, adjustable DC output voltage. Please read these instructions carefully before operation.

2 സുരക്ഷാ വിവരങ്ങൾ

• ഇലക്ട്രിക്കൽ സുരക്ഷ: Always ensure power is disconnected before making any connections to the module. Incorrect wiring can cause damage to the module or connected devices.
• വാല്യംtage and Current Limits: നിർദ്ദിഷ്ട ഇൻപുട്ട് വോള്യം കവിയരുത്tage (DC 4-40V) or output current (8A peak, 5A continuous without fan). Exceeding these limits can lead to overheating and permanent damage.
• താപ വിസർജ്ജനം: For continuous operation above 5A, a cooling fan is required to prevent overheating of the module.
• ധ്രുവത: Pay close attention to input and output polarity (+/-) to avoid damage.
• കൈകാര്യം ചെയ്യൽ: Handle the module with care to avoid electrostatic discharge (ESD) damage.

3. ഉൽപ്പന്നം കഴിഞ്ഞുview

The HiLetgo XL4016 module is a high-efficiency DC-DC buck converter featuring the XL4016E1 switching regulator chip. It offers overcurrent, overtemperature, and short-circuit protection. The output voltage is adjustable via a potentiometer.

പ്രധാന സവിശേഷതകൾ:

• വാല്യംtage Regulating Mode: PWM മോഡുലേഷൻ
• ഇൻപുട്ട് വോളിയംtage: DC 4V-40V
• Putട്ട്പുട്ട് വോളിയംtage: DC 1.25V-36V (Adjustable)
• പരമാവധി ഔട്ട്പുട്ട് കറൻ്റ്: 8A (5A continuous recommended without fan)
• പരമാവധി ശക്തി: 200W
• പരിവർത്തന കാര്യക്ഷമത: 94%
• സ്വിച്ചിംഗ് ഫ്രീക്വൻസി: 180KHz
• സംരക്ഷണം: Overcurrent, Overtemperature, Short circuit

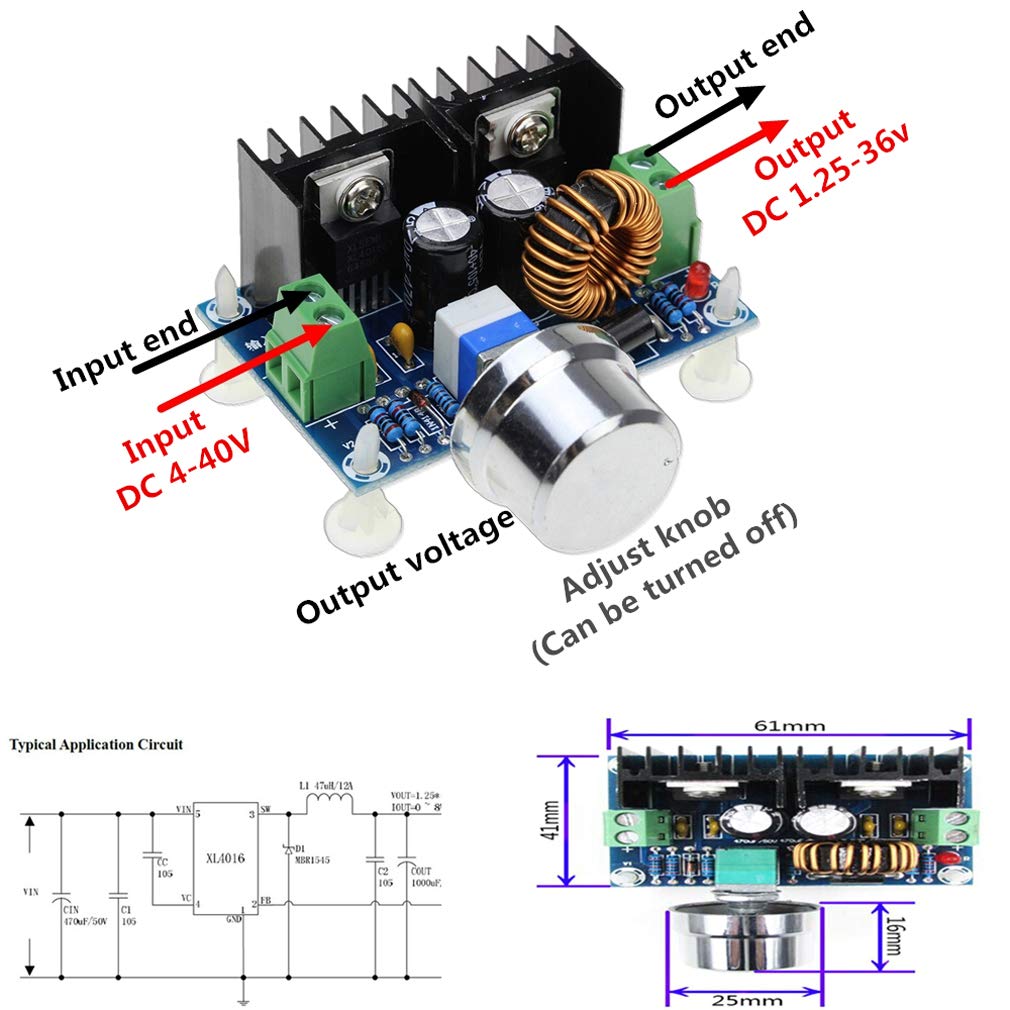

Image: The XL4016 module showing input and output terminals, the voltage adjustment knob, and overall dimensions. Input is DC 4-40V, output is DC 1.25-36V. The module measures 61mm x 41mm, with the knob extending 16mm and having a 25mm diameter.

4. സജ്ജീകരണം

4.1. വയറിംഗ് കണക്ഷനുകൾ

1. Identify the input terminals (marked 'IN+' and 'IN-') and output terminals (marked 'OUT+' and 'OUT-') on the module.
2. Connect your DC power source (4V-40V) to the 'IN+' (positive) and 'IN-' (negative) terminals.
3. Connect your load to the 'OUT+' (positive) and 'OUT-' (negative) terminals.
4. Ensure all connections are secure and correct polarity is observed before applying power.

4.2. Panel Mounting (Optional)

For integrating the module into an enclosure:

1. Drill a 7mm diameter hole in your panel for the potentiometer shaft.
2. Insert the extended potentiometer handle through the hole.
3. Secure the potentiometer with the provided screw sleeve and knob.

Image: The XL4016 module disassembled, showing the potentiometer, knob, nut, and plastic standoffs for mounting.

5. പ്രവർത്തന നിർദ്ദേശങ്ങൾ

1. After making all connections, apply power to the input terminals.
2. Use a multimeter to monitor the output voltage at the 'OUT+' and 'OUT-' terminals.
3. Turn the adjustment knob (potentiometer) clockwise to increase the output voltage and counter-clockwise to decrease it.
4. Adjust the knob until the desired output voltage is achieved. Note that the potentiometer may be sensitive, especially at lower voltagഇ ശ്രേണികൾ.
5. If operating at currents above 5A for extended periods, ensure a cooling fan is actively cooling the heatsink on the module.

6. പരിപാലനം

• Keep the module clean and free from dust and debris to ensure proper heat dissipation.
• Regularly check connections for tightness and signs of corrosion.
• Avoid exposing the module to moisture or extreme temperatures.

7. പ്രശ്‌നപരിഹാരം

• ഔട്ട്പുട്ട് വോളിയം ഇല്ലtage: Check input power supply, ensure correct polarity, and verify all connections are secure.
• Putട്ട്പുട്ട് വോളിയംtage Not Adjustable: Ensure the potentiometer is correctly installed and functioning. If the knob is turned fully counter-clockwise, some modules may still provide a small residual voltage (e.g., ~1V).
• മൊഡ്യൂൾ അമിത ചൂടാക്കൽ: Reduce the load current or install a cooling fan, especially if operating above 5A. Ensure adequate ventilation.
• Difficulty Dialing in Precise Voltage: The single-turn potentiometer can be sensitive. Fine adjustments may require careful turning. Consider replacing with a multi-turn potentiometer for higher precision if needed for specific applications.

8 സ്പെസിഫിക്കേഷനുകൾ

9. വാറൻ്റിയും പിന്തുണയും

This product is manufactured by HiLetgo. For technical support or any issues you may encounter with your product, please contact HiLetgo directly.

ബന്ധപ്പെടാനുള്ള ഇമെയിൽ: support@hiletgo.com

Please refer to the original purchase documentation for specific warranty terms and conditions.
