ആമുഖം
This manual provides essential information for the proper installation, function, and maintenance of the CUB CADET 747-06429 Spindle Idler Drive Lock Rod. This component is designed for specific CUB CADET 3X 42-inch snow thrower models and other compatible equipment. Please read these instructions carefully before proceeding with any installation or maintenance.
പ്രധാനപ്പെട്ട സുരക്ഷാ അറിയിപ്പ്: Always refer to your main equipment's owner's manual for specific safety precautions and detailed assembly instructions. Disconnect power before performing any service or maintenance.
ഉൽപ്പന്നം കഴിഞ്ഞുview
ചിത്രം 1: The CUB CADET 747-06429 Spindle Idler Drive Lock Rod. This image shows the overall shape and construction of the lock rod, which is a bent metal rod with a retaining ring and a notched end.
The 747-06429 Spindle Idler Drive Lock Rod is an original equipment manufacturer (OEM) part from CUB CADET. It plays a crucial role in the drive system of compatible snow throwers, specifically in relation to the spindle idler mechanism. Its design ensures proper engagement and disengagement of drive components.
സജ്ജീകരണവും ഇൻസ്റ്റാളേഷനും
Installation of the Spindle Idler Drive Lock Rod requires careful attention to detail and adherence to the specific instructions provided in your equipment's service manual. The following steps are general guidelines; always consult your equipment's manual for precise procedures.
- സുരക്ഷ ആദ്യം: ആകസ്മികമായി സ്റ്റാർട്ട് ചെയ്യുന്നത് തടയാൻ ഉപകരണങ്ങൾ ഓഫാക്കിയിട്ടുണ്ടെന്നും, എഞ്ചിൻ തണുത്തതാണെന്നും, സ്പാർക്ക് പ്ലഗ് വയർ വിച്ഛേദിച്ചിട്ടുണ്ടെന്നും ഉറപ്പാക്കുക.
- പ്രദേശം ആക്സസ് ചെയ്യുക: Depending on your specific snow thrower model, you may need to remove covers or other components to gain access to the spindle idler drive mechanism.
- Remove Old Rod (if applicable): If replacing an existing rod, carefully remove any retaining clips or fasteners holding the old rod in place. Note its orientation for correct installation of the new part.
- പുതിയ റോഡ് ഇൻസ്റ്റാൾ ചെയ്യുക: Insert the new 747-06429 lock rod into its designated position. Ensure that the bent sections and retaining features align correctly with the corresponding holes and brackets in the idler assembly.
- Secure the Rod: Reinstall any retaining clips, pins, or fasteners to secure the lock rod firmly. Verify that it is seated properly and does not have excessive play.
- വീണ്ടും കൂട്ടിച്ചേർക്കുക, പരിശോധിക്കുക: Reattach any removed covers or components. Reconnect the spark plug wire. Perform a functional test of the drive system at a low speed in a safe, open area to ensure proper operation before full use.

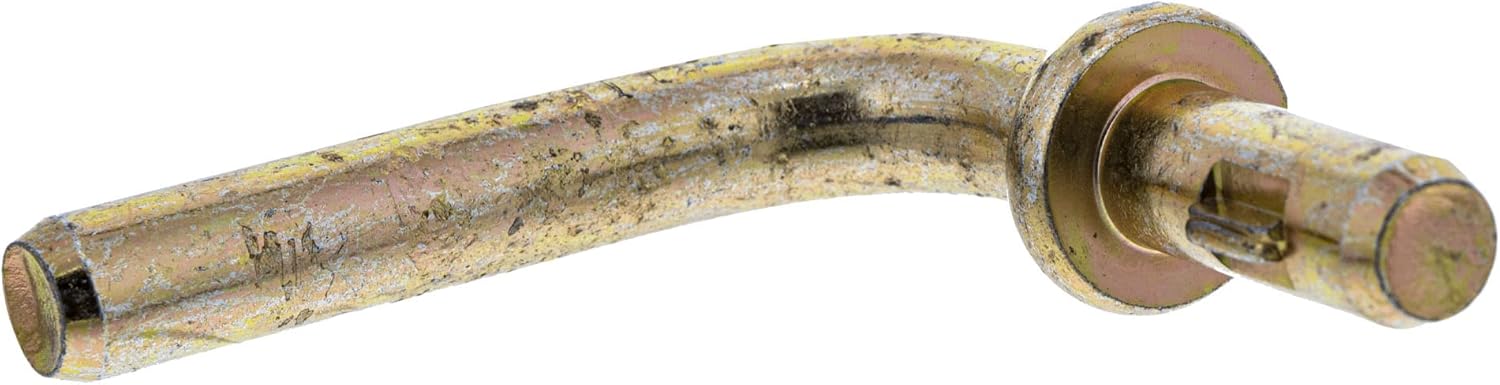

ചിത്രം 2: ഒരു സൈഡ് പ്രോfile of the lock rod, highlighting the bend and the retaining collar. This view is helpful for understanding how the rod fits into the assembly.
പ്രവർത്തനവും പ്രവർത്തനവും
The CUB CADET 747-06429 Spindle Idler Drive Lock Rod is an integral part of the snow thrower's drive system. Its primary function is to provide a pivot point or a locking mechanism for the idler pulley assembly. This assembly is responsible for maintaining proper tension on the drive belt, which in turn transmits power from the engine to the auger or wheels.
When the drive lever is engaged, the lock rod facilitates the movement of the idler pulley, increasing tension on the belt and engaging the drive. When the lever is released, the rod allows the idler to relax, disengaging the drive. Proper functioning of this rod is essential for the smooth and reliable operation of your snow thrower's drive system.

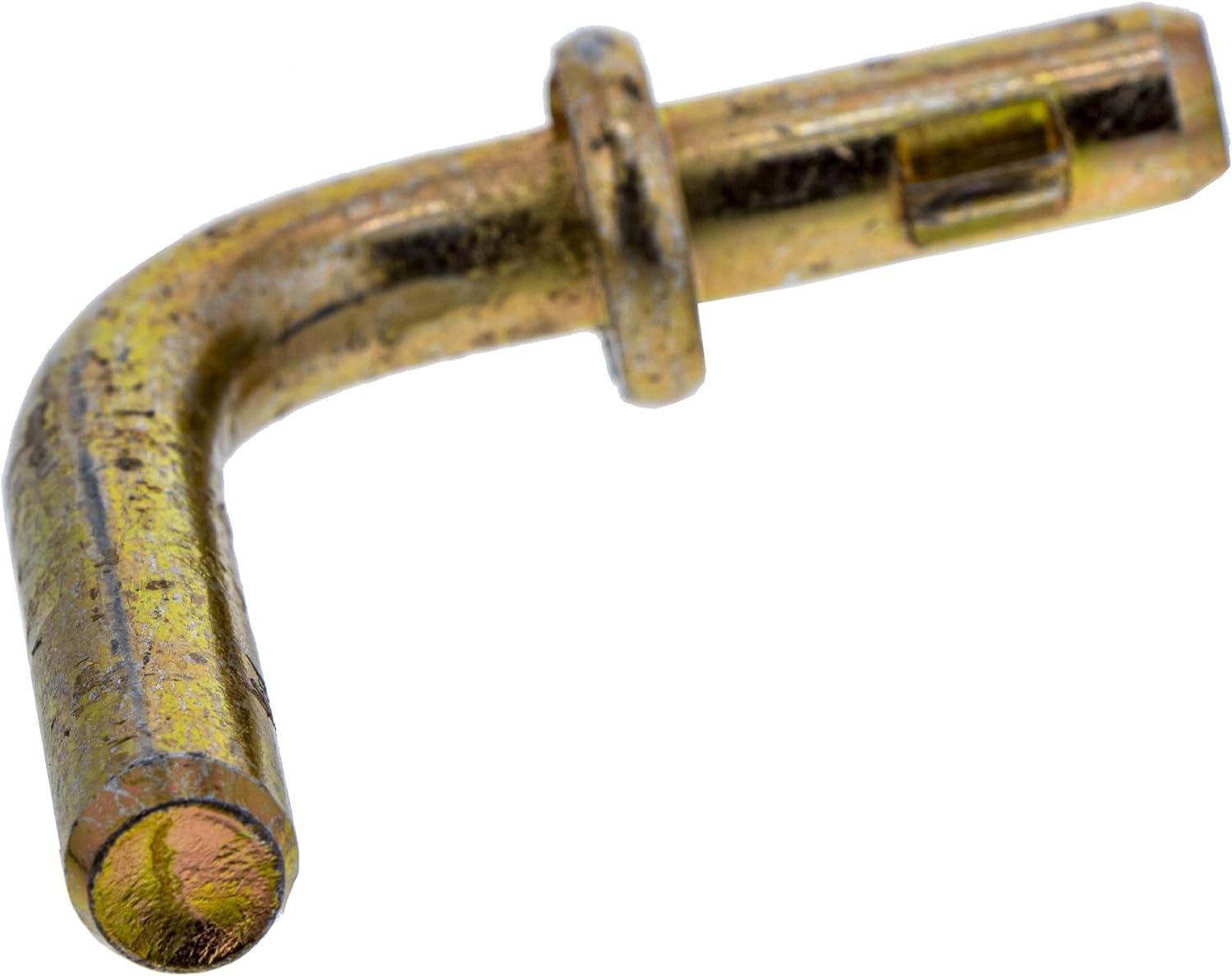

ചിത്രം 3: An angled perspective of the lock rod, showing the distinct L-shape and the end designed for attachment. This view helps in identifying the correct orientation during installation.
മെയിൻ്റനൻസ്
Regular inspection and maintenance of the 747-06429 Spindle Idler Drive Lock Rod can extend its lifespan and ensure consistent performance of your equipment.
- വിഷ്വൽ പരിശോധന: Periodically inspect the rod for signs of wear, bending, corrosion, or damage. Ensure that it is securely in place and that any retaining clips or pins are intact.
- ലൂബ്രിക്കേഷൻ: If the rod operates in a pivot point, apply a small amount of appropriate grease or lubricant to ensure smooth movement and prevent rust. Consult your equipment's manual for recommended lubrication points and types.
- വൃത്തിയാക്കൽ: Keep the area around the idler assembly and lock rod free from dirt, debris, and rust buildup, which can impede its movement.
- മാറ്റിസ്ഥാപിക്കൽ: If the rod shows significant wear, bending, or damage, it should be replaced immediately to prevent further damage to the drive system or operational failure.
ചിത്രം 4: A detailed close-up of the lock rod, emphasizing the texture and finish of the metal. This view can assist in identifying genuine parts and assessing material quality.
ട്രബിൾഷൂട്ടിംഗ്
If you experience issues with your snow thrower's drive system, the 747-06429 Spindle Idler Drive Lock Rod could be a contributing factor. Consider the following:
- Drive Not Engaging/Disengaging Properly:
- Check if the lock rod is bent or damaged, preventing the idler pulley from moving freely.
- Ensure the rod is properly seated and not dislodged from its mounting points.
- Verify that any associated springs or linkages are intact and functioning.
- Excessive Noise or Vibration from Drive System:
- A bent or worn lock rod can cause misalignment or improper tension, leading to noise.
- Inspect for signs of wear on the rod or surrounding components that might indicate friction or improper fit.
- Rod Appears Loose or Detached:
- Check retaining clips or pins for damage or absence. Replace as necessary.
- Ensure the mounting holes are not elongated or damaged.
If troubleshooting does not resolve the issue, it is recommended to consult a qualified service technician or refer to your equipment's comprehensive service manual.
സ്പെസിഫിക്കേഷനുകൾ
| ആട്രിബ്യൂട്ട് | വിശദാംശങ്ങൾ |
|---|---|
| ഭാഗം നമ്പർ | 747-06429 |
| ബ്രാൻഡ് | കബ് കേഡറ്റ് |
| ഉൽപ്പന്ന അളവുകൾ | 3.5 x 3 x 1 ഇഞ്ച് |
| ഇനത്തിൻ്റെ ഭാരം | 4.8 ഔൺസ് |
| നിർമ്മാതാവ് | കബ് കേഡറ്റ് |
| അനുയോജ്യമായ മോഡലുകൾ | 19A40024100, 19A40023100 (3X Snow Thrower) |
വാറൻ്റിയും പിന്തുണയും
For information regarding the warranty of your CUB CADET 747-06429 Spindle Idler Drive Lock Rod, please refer to the warranty documentation provided with your original equipment or contact CUB CADET customer support directly. Warranty terms typically cover defects in materials and workmanship under normal use.
For technical assistance, parts inquiries, or to locate an authorized service center, please visit the official CUB CADET website or contact their customer service department. Always provide the part number (747-06429) and your equipment's model and serial number when seeking support.
CUB CADET Official Webസൈറ്റ്: www.cubcadet.com
