Упатство за користење на кутијата за скокање Sharmeal GL963 5000A 58976

1. Вовед

Thank you for choosing the Sharmeal GL963 Jump Box 5000A 58976. This multifunctional device serves as a powerful jump starter, a portable tire inflator, a power bank for electronic devices, and an emergency light source. Please read this manual thoroughly before use to ensure safe and optimal operation. Keep this manual for future reference.

2. Инструкции за безбедност

WARNING: Improper use may result in injury, damage to the device, or property damage. Always follow these safety guidelines.

• Do not disassemble the unit. Refer servicing to qualified personnel.
• Do not expose the unit to rain or extreme temperatures. Store in a cool, dry place.
• Да се ​​чува подалеку од дофат на деца.
• Ensure proper polarity when connecting to a vehicle battery. Reverse polarity can cause sparks and damage.
• Не скокајте, стартувајте замрзната батерија.
• Do not operate the air compressor continuously for more than 10 minutes to prevent overheating. Allow it to cool down between uses.
• Wear eye protection when jump starting a vehicle.
• Доколку киселината од батеријата дојде во контакт со кожата или очите, веднаш исплакнете со вода и побарајте медицинска помош.

3. Што има во кутијата

Carefully unpack the contents and ensure all items are present and undamaged.

• Sharmeal GL963 Jump Starter with Air Inflator
• Smart Jump Starter Clamps
• Кабел за полнење USB-A до USB-C
• Air Nozzle Adapters (various types)
• Упатство за употреба (овој документ)

Image: The Sharmeal GL963 Jump Box and its included accessories, such as the smart jump starter clamps, USB cable, and air nozzle adapters, displayed next to its packaging.

4. Производот завршиview

Familiarize yourself with the components of your Sharmeal GL963 Jump Box.

Слика: Сеопфатен view of the Sharmeal GL963 Jump Box, showcasing its main unit, attached air inflator hose, various air nozzles, smart jump starter clamps, and USB charging cables.

4.1 Компоненти на уредот

• Главна единица: Contains the battery, control panel, and ports.
• Дигитален екран: Shows battery level, air pressure, and operational status.
• Контролни копчиња: Power, LED light, pressure unit selection, and +/- for pressure adjustment.
• Порт за стартување со скокање: For connecting the smart jump starter clamps.
• USB излезни порти: За полнење на надворешни уреди.
• USB-C влезен приклучок: For charging the jump box itself.
• Air Inflator Hose: Integrated hose for tire inflation.
• LED фенерче: Integrated light for illumination.

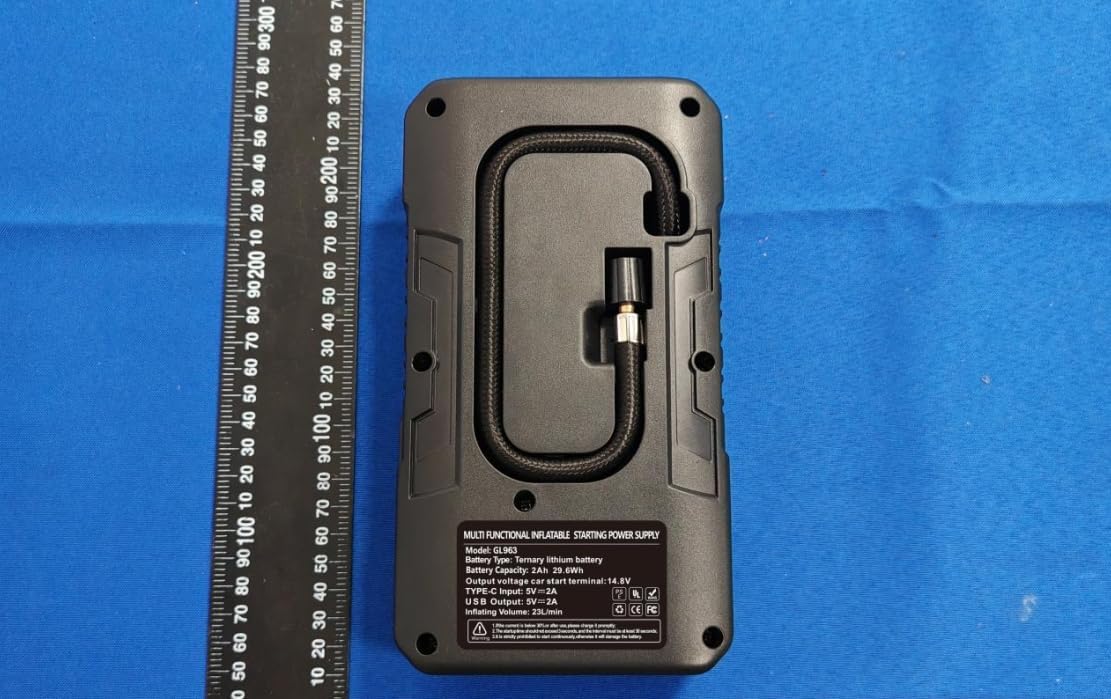

Image: The rear side of the Sharmeal GL963 Jump Box, displaying its integrated air hose and a label with detailed product specifications.

5. Поставување и полнење

5.1 Charging the Jump Box

Before first use, fully charge the Sharmeal GL963. It is recommended to recharge the unit every 3-6 months to maintain battery health.

1. Connect the provided USB-A to USB-C charging cable to the USB-C input port on the jump box.
2. Connect the other end of the USB cable to a 5V/2A (or higher) USB wall adapter (not included) or a car charger.
3. The digital display will show the charging status. The battery icon will animate, and the percentage will increase until 100% is reached.
4. Откако ќе се наполни целосно, исклучете го кабелот за полнење.

6. Упатства за работа

6.1 Скок Стартување на возило

The Sharmeal GL963 can jump start 12V vehicles with up to 8.0L gas or 6.0L diesel engines.

Image: The Sharmeal GL963 Jump Box connected to a car battery, illustrating its primary function of jump starting a vehicle with a dead battery.

1. Подгответе го возилото: Ensure the vehicle's ignition is off and all accessories (lights, radio) are turned off. Place the vehicle in park (automatic) or neutral (manual) and engage the parking brake.
2. Connect Jump Cable: Insert the blue end of the smart jump starter clamps into the jump start port on the Sharmeal GL963. Ensure a firm connection. The device will power on automatically.
3. Поврзете Clamps до батерија:
   • Поврзете го ЦРВЕНО (+) clamp на позитивно (+) терминалот на батеријата на возилото.
   • Поврзете го ЦРНО (-) clamp на негативен (-) терминалот на батеријата на возилото.

   Паметниот clamps will indicate a correct connection (e.g., solid green light) or an error (e.g., flashing red light for reverse polarity).

4. Стартувајте го моторот: Откако клamps indicate a safe connection, start your car engine within 30 seconds. If the engine does not start, wait at least 1 minute before attempting again.
5. Отстранете го Clamps: After the engine starts, immediately remove the smart clamps from the vehicle battery (first the black, then the red) and then disconnect the jump cable from the Sharmeal GL963.

Image: A visual step-by-step guide demonstrating how to use the Sharmeal GL963 Jump Box to start a vehicle, from connecting cables to starting the engine.

6.2 Надувување на гумите

The integrated air inflator can inflate tires up to 150 PSI and has a maximum pressure of 200 PSI.

1. Поврзете го цревото: Screw the air inflator hose onto the tire valve stem. Ensure it is securely fastened to prevent air leakage.
2. Power On & Set Pressure: Press the power button to turn on the inflator. Use the '+' and '-' buttons to set the desired tire pressure. Press the 'M' button to cycle through pressure units (PSI, BAR, KPA, Kg/cm²).
3. Започнете со инфлација: Press the power button again to start inflation. The inflator will automatically stop once the preset pressure is reached.
4. Исклучете го: Unscrew the hose from the tire valve.

Image: The Sharmeal GL963 Jump Box actively inflating a car tire, highlighting its 150 PSI fast tire inflator capability and various applications for bicycles, balls, and motorcycles.

6.3 Користење како преносен преносен полнач

The Sharmeal GL963 can charge various electronic devices via its USB output ports.

1. Connect your device's USB charging cable to one of the USB output ports on the jump box.
2. The jump box will automatically begin charging your device. The digital display may show the remaining battery percentage.
3. Исклучете го уредот откако ќе заврши полнењето.

Image: The Sharmeal GL963 Jump Box connected via USB to a laptop, demonstrating its function as a portable power bank for various electronic devices like cell phones, tablets, and cameras.

6.4 Emergency Lights

The built-in LED flashlight offers multiple lighting modes for various situations.

1. Press and hold the 'LED' button to turn on the flashlight.
2. Press the 'LED' button again to cycle through modes: Flashlight → Strobe → SOS → Off.

Image: The Sharmeal GL963 Jump Box with its emergency lights activated, showcasing its flashlight, strobe, and SOS functions, useful for camping, car breakdowns, and wild exploration.

7. Одржување

• Чистење: Избришете го уредот со мека, сува крпа. Не користете груби хемикалии или абразивни средства за чистење.
• Складирање: Store the jump box in a cool, dry place away from direct sunlight and extreme temperatures.
• Нега на батеријата: For optimal battery life, fully charge the unit every 3-6 months, even if not in use. Do not store the unit with a completely depleted battery.
• Инспекција на кабел: Regularly inspect the jump starter clamps and cables for any signs of damage, fraying, or corrosion. Replace if necessary.

8 Смена на проблеми

9. Спецификации

10. Гаранција и поддршка

Sharmeal products are designed and manufactured to the highest quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Sharmeal webстраница. Ве молиме задржете го доказот за купување за гаранциски барања.
