Упатство за користење на стартер за автомобил Sharmeal T47 2500A

1. Важни безбедносни информации

Прочитајте ги сите безбедносни предупредувања и упатства пред да го користите овој производ. Непочитувањето на предупредувањата и упатствата може да резултира со електричен удар, пожар и/или сериозни повреди.

• Do not use the jump starter if the clamps или каблите се оштетени.
• Ensure proper polarity connection. Reverse polarity can cause damage to the device and vehicle.
• Не скокајте, стартувајте замрзната батерија.
• Да се ​​чува подалеку од дофат на деца.
• Do not expose the jump starter to rain or extreme temperatures.
• Не го расклопувајте уредот. За сите сервиси обратете се на квалификуван персонал.
• Wear eye protection when operating.

2. Производот завршиview

The Sharmeal T47 is a versatile portable jump starter designed to provide emergency power for vehicles and charge electronic devices.

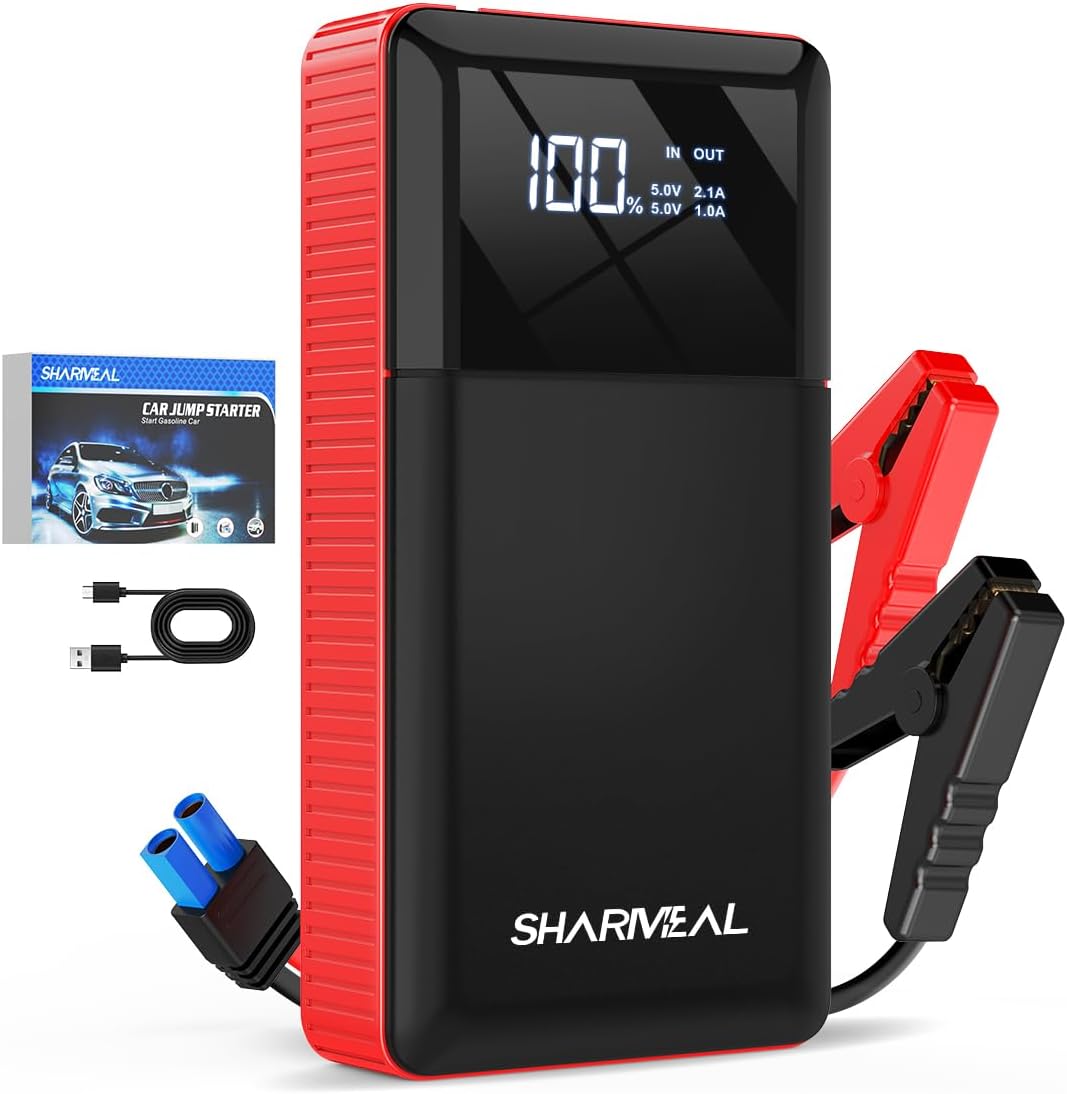

Image 2.1: Sharmeal T47 Jump Starter with included accessories. This image shows the main unit, the smart jump cables, and a USB charging cable.

2.1 Компоненти

Image 2.2: Detailed diagram of the Sharmeal T47 Jump Starter's external features and ports.

1. LED Display: Shows battery level and output status.
2. USB Output (5V/2A): For charging electronic devices.
3. Type-C Input (5V/2A): For charging the jump starter unit.
4. LED Light (Lighting/Strobe/SOS): Multi-mode flashlight.
5. Power Button: To turn the unit on/off and cycle flashlight modes.
6. Jump Start Output: Port for connecting the smart jump cables.

3. Поставување и полнење

3.1 Почетно полнење

Before first use, fully charge the Sharmeal T47 jump starter. Connect the provided charging cable to the Type-C input port (3) on the unit and to a USB power adapter (not included). The LED display (1) will show the charging progress. A full charge is indicated by "100%" on the display.

3.2 Проверка на нивото на батеријата

Press the Power Button (5) once to check the current battery level on the LED display (1).

4. Упатства за работа

4.1 Скок Стартување на возило

Ensure the jump starter is at least 50% charged before attempting to jump start a vehicle.

Image 4.1: Visual guide for the four-step jump starting process.

1. Connect Smart Cables: Insert the blue plug of the smart jump cables into the jump start output port (6) on the Sharmeal T47 unit. Ensure a secure connection.
2. Attach to Car Battery: Поврзете го црвениот clamp to the positive (+) terminal of the vehicle's battery and the black clamp to the negative (-) terminal. Ensure the clamps are firmly attached to the battery terminals. The smart cable indicator light will show status.
3. Стартување на возилото: Enter the vehicle and start the engine. If the vehicle does not start immediately, wait 30 seconds and try again. Do not crank for more than 3 seconds per attempt.
4. Remove Cables: Once the vehicle starts, immediately remove the smart jump cables from the car battery, then disconnect the blue plug from the jump starter unit.

Важно: If the smart cable indicator shows an error (e.g., solid red, flashing), refer to the troubleshooting section.

4.2 Using as a Portable Power Bank

The Sharmeal T47 can charge various electronic devices via its USB output port.

Image 4.2: The Sharmeal T47 unit acting as a power bank, charging a smartphone and a tablet.

1. Connect your device's USB charging cable to the USB output port (2) on the jump starter.
2. The jump starter will automatically begin charging your device. The LED display will show "OUT" and the current output voltage/ampбес
3. Disconnect your device once charging is complete.

4.3 Користење на LED фенерче

The integrated LED flashlight offers multiple modes for various situations.

Image 4.3: The Sharmeal T47 unit demonstrating its LED flashlight function, useful for various scenarios like outdoor camping or roadside emergencies.

1. Press and hold the Power Button (5) for 3 seconds to turn on the flashlight in constant illumination mode.
2. Press the Power Button (5) again to cycle through modes: Strobe > SOS > Off.
3. To turn off the flashlight from any mode, press and hold the Power Button (5) for 3 seconds, or cycle through all modes until it turns off.

5. Одржување

• Полнење: Полнете го уредот на секои 3-6 месеци, дури и ако не се користи, за да ја одржите состојбата на батеријата.
• Чистење: Избришете го уредот со сува, мека крпа. Не користете груби хемикалии или абразивни материјали.
• Складирање: Чувајте го стартерот за брзини на ладно и суво место, подалеку од директна сончева светлина и екстремни температури.
• Грижа за кабел: Inspect jump cables and clamps for damage before each use. Replace if frayed or broken.

6 Смена на проблеми

7. Спецификации

• Модел: Т47
• Врвна излезна струја: 2500 Amps
• Jump Start Output: 12V
• USB излез: 5V/2A
• Влез од тип C: 5V/2A
• LED фенерче: Yes (Constant, Strobe, SOS)
• Тип на автомобилско вклопување: Universal Fit
• Производител: Foshan Xianming Intelligent Technology Co, Ltd.

8. Гаранција и поддршка

This Sharmeal T47 Jump Starter comes with a standard manufacturer's warranty. For specific warranty details, please refer to the warranty card included in your product packaging or contact Sharmeal customer support.

For technical assistance, troubleshooting, or warranty claims, please contact Sharmeal customer service through the retailer where the product was purchased or visit the official Sharmeal webсајт.

Производител: Foshan Xianming Intelligent Technology Co, Ltd.
