LukLoy Double-Sided Glass Railing Spigot

1. Вовед

Thank you for choosing the LukLoy Double-Sided Glass Railing Spigot. This product is designed to provide a robust, wind-resistant, and aesthetically pleasing solution for glass railing systems in various applications, including home gardens, stairs, balustrades, and balconies. Crafted from high-quality SS304 stainless steel, this spigot offers superior strength and durability. This manual provides essential information for the proper installation, operation, and maintenance of your new glass railing spigot.

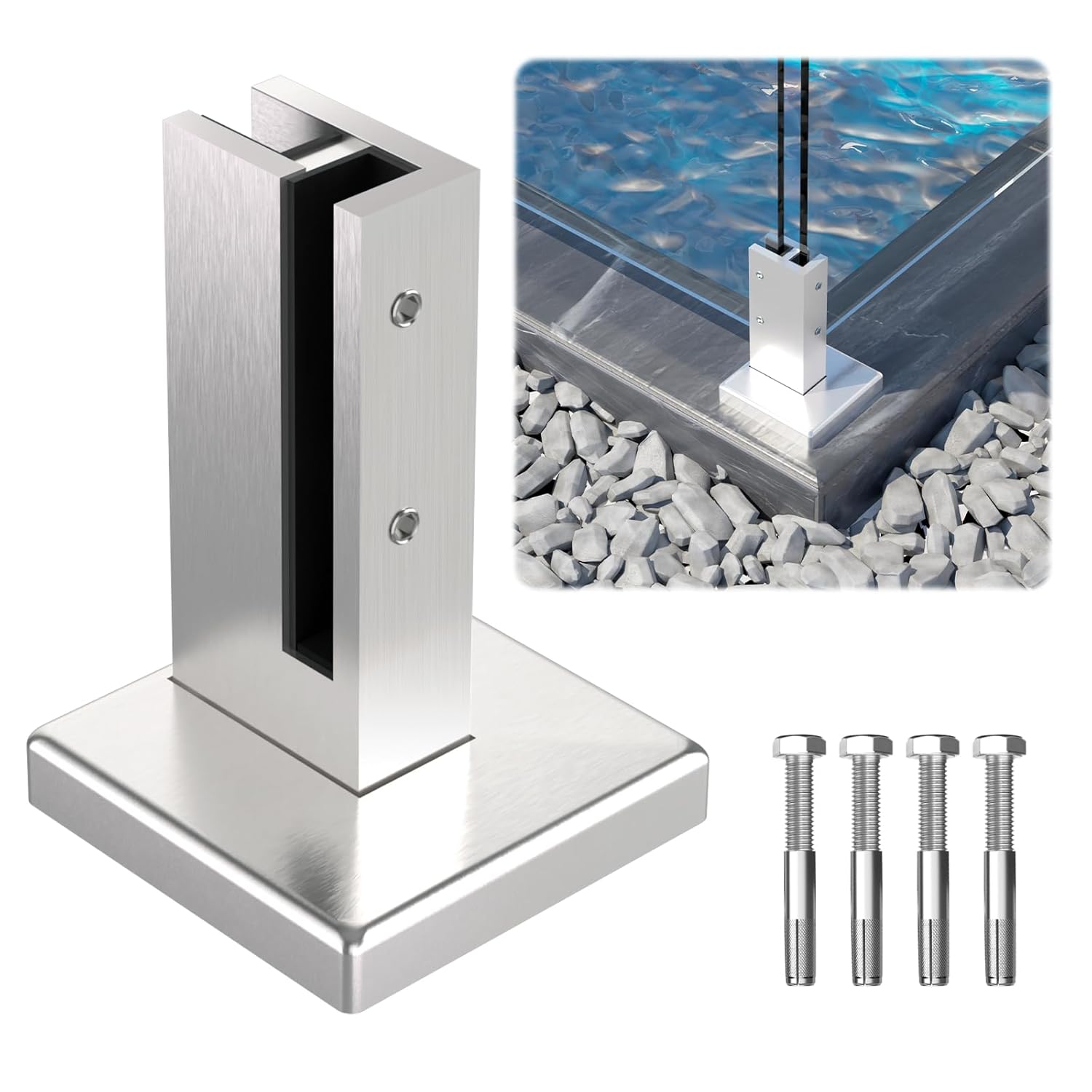

Image 1.1: The LukLoy Double-Sided Glass Railing Spigot, showcasing its robust design and the accompanying expansion bolts for installation.

2. Информации за безбедност

• Секогаш носете соодветна лична заштитна опрема (ЛЗО), вклучувајќи заштитни очила и ракавици, за време на инсталацијата.
• Ensure the mounting surface is structurally sound and capable of supporting the weight of the glass panels and spigots, as well as any potential loads.
• Handle glass panels with extreme care to prevent breakage and injury.
• Do not overtighten screws, as this may damage the spigot or glass.
• This product is not recommended for areas within 30km of the coast due to potential corrosion risks in highly saline environments.
• Consult local building codes and regulations for glass railing installations.

3. Содржина на пакетот

Пред да започнете со инсталацијата, проверете дали сите компоненти се присутни и неоштетени.

Слика 3.1: Детално view of the Heavy-Duty Glass Railing Spigot Kit, including dimensions and all components.

4. Спецификации

• Материјал: SS304 Stainless Steel (7.5mm thick)
• Боја: Silver (Brushed Finish)
• Облик: Плоштад
• Тежина: Approximately 4.3 lbs (per spigot)
• Compatible Glass Thicknesses: 8mm, 10mm, 12mm (or 5/16", 3/8", 1/2") tempered glass
• Отпорност на ветер: Designed to withstand side wind pressure over 200 lbs
• Тип на инсталација: No drilling required on glass

5. Поставување и инсталација

The LukLoy Glass Railing Spigot is designed for easy DIY installation without the need for drilling holes in the glass. Follow these steps for a secure setup:

1. Подгответе ја површината: Ensure the mounting surface (e.g., concrete, wood deck) is clean, level, and structurally sound.
2. Обележување: Position the spigots according to your railing design. Mark the drilling points for the expansion bolts on the mounting surface.
3. Дупчете дупки: Drill holes into the mounting surface at the marked points, ensuring the correct drill bit size for the expansion bolts.
4. Secure Spigot Base: Insert the expansion bolts into the drilled holes and secure the spigot base firmly to the surface.
5. Insert Glass: Carefully slide the tempered glass panel into the spigot's slot. Ensure the protector gaskets are properly placed to cushion the glass.
6. Tighten Set Screws: Use the provided set screws to firmly clamp the glass panel within the spigot. Do not overtighten.
7. Install Floor Cover: Place the decorative floor cover over the spigot base for a clean finish.

Image 5.1: Step-by-step diagrams demonstrating the installation of the spigot and glass panel, highlighting the no-drilling-on-glass feature.

Слика 5.2: Готовоview of different spigot types (0°, 180°, 90° glass railing spigots and clamps) that can be used together for versatile installations.

6. Работење и употреба

Once properly installed, the LukLoy Double-Sided Glass Railing System provides a secure and elegant barrier. The double-sided design allows for the use of one spigot for two glass panels, optimizing space and cost. The heavy-duty SS304 stainless steel construction, combined with a welded support bar in the center, ensures exceptional strength and superior wind resistance, making it suitable for various outdoor and indoor environments.

Image 6.1: Key features of the LukLoy spigot, emphasizing its strong wind resistance, durable SS304 construction, and substantial weight for stability.

Image 6.2: The glass railing system in an outdoor setting, illustrating its ability to withstand significant side wind pressure due to its robust design and 7.5mm thick construction.

Image 6.3: A visual comparison showing how the LukLoy glass railing system enhances the elegance and provides an unobstructed view for pool areas and other spaces.

7. Одржување

To ensure the longevity and appearance of your LukLoy Glass Railing Spigots, follow these maintenance guidelines:

• Редовно чистење: Clean the stainless steel spigots regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or scouring pads, which can scratch the brushed finish.
• Исплакнете темелно: After cleaning, rinse the spigots thoroughly with clean water to remove any soap residue.
• Се суши целосно: Dry the spigots completely with a clean, dry cloth to prevent water spots and maintain their luster.
• Проверувајте периодично: Periodically inspect all connections and screws to ensure they remain tight. Retighten if necessary, but do not overtighten.
• Избегнувајте груби хемикалии: Do not use harsh chemicals, solvents, or bleach, as these can damage the stainless steel finish.

8 Смена на проблеми

If you encounter any issues with your LukLoy Glass Railing Spigot, refer to the following common troubleshooting tips:

• Glass Panel is Loose:
  Решение: Ensure the set screws are tightened sufficiently. Check that the protector gaskets are correctly positioned and not compressed unevenly.
• Spigot Wobbles:
  Решение: Verify that the expansion bolts securing the spigot base to the mounting surface are fully tightened. Ensure the mounting surface is stable and level.
• Corrosion/Rust Spots:
  Решение: While SS304 is corrosion-resistant, surface rust can occur from external contaminants. Clean immediately with a stainless steel cleaner and a soft cloth. For coastal areas, consider SS316 grade products for enhanced corrosion resistance.
• Difficulty Inserting Glass:
  Решение: Ensure the glass thickness matches the spigot's compatibility (8mm, 10mm, 12mm). Check for any obstructions in the spigot's slot.

9. Гаранција и поддршка

For warranty information or technical support, please contact LukLoy customer service directly. Keep your purchase receipt as proof of purchase. You can find contact details on the official LukLoy webна лице место или преку вашиот продавач.
