1. Важни безбедносни информации
This appliance is designed for professional spa and salon use. Read all instructions carefully before operation to ensure safe and effective use. Keep this manual for future reference.
- Не го користете уредот ако кабелот за напојување е оштетен.
- Уверете се дека уредот е поставен на стабилна, отпорна на топлина површина.
- Не блокирајте ги отворите за вентилација.
- Да се чува подалеку од дофат на деца.
- Секогаш исклучувајте го уредот од струја пред чистење или одржување.
- Avoid direct exposure to UV light.
- The interior surfaces can become hot during operation. Use caution when opening the door and handling sterilized items.
Image: Interior warning label indicating 'HOT SURFACE DO NOT TOUCH' and caution against placing items on the exhaust cover.
2. Производот завршиview
The DERMALOGIC KGO-SAAPP-60 is a professional instrument and towel sterilizer designed for spa, salon, and tattoo studio use. It combines UV sterilization, ozone sanitization, and heating functions to ensure thorough disinfection of various tools and towels.
Клучни карактеристики:
- 60L Capacity for instruments and towels.
- UV Sanitization and Ozone Sterilization.
- Heating Function: Heats up to 140°F (60°C).
- Two UV Light Ultraviolet Lamps (10W each, EPA No.102999-CHN-1).
- Touch Control Buttons: Power, UVC, UVC+Heat, Auto.
- Automatic Shut-off System: Activates when the door is opened.
- Auto Function: Cycles sterilization process every 3 hours when powered.
- Издржлива конструкција од не'рѓосувачки челик.
Слика: напред view of the DERMALOGIC KGO-SAAPP-60 UV Ozone Heating Cabinet with the door closed.
Слика: Внатрешност view of the cabinet with the door open, revealing multiple stainless steel racks for holding items.
Image: Close-up of the two UV germicidal lamps installed inside the cabinet, emitting a blue light.
3. Поставување
- Отпакување: Carefully remove the sterilizer from its packaging. Inspect for any damage during transit.
- Поставување: Place the unit on a flat, stable, and heat-resistant surface. Ensure there is adequate ventilation around the unit, especially at the rear and sides.
- Поврзување за напојување: Connect the power cord to the unit's power inlet and then plug it into a grounded electrical outlet (110V, 50-60Hz).
- Почетно чистење: Пред првата употреба, избришете ги внатрешните и надворешните површини со адхезивна фолија.amp крпа. Уверете се дека уредот е целосно сув пред да го вклучите.
Слика: Заден дел view of the cabinet, showing the power cord connection point and the main power switch.
4. Упатства за работа
The control panel features touch buttons for various functions.

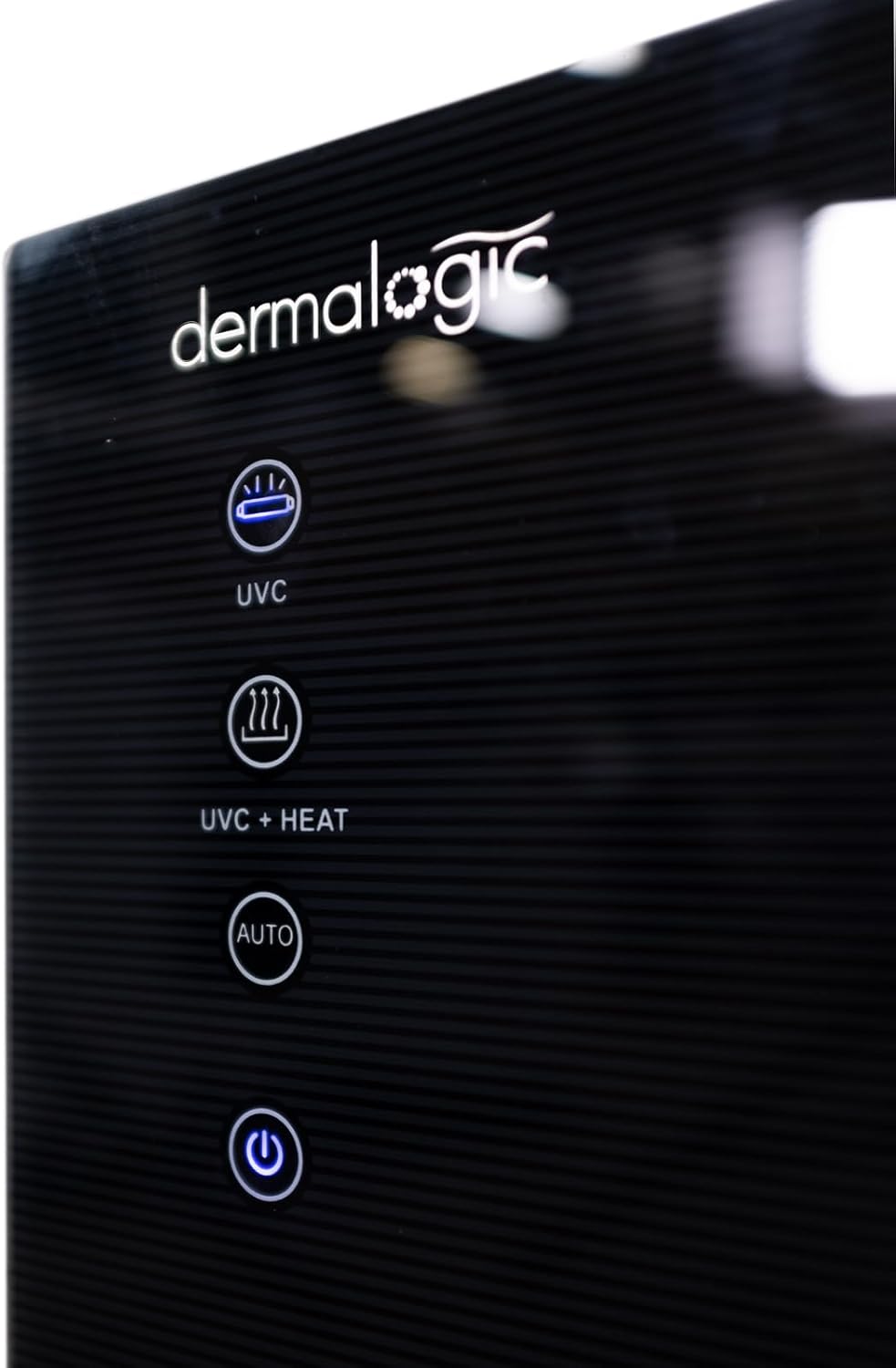

Image: Close-up of the control panel, displaying touch buttons for Power, UVC, UVC + HEAT, and AUTO functions.
- Се вчитуваат ставки: Open the door and carefully place instruments or towels on the racks. Do not overload the cabinet. Ensure items are clean and dry before placing them inside.
- Вклучување: Press the 'Power' button to turn on the unit.
- Изберете режим:
- УВЦ: Press the 'UVC' button for UV sterilization only. This mode is suitable for items that do not require heat.
- UVC + HEAT: Press the 'UVC + Heat' button for combined UV sterilization and heating. This mode is ideal for towels or instruments that benefit from heat. The heating function reaches up to 140°F (60°C).
- АВТОМАТ: Press the 'Auto' button to activate the automatic cycle. In this mode, the cabinet will automatically perform a sterilization process every 3 hours.
- Автоматско исклучување: For safety, the UV lamps and heating element will automatically turn off if the door is opened during operation. Close the door to resume the cycle.
- Завршување на циклусот: Once the selected cycle is complete, carefully open the door and remove the sterilized items. Use heat-resistant gloves if the heating function was used.
- Исклучено: Press the 'Power' button to turn off the unit when not in use.
5. Одржување
- Чистење: Regularly clean the interior and exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the unit is unplugged and cool before cleaning.
- УВ Лamp Замена: УВ лamps have a limited lifespan. If the UV light appears dim or stops working, contact DERMALOGIC customer support for replacement instructions and genuine parts.
- Rack Cleaning: The stainless steel racks can be removed for separate cleaning. Wash with mild soap and water, then dry thoroughly before returning them to the cabinet.
6 Смена на проблеми
| Проблем | Можна причина | Решение |
|---|---|---|
| Уредот не се вклучува. | Кабелот за напојување не е поврзан; Прекинувачот е исклучен; Неисправност на штекерот. | Ensure power cord is securely plugged in; Check main power switch; Test outlet with another appliance. |
| УВ-светлото не работи. | Door open; UV lamp expired or damaged. | Ensure door is fully closed; Contact customer support for lamp замена. |
| Функцијата за греење не работи. | Door open; 'UVC + Heat' mode not selected. | Ensure door is fully closed; Select 'UVC + Heat' mode. |
| Automatic cycle not activating. | 'Auto' mode not selected. | Ensure 'Auto' mode is selected after powering on. |
If problems persist after attempting these solutions, please contact DERMALOGIC customer support.
7. Спецификации
| Карактеристика | Спецификација |
|---|---|
| Модел | KGO-SAAPP-60 |
| Капацитет | 60 литри |
| Функции | UV Sterilization, Ozone Sanitization, Heating |
| Влезна моќност | 170 W |
| УВ Лamp Моќ | 2 x 10 W |
| Температура на греење | До 140°F (60°C) |
| Материјал | Нерѓосувачки челик |
| Unit Dimensions (W x L x H) | 17.5" x 14.5" x 25.5" (44.45 x 36.83 x 64.77 см) |
| ЕПА бр. | 102999-CHN-1 |
Image: Product label displaying model number, capacity, voltage, power rating, and EPA number. Note: The label shows 30L capacity, while the product description states 60L. Please refer to the product listing for the correct capacity.
8. Гаранција и поддршка
For warranty information, technical support, or to purchase replacement parts, please contact DERMALOGIC customer service through their official webлокацијата или продавачот на мало каде што е купен производот. Чувајте ја сметката како доказ за купување.
