1. Производот завршиview
The VEVOR 4 Quart Single Acting Hydraulic Pump is a robust power unit designed for various lifting and stamping applications. It features a 12V DC motor, a 4-quart reservoir, and delivers a high flow rate for efficient operation.
Image 1.1: VEVOR 4 Quart Single Acting Hydraulic Pump with remote control.
Клучни карактеристики:
- Перформанси со висока моќност: Equipped with a 12V, 1.6kW DC motor, providing a flow rate of up to 0.91 GPM and a maximum relief pressure of 3200 PSI.
- Брзо кревање: Single-acting power mechanism ensures stable and reliable lifting. Includes a built-in safety relief valve to prevent over-pressure.
- Hassle-free Setup: Arrives pre-assembled for easy installation. Compatible with both metric and American interfaces via an included SAE#6 connector.
- Издржлива конструкција: Features robust overall sealing to minimize oil leaks and a rust-proof solid metal steel tank for long-lasting durability.
- Разновидни апликации: Suitable for dump trailers, container truck tailgates, hydraulic wood splitters, small presses, lifting platforms, semi-electric push trucks, bucket transporters, and more.
Image 1.2: Common applications for the VEVOR Hydraulic Pump.
2. Спецификации
Detailed technical specifications for the VEVOR 4 Quart Single Acting Hydraulic Pump.

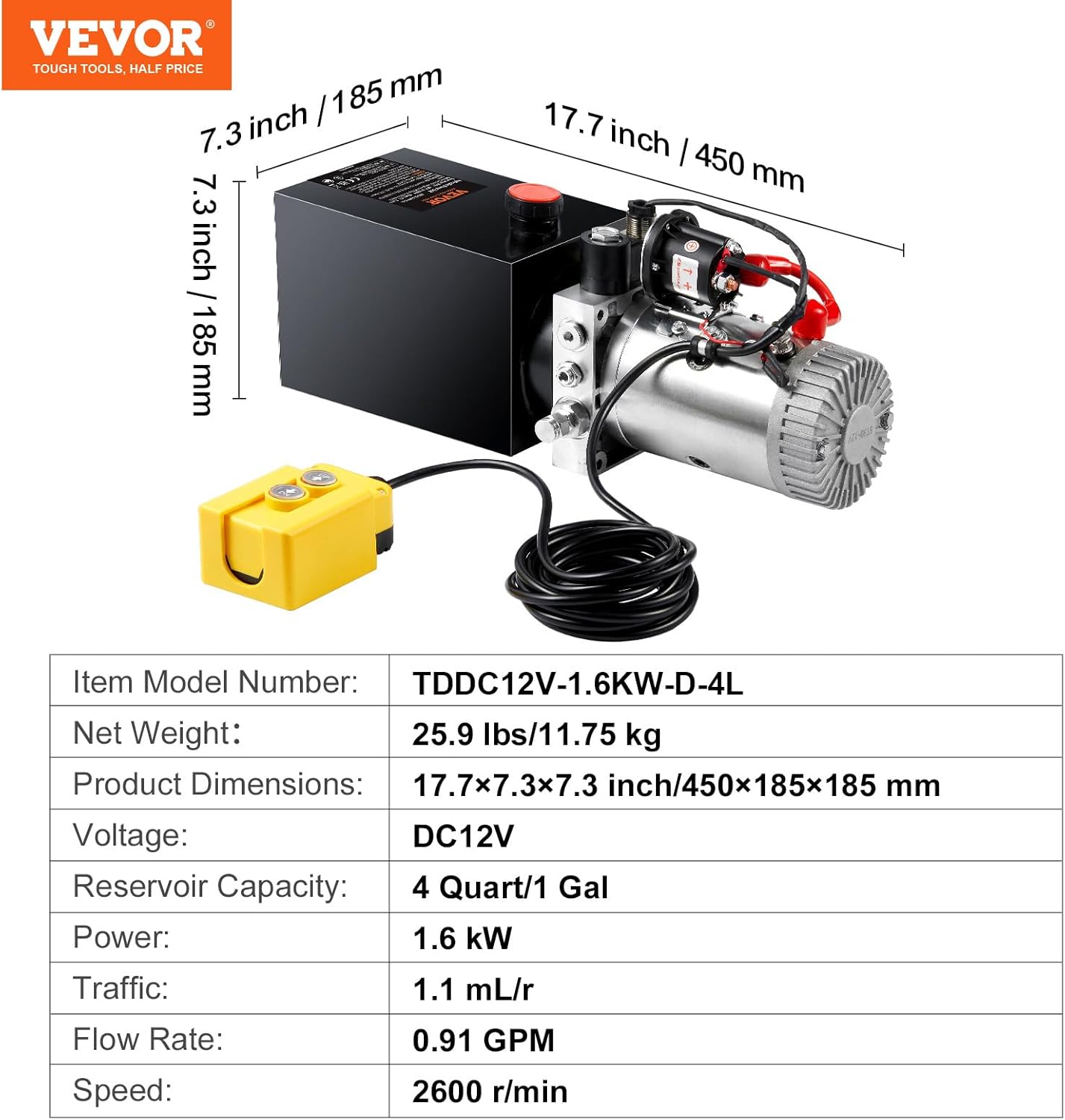

Слика 2.1: Димензии на производот и клучни спецификации.
| Спецификација | Вредност |
|---|---|
| Број на модел на ставка | TDDC12V-1.6KW-D-4L |
| Нето Тежина | 25.8 фунти (11.75 кг) |
| Димензии на производот | 17.7 x 7.3 x 7.3 инчи (450 x 185 x 185 мм) |
| Voltage | 12 волти DC |
| Ватtage | 3 KW |
| Капацитет на резервоарот | 4 Quart / 1 Gallon |
| Стапка на проток | 0.91 галони во минута (GPM) |
| Максимален притисок за олеснување | 3200 PSI (16-20 MPa) |
| Стил | Единечно дејствување |
| Вклучени компоненти | Hydraulic Pump, SAE#6 Converter |
3. Упатства за поставување
Follow these steps to properly set up your VEVOR Hydraulic Pump. Ensure all connections are secure before operation.
Image 3.1: Visual guide for connecting and operating the hydraulic pump.
- Додадете хидраулично масло: Remove the oil filler cap. Fill the reservoir with anti-wear hydraulic oil, ensuring a kinematic viscosity of 22-46mm²/s at 50°C. Do not overfill.
- Поврзете ги хидрауличните црева: Connect the appropriate hydraulic hoses from your equipment to the pump's hydraulic ports. Ensure all fittings are tightened securely to prevent leaks. The pump includes an SAE#6 connector for compatibility.
- Поврзете го напојувањето: Connect the pump to a DC 12V, 200A power supply (e.g., a battery). Ensure correct polarity: connect the positive (+) terminal of the pump to the positive terminal of the battery, and the negative (-) terminal of the pump to the negative terminal of the battery. Refer to the connection label on the pump.
- Безбедно монтирање: Mount the hydraulic pump securely to a stable surface, ensuring it is protected from excessive vibration and environmental elements.
Video 3.1: This video demonstrates the general setup and operation of a VEVOR hydraulic pump. Please note that while the principles are similar, this video may show a double-acting model, whereas your product is a single-acting unit. Pay close attention to oil filling, hose connections, and electrical wiring.
4. Упатства за работа
Once the hydraulic pump is properly installed and connected, you can begin operation using the remote control.
Image 4.1: Illustration of single-acting lift operation (fast lifting and gravity lowering).
- Вклучување: Ensure the power supply is active and the pump is ready for operation.
- Lifting (Upward Movement): Press and hold the "UP" button on the remote control. The pump will activate, and hydraulic fluid will be pushed to extend the cylinder, causing the equipment to lift. Release the button to stop lifting.
- Lowering (Downward Movement): Press and hold the "DOWN" button on the remote control. For single-acting systems, this typically releases pressure, allowing the equipment to lower under gravity. Release the button to stop lowering.
- Работа на мониторот: Observe the equipment during operation to ensure smooth and controlled movement. If any unusual noises or movements occur, release the button immediately and investigate.
The remote control provides extended wiring for distant operation and monitoring, enhancing safety and convenience.
5. Одржување
Редовното одржување обезбедува долготрајност и оптимални перформанси на вашата хидраулична пумпа.
- Check Hydraulic Fluid Level: Periodically inspect the hydraulic fluid level in the reservoir. Refill as necessary with the recommended anti-wear hydraulic oil.
- Проверете дали има протекување: Regularly check all hydraulic connections, hoses, and seals for any signs of leaks. Address any leaks promptly to prevent fluid loss and system damage.
- Исчистете ја пумпата: Keep the exterior of the pump clean and free from dirt, dust, and debris. This helps prevent contamination and ensures proper heat dissipation.
- Проверете ги електричните врски: Ensure all electrical connections are tight and free from corrosion. Loose connections can lead to intermittent operation or damage.
- Замена на филтер: If your system includes a hydraulic filter, follow the manufacturer's recommendations for inspection and replacement to maintain fluid cleanliness.
6 Смена на проблеми
This section provides solutions to common issues you might encounter with your hydraulic pump.
| Проблем | Можна причина | Решение |
|---|---|---|
| Пумпата не работи | No power supply, loose electrical connections, faulty remote control. | Check battery connections and charge. Ensure all wiring is secure. Test remote control functionality. |
| Slow or weak lifting | Low hydraulic fluid level, air in the system, clogged filter, worn pump components. | Check and refill hydraulic fluid. Bleed air from the system. Inspect and replace filter. Contact support if pump components are suspected. |
| Истекува хидраулична течност | Loose fittings, damaged hoses or seals. | Tighten all hydraulic fittings. Inspect hoses and seals for damage and replace if necessary. |
| Прекумерна бучава за време на работата | Low fluid level, air in the system, cavitation, worn bearings. | Check fluid level and refill. Bleed air from the system. Ensure proper fluid viscosity. Contact support for internal component issues. |
7. Гаранција и поддршка
For warranty information, technical support, or service inquiries regarding your VEVOR Hydraulic Pump, please refer to the documentation included with your purchase or visit the official VEVOR website. Ensure you have your product model number (TDDC12V-1.6KW-D-4L) and purchase details available when contacting support.
Можете исто така да ја посетите Продавница VEVOR на Amazon за повеќе информации за производот и ресурси за поддршка.
