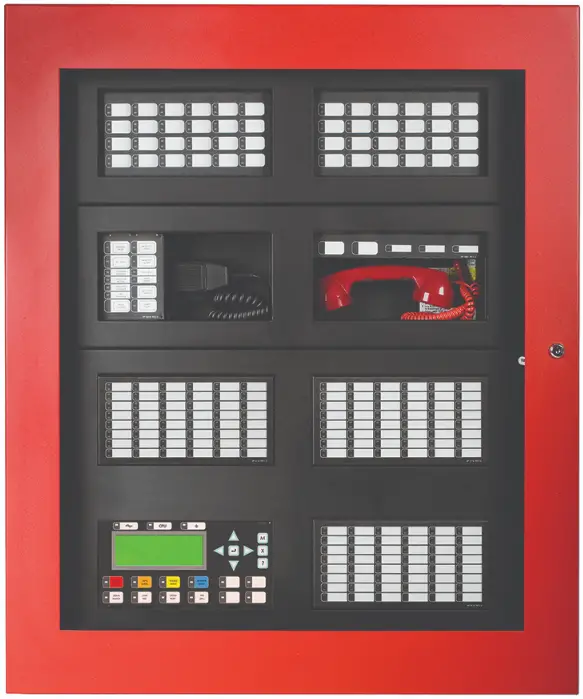

Mircom RPL-FX-2009-DF Fire Alarm Control Panel
Specifications
- Model: RPL-FX-2009-DF
- Compatible with Mircom FX-2000 Fire Alarm Control Panel
- Includes: Replacement inner chassis door, 4 #6 x .5 screws for inner chassis door, DSPL-420-16TZDS, BB-5008
Contents of the Kit
- The kit includes a replacement inner chassis door and 4 #6 x .5 screws for the inner chassis door.
- Also included are DSPL-420-16TZDS and BB-5008 components.
- Replacement inner chassis door with DSPL-420-16TZDS and 3 dead front covers mounted
Installation
Follow these steps to install the RPL-FX-2009-DF:
- Remove the old inner chassis door.
- Securely attach the replacement inner chassis door using the provided screws.
- Ensure all components are properly connected.
LED Mapping
The LEDs on the old and new displays are mapped as follows:
FAQs
Q: How do I reset the Mircom FX-2000 Fire Alarm Control Panel?
A: To reset the panel, press the SYSTEM RESET button on the new display.
Q: What should I do if I encounter a CPU fault indication?
A: If you see a CPU fault indication, contact customer support for assistance.
LT-6778 Rev 0 RPL-FX-2009-DF Installation Instructions
