Mircom FX 2003 12NXTDS Network Fire Alarm Control UnitFX-2003-12NXTDS in a BBX-1024XTR enclosure with two optional RAX-1048TZDS modules

Description

Mircom’s FleX-Net Series is a powerful intelligent networkable fire alarm solution designed with many levels of flexibility to meet virtually any application of detection, control, notification and emergency communications. Features such as fire detection & alarm, audio/voice evacuation, BACnet, Boolean logic, networking and graphical work stations allow this modular solution to accommodate the simplest systems up to the most complex solutions
With the addition of the Advance Protocol (AP), Fire/CO detection and 520 Hz support on both the addressable loop and through the audio/voice evacuation, Mircom’s FleX-Net is poised to take you even farther into the future with expanded capabilities..
Designed for peer-to-peer network communications, the FX-2003-12NXTDS allows for a maximum of 63 nodes, while providing reliability, flexibility and expandability.
Each base panel consists of one intelligent signaling line circuit (SLC) capable of supporting 159 analog Sensors and 159 addressable modules. In addition the base panel includes Four Style Z/Y (Class A/B) Notification Appliance Circuits and an easy to read and use, large 4 x 20 back-lit alphanumeric LCD display.
The network configuration allows the FX-2003-12NXTDS control panel to be connected to a Mircom network to provide additional input circuits, visual zones, programmable notification appliance circuits, and relays. The network interface module allows the panels to communicate on a peer-to-peer network via a Proprietary Arcnet Network Communications protocol.

Features

Fire Alarm Control

  • 1 SLC loop expandable up to 21
  • Each SLC Loop is capable of supporting 159 Analog Sensors and 159 Addressable Modules which can be wired in Style 6 or 7 (Class A) or Style 4 (Class B)
  • Four Style Z/Y (Class A/B) Notification Appliance Circuits rated at 1.7 Amps each
  • System has the ability to mix CLIP and AP devices on the same loop
  • Large easy to use and readable 4 by 20 character Back-lit LCD Display
  • English, French, Arabic* and Hebrew* language support (*supported by RAXN-LCDG Annunciator in place of main display)
  • Correlatable Switch Inputs which allow for multi-functional outputs
  • Four Status Queues for Alarm, Supervisory, Trouble and Monitor
  • Auxiliary relay contacts for Common Alarm, Supervisory and Trouble
  • Group bypass with built-in false alarm prevention technology
  • RS-232 output for remote system printer or CRT
  • Two event History Logs; one for Alarm-related events and one for all events
  • Supports 3 configuration files with “hot swap” support
  • Conventional Hardwire Adder Module expandability
  • Built-in Walk Test operation
  • Canadian Two Stage operation
  • Provision for two programmable modules
  • Configurable for Coded Operation
  • Intelligent Smoke Detector sensitivity levels
  • 3D graphical monitoring and control using Mircom’s Open Graphic Navigator™
  • BACnet support
  • Advanced (Boolean) logic functions
  • Built-in Ethernet port
  • Remote diagnostics via a built-in web server
  • Audio/Voice Evacuation with 520Hz capability
  • UL listed for Smoke Control
  • HVAC Fan and Damper Control

Network Features

  • Up to 63 nodes
  • Peer-to-peer network communications
  • Style 4 (Class B) or Style 6 or 7 (Class A) wiring configuration
  • Proprietary Arcnet Network Communications protocol
  • Supports copper and/or fiber optic network cable

FleX-Net FX-2003-12NXTDS Network Series Fire Alarm Control Units

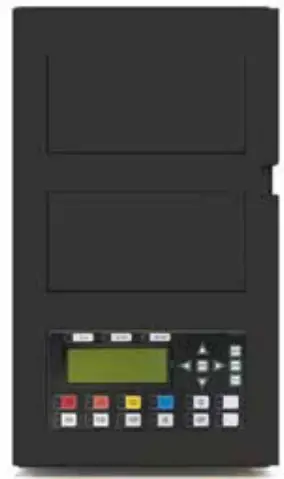

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 1

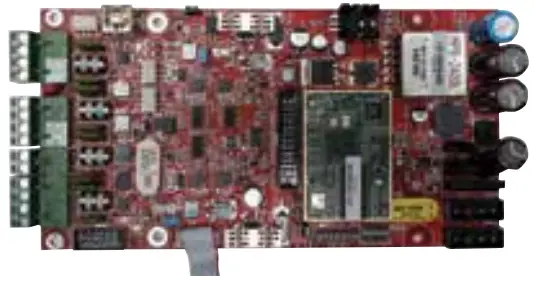

FX-2003-12NXTDS Network Main Control Unit
The FX-2003-12NXTDS Network Main Control Unit comes complete with one intelligent signaling line circuit, Four Style Z/Y (Class A/B) Notification Appliance Circuits rated at 1.7 Amps each, a 4 line by 20 character back-lit LCD display and a 12 Amp Power Supply which charges 17-65 AH batteries. The FX-2003-12NXTDS provides space for the FNC-2000 Network Controller Module, up to 8 adder modules and two programmable modules. The FX-200312NXTDS mounts in the BBX-1024XT(R) enclosure.

Adder Loop Controller Modules

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 3

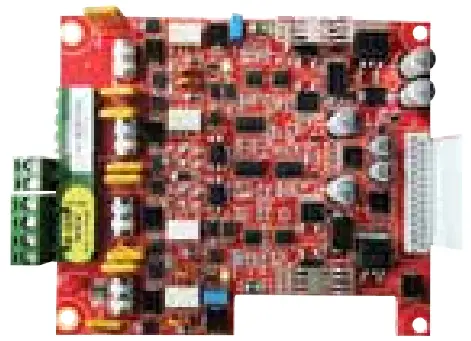

ALCN-792MISO Isolated Quad Loop Controller Module
The ALCN-792MISO Isolated Quad Loop Controller Module provides two Signaling Line Circuits (SLC) to the FleXNet system consisting of 159 Analog Sensors and 159Addressable Modules per loop. The ALCN-792MISO can be expanded with the use of the ALCN-792D Daughter BoardModule. The ALCN-792MISO occupies one module slot.

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 4

ALCN-792D Daughter board for Isolated Quad Loop Controller Module
The ALCN-792D Daughter Board provides an additional two SLC loops when connected to the ALCN-792MISO Isolated Quad Loop Controller Module. The daughter board mounts on top of the ALCN-792MISO.

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 2

BBX-1024XT(R) Enclosure
The BBX-1024XT enclosure supports one FX-2003-12NXTDS and up to 18 AH Batteries. The enclosure features the universal CAT-30 lock and a removable door for easy installation and servicing. The enclosure is available in a white (BBX-1024XT) or red exterior (BBX-1024XTR). The FA-XT-TRB Semi-Flush Trim Ring is required for semi- flush mounting.
BBX-1024XT(R) Dimensions: 35 ½”H x 14 ½”W x 5 ¼”D

Fire Network Controller Modules

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 5

FNC-2000 Fire Network Controller Module
The FNC-2000 provides network capability to the FX-2003-12NXTDS. One Fire Network Controller Module is required per network node. In addition the FNC-2000 provides an interface for adding an optional FOM-2000-SP Fiber Optic Network Adder Module. The FNC-2000 mounts in the FX-2003-12NXTDS.

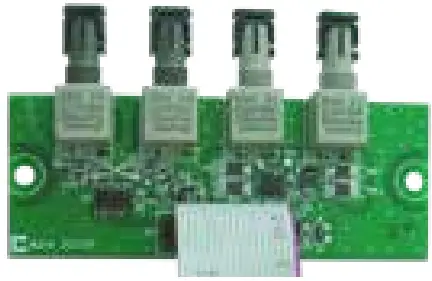

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 6

FOM-2000-SP Fiber Optic Network Adder Module
The FOM-2000-SP Fiber Optic Network Adder Module allows for the use of fiber optic cabling on the FleX-Net units. It seamlessly connects to the interface on the FNC-2000 Fire Alarm Network Controller Module.

Electrical Specifications

Primary Input Power 120V 60Hz/240V, 50Hz 4 Amps/2 Amp (primary)
Power Supply Ratings 12 Amps. max. (secondary)
For NAC Circuits 24VDC unfiltered, 10 Amps. max.
Max. Voltage Drop Permitted
(Class A = 3.3V, and Class B = 3.7V)
Battery Type 24VDC, Gel-Cell/Sealed Lead-Acid
Battery Charging Capability 17-65 AH batteries

Adder Hardwire Modules

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 7

DM-1008A Eight Initiating Circuit Module
The DM-1008A provides 8 Style B (Class B) or 4 Style D (Class A) Initiating Circuits configurable for Alarm, Supervisory or Trouble zones. The DM-1008A occupies one module slot in the FX-2003-12NXTDS.

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 8

SGM-1004A Four Notification Appliance Circuit Module
The SGM-1004A provides 4 Style Z/Y(Class A/B) Notification Appliance Circuits configurable as Silenceable or NonSilenceable. Each NAC circuit is rated at 1.7 Amps. The SGM1004A occupies one module slot in the FX-2003-12NXTDS.

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 9

RM-1008A Eight Relay Circuit Module
The RM-1008A provides the FX-2003-12NXTDS with eight individual configurable relays per module. Each relay provides one Form C contact rated at 28 VDC @1 Amp (resistive load) as well as a Green LED to indicate that the relay is active. The RM-1008A occupies one module slot in the FX-2003-12NXTDS.

Graphics Software

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 10

Open Graphic Navigator (OpenGN)
Open Graphic Navigator (OpenGN) is a centralized fire alarm management system that provides building or campus monitoring. As a powerful integration tool, OpenGN allows operators to monitor remote sites from multiple workstations or smart phones located anywhere in the world. OpenGN displays monitored buildings and campuses in both 2D and 3D representations, and is highly customizable.

Adder Auxiliary Modules

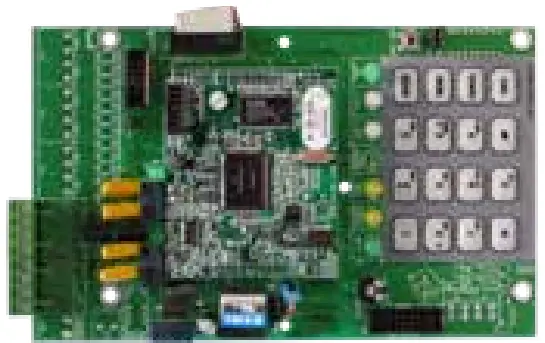

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 11

UDACT-300A Digital Alarm Communicator Module
The UDACT-300A Digital Alarm Communicator Module allows the FX-2003-12NXTDS to transmit addressable point information to a central station. The UDACT-300A occupies one module slot in the FX-2003-12NXTDS.

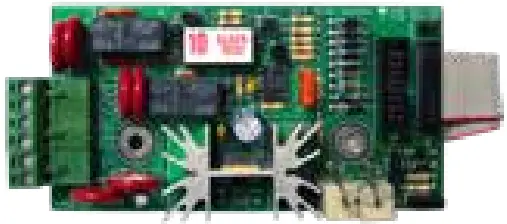

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 12

PR-300 Polarity Reversal/City Tie Module
The PR-300 Polarity Reversal/City Tie Module provides the system with a supervised City Tie (24 VDC/200 mA max.) and Polarity Reversal connection (24 VDC (open circuit), 8 mA max. (shorted)). The PR-300 occupies one module slot in the FX-2003-12NXTDS.

Programmable Modules

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 13

FDX-008W Fan Damper Control Module
The FDX-008W Fan Damper Control Module provides individually programmed circuits which can be used for fan or damper control. The FDX-008W connects to the main unit or the RAXN-LCD and occupies one display position in the FX-2003-12NXTDS, BB-1000 or BB-5000 Series enclosures.

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 14

IPS-2424DS/IPS-4848DS Programmable Input Switches Module
The IPS-2424DS/IPS-4848DS provides 24/48 programmable switches that can be configured for ancillary functions such as zone bypass or added common control functions. The IPS-2424DS/IPS-4848DS connects to the main unit or the RAXN-LCD when mounted remotely. The IPS-2424DS/IPS4848DS occupies one display position in the FX-2003-12NXTDS, BB-1000 or BB-5000 Series enclosures.

Remote LCD Annunciators

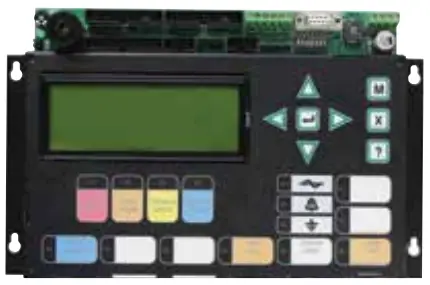

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 15

RAXN-LCD Remote LCD Annunciator
The RAXN-LCD Remote LCD Annunciator is equipped with a 4 line x 20 character back-lit LCD display that provides the same functions as the main display on the fire alarm control unit. The RAXN-LCD occupies one display position in the BB-1000 or BB-5000 Series enclosures.

Remote LED Annunciators

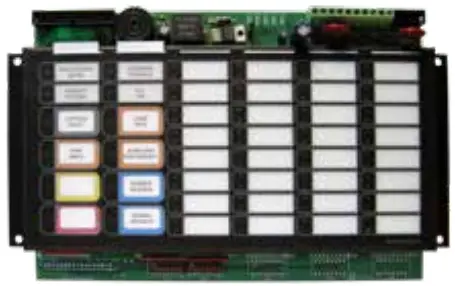

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 16

RAM-1032TZDS Main Remote LED Annunciator
The RAM-1032TZDS Main Remote LED Annunciator provides common annunciator functions and 32 points of LED annunciation. The RAM-1032TZDS has indicators for A.C. On, Common Trouble and Signal Silence and controls for System Reset, Lamp Test, Fire Drill, Buzzer Silence and Signal Silence. The RAM-1032TZDS occupies one display position in the BB-1000 or BB-5000 enclosures.

Graphic Annunciator Driver Modules

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 17

MGD-32 Master Graphic Driver Module
The MGD-32 Master Graphic Driver Module provides common control inputs for the common control switches such as System Reset, Signal Silence, Auxiliary Disconnect, Fire Drill, Lamp Test, Acknowledge and General Alarm. The MGD-32 can also drive up to 32 supervised outputs. These output points are capable of driving LEDs or incandescent lamps. The MGD-32 mounts in a graphic annunciator wallbox or in the BB-5000 enclosures. An external power supply is required for incandescent lamps and lamp test.

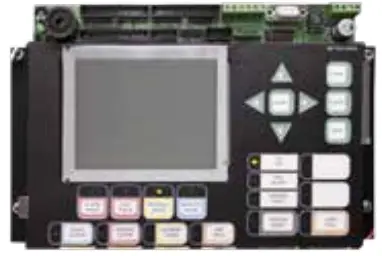

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 18

RAXN-LCDG Remote Graphic LCD Annunciator
The RAXN-LCDG Remote Graphic LCD Annunciator is equipped with a 24 line x 40 character back-lit graphical LCD display that is used to display 9 events per page. Each event is displayed over 2 lines with 40 characters per line allowing emergency information to be displayed in an easy to read format. The RAXN-LCDG occupies one display position in the BB-1000 or BB-5000 Series enclosures.

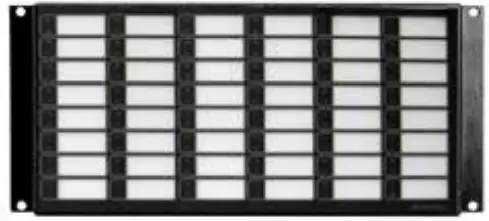

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 19

RAX-1048TZDS Programmable LED Annunciator Module
The RAX-1048TZDS Programmable LED Annunciator Module provides 48 programmable bi-colored LEDs. The RAX-1048TZDS connects to the main unit or either the RAXN-LCD or RAM-1032TZDS when mounted remotely. The RAX-1048TZDS occupies one display position in the FX-200312NXTDS,BB-1000 or BB-5000 Series enclosures.

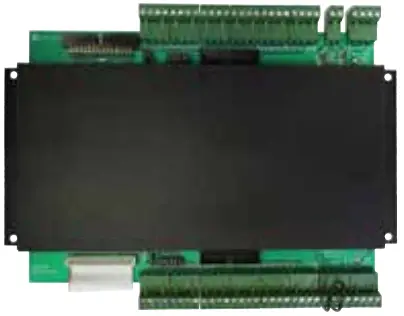

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 20

AGD-048 Adder Graphic Driver Module
The AGD-048 Adder Graphic Driver Module can be used with the MGD-32 to support an additional 48 supervised outputs. The AGD-048 mounts in a graphic annunciator wallbox or in the BB-5000 enclosures.

Dimensions for Annunciator Module Enclosures

Model Dimensions
BB-1001D/DR/DB/DS 9”H x 12.75”W x 1.85”D
BB-1002D/DR/DB/DS 18”H x 12.75”W x 1.85”D
BB-1003D/DR/DB/DS 26.4”H x 12.75”W x 1.85”D
BB-1008D/DR/DB 33”H x 22.5”W x 1.85”D
BB-1012D/DR/DB 45”H x 22.5”W x 1.85”D

Typical FleX-Net™ FX-2003-12NXTDS Networked System Configuration

Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Figure 21

Current Consumption

Model Number Description Standby Alarm
FX-2003-12NXTDS Network Compact Main Control Unit (12 Amp) 0.31 0.733
ALCN-792MISO Isolated Dual Analog Loops 0.13 0.145
ALCN-792MISO/D Isolated Quad Analog Loops 0.13 0.145
FNC-2000 Fire Network Controller Module 0.19 0.019
FOM-2000-SP Fiber Optics Module 0.015 0.015
DM-1008A 8 Initiating Circuit Module 0.08 1 zone active: 0.125
2 zone active: 0.170
4 zone active: 0.275
6 zone active: 0.370
8 zone active: 0.465
SGM-1004A 4 Notification Appliance Circuit Module 0.06 0.258
RM-1008A 8 Relay Circuit Module 0.025 0.15
FDX-008W Fan Damper Control Module 0.015 0.035
UDACT-300A Dialer Module 0.045 0.12
PR-300 City Tie Module 0.035 0.3
RAX-1048TZDS Adder Annunciator Chassis 0.022 1 zone active: 0.026
2 zone active: 0.030
3 zone active: 0.035
4 zone active: 0.039
48 zone active: 0.262
RAM-1032TZDS Adder Annunciator Chassis 0.05 32 zone active: 0.300
MGD-32 Main Graphic Driver Module 0.035 1.6
AGD-048 Adder Graphic Driver Module 0.035 # of LEDs x 4mA
IPS-2424DS Programmable Input Switches Module 0.01 0.015
IPS-4848DS Programmable Input Switches Module 0.01 0.022

Ordering Information

Model Description
Network Fire Alarm Control Unit
FX-2003-12NXTDS Network Compact Main Control Unit with 12 Amp power supply. Mounts in the BBX-1024XT(R) enclosure.
BBX-1024XT Enclosure for FX-2003-12NXTDS c/w removable white door, black backbox and CAT-30 lock and key.
BBX-1024XTR Enclosure for FX-2003-12NXTDS c/w removable red door, black backbox and CAT-30 lock and key.
FA-XT-TRB Black Semi-Flush Trim Ring for BBX-1024XT(R) enclosure.
Network Controller Modules
FNC-2000 Fire Network Controller Module
FOM-2000-SP Fiber Optic Network Adder Module
Adder Loop Controller Modules
ALCN-792MISO Network Isolated Quad Loop Controller Module
ALCN-792D Daughter board for ALC-792MISO Isolated Quad Loop Controller Module
Adder Hardwire Modules
DM-1008A Eight Class B (Style B) or 4 Class A (Style D) Initiating Circuit Module
SGM-1004A Four Class A/B (Style Z/Y) Notification Appliance Circuit Module (Rated at 1.7 Amps per circuit)
RM-1008A Eight Relay Circuit Module c/w eight form C relays (Rated for 28 VDC @ 1 Amp max. per relay)
Adder Auxiliary Modules
UDACT-300A Digital Alarm Communicator Transmitter/Dialer Module
PR-300 Polarity Reversal and City Tie Module
Remote Annunciators
RAXN-LCD Remote LCD Annunciator
RAXN-LCDG Remote Graphic LCD Annunciator
RAM-1032TZDS Main Remote LED Annunciator c/w 32 Bi-Colored LEDs
RAX-1048TZDS Programmable LED Annunciator Module c/w 48 Bi-Coloured LEDs and 48 Trouble LEDs
Programmable Modules
IPS-2424DS Programmable Input Switches Module c/w 24 selector switches and 24 bi-coloured LEDs
IPS-4848DS Programmable Input Switches Module c/w 48 selector switches and 48 bi-coloured LEDs
FDX-008W Fan Damper Control Module
Enclosures for Remote Annunciators / Programmable Modules
BB-1001D Remote Enclosure. Houses one module. Add suffix “R” for red, “S” for stainless steel, and “B” for black door.
BB-1002D Remote Enclosure. Houses two modules. Add suffix “R” for red, “S” for stainless steel, and “B” for black door.
BB-1003D Remote Enclosure. Houses three modules. Add suffix “R” for red, “S” for stainless steel, and “B” for black door.
BB-1008D Remote Enclosure. Houses eight modules. Add suffix “R” for red and “B” for black door.
BB-1012D Remote Enclosure. Houses twelve modules. Add suffix “R” for red and “B” for black door.
Graphic Driver Modules
MGD-32 Main Graphic Driver Module c/w 32 Supervised Outputs
AGD-048 Adder Graphic Driver Module c/w 48 Supervised Outputs
Graphics Software
OGN-FLSLIC-ONE Single Fire Alarm Control Panel License (Price per connection)
Requires: OGN-KEY (sold seperately) Contact us for non-Mircom panel connections
OGN-FLSLIC-EXP Fire Alarm Control Panel License for 2-9 Connections (Price per connection) Requires: OGN-KEY(sold seperately) Contact us for non-Mircom panel connections
OGN-FLSLIC-STD Fire Alarm Control Panel License for 10-99 Connections (Price per connection) Requires: OGN-KEY (sold seperately) Contact us for non-Mircom panel connections
OGN-FLSLIC-ENT Fire Alarm Control Panel License for 100+ Connections (Price per connection) Requires: OGN-KEY (sold seperately) Contact us for non-Mircom panel connections
OGN-KEY OGN License Key Stick
Accessories
UIMA4 Interface for Configuring MGC Fire Panels
MGC-CONFIG-KIT4 Fire Panel Configuration KIT with UIMA4.

NOT TO BE USED FOR INSTALLATION PURPOSES.
THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.

THIS INFORMATION IS FOR MARKETING PURPOSES ONLY AND NOT INTENDED TO DESCRIBE THE PRODUCTS TECHNICALLY.
Mircom FX-2009-12NDS Network Fire Alarm Control Panel - sambol 1 For complete and accurate technical information relating to performance, installation, testing and certification, refer to technical literature. This document contains intellectual property of Mircom. The information is subject to change by Mircom without notice. Mircom does not represent or warrant correctness or completeness.

Mircom logowww.mircom.com

Canada
25 Interchange Way
Vaughan, Ontario L4K 5W3
Telephone: 905-660-4655
Fax: 905-660-4113
U.S.A.
4575 Witmer Industrial Estates
Niagara Falls, NY 14305
Toll Free: 888-660-4655
Fax Toll Free: 888-660-4113

firealarmresources.com
CAT. 5946
Rev. 3Mircom FX 2003 12NXTDS Network Fire Alarm Control Unit - Icon 1

Documents / Resources

Mircom FX-2003-12NXTDS Network Fire Alarm Control Unit [pdf] Owner's Manual
FX-2003-12NXTDS Network Fire Alarm Control Unit, FX-2003-12NXTDS, Network Fire Alarm Control Unit, Fire Alarm Control Unit, Alarm Control Unit

References

Leave a comment

Your email address will not be published. Required fields are marked *
