Microsemi AN1256 Web Programmers Application

Introduction

JSON (JavaScript Object Notation) is an open-standard file format that uses human-readable text for data exchanging. It is a common data format used for asynchronous browser/server communication.
For the new web page design, JSON format can be a replacement for the original AJAX style. Compare to AJAX, using JSON makes the Web implementation easier and simpler. The developer only need to focus on web page design and the Web handler implementation can be omitted since JSON access method is already supported in each WebStaX software modules.
This document states the programmers guide for the software engineer who need to develop the Web page via JSON. The detail procedures and examples also included in the following sections.

JSON data access flow

Overview
Here’s the JSON data access flow which a HTTP connection is initiated from the client(browser). The HTML table is created dynamically according to the received JOSN data from the server(DUT) side.

Figure 1. The access flow between client and server

Request/Response JSON data
The JSON request packet is based on HTTP request post method and the content have to follow the MSCC JSON format.

Request JSON syntax:{“method”:”<json_method_name>”,”params”:[<json_parameters>], “id:”jsonrpc”}
Response JSON syntax: {“error”:<error_message>,”result”:<json_result>, “id:”jsonrpc”}

The following snapshots show the JSON content between the browser and DUT.

Figure 2. Snapshot of HTTP request from client

Figure 3. Snapshot of HTTP response from server

MSCC JSON specification
To get the full JSON information including the method, parameter, description and etc. Type “http://<target_ip>/json_spec” on your browser address bar. There is another access method via JSON method name “jsonRpc.status.introspection.specific.inventory.get”, it is used for a specific method.

Figure 4. Snapshot of JSON specification web page

Web framework

The Web framework in WebStaX software is based on an open source MooTools. It is a collection of JavaScript utilities with MIT license. (http://mootools.net/license.txt) The menu bar and most of web pages are based on the framework. Both AJAX and JSON algorithm are already integrated in its utilities.
Besides, WebStaX software provides the other utilities which are useful for the JSON web page design.

json.js – Use for to transmit/receive the dynamic data with JSON syntax.
dynforms.js – Use for create the HTML table dynamically.

validate.js – Use for the validation of HTML form.

The full JavaScript libraries are located under the source tree directory: webstax2\ vtss_appl\web\html\lib.

Guideline for JSON Web page design

This section guides how to design a web page based on MSCC JavaScript libraries. We use the Mirror global configured web page as the example here. The asynchronous communication are based on HTTP JSON access method and all global configured parameters are listed in one dynamic HTML table.
The web page layout is listed below and the full source code is located under the source tree directory: webstax2\vtss_appl\mirror\html\mirror_ctrl.htm. To get more typical web pages reference, see the appendix section.

Mirror& RMirror Confiquration Table

Figure 5. Example of global configured table

Edit Web page

HTML header
Include the JS libraries that needed in the HTML <head> tag.

<head>
<script type=”text/javascript” src=”lib/mootools-core.js”></script>

<script type=”text/javascript” src=”lib/json.js”></script>
<script type=”text/javascript” src=”lib/dynforms.js”></script>

<script type=”text/javascript” src=”lib/validate.js”></script>
</head>

Initialize the dynamic table resource

When the HTML document is ready, call DynamicTable() to initialize the dynamic table resource.

The DynamicTable() is used to create the dynamic table after received the JSON data.
It will then call requestUpdate to initiate the JSON command flow.

window.addEvent(‘domready’, function() {
// Create a form with table body for receive/transmit JSON data
myDynamicTable = new DynamicTable(“myTableContent”, “config”,”plusRowCtrlBar”);
4
requestUpdate();
});

Request/Response JSON data

When the HTML document is ready, use requestJsonDoc() to send the JSON request “mirror.config.session.get” to get information about the configured sessions.
After the JSON data for “mirror.capabilities.get” is received, the callback function requestUpdate() will be processed. The function requestUpdate will then call “mirror.config.session.get” to get the current configuration. When the current configuration is received, the function processUpdate is called to build the table to be shown.

function requestUpdate()
{
// Restore table content
myDynamicTable.restore();
5
// This table two JSON data.
requestJsonDoc(“mirror.config.session.get”, null, processUpdate, “config”);
}

Process the received JSON data

The function processUpdate() is used to layout the dynamic table after received the JSON data.

The addRows() is used to add table rows. myDynamicTable.update() layout the
HTML table according the data in table rows.

function processUpdate(recv_json, name)
{

// Ignore the process if no data is received
if (!recv_json) {
alert(“Get dynamic data failed.”);

return;
}
// Save the received JSON data

myDynamicTable.saveRecvJson(“config”, recv_json);
// Add table rows
var table_rows = addRows(recv_json);

myDynamicTable.addRows(table_rows);
// Update this dynamic table

myDynamicTable.update();
// Refresh timer

var autorefresh = document.getElementById(“autorefresh”);
if (autorefresh && autorefresh.checked) {
if (timerID) {

clearTimeout(timerID);
}
timerID = setTimeout(‘requestUpdate()’, settingsRefreshInterval());

}
}

Add table rows

In the addRows() function, we use the JSON format to fill each global configured parameter in the table row.
All HTML fields are listed in the JSON array (“table_rows”) and the syntax of table field is below.

Syntax:
table_rows:[<row_0>, <row_1>, …<row_n>] <row_n>: {<field_0>, <field_1>, …<field_n>}
<field_n>: {“type”:<type>, “params”:[<params_0>, <params_1>, …, <params_n>]}

In this case, each row has five fields: “Session ID”, “Mode”, “Type”, “VLAN ID” and “Reflector Port” For example,

Session ID (Name field: int32_t)	1 (Id of the mirror session)
Mode (Name field: vtss_bool_t)	true (Meaning the mirror session is enabled)
Type (Name field: enumeration {mirror, rMirrorSource, rMirrorDestination}	RMirror Source (this is the source of a remote mirror session
VLAN ID (Name field: uint16_t)	200 (the vlan used for mirroring)
Reflector Port (Name field: vtss_ifindex_t)	Gi 1/1 (The port to which the mirrored traffic is sent

The myDynamicTable.addRows() will convert the JSON data to HTML format and output the HTML table.

function addRow(key, val)

{
var none_map_val = 0xFFFFFFFF, none_map_text = “None”, none_interface_text = “NONE”;
var tunnel_mode_suffix = val.TunnelMode == “useglobal” ? ” (” + oTTunnelMode[oVTunnelMode.indexOf(global_conf.tunnelMode)] + “)” : “”;

var row = {fields:[
{type:”link”, params:[“cr”, “mirror.htm?session_id=” + key, key]},
{type:”text”, params:[oTMode[oVMode.indexOf(val.Mode)], “c”]},

{type:”text”, params:[oTType[oVType.indexOf(val.Type)], “c”]},
{type:”text”, params:[val.Type == “mirror” ? “-“:
val.RMirrorVlan, “c”]},
{type:”text”, params:[val.Type == “rMirrorSource” ?
val.ReflectorPort : “-” , “c”]}

]};
return row;
}

function addRows(recv_json)
{
var row, empty_colspan = 7;

var table_rows = new Array();
// Add table header
addHeader(table_rows);

// Add single row
Object.each(recv_json, function(record) {
table_rows.push(addRow(record.key, record.val));

});
return table_rows;
}

Web help page
For the web help page design, the help description can refer to the JSON specification, that the description text can consistent with JSON output and helps to reduce the redundant descriptions. Example here is taken from dhcp6 relay configuration.

Hyper-link in the source file
Assign the help file location in its source file HTML <head> tag. The fixed variable name “help_page” is used for the web help page assignment.

<head>

// Help page magic
var help_page = “/help/help_xxx.htm”;
</head>

Update HTML field description from JSON specification

Use <p> or <dl> HTML tag to declare the HTML table description and given a unique ID for the tag.
When the HTML document is ready, call loadXMLDoc() to get the whole JSON specification or get the specific method description by JSON method name “jsonRpc.status.introspection.specific.inventory.get”.

The processTableDesc() is used to update the table description and processUpdate() is used to update the table parameter description.
In processUpdate(), call updateTableParamsDesc() to update the JSON elements which are matched the specific element names.
Update the <p> or <dl> tag inner HTML according to the element description.

<script type=”text/javascript” language=”JavaScript”>
/* Update HTML description fields */
function processTableDesc(req) {

if (!req.responseText) {
return;
}

var json_spec = JSON.decode(req.responseText);
// Update table description
$(“TableDesc”).innerHTML = getJsonSpecElement(json_spec, “groups”, “dhcp6_relay.config.vlan”).description;

}
/* Update HTML table parameter description */
function processUpdate(recv_json) {

// Update table parameter description
var param_names = [
{

“alias”: “Interface”,
“type”: “vtss_ifindex_t”,
“name”: “vlanInterface”,

“suffix”: “.”
},
{

“alias”: “Relay Interface”,
“type”: “vtss_ifindex_t”,
“name”: “relayVlanInterface”,

“suffix”: “. The id of the interface used for relaying.”
},
{

“alias”: “Relay Destination”,
“type”: “mesa_ipv6_t”,
“name”: “relay_destination”,

“suffix”: “. The IPv6 address of the DHCPv6 server that requests shall be relayed to. The default value ‘ff05::1:3’ mans ‘any DHCP server’.”
}
];

updateTableParamsDesc(“TableParamsDesc”, recv_json, “dhcp6_relay.config.vlan.get”, param_names);
}
/* Get JSON specification */

window.addEvent(‘domready’, function () {
loadXMLDoc(“/json_spec”, processTableDesc);
requestJsonDoc(“jsonRpc.status.introspection.specific.inventory.get”, “dhcp6_relay.config.vlan”, processUpdate);

});
</script>
<body>
<p id=”TableDesc”></p>
<dl id=”TableParamsDesc”></dl>
</body>

Hyper-link in menu bar

The HTML source code of menu bar is generated from file webstax2\vtss_appl\web\ menu_default.cxx.
Edit the items in this file for the Web page hyper-link.

#if defined(VTSS_SW_OPTION_DHCP6_RELAY)
ITEM(” Relay,dhcp6_relay.htm”);
#endif //VTSS_SW_OPTION_DHCP6_RELAY

NOTE
Notice that the number of space character in ITEM(“”), which is used to decide the group level in the menu bar. In this case, all web pages are under the “DHCPv6” group.

Figure 6. Example of global configured table

Appendix

Typical web pages

There are several typical web pages can be used for the reference design. One additional example to be show here is the configuration of a single mirror session found in vtss_appl\mirror\html\mirror.htm.
The web page provides the detailed configuration for a single mirror session. All configured parameters are listed.

Click “Save” button to apply the current configuration.
Click “Reset” button to reset the current configuration.
Click “Cancel” to return to the overview of mirror sessions

Mirror&RMirror Configuration

Global Settings

Source VLAN(s) Configuration

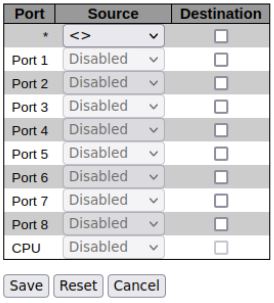

Port Configuration

Figure 7. Example of detailed configuration of mirror session
The buttons “Save”, “Reset” and “Cancel” are added by the html code:

<input type=”button” value=”Save” onclick=”submitForms();”>
<input type=”button” value=”Reset” onclick=”resetForms();”>
<input type=”button” value=”Cancel” onclick=”clickCancel();”>

JSON Command flow
This page requires a two step command flow:

First it needs to get the capabilities of the device with the method “mirror.capabilities.get”. The capabilities do not change and do only have to be read once.
Then it needs to get the current configuration of the device using the methods “mirror.config.session.get”, “port.status.get” and in case of stacking “topo.config.stacking.get”.

The call of “mirror.capabilities.get” is initiated by the “domready” event and the result is configured to be handled by the function requestUpdate.
The requestUpdate will initiate the call of “mirror.config.session.get”,
“port.status.get” and in case of stacking “topo.config.stacking.get” and the results of the these calls are configured to be handled by the function prepareUpdate.
The function prepareUpdate will collect all results, and only when the have all been received will it call the function processUpdate that will construct the tables to beshown on the web.
