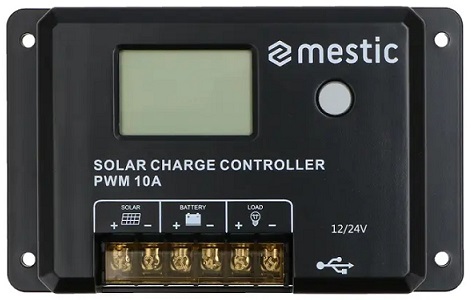

Mestic PWM MSC-2010/-2020 Solar Charge Controller

Specifications

• Model: MSC-2010/-2020
• Charge Controller Type: PWM Solar Charge Controller
• Maximum Current: 10/20A
• Output: USB dual-port output (maximum 2A)

Product Introduction

• Products adopt a 32-bit high-speed main control chip and a large-screen LCD, with adjustable charging and discharging parameters.
• It supports five battery types as custom, sealed lead-acid (factory default), gel lead-acid, flooded (open-cell) lead-acid, and lithium battery (default lithium iron phosphate).
• USB dual-port output is provided, and the maximum current can reach 2A, which supports high-current charging of iPhone,iPad, Android mobile phones, and other devices.
• Automatic identification of lead-acid battery 12V/24V system voltage.
• The complete multi-stage PWM charging management can be set to off-load charging for better support of voltage-sensitive loads.
• Rich load working modes are easy to use in various DC loads.
• Protective functions, including built-in reverse polarity protection, open circuit protection, high temperature protection, and overcurrent/short circuit protection(can be set) are self-recovery type without damage to thecontroller.
• The dual MOS anti-backflow circuit is equipped with ultra-low heat generation. The lithium battery activation function is provided.
• The user-friendly browsing design and dynamic interface are convenient and intuitive for operation.

Panel Diagram

Installation Instructions and Precautions

1. The controller should be installed firmly, and the dimensions are as follows: MSC-2010 Overall dimension: 120*75*34mm Mounting dimension: 108.5*57.5mm MSC-2020 Overall dimension: 134*85*36mm Mounting dimension: 121*70mm
2. Mounting hole diameter: 3.5mm

Operation instructions:

1.  The first step is to connect the battery: if the connection is correct, the controller screen will light up; otherwise,pleasecheck whether the connection is correct and stable.
2. The second step is to connect the solar panel: if there is strong enough sunlight (the voltage of the panel is higher than the voltage of the battery), the sun icon on the LCD screen will light up, otherwise,pleasecheck whether the connection is correct and stable.
3. The third step is to connect the load: connect the load cable to the load output terminal of the controller, and the current should not exceed the rated current of the controller.
4. The controller will generate heat during operation, and it isrecommended to install it in a ventilated and heat-dissipating environment.
5. Select cables with sufficient capacitance to avoid excessive oscillations on the line and misjudgment by the controller.
6.  A common positive electrode design is applied in the controller. If grounding is required, please ground the positive electrode.
7. It isimportant to fully charge the battery frequently.The interval should be at least once a month,otherwise,it will suffer permanent damage.The battery can only be fully charged when more energy entersthe battery than used by the load. Usersshould keep thisin mind when configuring the system.
8. Please check whether each wiring terminal of the controller is locked; otherwise, the terminal will be vulnerable when the current is excessive.

State icon

LCD Schematic Diagram

LCD Screen Browsing Menu

1. Main page

2. Menu interface

• Hold down the key for 2s to enter the parameter menu.
• Short press to switch the parameter menu (asshown in the figure below); hold down for 2sto enter the parameter setting page (parameter flashes, short press to adjust the parameter, hold down for 2s to confirm the parameter, and exit the adjustment).
• It will automatically exit the setting mode after 5s without button operation and enter the real-time data page. At the same time, after completing the last parameter setting, short-press to return to the main page of real-time data.

Note: The setting of boost charging voltage is applicable only in b04 and b07.When the battery voltage rises to this set voltage, PWM charging will be started. During normal charging, the arrow remains lit, and after entering the float charging, the arrow turns to flash slowly. Recommended to keep the default value.

Controller Reboot and Factory Data Reset

1. Hold down the key for more than 10 seconds until F01 is displayed on the screen to restart the controller.
2. Hold down the key for more than 20 seconds until the screen displays F02 to restore the factory default parameters.

Battery Type Setting

On the main interface of real-time data, hold down the key for 2s to enter the parameter setting menu. Short press to switch to the “Battery Type” setting menu, hold down the key for 2s to enter the setting interface, and the parameters will flash. Short press to adjust the parameters, hold down the key for 2s, or keep 5s without key operation to confirm the parameters and exit the adjustment mode. See “Table E” for controller battery types.

Note: After changing the battery type and system voltage, the controller needs to be powered
On again, otherwise it will operate according to the battery type and system voltage before
setting.
Table EBattery type and display code table

Load-related Parameter Settings

Load operating modes

1. Light control mode (00H): The load is turned on or off by the light control signal.
2. Time control mode (01H-23H): The load is turned on by the light control signal and turned off after a delay.
   Lc1 means that the load works at night, Lc2 means that the load works during the day, and the light control has priority over the time control to turn off the load.Lc3 means that the load works at night, Lc4 means that the load works during the day, and the time control has priority over the light control to turn off the load. For example, if set to 16h, while the length of night/day is only 12h, then Lc1/2 will only operate for 12h, while Lc3/4 will operate the set value of 16h; the default is Lc1 state.
3. Normal on mode (24h): supply power to the load for 24 hours.
4. C2A mode: the load works for 2 hours a day, stops for 15 minutes, and keeps this mode circulating..
5. C2d mode: the load works every 2 hours during the daytime, stops for 15 minutes, and keeps this mode circulating.
6. C2d mode: the load works every 2 hours at night, stops for 15 minutes, and keeps this mode circulating.
   Note: No matter which load working mode is set, when the battery is discharged to the low voltage disconnect voltage, the controller will forcibly turn off the load. When the controller is active, the load will remain off.

Light control voltage
In the light or time control mode, when the controller detects that the photovoltaic panel (PV panel) voltage is less than this set value, it will turn on the load after a delay; otherwise, it will turn off the load. At night, if the ambient light around the solar panel is too bright, which makes the output voltage of the solar panel become high, it will cause the controller to automatically turn off the load. It can be solved by adjusting this value.
Setting Recommendations: It is recommended to keep the default value.

Light control delay
When the controller detects that the voltage of the PV panel is lower than the set threshold, it will turn on the load after a delay. This time value can be used to prevent the lights from being turned off because of misjudgment caused by car lights or lightning interference at night. Setting Recommendations: It is recommended to keep the default value.

Special Function Settings

1. Short-circuit protection setting: Sc. n means short-circuit protection on; Sc. F means short-circuit protection off, please turn off the short-circuit protection function for equipment with an excessive starting current. The default mode is on.
2. PWM charging setting (only applicable in b04, b07): Pon means PWM charging mode; PoF means disconnected charging mode, it is recommended to use disconnected charging mode for voltage-sensitive loads.The default mode is on.

Error Code Table

Common Problems and Solutions





Tableau des paramètres techniques

Made in P.R.C – Imported by
Euro Accessoires, Z.A.E, Parc de Champagne, 07300 Tournon sur Rhône –France

Protection of the environment

This symbol attached to the product means that it is an appliance whose disposal is subject to the directive on waste from electrical and electronic equipment (WEEE). This appliance may not in any way be treated as household waste and must be subject to a specific type of removal for this type of waste. Recycling and recovery systems are available in your area (waste removal) and by distributors. By taking your appliance to its end of life to a recycling facility, you will contribute to environmental conservation and prevent any harm to your health.

FAQS

Q: How do I reset the controller to factory settings?

A: To reset the controller to factory settings, press and hold the key for more than 20 seconds until ‘F02’ appears on the screen.

Q: What is the recommended installation location for the solar charge controller?

A: Install the controller in a well-ventilated area away from direct sunlight and humidity to ensure optimal performance and longevity.
