Matt E SP-EVCP-T Single Phase Voltage Monitoring and Protection Unit

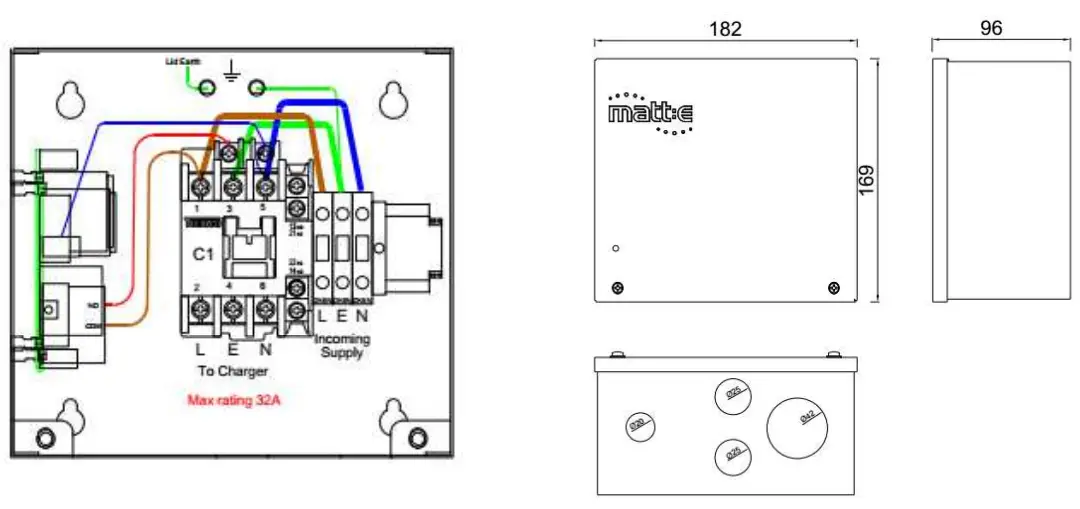

Dimensions and Specifications
- Description Single Phase Voltage Monitoring and Protection Unit
- Input Volts Nominal input voltage Single Phase 230V 50Hz
- Max Load 32 amps
- Cable Entry Facility Bottom, 2 x 20mm
- Terminal Capacity 6.0mm2
- Dimensions ( H x W x D ) 169mm x 182mm x 111mm
- Weight Approximately 3kG
- Enclosure Mild Steel Powder Coated
- Ingress Protection IP2X
- Warranty The matt:e SP-EVCP-T is guaranteed for 3 years from the date of purchase. This warranty is limited to the replacement of faulty components only.
Product Usage Instructions
Step 1: Installation
Ensure that the input voltage matches the specifications of the unit (Single Phase 230V 50Hz). Connect the charge point to the existing PME earthing facility using the provided cable entry facility at the bottom of the uni.t
Step 2: Monitoring and Protection
The unit incorporates a unique monitoring device that disconnects all poles, including CPC, in case of a fault. This ensures safety during EV charging.
Step 3: Maintenance
No additional earth rods or measuring electrodes are required for the proper functioning of the matt:e SP-EVCP-T technology.
Are you installing electric vehicle charge points ontsingle-phasese PME infrastructures?
The SP-EVCP-T from matt:e is a simple single connection unit, which allows for the connection of 1 x 32amp single-phase charge point to the existing PME earthing facility. The unit incorporates our unique monitoring device which disconnects all poles including CPC in the event of a fault. The matt:e SP-EVCP-T technology does not require earth rods or measuring electrodes to function correctly
Product Features
- Built-in matt:e technology
- BS; 7671 18th edition compliant
- NO EARTH ELECTRODES REQUIRED
- Suitable for 1 x 32amp load
- Standard 3 Year parts warranty
- Simple wire in wire-in-wire-out connection
- Standard mild steel IP2X enclosure
- Designed and Built in the UK
Matt:e Ltd, Unit 5 Common Barn Farm Tamworth Road Lichfield WS14 9PX
- t: 01543 227290
- e: info@matt-e.co.uk
- w: www.matt-e.co.uk
FAQs
Q: Is the SP-EVCP-T suitable for single-phase PME infrastructures?
A: Yes, the SP-EVCP-T is designed specifically for installation on single-phase PME infrastructures.
Q: Does the unit require additional earth rods for operation?
A: No, the matt:e SP-EVCP-T technology does not require earth rods or measuring electrodes to function correctly.
