LOGTRACK USB Bluetooth Data Logger
USER MANUAL V1
Products Contents
LOGTRACK USB Bluetooth Data Logger x1
User manual x1
Main Function
- Temperature measurement and recording
- Export data report as PDF/CSV file through USB
- IP65 waterproof
- LCD display
- Alarm checking
- Replaceable battery
- Bluetooth connetion
Specification
| Model | m2sn204 |
| Sensor | Internal temperature sensor |
| Battery | CR2450, 3V, 500mAh, replaceable |
| Battery Life | 12 months |
| Size | 99.5*50*11.8mm |
| Weight | 50g |
| Waterproof Level | IP65 |
| Operation Temperature | -30℃~+55℃ |
| Temperature Accuracy | ±0.5℃ (-20℃~+40℃); ±1℃ (others) |
| LCD Display Resolution | 0.1℃ |
| Memory Maximum | 1920 recording points |
| Time Zone | Users programmable, UTC +00:00 (default) |
| Log Interval | Users programmable, 5 mins (default) |
| Log Duration | Users programmable, 90 days (default) |
| Start Delay | Users programmable, 30 mins (default) |
| Alarm Preset | Users programmable, 2℃-8℃ |
| Data Interface | USB 2.0 |
| Temperature Unit | ℃ |

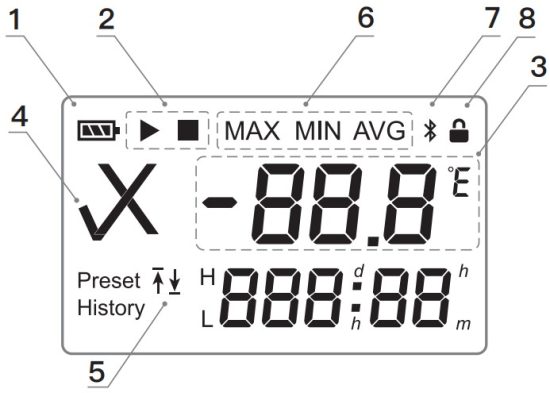

LCD Display Overview
Overview
| No./ Icon | Function | Instruction |
| 1 | Battery level |  Battery low, Please replace the battery promptly. Battery replacement may result in the loss of the time settings. Please reconfigure the parameters after replacing battery. |
| 2 | Recording state |  Recording Stopped |
| 3 | Temperature data | Display the last recorded temperature data |
| 4 | Alarm state | Normal:  Alarm:  |
| Preset | Alarm preset value | The high/low temperature alarm setting |
| 5 | Status Connection | Show when Bluetooth connected , hide when disconnect |
| 6 | Historical data analysis | MAX/MIN/AVG |
| 7 | Bluetooth status | Show when Bluetooth is working proper |
| 8 | Lock status | Show when set password |
Display Examples
| 1 |  |
The device is recording, and there are alarms. The last recorded temperature is 8.7℃. The remaining data to record is 90 days. |
| 2 |  |
During the data recording, the average temperature is 8.4℃, and the recording duration is 12 days. |
| 3 |  |
During the data recording, the minimum temperature is 1.3℃, and the cumulative time of exceeding the preset lowest alarm temperature lasts 6 hours and 45 minutes. |
| 4 |  |
During the data recording, the maximum temperature is 8.7℃, and the cumulative time of exceeding the preset highest alarm temperature lasts 5 hours and 25 minutes. |

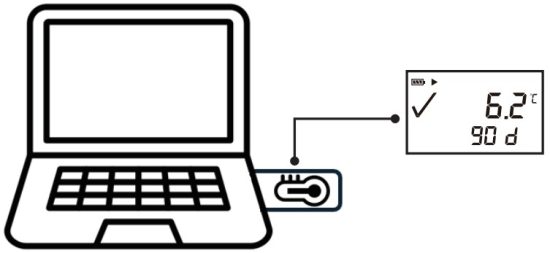

Software Configuration
If you want to use LOGTRACK software to configure LOGTRACK USB, please download from www.logtrack.io/softwares, then install and open the software.
Connect logger to USB port of computer, software will connect and sync the logger automatically, then user could start configuring
Replace battery
Note:
Battery replacement may result in the loss of the time settings. Please reconfigure the parameters after replacing battery.
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
