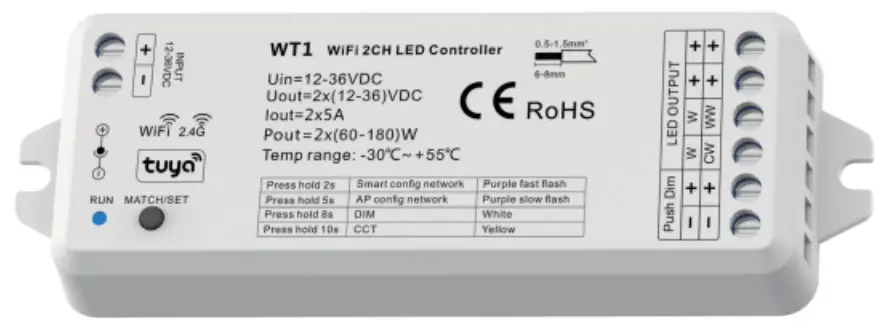

WT1 WiFi and RF 2CH LED Controller
Instruction Manual

WiFi & RF 2CH LED Controller
Model No.: WT1
Two APP cloud control/Voice control/2 Channels/Push-Dim/DC power socket input/Wireless remote control

Features

• Used for controlling single color or color temperature LED strip.
• DC power socket input and 2 channel constant voltage output.
• Tuyo APP cloud control, support on/off, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit, and music play function.
• Voice control, support amazon ECHO and TmollGenie smart speaker.
• Match with RF 2.4G remote control optional.
• Users need to set the light to type by pressing the key before the Tuyo APP network connection and matching the RF remote of some light type.
• Each WT1 controller can also work as a WiFFRF converter, then use Tuyo APP to control one or more RF LED controllers or RF LED dimming drivers synchronously.
• Connect with external push switch to achieve on/off and 0-100% dimming function.
• Light on/off fade time 3s selectable.

Technical Parameters

Input and Output

Input and Output
Input voltage	1 2-36VDC
Input current	10.5A
Output voltage	2 x (12-36)VDC
Output current	2CH,5A/CH
Output power	2 x (60-1 80)W
Output type	Constant voltage

Dimming data

Dimming data
Input signal	Tuya APP + RF + Push Dim
Control distance	30m(Barrier-free space)
Dimming grayscale	4096 (2^12) levels
Dimming range	0-100%
Dimming curve	Logarithmic
PWM Frequency	2000Hz (default)

Safety and EMC

Safety and EMC
EMC standard (EMC)	ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)	EN 62368-1:2020+A11:2020
Radio Equipment(RED)	ETSI EN 300 328 V2.2.2
Certification	CE,EMC,LVD,RED

Environment

Environment
Operation temperature	Ta: -30°C – +55°C
Case temperature (Max.)	Tc: +85°C
IP rating	IP20

Warranty and Protection

Warranty and Protection
Warranty	5 years
Protection	Reverse polarity Over-heat Short circuit

Mechanical Structures and Installations

System wiring

Note:

1. The above distance is measured in a spacious (no obstacle) environment, Please refer to the actual test distance before installation.
2. Please check if the WiFi router net in the 2.4G band, the 5G bond is not available, and do not hide your router network.
3. Please keep the distance between WT 1 devices and router close, and check the WiFi signals.

Wiring Diagram

For single color

Dimming remote
Press and hold match/set key for 8s, until the RUN LED indicator turn white, then release, the controller will become DIM type, then do smart config by Mr PPP, or short press match key to match with dimming RF remote.
For dual-color CCT

CCT Remote
Press and hold the match/set key for 10s, until the RUN LED indicator turn yellow, then release, the controller will become CCT type, then do smart config by two APP, or short press match key to match with CCT RF remote.
Note:

1. Users can connect a constant voltage power supply or power adapter os power input.
2. Switch off the power, then switch on the power, repent again. Immediately short press match key 3 times, the light on/off time will change between 3s and 0.5s.
3. For CCT light, continuous power off and on will change 3 levels of color temperature WW, NW, and CVV1 in sequence.

Push Dim

DIM Single color	Click	ON/OFF
	Double Click	Turn on at 100% or 10%(night light) and vice-versa
	Long press(>1s) from OFF	Dimming UP/DOWN
	Long press(>1s) from ON	Dimming UP/DOWN
CCT Dual Color	Click	ON/OFF
	Double Click	Turn on at 100% or 10%(night light) and vice-versa
	Long press(> 1 s) from OFF	Color temperature UP/DOWN (turn off and turn on to return dimming)
	Long press(>1s) from ON	Dimming UP/DOWN

Tuya APP network connection

Press and hold the Match/Set key for 2s, or push twice Match/Set key fastly, or when press and hold the Match/Set key for 8 or Os to set 2 kinds of light type: Clear previous network connection, enter Smart config mode, the purple LED indicator flash fastly, the output LED will flash 10 times.
Press and hold the Match/Set key for 5s:
Clear the previous network connection, enter AP config mode, and the purple LED indicator flashes slowly.
If the smart config failed, please try AP config. Repeat power on and off for 5 consecutive times, also clear previous network connection, enter Smart config mode, and the output LED will flash 10 times
If Tuya APP network connection succeeds, the RUN LED indicator will stop flashing purple, and turn corresponding light type color (White: DIM, Yellow: CCT. in Tuya APP, you can find DIM or CCT device.

Tuya APP interface
DIM: Touch the brightness slider to adjust brightness.
CCT: Touch the color wheel to adjust color temperature. Touch brightness slide to adjust brightness.
WTl match remote control (Optional)
End-user can choose the suitable match/delete ways. Two options are offered for selection:
Use the WT1 ‘s Match key
Match: Short press the match key of WT 1, immediately press the on/off key (single-zone remote) or zone key (multiple zones remote) on the remote. The LED indicator fast flash a few times means the match is successful.
Delete: Press and hold the match key of WT1 for 15s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Match: Switch off the power of WT1, then switch on the power, repeat again. An immediately short press on/off key (single-zone remote) or zone key (multiple zones remote) 3 times on the remote. The light blinks 3 times means the match is successful.
Delete: Switch off the power of WT1, then switch on the power, repeat again. An immediately short press on/off key (single-zone remote) or zone key (multiple zones remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.
Will work as a WiFi-RF converter to match RF LED controller or dimming driver
End-user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Match: Short press the match key of the controller, immediately press the on/off key on the Tuya APP. The LED indicator fast flash a few times means match is successful.
Delete: Press and hold the match key of the controller for 5s, The LED indicator fast flash a few times means the match was deleted.
Use Power Restart
Match: Switch off the power of the controller, then switch on the power, repeat again. An immediately short press on/off key 3 times on the Tuya APR The light blinks 3 times means the match is successful.
Delete: Switch off the power of the controller, then switch on the power, repeat again. An immediately short press on/off key 5 times on the Tuya APR The light blinks 5 times means the match was deleted.
